Smart Solar Street Lighting with High Luminous Flux and Remote Access

Customization:	Available
After-sales Service:	10years
Warranty:	5years

Basic Info

Model NO.	OLF
Light Source	LED Lamp
Lamp Body Material	Aluminum
Light Type	Solar
Color Temperature	3000K-7500K
Power	10W-100W
Technics	Die-Casting
Illumination Time	5-7 Rainy Days
Cell Type	LiFePO4 Lithium
Charging Time (H)	4

Usage	Garden, Street, Rural Roads, Sidewalks
IP Rating	IP67
Certification	CE, RoHS, FCC
Voltage	3-6V
With Light Source	With Light Source
Warranty(Year)	5 Years
Luminous Flux	1250lm-8000lm
LiFePO4 Battery	64wh-800wh
Mounting Height	3m-10m
Installation Spacing	15m-50m

Packaging & Delivery

Package Size	1500.00cm * 450.00cm * 350.00cm
Package Gross Weight	17.000kg

Product Description

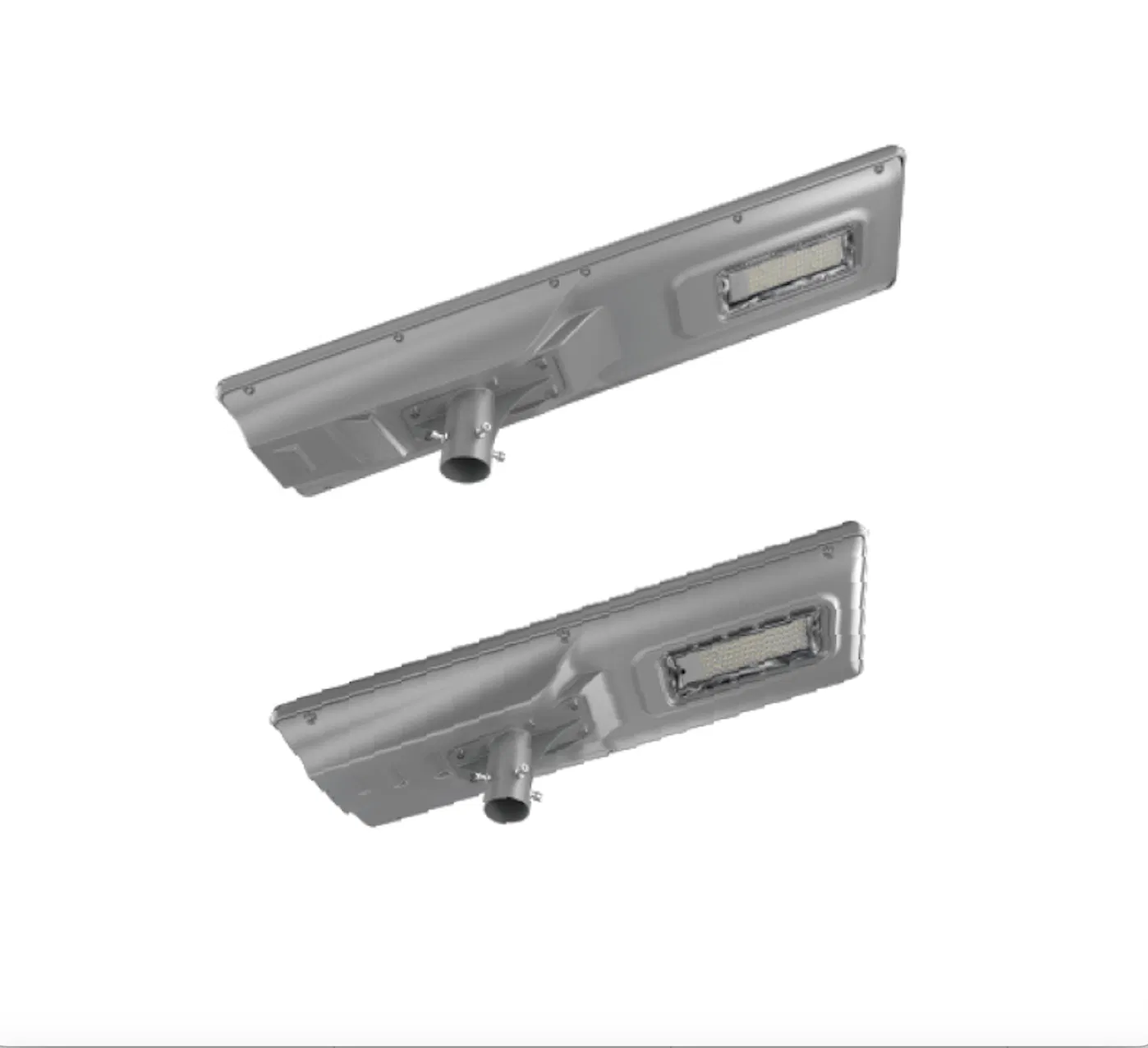

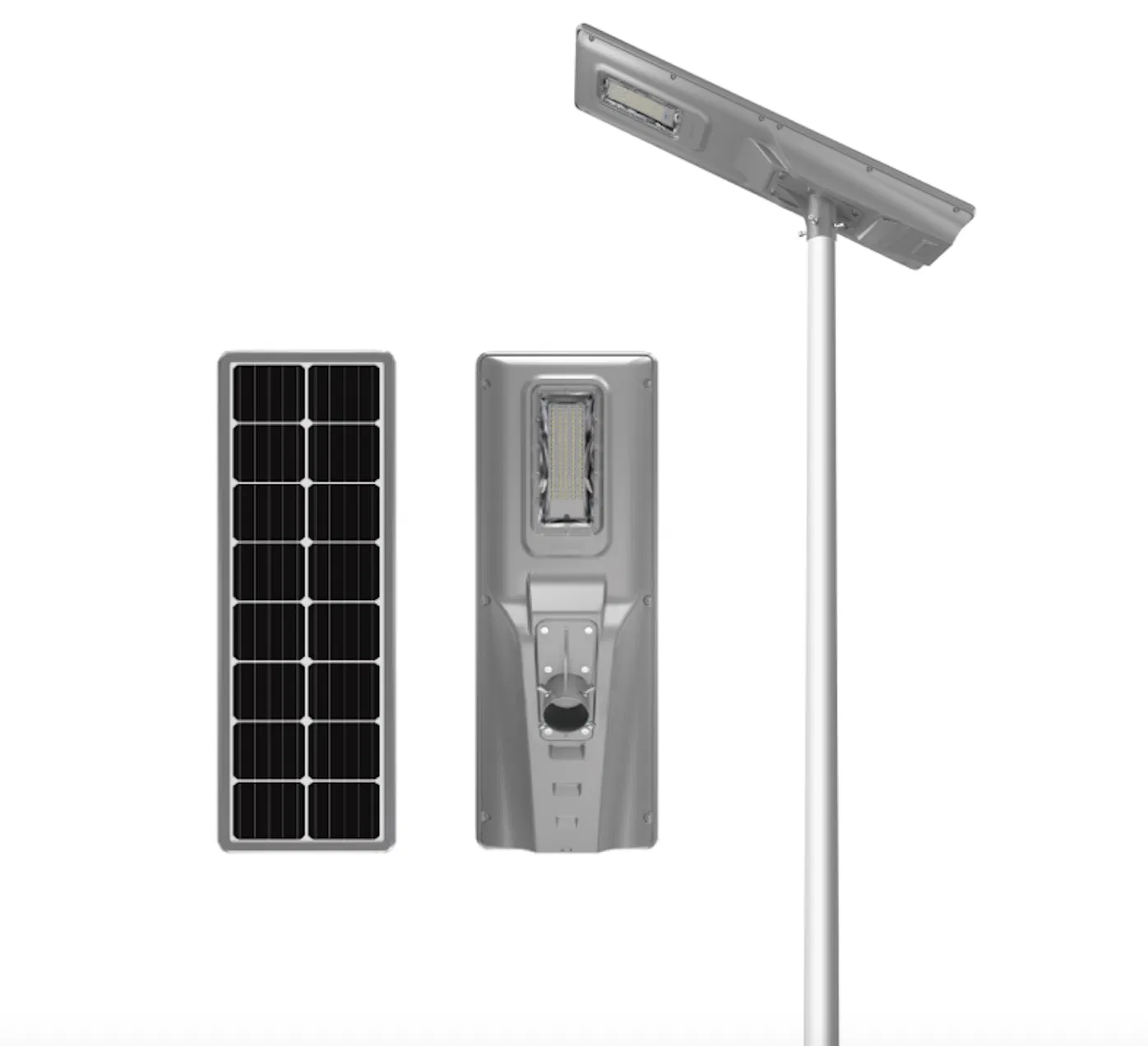

High-performance Solar Street Light

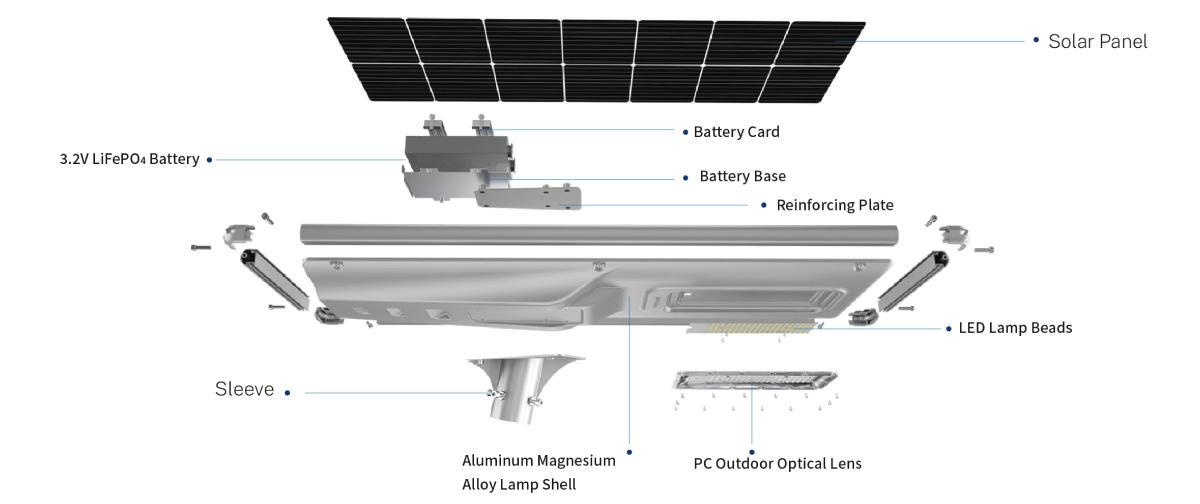

All parts inside Lamp Head: mono PV, LED, LiFePO4. Poly PV, LED, LiFePO4, MPPT SCC.

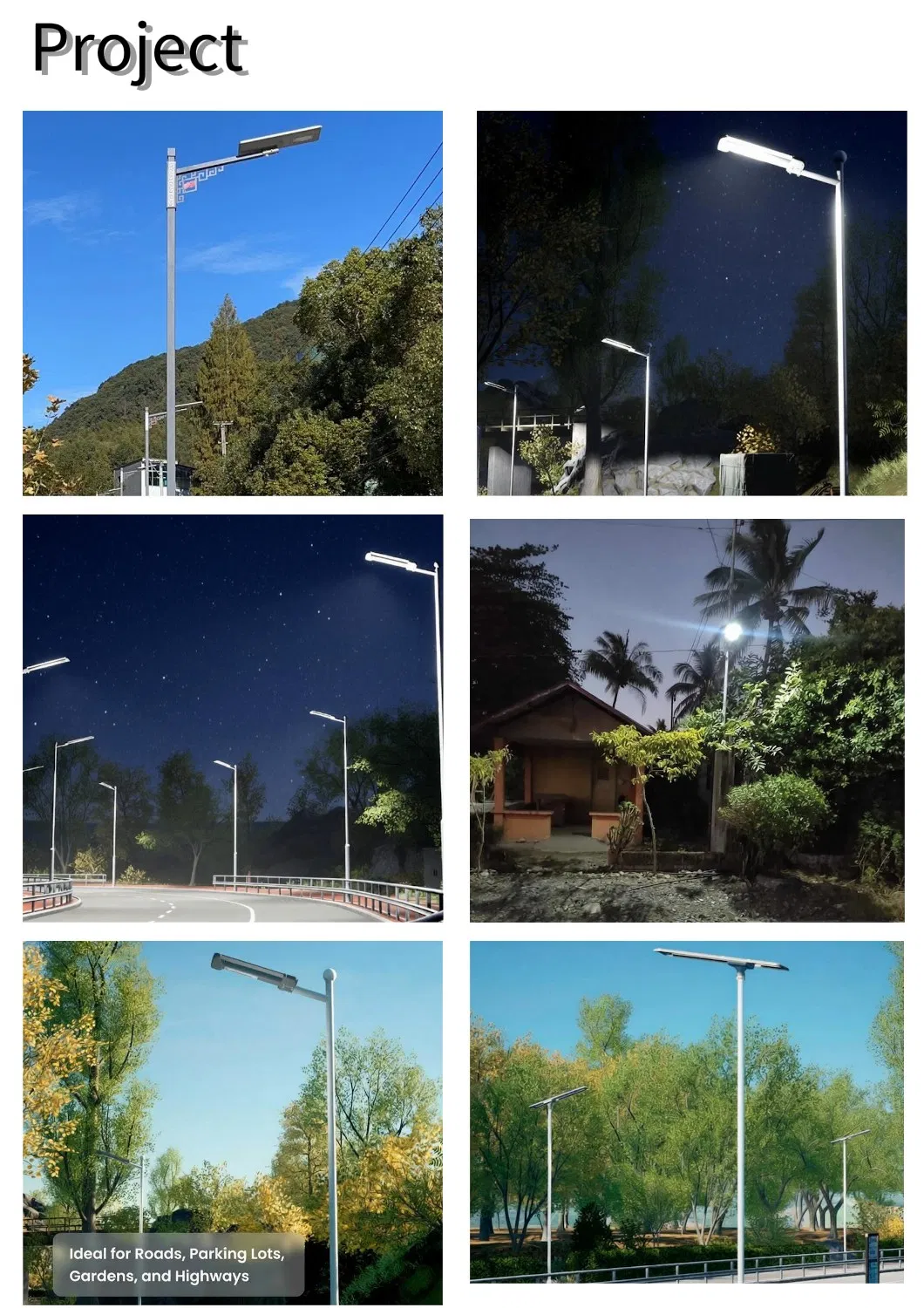

Applications

Municipal & Urban Roads: Main/secondary roads, highways, bridges
Residential & Community: Community roads, parks, Villa areas
Public & Recreational Spaces: City parks, Plazas, squares, Campuses
Industrial & Commercial: Factory yards, logistics hubs, Remote roads
Temporary & Special Sites: Construction sites, Mining areas, Islands

Key Advantages

No trenching/cabling: quick install, low infrastructure cost
100% solar: no electricity bill, carbon-free
Smart control: auto on/off, motion sensor (dim→full), energy-saving
IP67: waterproof/dustproof, long life (LiFePO~10yr)
Easy maintenance: clean panel, modular replacement

Smart Solar Street Lighting with High Luminous Flux and Remote Access

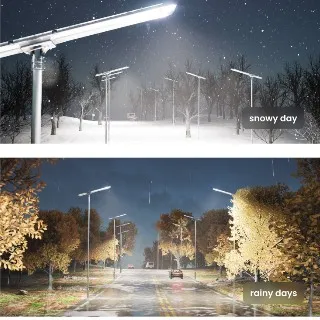

Global & Climate Adaptation

High-sun regions: Africa, Middle East, Southeast Asia
Harsh climates: deserts, heavy rain/snow, salt spray (500hr test)
Solar Panel Power: 25W-120W
Lithium Battery: 64WH-320WH
Luminous Flux: 1250LM-8000LM

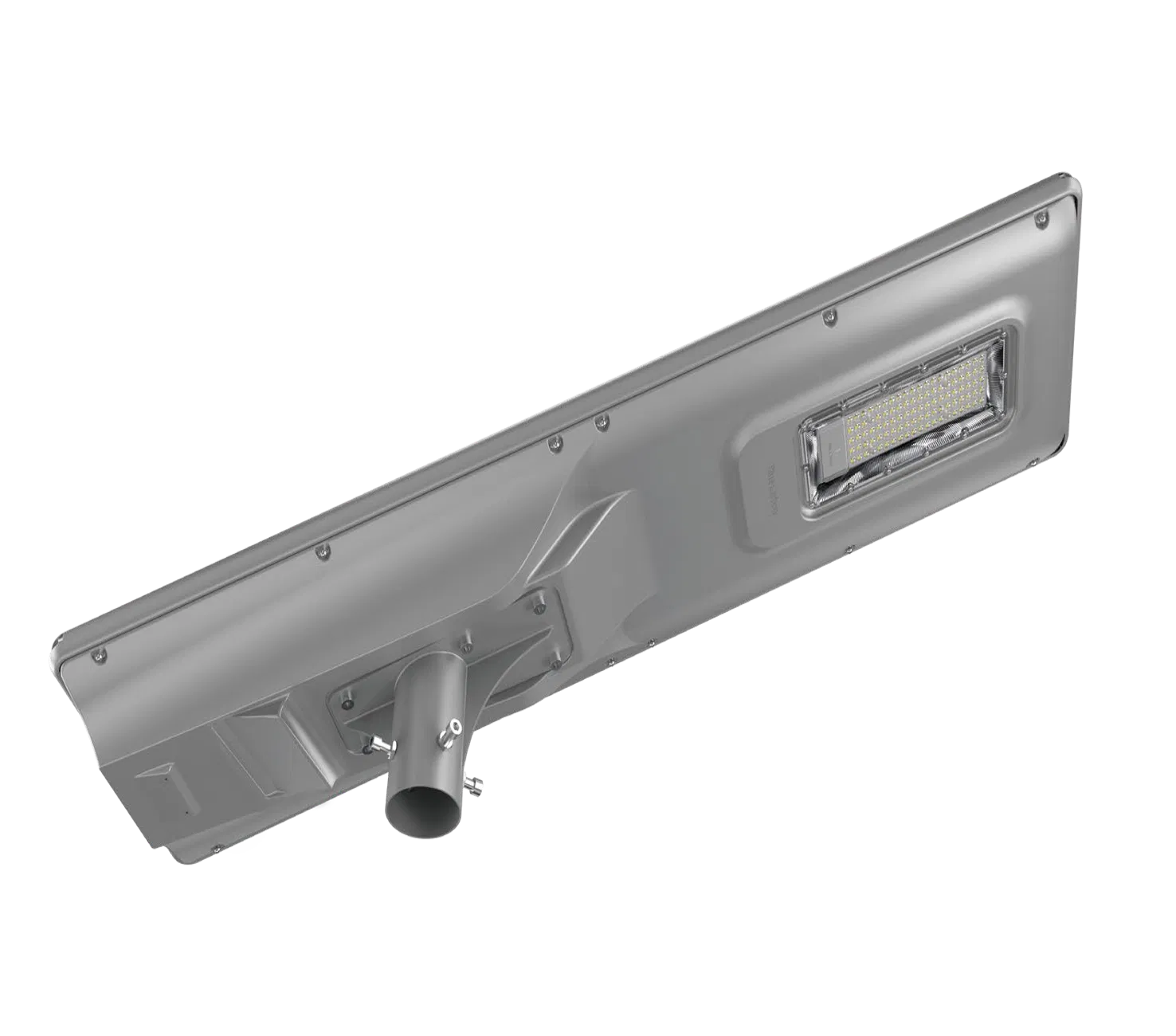

Super components

Wide lighting arrange

Installation

Technical Specifications

(Custom configurations available upon request.)

Model	OLF-10	OLF-30	OLF-60	OLF-80	OLF-100
Led Lamp	10W	30W	60W	80W	100W
Solar Panel	25W	60W	120W	100W	140W
Lithium-ion Battery	64WH	128WH	64WH	640WH	800WH
Mounting Height	3-5m	6-8m	8-10m	8-10m	8-10m
Light Space	15-20m	20-30m	35-45m	40-50m	40-50m
Color Temperature	6000k -6500k Day Light White
Lumen (lm)	1250	3000	6000	8000	10000
Working mode	w/o motion sensor
Net Weight (kgs)	4.6	13.8	14.3	18.3	18.6
Gross Weight (kgs)	5.4	16	16.6	21.5	21.8
Lamp Dimension (mm)	835×229×50mm	1661×283×40mm	1661×467×40mm	1338×384×253mm	1338×384×253mm

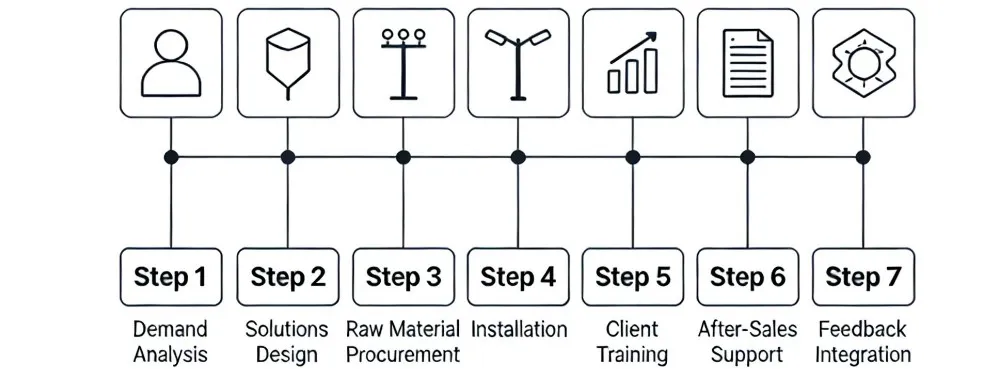

Project Process

All In One Solutions Provide excellent services

After Sales Service

Standard Warranty: 5 years
Extended Warranty: Optional coverage up to 10 years.
Global Support: 24/7 tech support and spare parts available.
Training: On-site or remote operation & maintenance training.

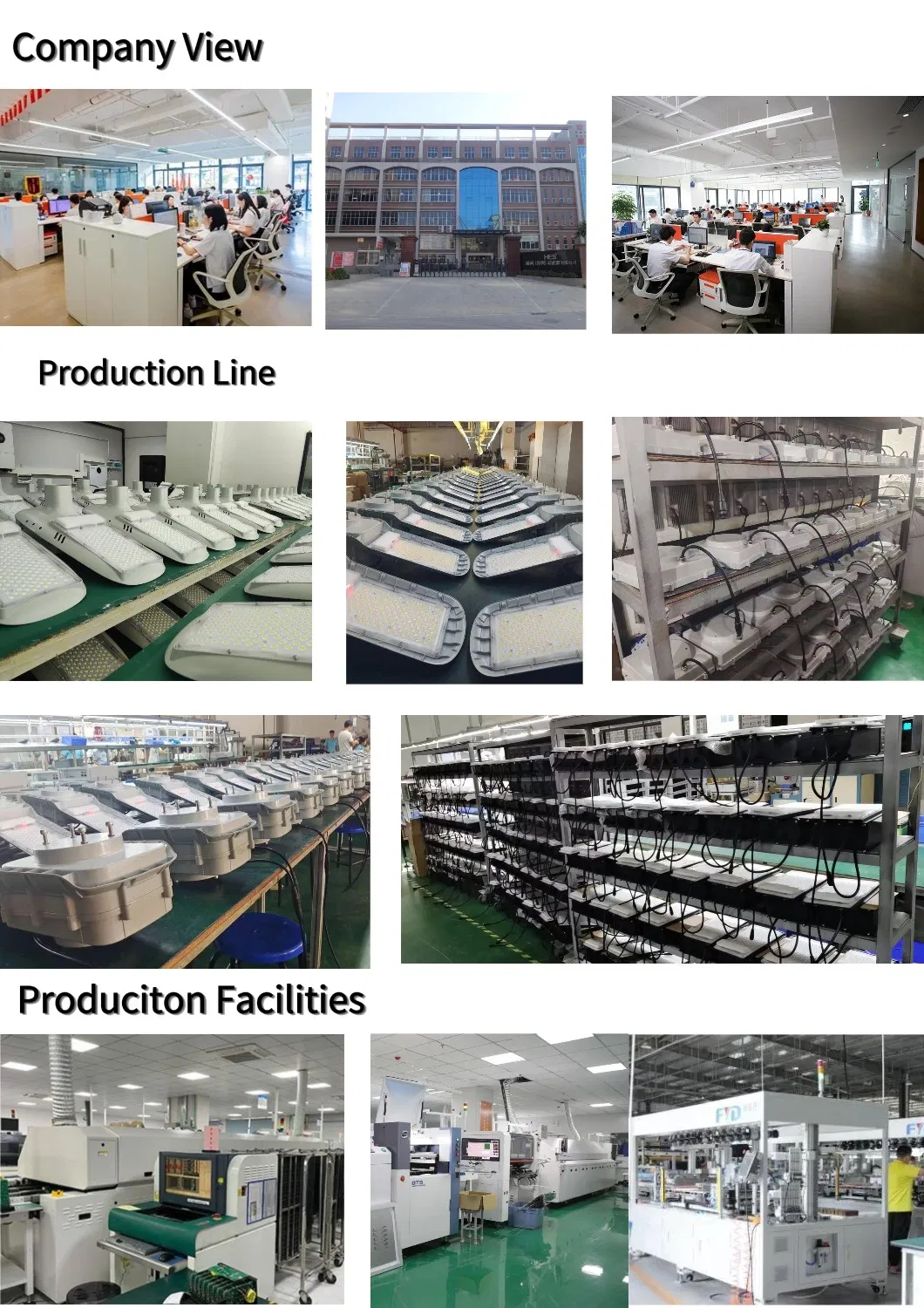

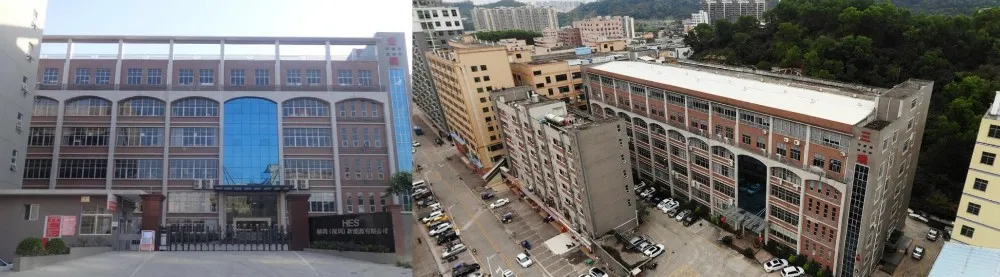

Profile

Founded in 2010; billion-dollar new energy player. In 2013, invested in: Solar Lighting, Portable Power Station, Solar Kits, Solar Power System. 16 years in solar products, excels in engineering solar solutions. We design diverse solar solutions. In-house expertise in solar for 20 years. Products adhere to ISO 9001 & ISO 14001.
