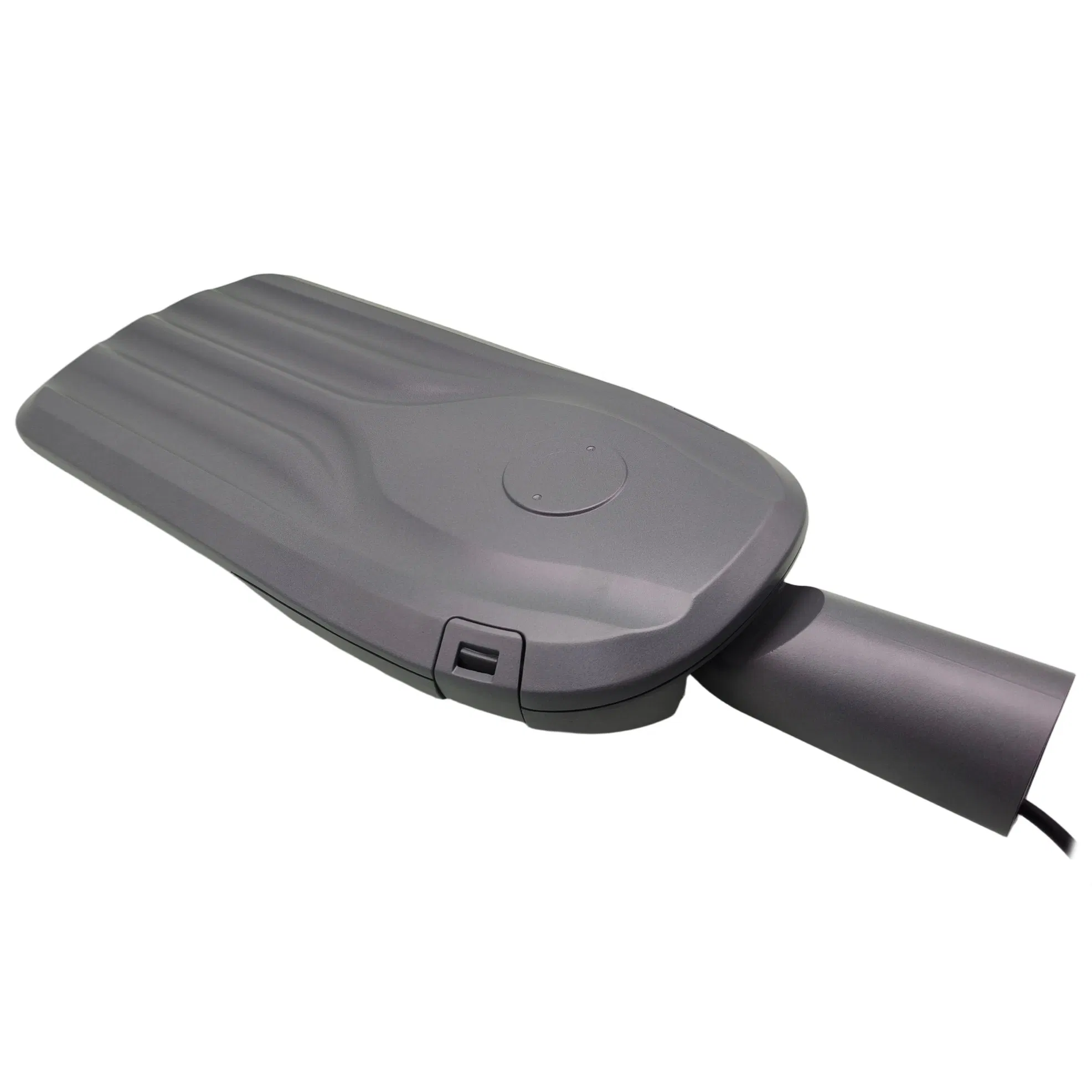

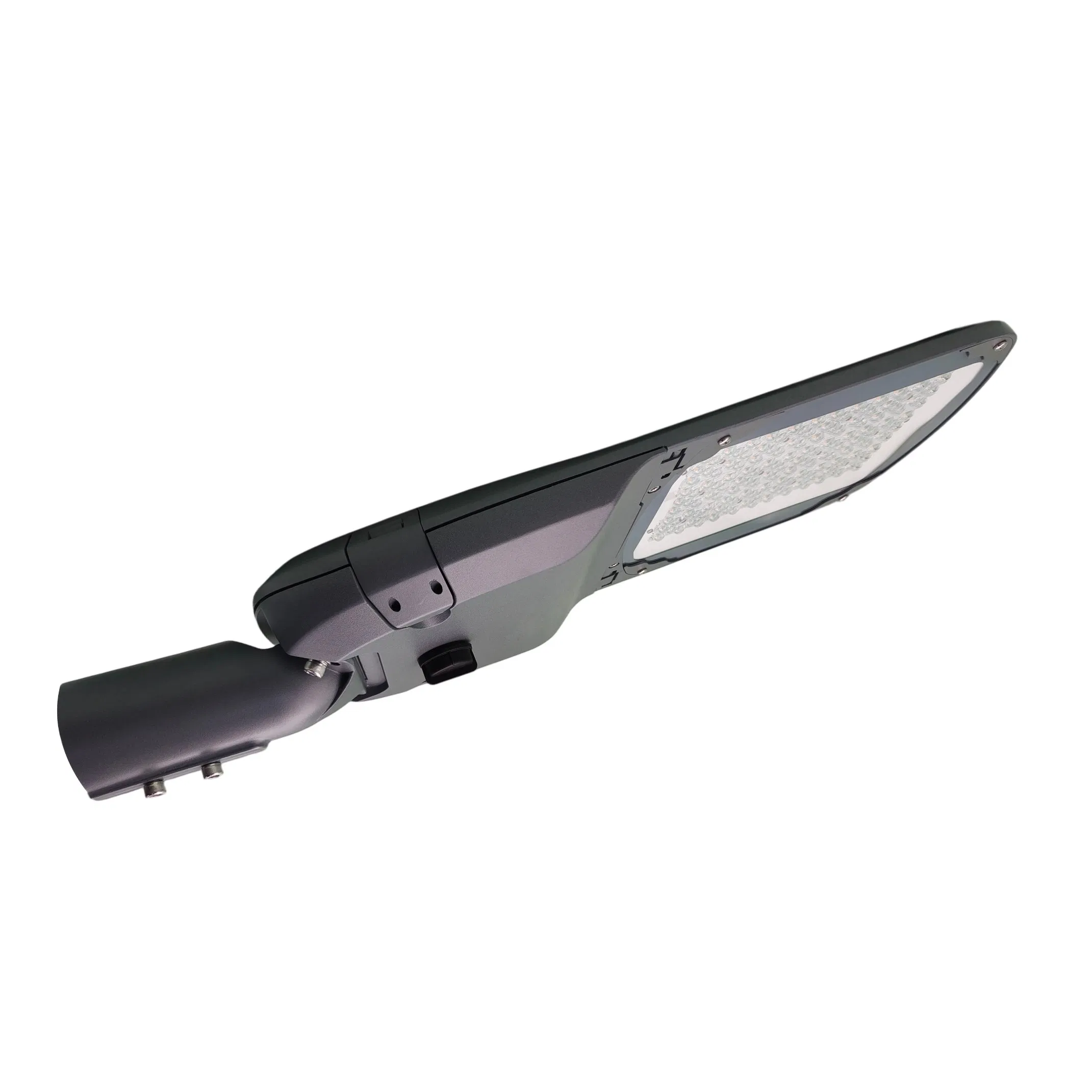

LED Street Light for Road and Highway Outdoor Lighting Projects for Africa Market Suitable for Contractors Infrastructure and Municipal Applications

1 / 5

LED Street Light for Road and Highway Outdoor Lighting Projects for Africa Market Suitable for Contractors Infrastructure and Municipal Applications

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Lamp Body Material

Aluminum

Power

80W-350W

Application

Square, Highway, Garden, Parking Lot, Street Road, Garage, Warehouse

IP Rating

IP66

Certification

CB, DLC, CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, VDE, TUV

Input Voltage

277V

With Light Source

LED Chips Brand

CREE

Lumen Output

135-170lm/W

Beam Angle

T2 / T3 / T4 / T5 / 90x120deg

IK Rate

IK09 / IK10

Pole Height

6m / 10m / 12m / 20m

Transport Package

Carton Box

Specification

590*360*135mm

HS Code

9405421000

Production Capacity

50,000 PCS / Year

Product Description

LED Shoebox flood Lights are commonly used to replace HPS or traditional shoebox lights and metal halides, and can provide energy savings of up to 65-80% with PLC dimmer systems. These shoebox floodlights are safe & durable for outdoor use and protected from rain, snow, and weak jets of water, such as sprinklers. LED Shoebox flood Lights are perfect for stadiums, parks, billboards, places of worship and street lighting.

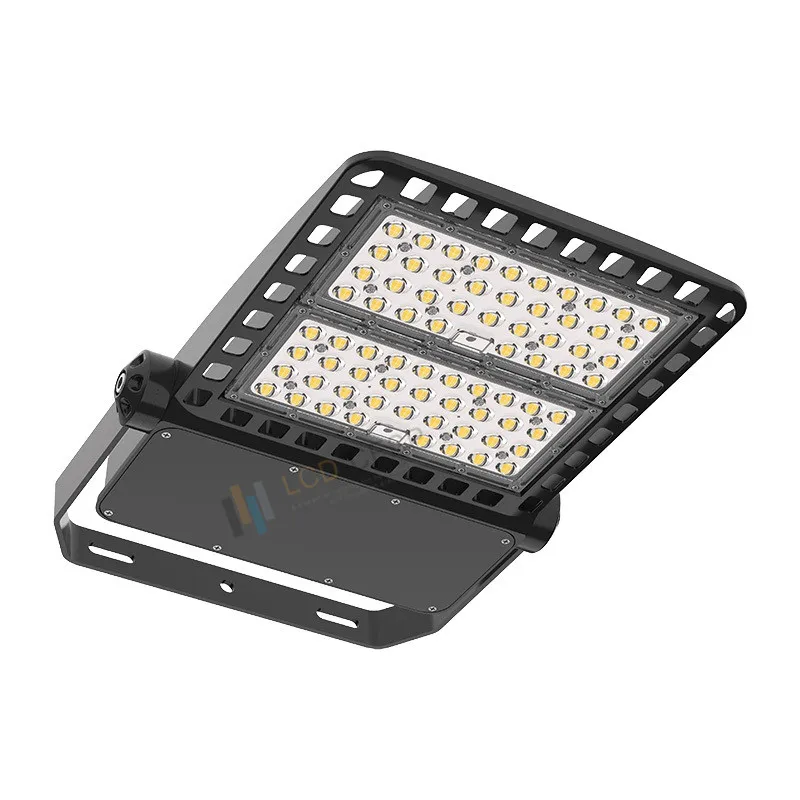

LED Street Light for Road and Highway Outdoor Lighting

Product Features

Excellent Heat Dissipation Professional and durable design maximizes cooling performance.
Easy Installation & Maintenance User-friendly construction ensures trouble-free setup.
Weatherproof Cable Design No wires are exposed to sun or rain, increasing long-term reliability.
Highly Energy Efficient Delivers outstanding efficacy of up to 140lm/W.
Low Profile Aerodynamic Housing Slim, state-of-the-art design minimizes wind resistance (EPA).
IP66 Rated Protection Perfectly suitable for wet locations and outdoor environments.
5-Year Warranty Guarantees performance and long-term peace of mind.

Our LED Shoebox flood light and Street light brings a uniform lighting experience to large spaces. It was built for parking lots, downtown areas, neighborhoods, walkways and building grounds. Thanks to a variety of mounting options, available wattages and beam angles, it can be configured to fit most requirements. Its new and efficient heat sink design allows for a professional and durable housing shape while ensuring excellent heat dissipation. The optional photocell daylight sensor provides a smart way of further increasing energy savings while assuring that the right level of brightness is given as needed.

Product Options

About 25 different beam angle options

PLC dimmer / DALI / 0-10V dimmable available

Photocell / Motion sensor integration

Area of Application

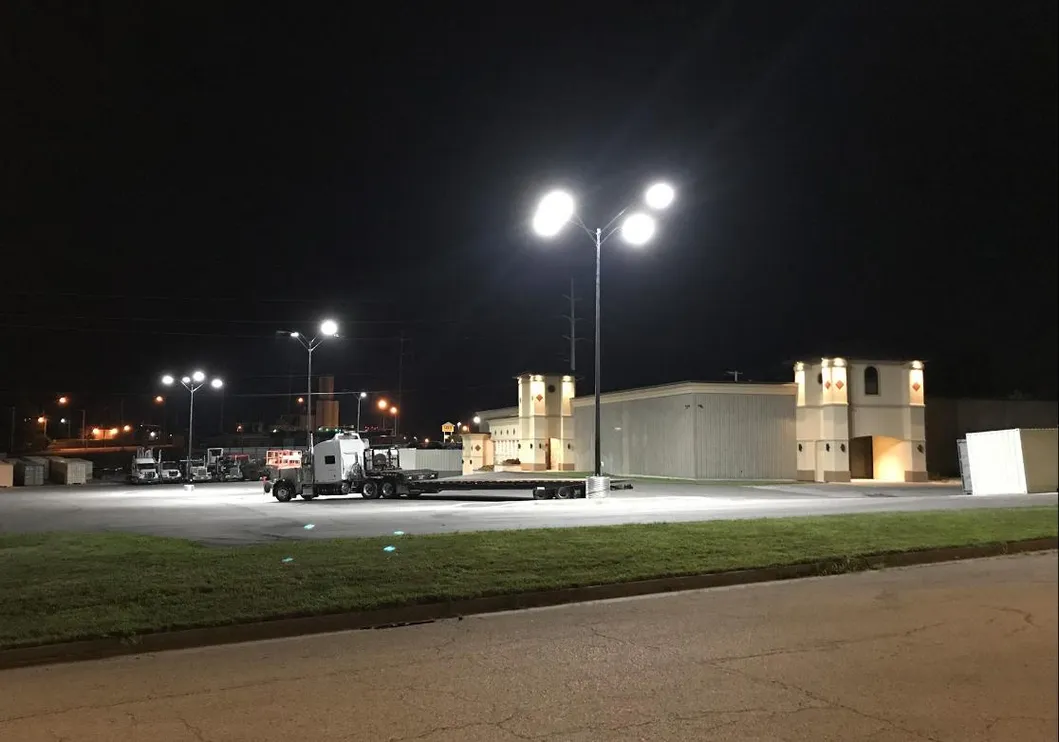

Parking lots, Streets, Sea ports & Factories

Walkways and Building grounds

Roadways, Downtown areas & Neighborhoods

Certificates & Markets

American Market: DLC Premium, ETL Certified

European Market: CE Approved (EMC, LVD, RoHS)

Key Product Highlights

[Super Bright & Energy Saving] Equipped with super bright SMD5050 & 3030 LED light sources (Luxeon/Cree/Bridgelux), delivering high-efficiency luminous output up to 140lm/W with minimal decay. A 21,000LM output matches traditional 750W-800W HID lights. Combined with premium LEDiL lenses (e.g., 70x150° beam angles) and PLC dimming systems, energy savings reach up to 80%-85%.
[Waterproof IP65 / IP66 & Easy Installation] The robust IP66-rated design withstands severe outdoor environments like heavy rain, snow, and storms. Compatible with five different slip-fitter mount configurations to fit standard 60mm (2.36") diameter poles. Feature-packed with a 180-degree adjustable bracket for accurate site targeting.
[Professional Heat-Sink Fin Dissipation Design] Features advanced thermal management with a structural fin setup that maximizes contact area with ambient air, facilitating faster heat dissipation. Keeps both LED chips and drivers cool to extend overall lifespan past 60,000 hours (over 16 years at 10 hours/day).
[LEDiL Brand Lens & Free DIALux Layout Service] Employs precision-engineered LEDiL lenses to ensure optimized lighting uniformity, safety, and visual comfort. We offer complimentary DIALux layout designs customized to your specific space measurements, pole heights, and targeted illumination levels to recommend the perfect fixture power and quantity.
[Reliable Certification & Warranty] Independently verified by ETL, DLC, CE, FCC, and RoHS to guarantee quality, safety, and operational reliability. Includes double-secure installation steel rope and a comprehensive 5-year free maintenance warranty covering quality issues.

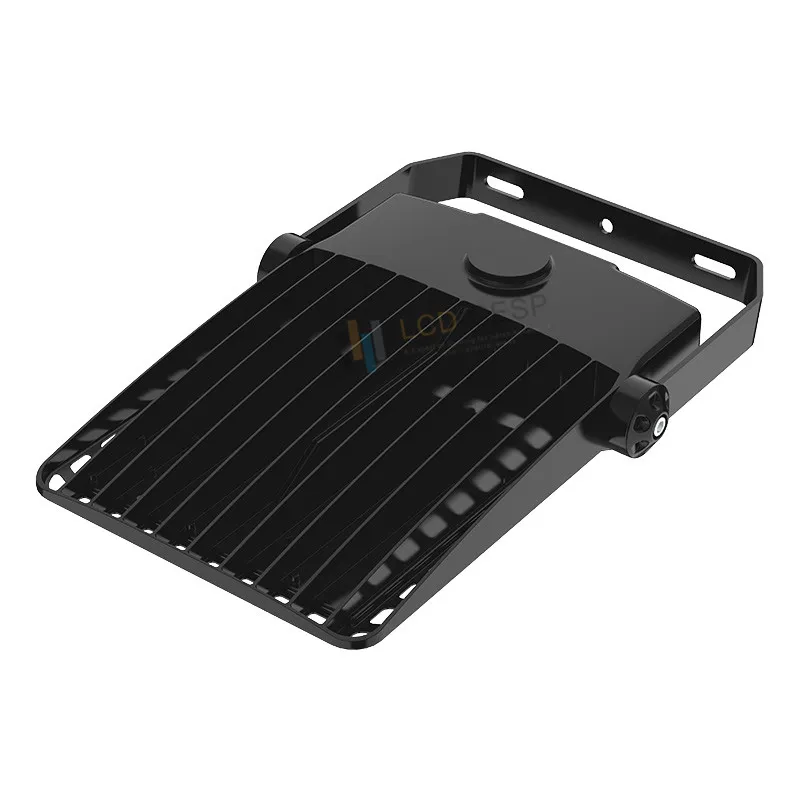

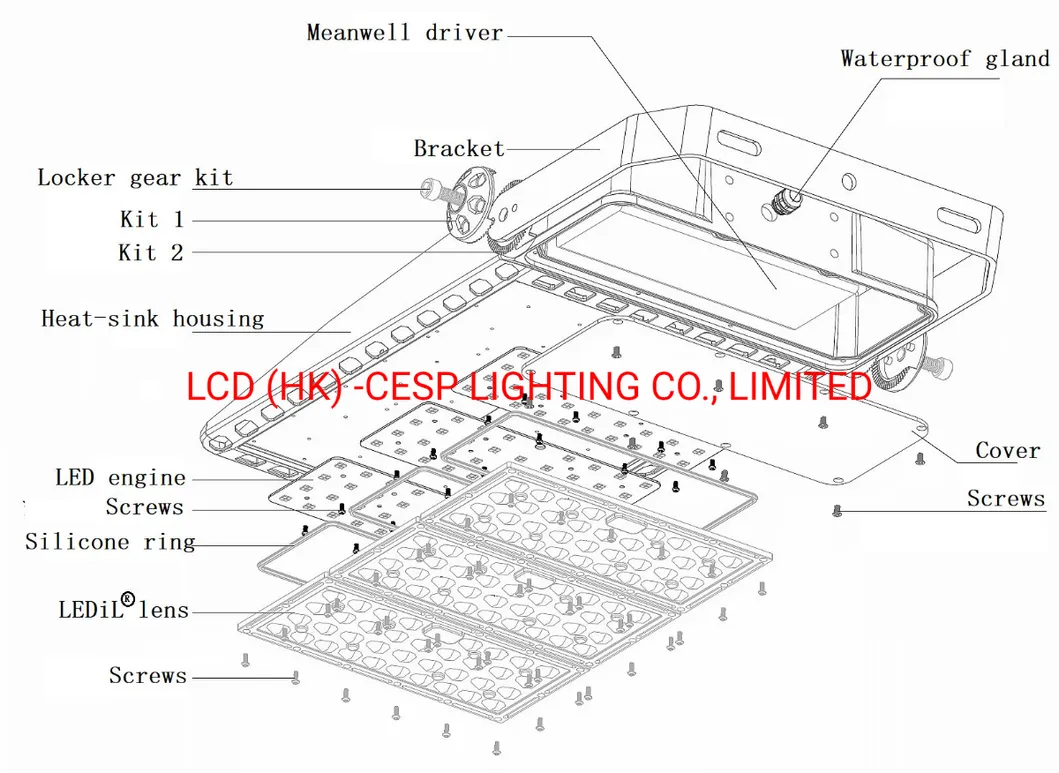

High Light Features of Outdoor LED Fixture

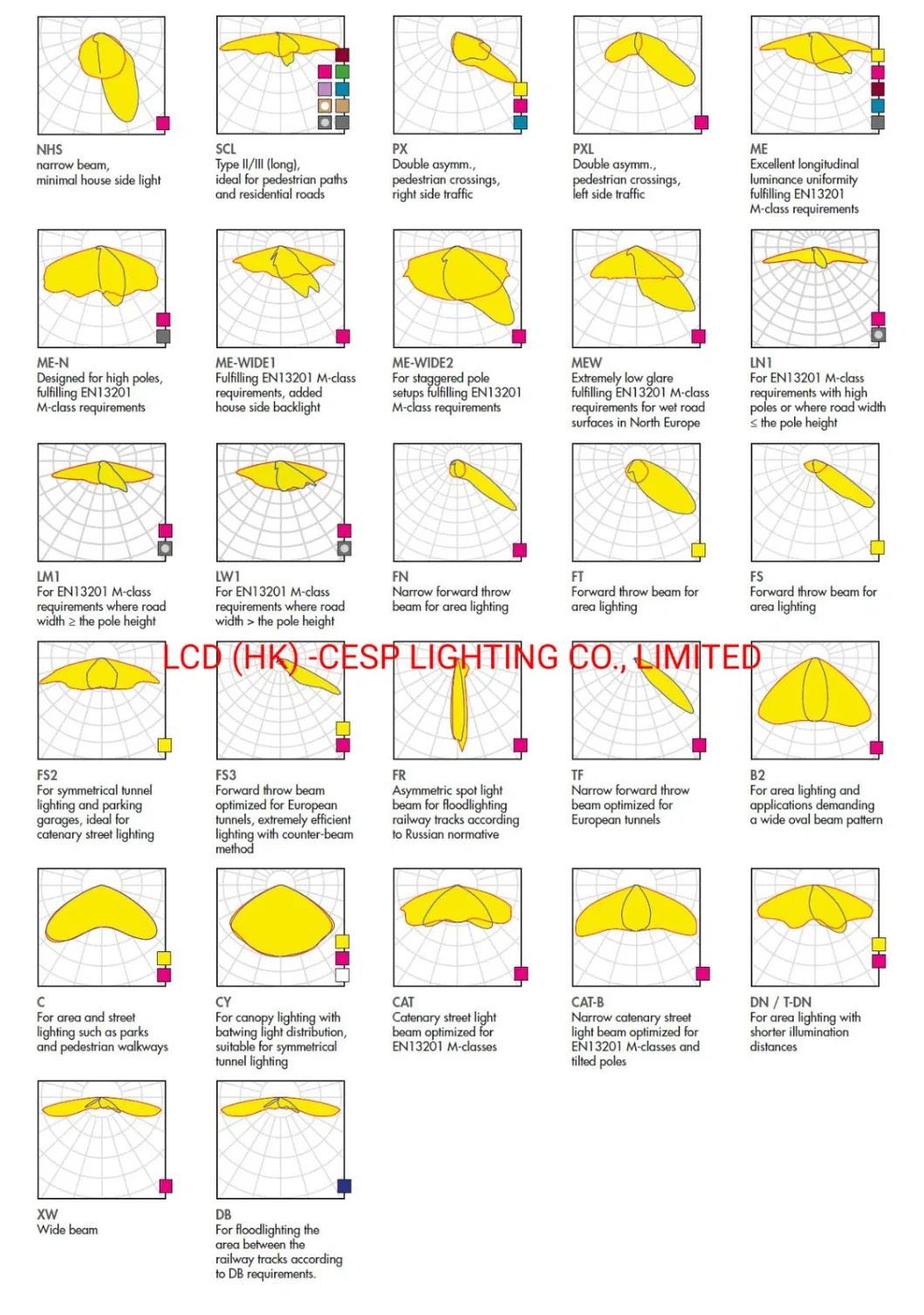

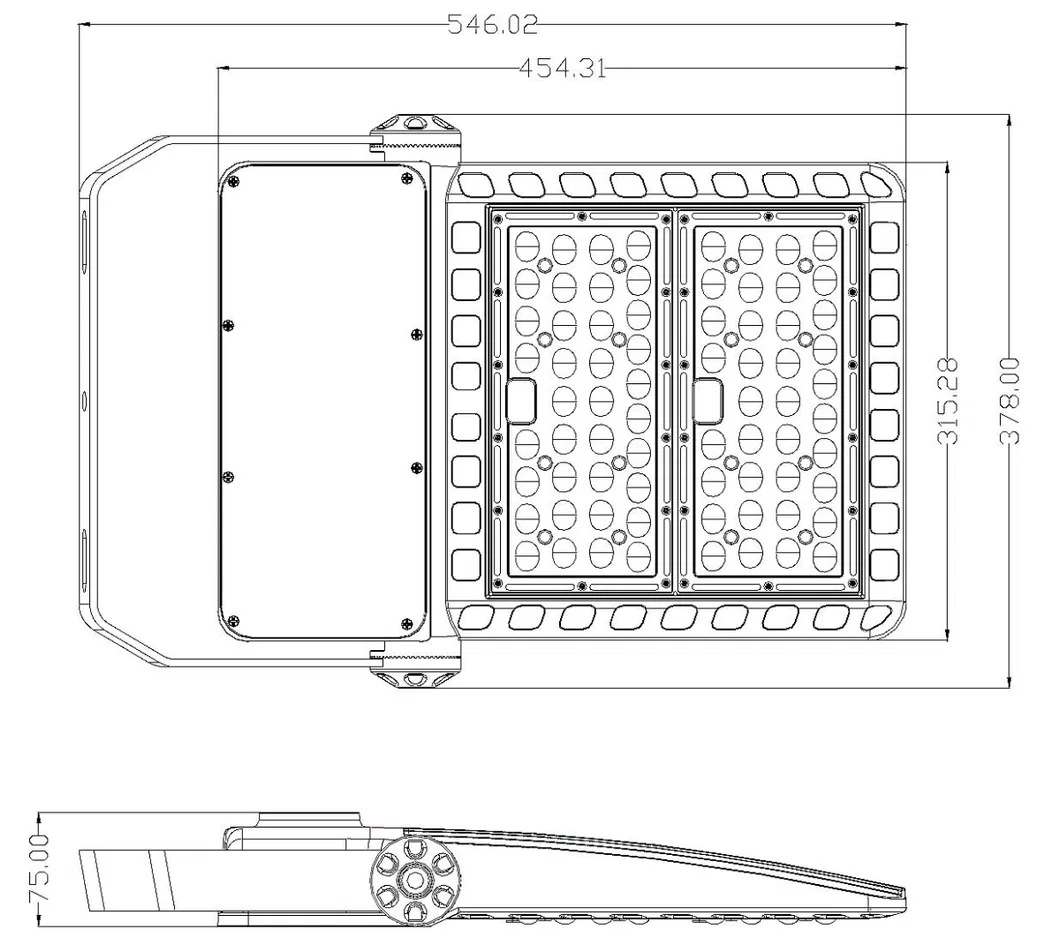

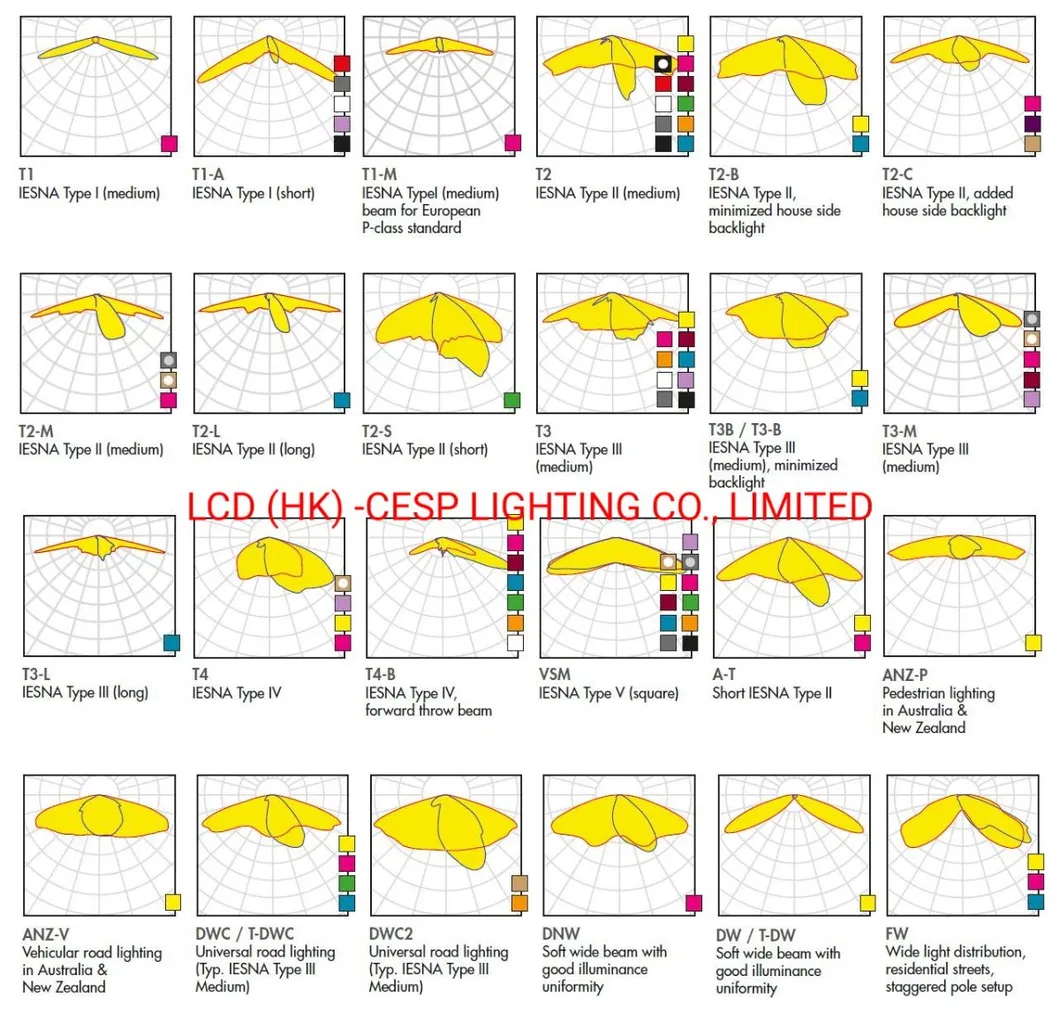

Dimensions & Light Curves

Technical Specification

Standard Lumen Efficiency (130lm/W ~ 140lm/W)
Model	Nominal Power (W)	Nominal Voltage	Luminous Efficacy	Luminous Flux (lm)	Beam Angle	LED Configuration	CRI
G6F-A1-80	80W	AC100~277V 50~60Hz	140 ± 5 lm/W	11,200 ± 5%	Type II Type III Type IV Type V Customized	140 PCS SMD 3030	>70 Ra
G6F-A1-100	100W		140 ± 5 lm/W	14,000 ± 5%		140 PCS SMD 3030
G6F-A1-120	120W		140 ± 5 lm/W	16,000 ± 5%		140 PCS SMD 3030
G6F-A1-150	150W		140 ± 5 lm/W	20,300 ± 5%		140 PCS SMD 3030
G6F-A1-200	200W		140 ± 5 lm/W	28,000 ± 5%		280 PCS SMD 3030
G6F-A1-250	250W		140 ± 5 lm/W	35,000 ± 5%		420 PCS SMD 3030
G6F-A1-300	300W		140 ± 5 lm/W	41,000 ± 5%		420 PCS SMD 3030

Electrical & Photometrical Data
Operating Frequency	50-63 Hz
Standard Current Range	AC100-277V / 12V 24V 32V
Power Factor (λ)	>0.95
Fixture Efficiency	>90%
Startup Time	0.1 seconds
Warm-up to 60%	0.5 seconds
Available CCT	3000K, 4000K, 5700K, 6500K
Color Standard Deviation	<3 MacAdam Steps
Unified Glare Rating (UGR)	<27

Standards, Safety & Temperatures
Protection Grade	IP65 / IP66
Tested Dielectric Strength	3-4 KVac
Safety Features	Open circuit, Short circuit, Overvoltage protection
Heatsink Working Temp.	-30ºC to +75ºC
Ambient Operating Temp.	-30ºC to +55ºC
Storage Temperature	-40ºC to +80ºC
Energy Efficiency Grade	A+ / A++
Service Lifespan & Cycles	5 Years / 100,000 Switch Cycles
E.O.L Lumen Maintenance	70-80%

Packing & Logistics Information
Model	Unit Dimension (mm)	Carton Dimensions (cm)	Quantity/Carton	Net Weight (kg)	Gross Weight (kg)
G6F-A1-80W/100W/120W/150W	426 * 378 * 75	59 * 36 * 13.5	1 PCS	5.5 kg	8.6 kg
G6F-A1-200W	546 * 378 * 75	71 * 36 * 13.5	1 PCS	6.8 kg	9.8 kg
G6F-A1-250W/300W	671 * 378 * 75	83 * 36 * 13.5	1 PCS	9.6 kg	13.8 kg

Mounting Arms Options

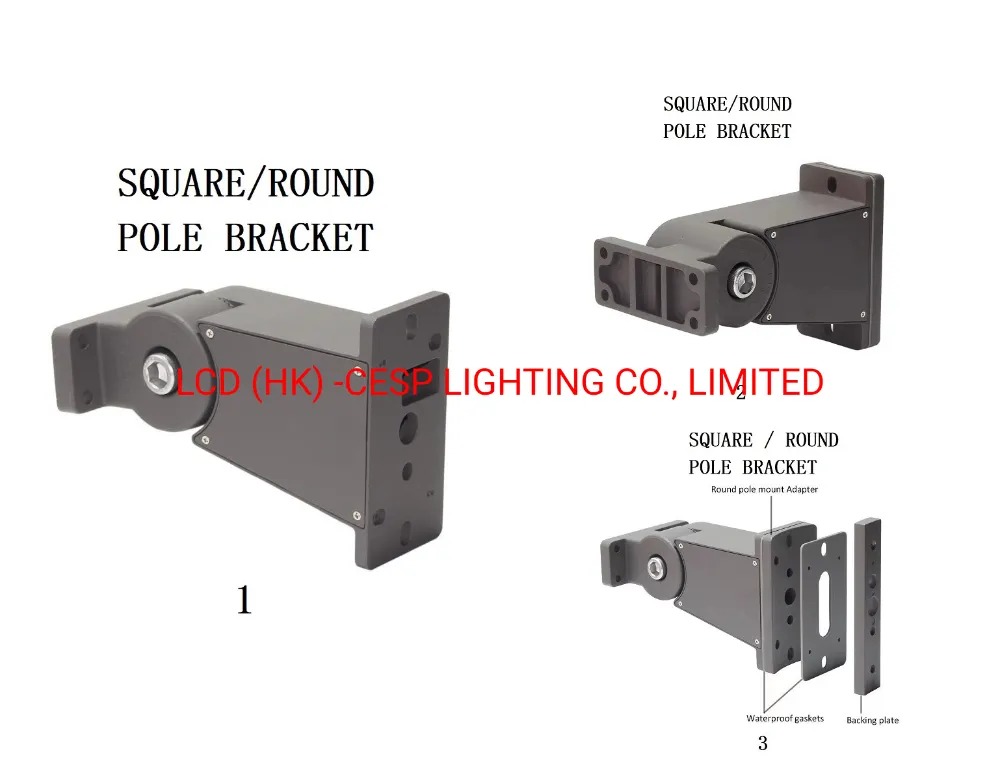

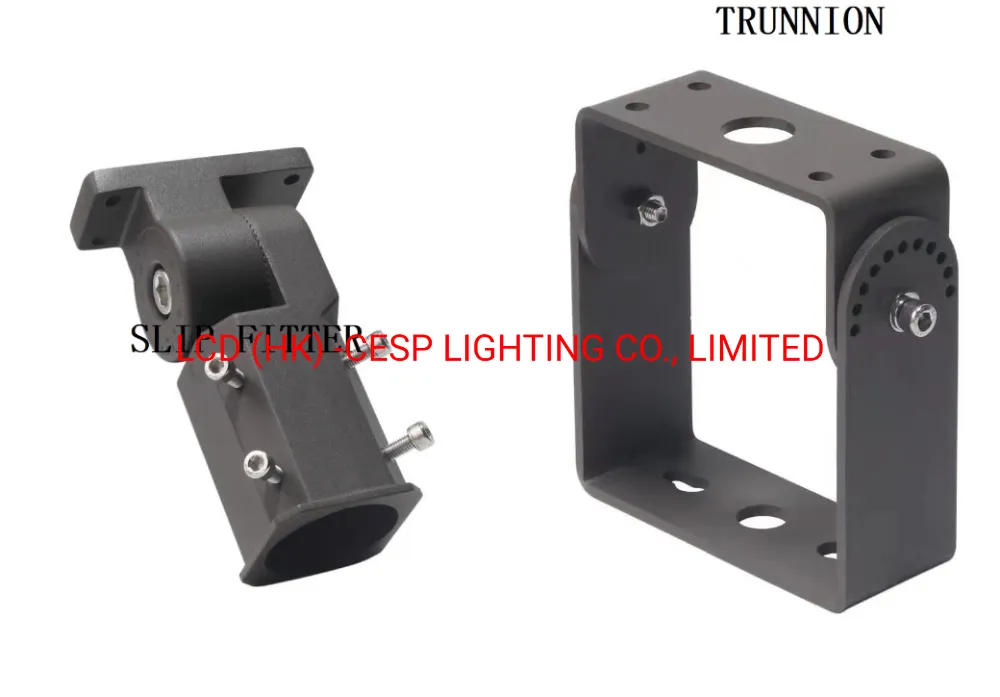

Mounting Arms Slip Fitter Bracket Design B

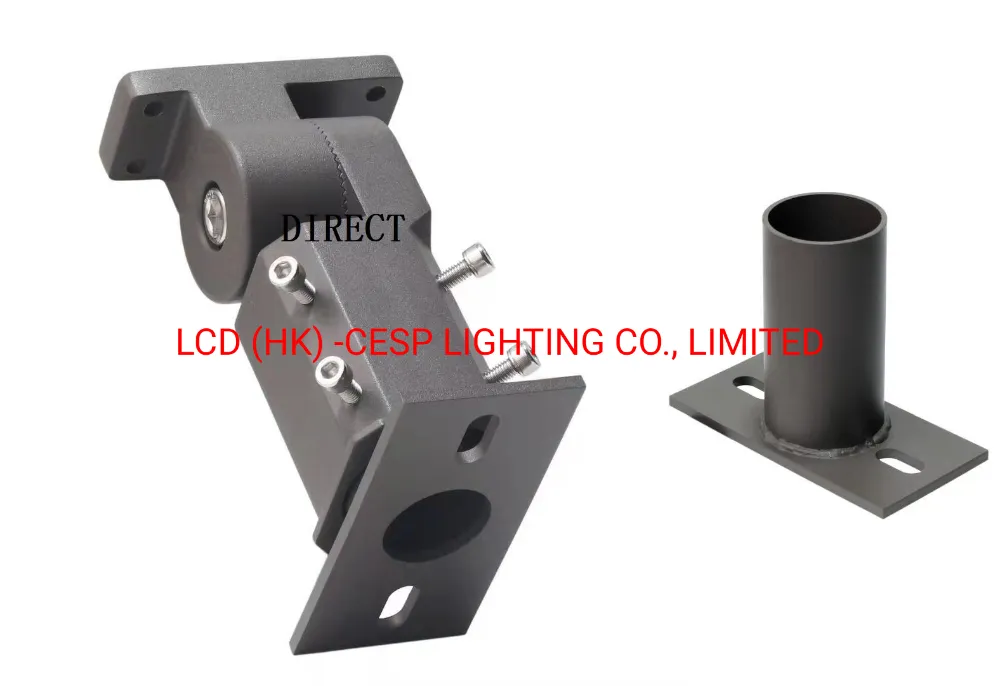

Mounting Arms Adjustable Bracket Design C

Frequently Asked Questions (FAQ)

What are the primary applications of these LED Shoebox lights?

These LED Shoebox lights are ideal for large-scale outdoor areas such as highway roads, commercial parking lots, parks, gardens, warehouse docks, town squares, and school campus walkways.

How much energy can I save by switching from traditional HID/HPS fixtures to LED?

By retrofitting to LED Shoebox fixtures, users can save up to 65% to 80% on energy costs. Incorporating intelligent dimming control systems, such as PLC, DALI, or 0-10V dimmers, can increase these savings up to 85%.

What makes these shoebox street lights suitable for extreme weather?

The fixtures feature an IP66 weatherproofing rating, ensuring full protection against heavy rain, wind-blown dust, snow, and low-pressure jets. The robust aluminum casing prevents corrosion in extreme temperatures ranging from -30ºC to +55ºC.

What types of mounting brackets are compatible?

We offer five different mounting options, including standard slip fitters for 60mm (2.36 in) poles. The light features a 180-degree adjustable bracket angle to simplify targeting and coverage calibration.

How is the heat dissipation handled to prevent high-temperature degradation?

Our lights feature a state-of-the-art aluminum fin heatsink design. This design maximizes exposure to air currents, enabling faster heat dissipation and maintaining cooler temperatures for both LED chips and drivers to ensure a lifetime of over 60,000 hours.

What is the warranty policy for this high-lumen lighting line?

We provide a full 5-year warranty on all products. If any manufacturing or performance failure occurs within the warranty period, we will offer free maintenance support.
