Product Description
Product Overview

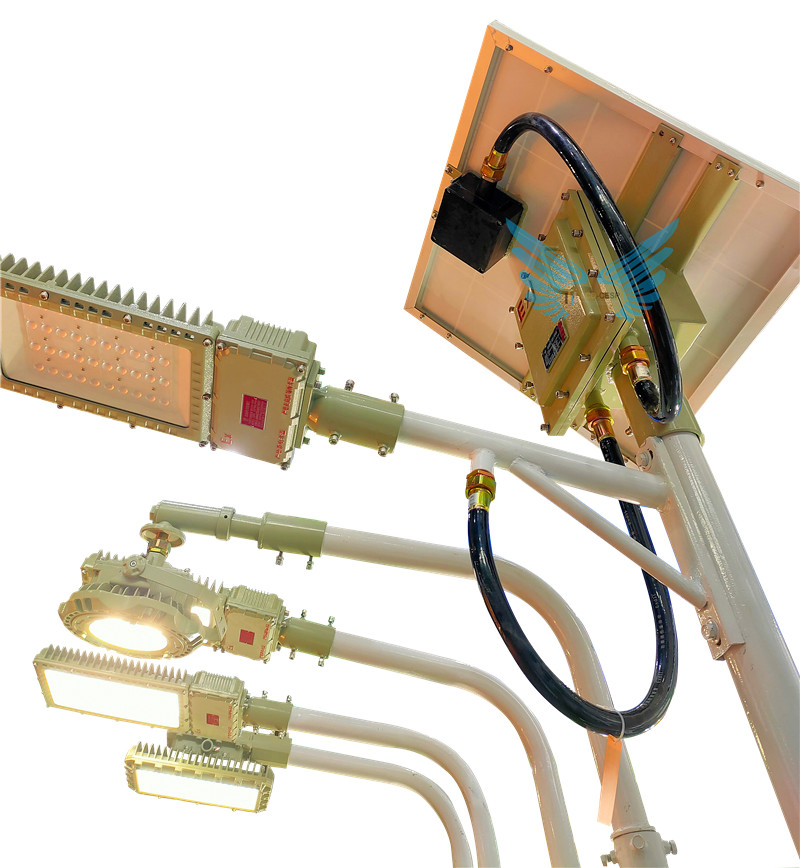

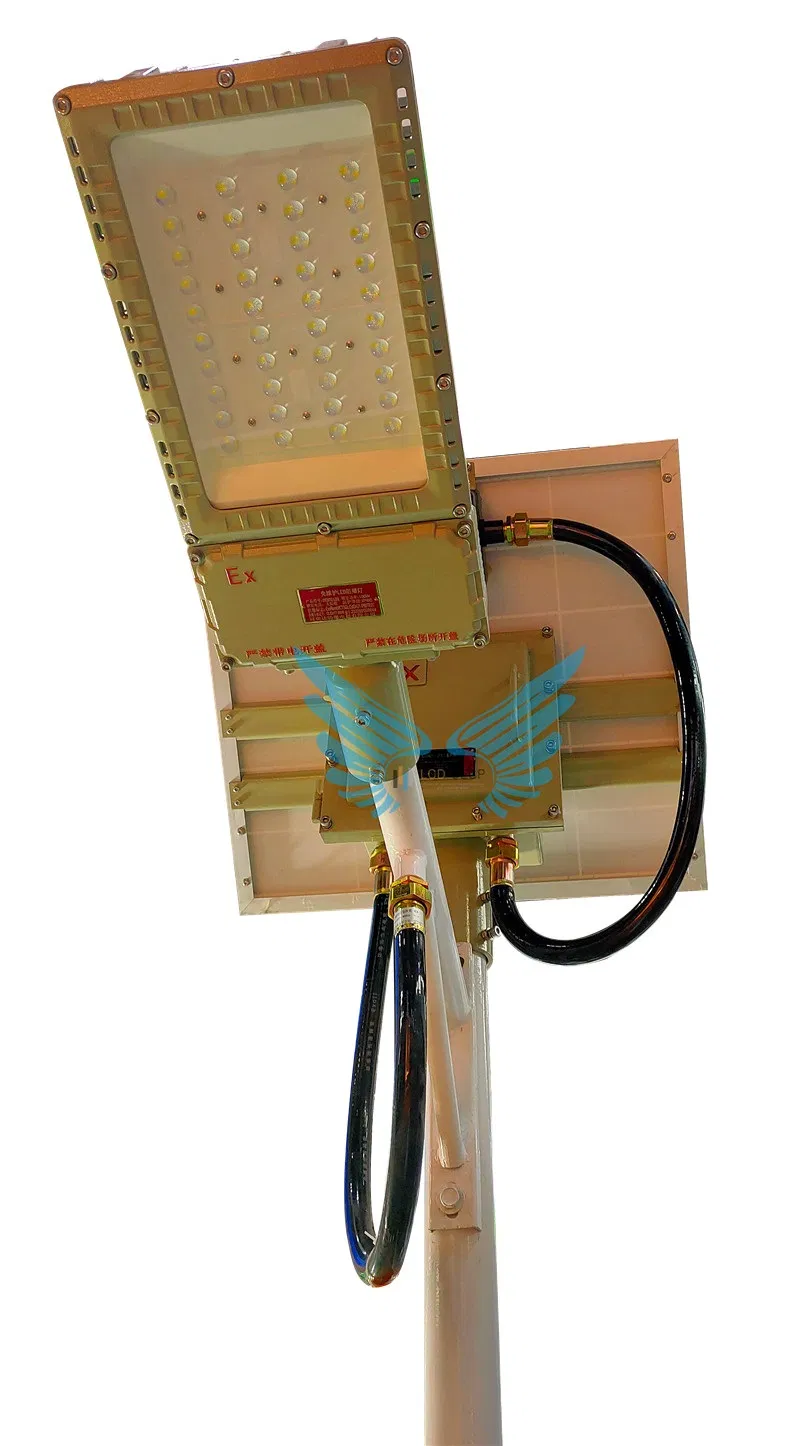

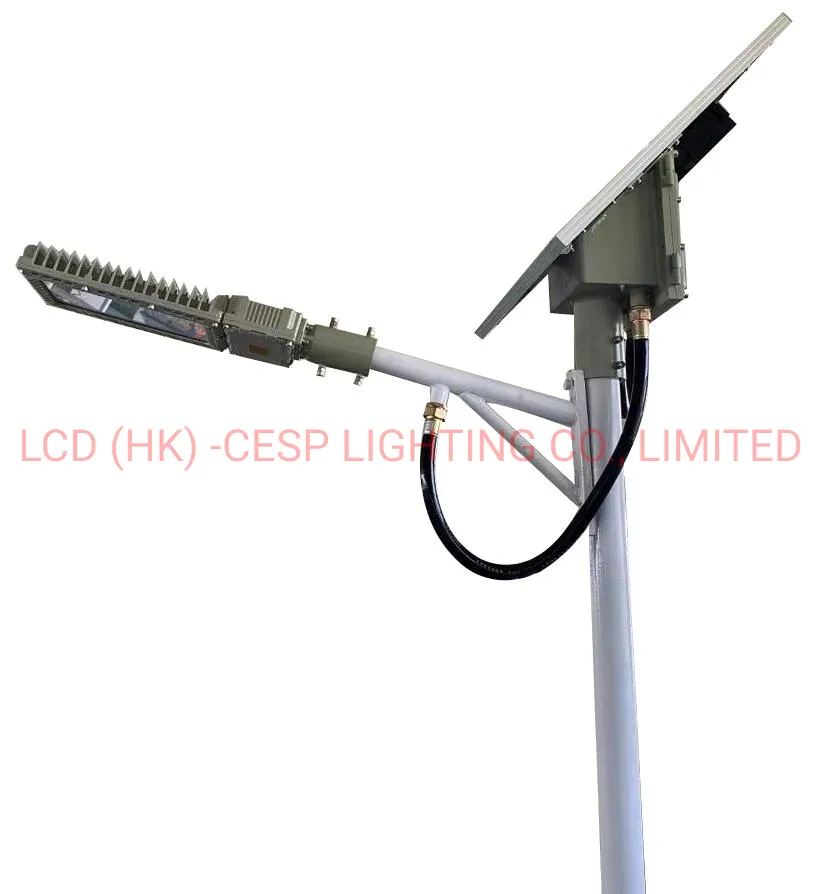

50W-80W Explosion proof Solar Street Light
The Conventional Explosion proof Series is configured with high capacity solar panels and batteries, it is suitable for oil & gas industrial outdoor high traffic areas where a constant lighting level is needed. Featuring a special energy saving mode, the light is designed to operate for a minimum of 12 hours each day for 2 consecutive days.
| Explosion proof Solar Street Light (50-80W) - GYD7201LP-50W |
| Solar panel |
Max power |
18V 80W (Monocrystalline silicon) |
| Life span |
25 Years |
| Battery |
Type |
Lifepo4 Lithium battery 12.8V 42Ah |
| LED light source |
Power |
50W (High thermal conductivity aluminum substrate with good heat dissipation performance) |
| Chip type |
High light effect Cree 3030 LEDs |
| Lumen |
140-150lm/w |
| Life span |
50000 hours |
| Mounting height & Distance (m) |
Height 6-9M / Distance 20-25M |
| Pole diameters |
Top diameter of pole: 60mm |
| Housing Materials |
Aluminium Alloy |
| Charging time |
6-7 hours (with enough strong sunshine) |
| lighting time |
12 hours/day, sustainable for 3-5 rainy days |
| Lighting pattern |
light-operated |
| Product certification |
CE, ROHS, TUVIP65 |
| Warranty |
3 years |
| Package |
Product Size |
XXXX*XXX*XXXmm |
| Net weight |
XXXKgs |
| Carton Size |
XXXX*XXX*XXXmm |
| Gross weight |
XXX Kgs |
| Set/CTN |
1Set/CTN |
| Container |
20'GP |
XXXX sets |
| 40'GP |
XXXX sets |
FEATURES & BENEFITS:
- Explosion proof Led Luminiaire: 50 Watt and Single Arm
- 6-9 Meters Galvanized Steel Pole
- 80W Autoclean Polycristaline Solar Panel

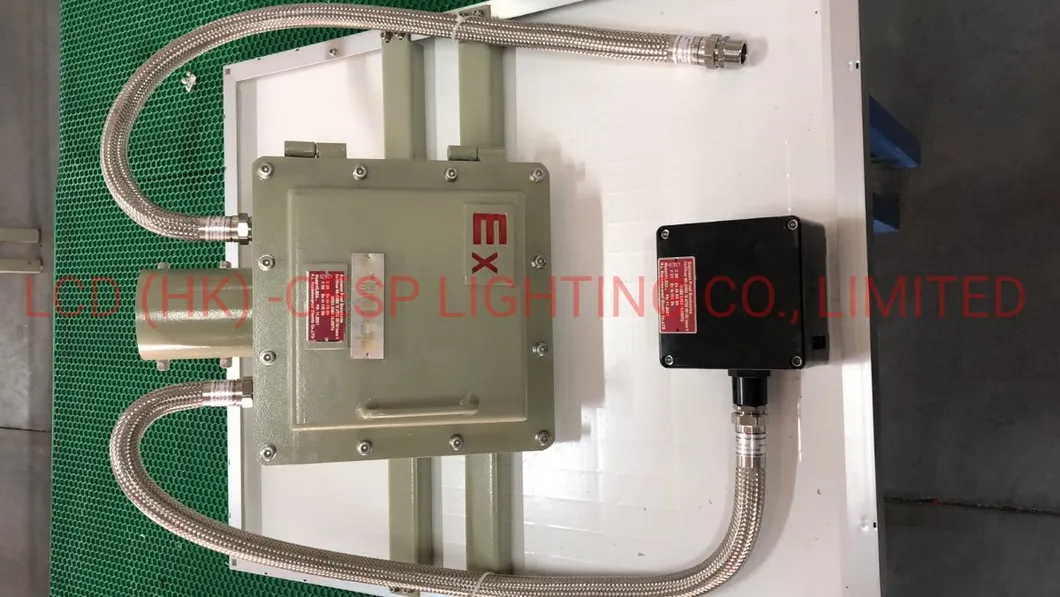

- Explosion proof box holding on 12.8V 120Ah LifeP04 Lithium Battery
- MPPT Smart Control Systems

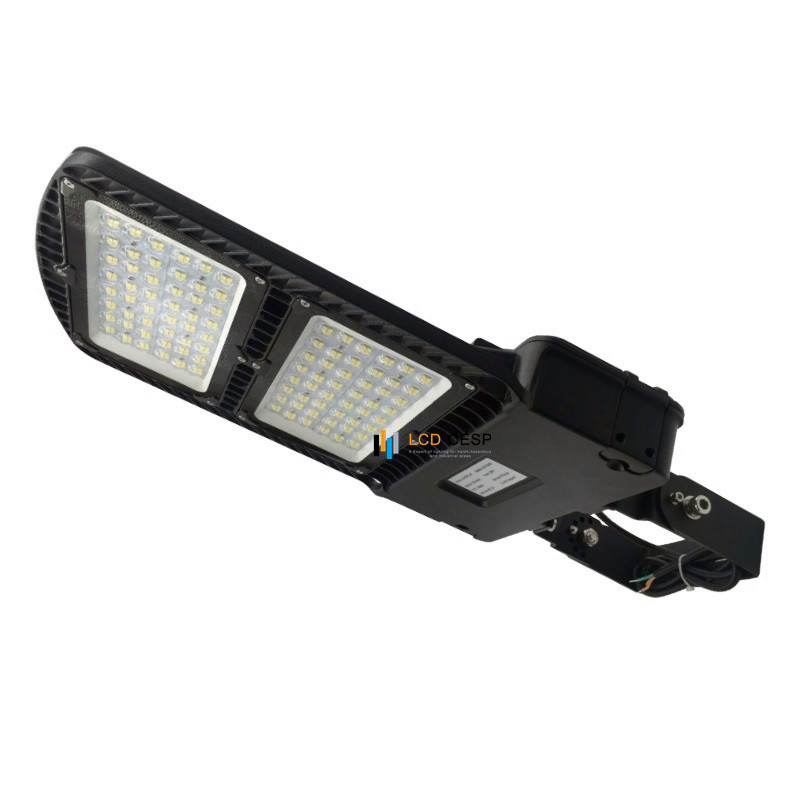

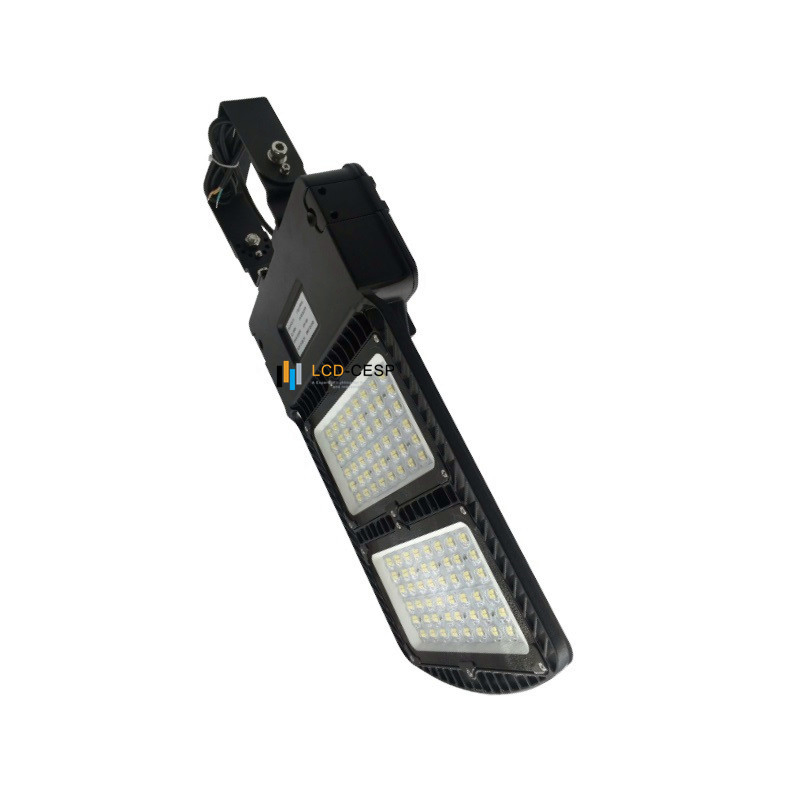

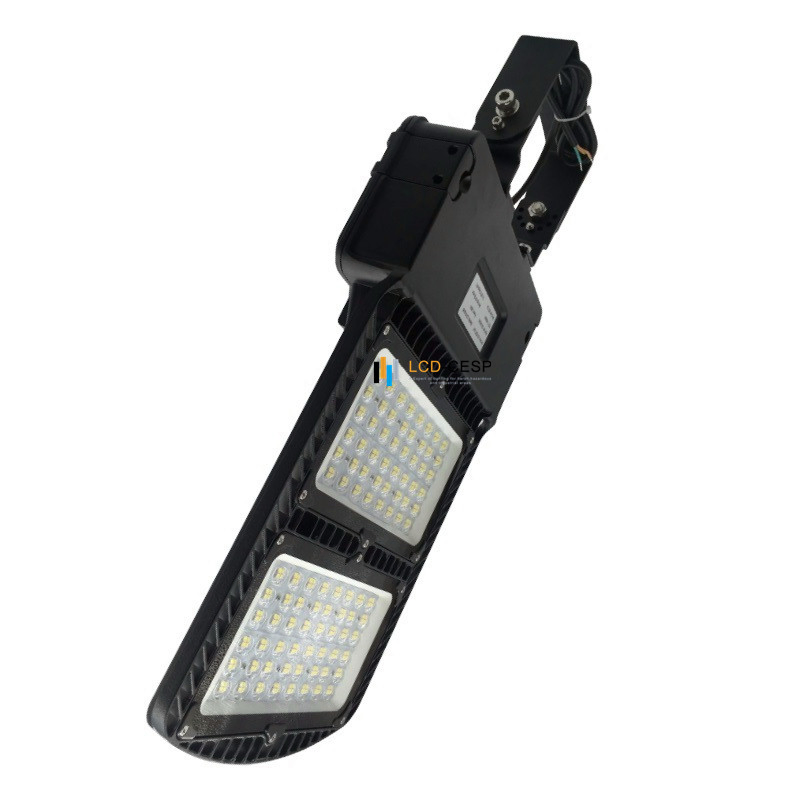

THOR solar led street light head was developed to the fulfil application of true solar led street light for highway lighting and main road lighting which requires ultra-high brightness and continuous long period output. The lifepo4 battery pack and high-efficiency MPPT solar charge controller are built inside of the light fixture. The Lifetime of lifePO4 battery pack is more than 2000 cycles with D.O.D 100%, while D.O.D of the default setting of THOR light is only 60% which means the lifetime is more than 3000 cycles about 8~10 years.
As default setting, THOR light can working high full power for first 6 hours and with 50% power for another 6 hours as full night operation in order to save more solar power in battery and also it helps to extend the lifetime of the battery. The max input current is 15A~20A, it guarantees the whole system could work with very stable performance even in very challenging condition. The lighting power and program could be adjusted easily with remote control.
Introduction
As the pioneer of all in two solar street light on market, a high reputation has been built from clients over last years on quality and service. THOR is a popular model for commercial lighting because of its lighting performance and quality. All in two solar led street light is an innovation structure of solar led street light developed since 2016. It adopts the concept of all in one solar led street light in order to reduce the complication of installation but also maintain the stability and flexibility of regular solar led street light whose components are individual.
💡
About LED Source: It adopts ultra high brightness of Luxeon SMD5050 as light source. Each led chip can be driven to 5W max. With 32pcs of 5050 leds driven by low current, it achieves more than 135lm per watt. Meanwhile it outputs less heat which will extend the lifetime of LED chip greatly.
🔋
About Battery Pack: Super long lifetime LifePO4 battery are adopted for all model of solar street light. Produced with high requirements of management and production by ISO9001 certified factory, lifePO4 battery is able to provide continuous and stable power to system for many years without maintenance.
⚙️
About Controller: As the CPU of solar led light, high efficiency MPPT solar charge controller are adopted for all lights, it allows 12V/24V 10A , 15A ,20A depending on the power of light. With high quality and high efficiency solar charge controller, it can guarantee sufficient power can be generated with limited solar radiation condition. Lighting program can be modified with remote control easily as customers' demand.
🔌
About Connection: Solar light head is to be connected to solar panel directly with MC4 connectors, making the installation simple and durable. Separated solar panel can be freely adjusted as needed. Customer can select a suitable power of solar panel depending on their local solar radiation at will.

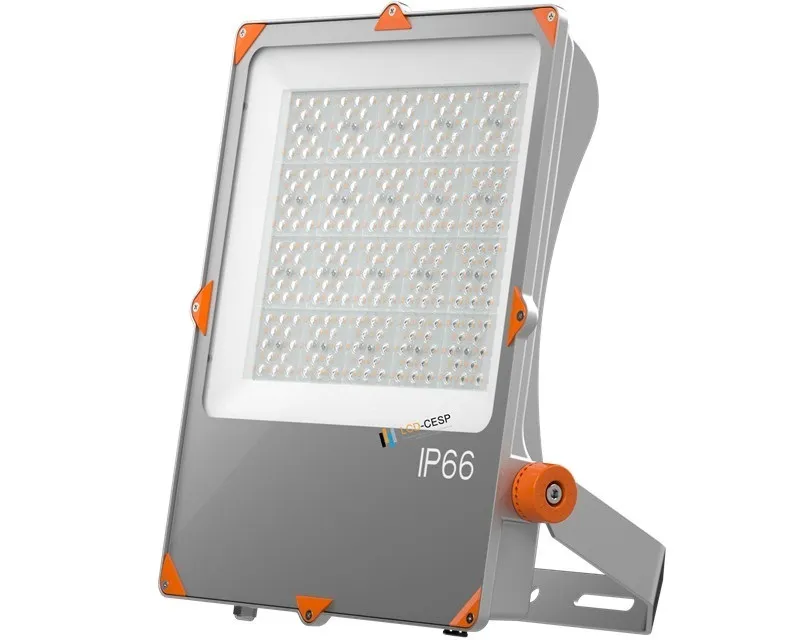

Outdoor Aluminum Dimmable 200 Watt LED Flood Light
Dimmable led fixture 200W 90-277VAC 50/60Hz Triac dimmable 2700K to 6000K IP65 1,400 to 28,000lm IK07
Overview:
The energy-saving FS LED Floodlight is the perfect solution for a wide range of Area & site lighting applications. It teams with the dimmable driver, motion & Infrared sensor system, known to perfect thermal management heat sink housing and high-quality dimmable driver into one compact and robust and durable die-cast Aluminum alloy body that matches up globally high quality and safety standards. Its specially designed heat sink incorporates aesthetics and functionality to ensure excellent reliability and a long lifespan. Powered by new and modern LED technology, this luminance delivers superior performance and a longer lifetime, bringing area & site lighting to a whole new level.
200W LED Floodlight Specifications
- Wattage: 200W
- Lumens: 28000lm
- Efficiency: >140lm/w
- Application: Outdoor
- Dimmable: YES
General Information
| Lamp family code |
FS-xxxx-LNxxx |
| Light source color |
warm white, Neutral white, cool white |
| Light source replaceable |
yes |
| Driver/power unit/transformer |
dimmable driver / brand driver |
| Driver included |
yes |
| Optical cover/lens type |
reflector or Polycarbonate micro lens optic |
| Luminaire light beam spread |
110° or 60ºx60º, 90ºx90º,30ºx30º,TYPE 3/4/5 |
| Connection |
Flying leads/wires |
| Cable |
Cable 1.5 m without plug |
| Protection class IEC |
Safety class I |
| CE mark |
yes |
| Warranty period |
5 years warranty |
| Optic type outdoor |
Symmetrical wide beam or Asymmetric beam |
| EU RoHS compliant |
No |
| Light source engine type |
LUXEON SMD 3030 |
Operating and Electrical
| Input Voltage |
220-240 VAC or 110-277VAC |
| Input Frequency |
50 / 60 Hz |
| Power Factor (Min) |
>0.97 |
| Controls and Dimming |
DALI,1-10V , Triac , motion sensor or Infrared induction |
Mechanical and Housing
| Housing Material |
Aluminum alloy die-cast |
| Reflector material |
Pure polish aluminum reflector |
| Optic material |
Polycarbonate |
| Optical cover/lens material |
temper glass |
| Fixation material |
Carbon steel with corrosion proof powder coating |
| Mounting device |
Mounting bracket adjustable |
| Optical cover/lens shape |
----- |
| Optical cover/lens finish |
transparent or Frosted temper glass |
| Overall length |
see dimensional drawing |
| Overall width |
see dimensional drawing |
| Overall height |
see dimensional drawing |
| Effective projected area |
0.076m² |
| Color |
Aluminum and black |
Approval and Application
| Ingress protection code |
IP65 [ Dust penetration-protected, jet-proof] |
| Mech. impact protection code |
IK07 [ >4 J vandal-protected] |
| Surge Protection (Common/Differential) |
Luminaire surge protection level until 3 kV |
Initial Performance (IEC Compliant)
| Initial luminous flux (system flux) |
>28000 lm |
| Luminous flux tolerance |
+/-10% |
| Initial LED luminaire efficacy |
>140 lm/W |
| Init. Corr. Color Temperature |
3000K / 4000K / 6500K |
| Init. Color Rendering Index |
75 |
| Initial chromaticity |
SDCM <= 5 |
| Initial input power |
200 W |
| Power consumption tolerance |
+/-10% |
Application Conditions / Product Data
| Ambient temperature range |
-30 to +50 °C |
| Maximum dim level |
on requests |
| Full product code |
FS-203-LNXX-4K |
| Order product name |
FS-Flood light 200W |
| Order code |
N |
| Numerator - Quantity Per Pack |
1 pcs |
| Numerator - Packs per outer box |
1 box |
| Material Nr. (12NC) |
N |
| Net Weight (Piece) |
5.5KG |

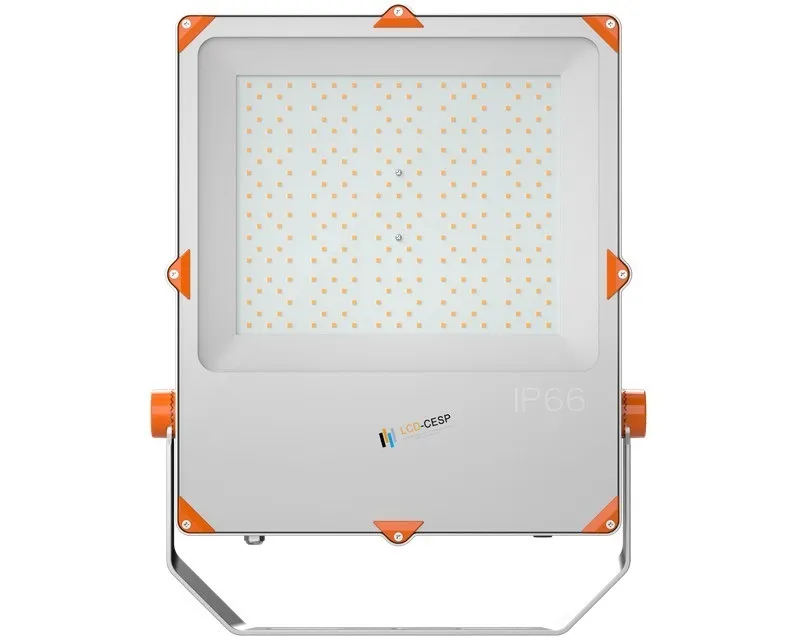

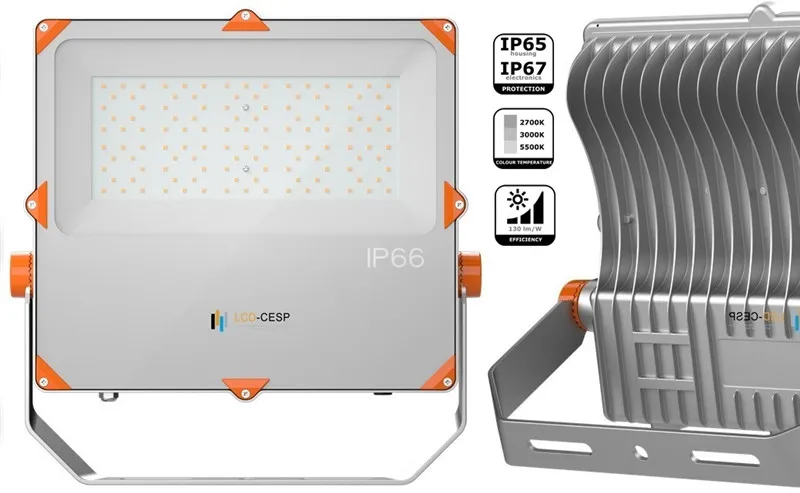

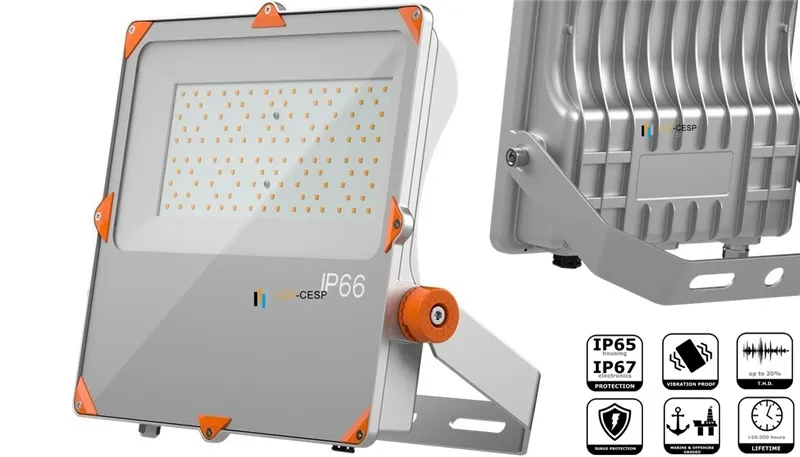

Copper free outdoor Aluminum housing 50 Watt LED Flood Light
Perfect thermal management PLC dimmer for compatible drivers 0-10V water-proof IP66. 110-277VAC 50/60Hz or 12-32VDC. Dimmable for DALI or Triac dimmer high lumen output 7500lm IK08. Highway road or area lighting with Cree / bridgelux / Luxeon SMD3030 or SMD5050 LED chip for playground Light or working site light. High tech Aluminum extruded LED spotlight 50W for outdoor Security lighting with 5-7 years warranty.
This luminaire was designed for its use in area, architectural or security lighting, for visible or highlighting elements of particular interest and adding high aesthetic value to buildings, monuments, etc. Available with two suspension systems: with bracket or arm on requests.
Features:
- A simple, durable, reliable and efficient LED floodlight with Aluminum forming tech. extrude the heat-sink housing for perfect thermal management.
- Low lifetime-cost. Reduce power consumption and free maintenance.
- Market leading size/weight/output ratio for high performance true symmetric or asymmetric luminaire with low aesthetic impact.
Product Specification Review
Consumption
10W 20W 30W 50W 70W 100W 120W 150W 200W |
Assembling height
4-15meter |
Voltage
100-277 V AC or 12V 24V 32V |
Frequency
50/60 Hz |
Protection level
IP66 / IK08 |
Optic
Efficiency : 90% / 135-150lm/w |
UHF
<1% |
Life span
L70 -> 60.000h |
Application Review:
- Low area & job site lighting

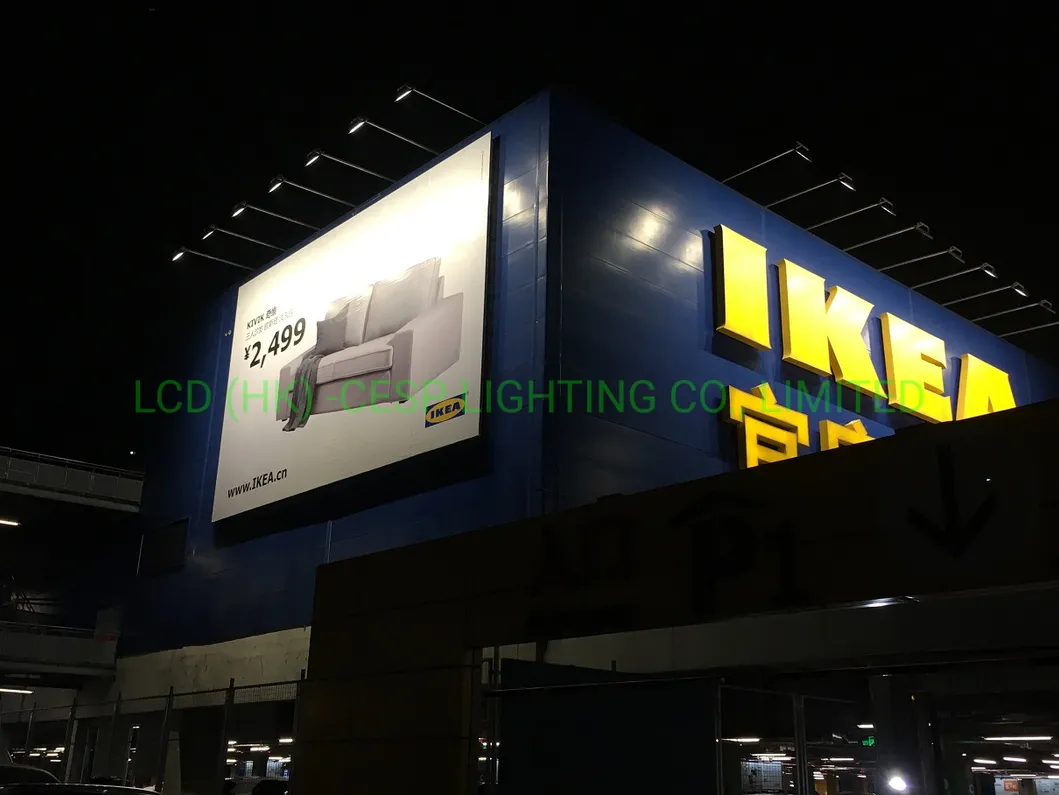

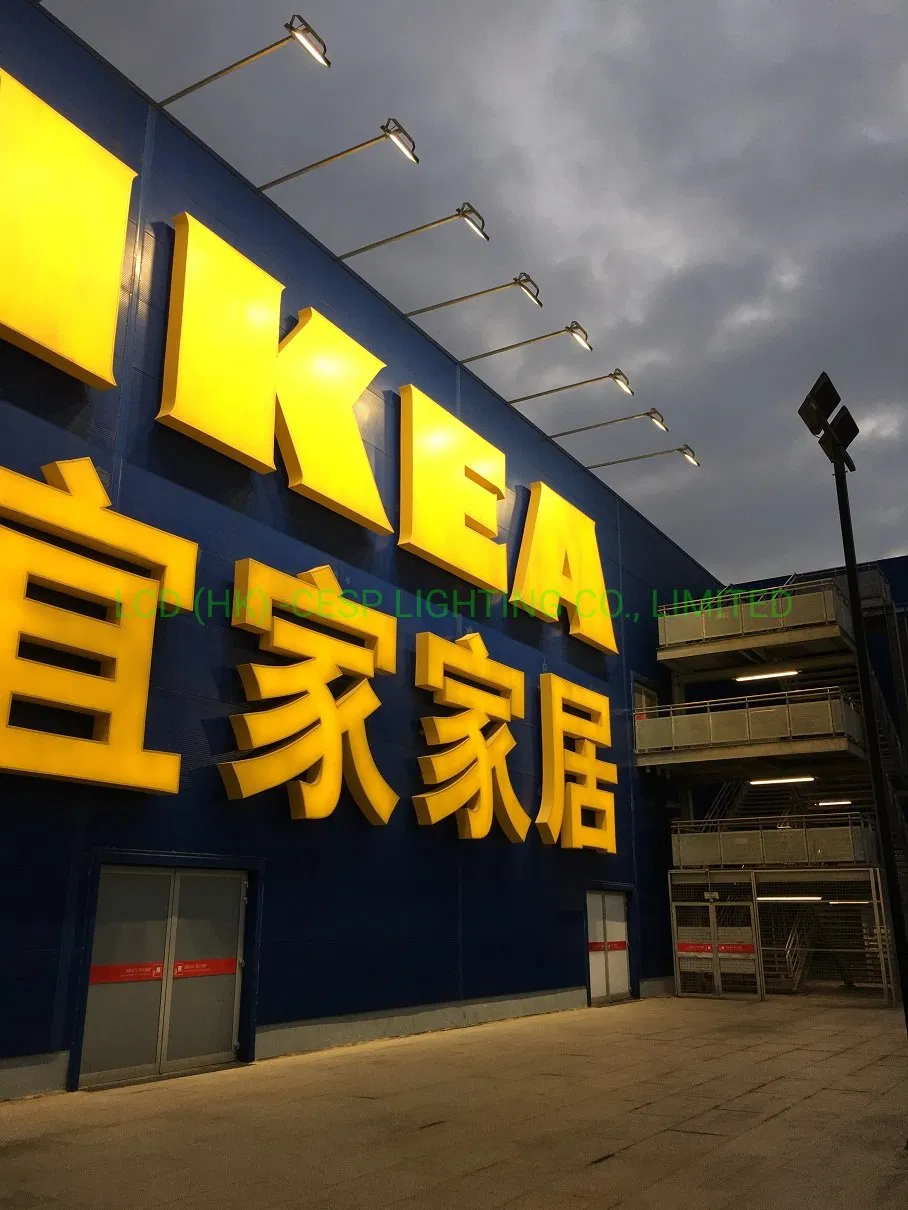

- Building surrounds / Façade lighting
- Car parking lighting
- Road & billboard lighting

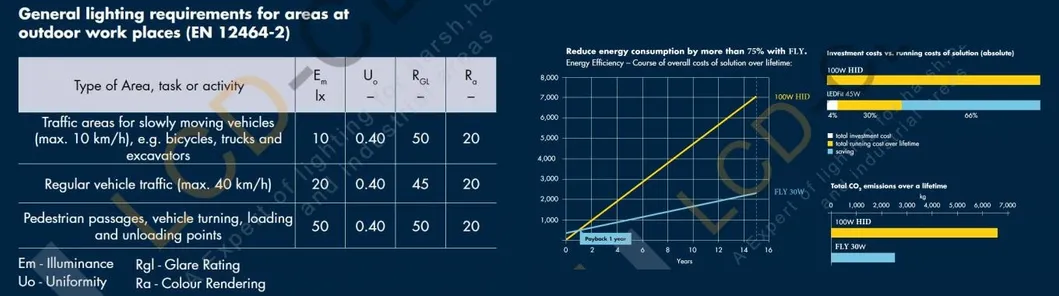

Project Details:
- Building with Surrounds: 300m2
- Energy costs: 0.12 $usd/kWh
- Illuminance: 50lx
- Calculation period: 15 years
- Changing lamps every 2 years for the traditional/non-LED solution
- LED: Cleaning the luminaires every 3 years
- Operating hours: 4380 h/a
- All calculations are based on an annual increase of energy and operating costs of 5%.

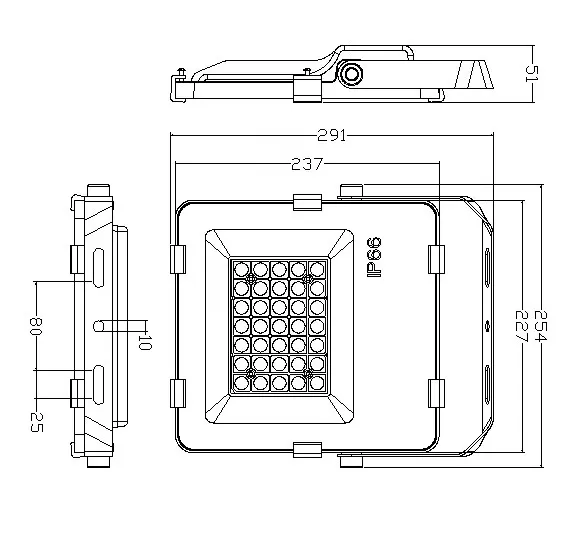

Product Dimension Review:
Mounting Options:
Three mounting options to cover all low area lighting applications:
- Wall or ceiling mounted -- Area & site
- Surface mounted -- Facade
- Mast & Post -- Road & Car Parking

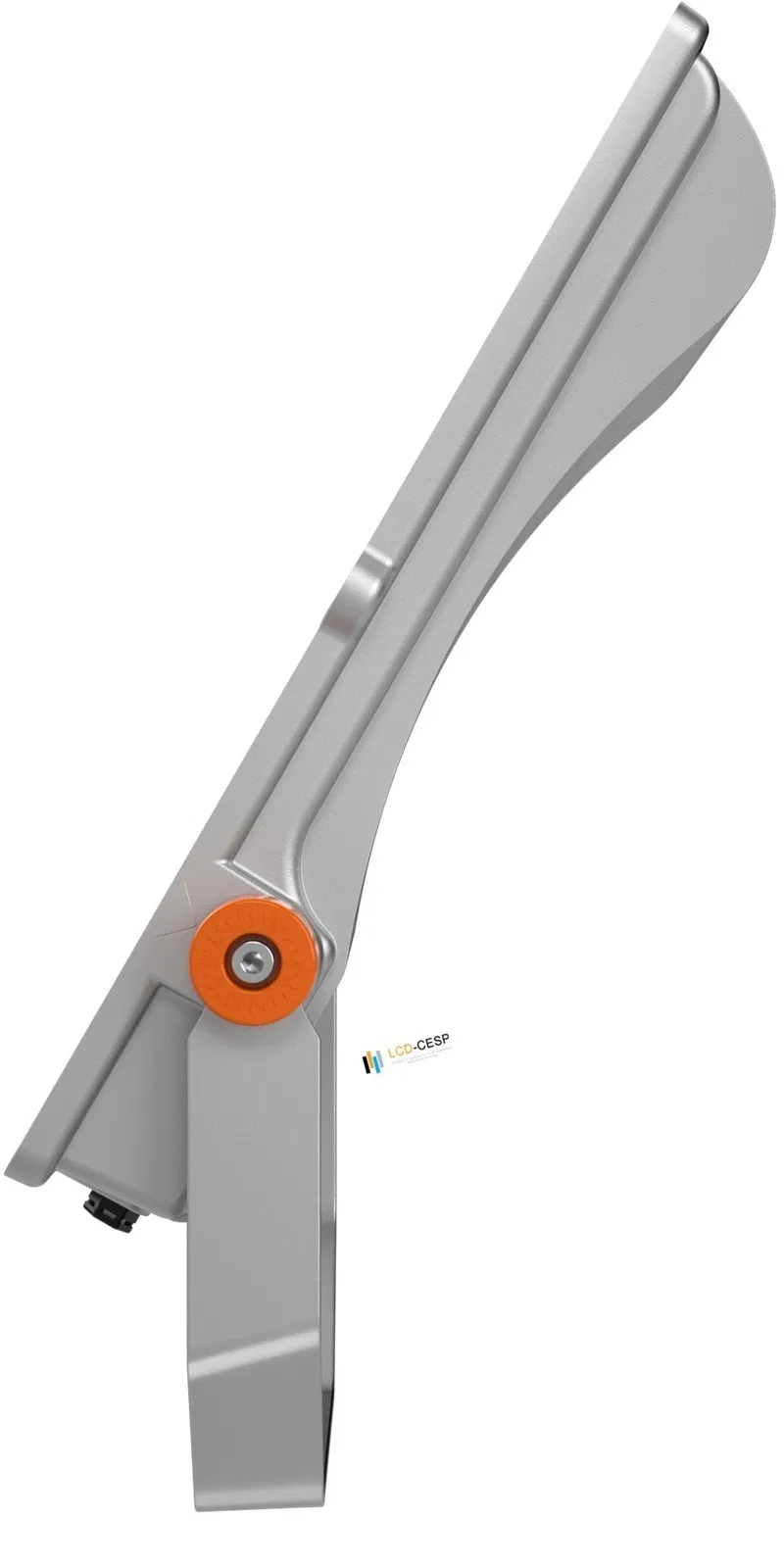

Installation Review:
FLS features a super lightweight design and is pre-wired for effortless installation. Slim, compact and lightweight Market leading size/weight/output ratio for high performance with low aesthetic impact. FLS's lean lightweight design also makes it easy to carry, install and integrate onto existing structures. Pre-wired. Quick and easy installation with no wiring.
Low Voltage 50W DC12V 7250 Lumen Outdoor LED Flood Lights
Led outdoor flood light bulbs 50W DC12V 7250 lm IP66 Aluminum extruded.
Slim Floodlight Specifications:
- Direct lighting luminaire for use with LEDs.
- Corrosion resistant die-cast aluminium body.
- Installation with bracket on surface and floor.
- Mains voltage: 220-240V / 50-60Hz.
- Clever thermal design with internal cooling pins.
- Narrow, medium and wide beam angles available.
- Led colour temperatures optionally 3000K, 4000K and 6000K.
- Suitable for illumination up to 15 meter height.
- Internal silicon gaskets ensure IP protection.
- All external screws are stainless steel.
- Double layer polyester powder paint resistant to corrosion and salt spray fog.
- Up to 150lm/W efficiency (4000K - 800mA).
- High colour consistency: <3 sdcm.
Application:
Floodlight with broad spread light distribution. Various lighting tasks can be implemented such as floodlighting building surfaces, walls, plants etc. The use of LED technique offers optimal light output with low power and durability as well.
Products Features
| Material |
Aluminium die cast ADC12 housing + 4mm temper glass face |
| Efficacy |
up to 150 lumen/watt |
| LEDs chip |
LED SMD3030 or SMD5050 |
| SDCM |
<5 |
| Optic beam |
7°, 15°, 30°, 60°, 90°, 120°, TYPE 2/3/4/5, Asymmetric 40 |
| Ingress protection |
IP66 |
| Mech. impact protection code |
IK08 Impact rating |
| Mounting |
"U" bracket / slipfitter |
without compromising light quality or a sense of security for those in the area.
Frequently Asked Questions (FAQ)
Q1: What is the lifespan and cycling capacity of the LiFePO4 battery pack used in the solar street lights?
A1: The LiFePO4 battery pack has a lifetime of more than 2000 cycles at 100% Depth of Discharge (D.O.D). With the default energy-saving settings configured at 60% D.O.D, the lifetime extends to more than 3000 cycles, providing about 8 to 10 years of operation.
Q2: How does the dimming control and lighting pattern system work on the solar street lights?
A2: The lights feature light-operated settings with photocell and motion sensor dimming. The default program operates at full power for the first 6 hours and transitions to 50% power for the remaining 6 hours to conserve battery life. Settings can also be adjusted via remote control.
Q3: What are the ingress protection (IP) and mechanical impact ratings for these outdoor lights?
A3: The floodlights and street lights offer high-level durability, featuring ingress protection ratings of IP65 or IP66 (dust-penetration protected and jet-proof) along with mechanical impact protection ratings of IK07 or IK08.
Q4: What mounting methods are available for the 50W and 200W LED floodlights?
A4: The floodlights support three primary mounting options to fit various site applications: wall/ceiling mounting for general area lighting, surface mounting for building facades, and mast/post mounting for roads and parking lots.
Q5: How long does the solar street light need to charge, and how long does it operate?
A5: Under sufficiently strong sunshine, the solar panel charges the battery completely within 6 to 8 hours. The system is designed to supply 12 hours of light per day, with sustainable performance for 3 to 5 consecutive rainy days.
Q6: What kind of environment are the explosion-proof series lights suitable for?
A6: Thanks to their robust aluminum alloy bodies and explosion-proof certifications, these units are suitable for demanding industrial applications such as oil and gas plants, chemical plants, offshore platforms, highway lighting, and high-traffic security areas.
