1 / 5
| TEST CATEGORY | TEST ITEMS | STANDARD/VALUE |
|---|---|---|
| Optical Test | Spectrum Analysis Photometric Distribution Lumen Maintenance & Lifetime |
IES LM 79(CCT,lumen, CRI, SDCM,XY,wavelength) IES LM 79(lumen intensity distribution & Lux diagram) IES LM84 & IES TM 28 |
| Temperature Test | Nomal Temperature Test-25℃ Abnormal Operation Test-70℃ |
UL1598 & UL2388 & IEC60598-1 & IEC60598-2-21 UL1598 & UL2388 & IEC60598-1 & IEC60598-2-21 |

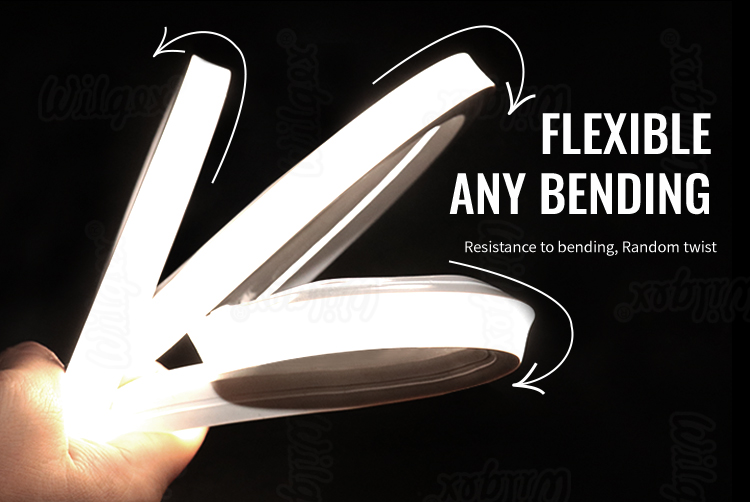

| Physics Test | Bending Test Swing Test Tensile Test Twist Test IK08 BallImpact |
Manufacturer-defined, 1000 cycles UL2388, >750 cycles Manufacturer-defined, >the weight of light in max. Manufacturer-defined, 200 cycles IEC62262 UL1598 & UL2388 & IEC60598-1 & IEC60598-2-21 |
| Weathering Test | Swimming Pool Water Immersion Test Sea Water Immersion Test Salt Spray Test Outdoor Exposure |
GB9667, PH6.8-7.6, free chlorine 0.3-0.6mg/L IEC60598-1, Salinity 4% IEC68-2-11 Manufacturer-defined |

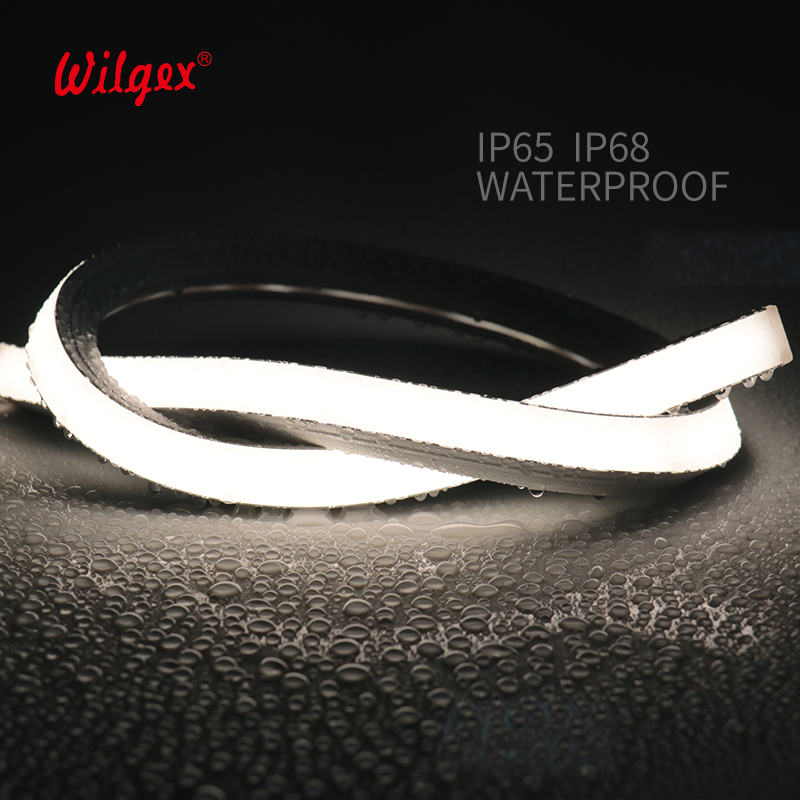

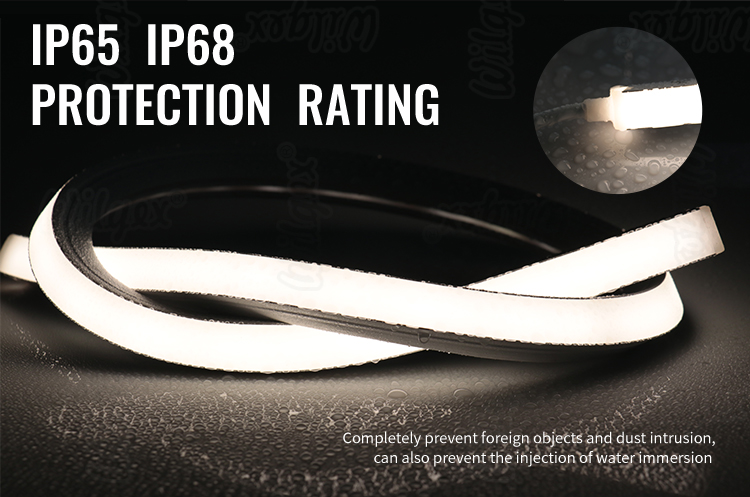

| Environment Test | Flame Resistant Test UV Exposure Test IPX5 IPX6 IPX7 IPX8 Temperature Shock Test Constant Temperature Test |
UL94 ASTMG154, UVA@340nm IEC60529 Manufacturer-defined, -40℃-60℃ Manufacturer-defined, 70℃ |
