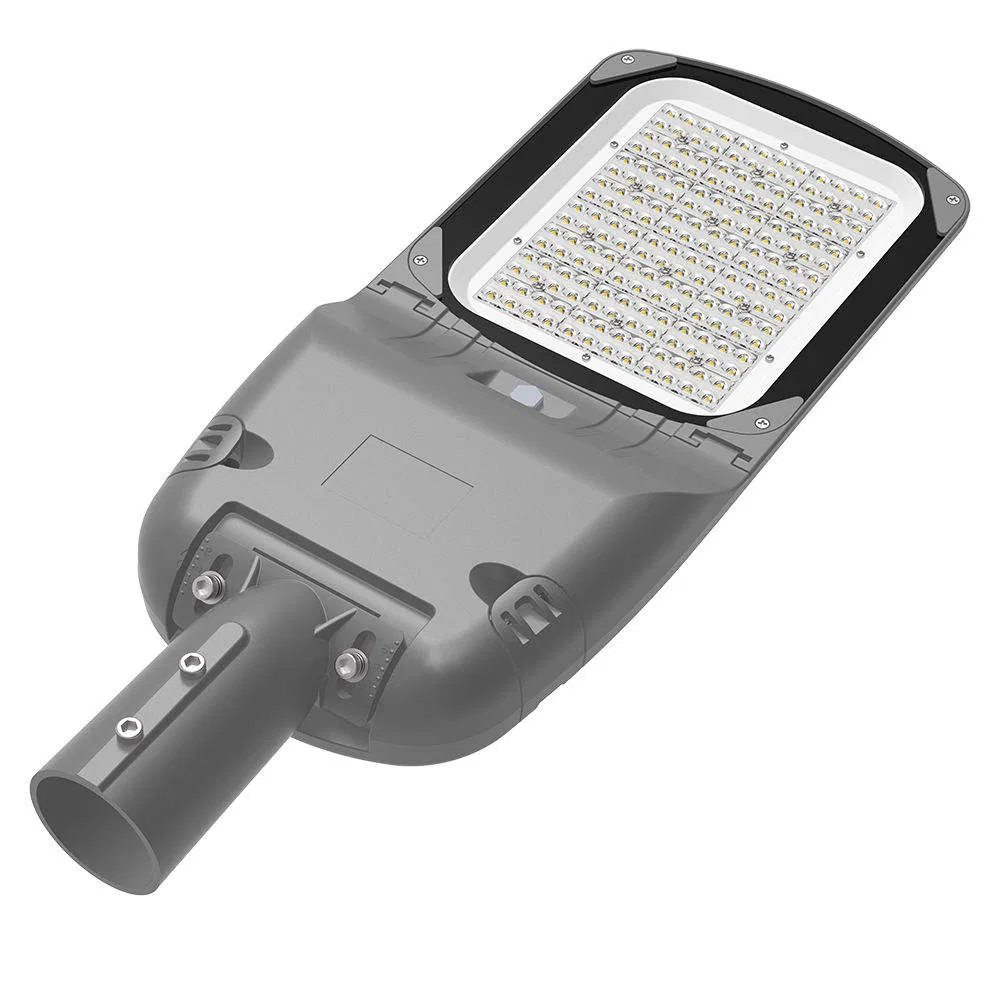

Smart 80W LED Solar All-in-One Road Lamp Energy-Efficient Street Lighting System

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info
Model NO.
LD-80W-S3-V
Lamp Body Material
Aluminum
Power
80W
Application
Square, Highway, Parking Lot, Road
IP Rating
IP65
Certification
CE, ETL, RoHS, SAA
Input Voltage
100-277VAC/50-60Hz ,200-480VAC/50-60Hz
With Light Source
With Light Source
LED Chips Brand
3030 SMD LED
CRI (Ra>)
85
Working Temperature(℃)
-40 - 40
Dimming
Available
Working Time (Hours)
50000
Warranty(Year)
5
Transport Package
Carton Box
Specification
Aluminum
HS Code
9405409000
Production Capacity
1000000pieces/Year
Product Description
60w 80w 100w 120w Smart All In One Solar Led Street Light In Smart Cities

Key Advantages of Intelligent Street Lights:

  • Energy-saving and efficient Intelligent street lights use LED light sources, which are energy-saving and efficient, saving more than 50% of energy compared to traditional street lights.
  • Intelligent control Intelligent street lights can connect to the Internet for smart management. Parameters like brightness, color, and schedule can be remotely adjusted.
  • Long lifespan High-quality LED light sources deliver a long working lifespan of 5-10 years or more, lowering maintenance and replacement costs.
  • Environmentally friendly & reliable LED light sources contain no mercury, generate minimal heat, and emit low radiation, ensuring safety for the environment and health.
  • Data collection Supports integrations with sensors and cameras to monitor temperature, humidity, air quality, and traffic flow for smart urban planning.

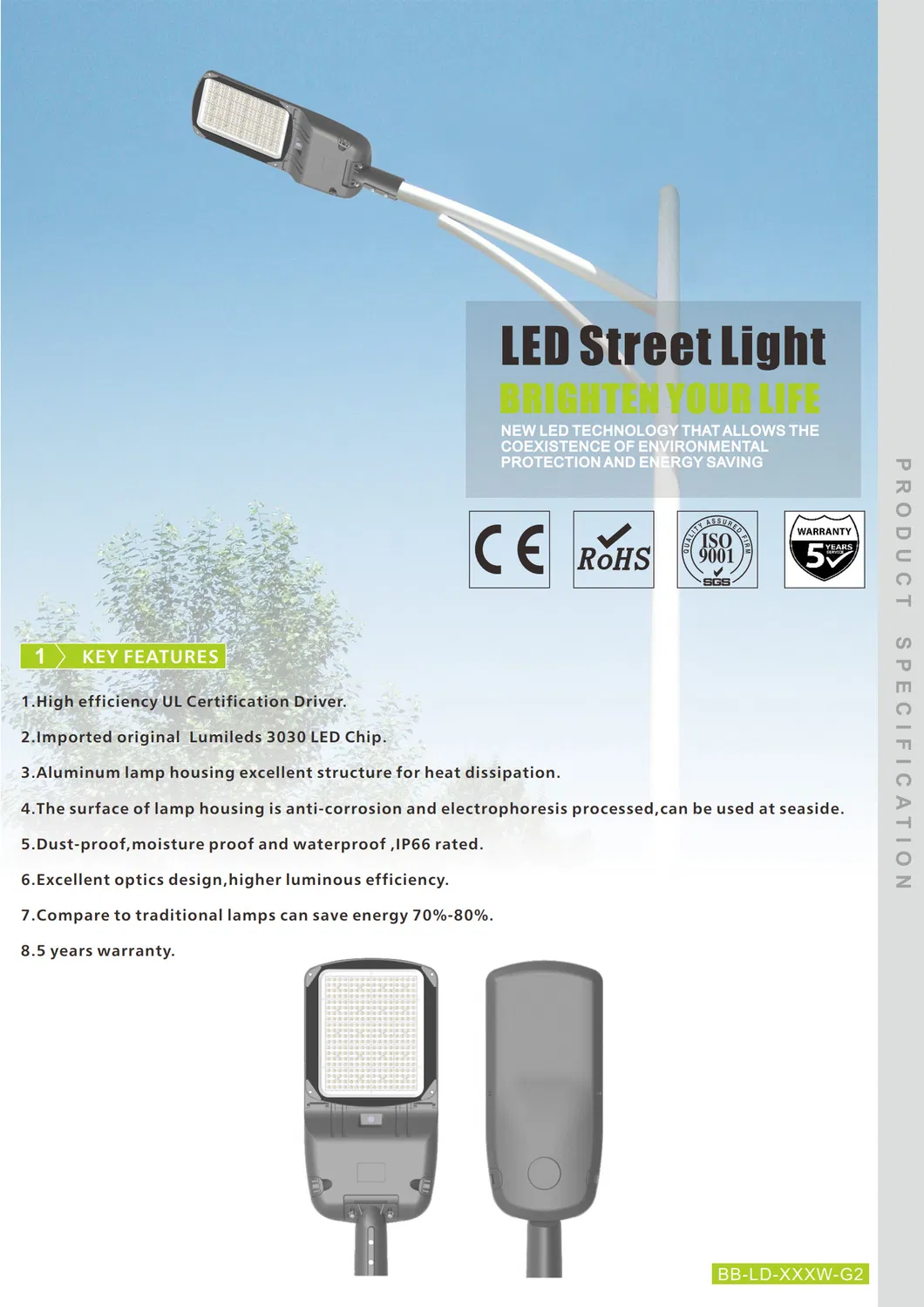

Smart 80W LED Solar All-in-One Road Lamp Energy-Efficient Street Lighting System
Smart 80W LED Solar All-in-One Road Lamp Energy-Efficient Street Lighting System

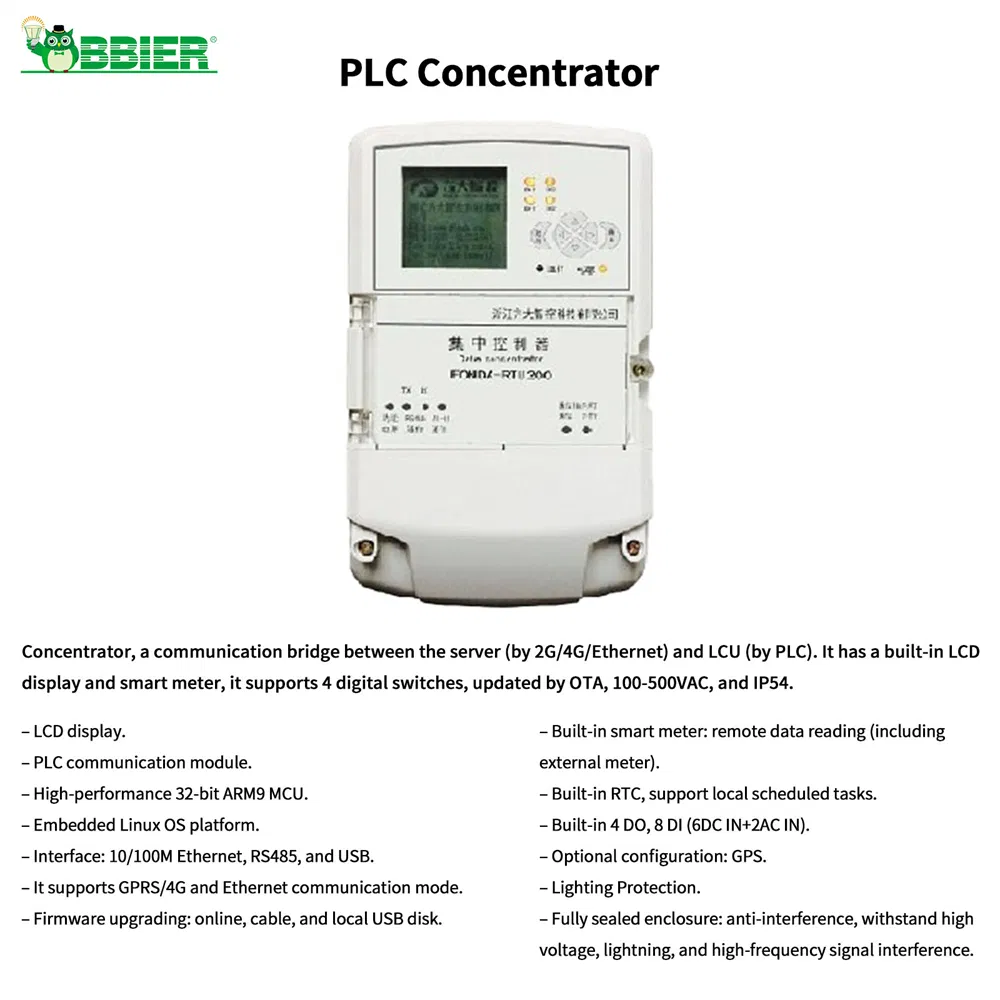

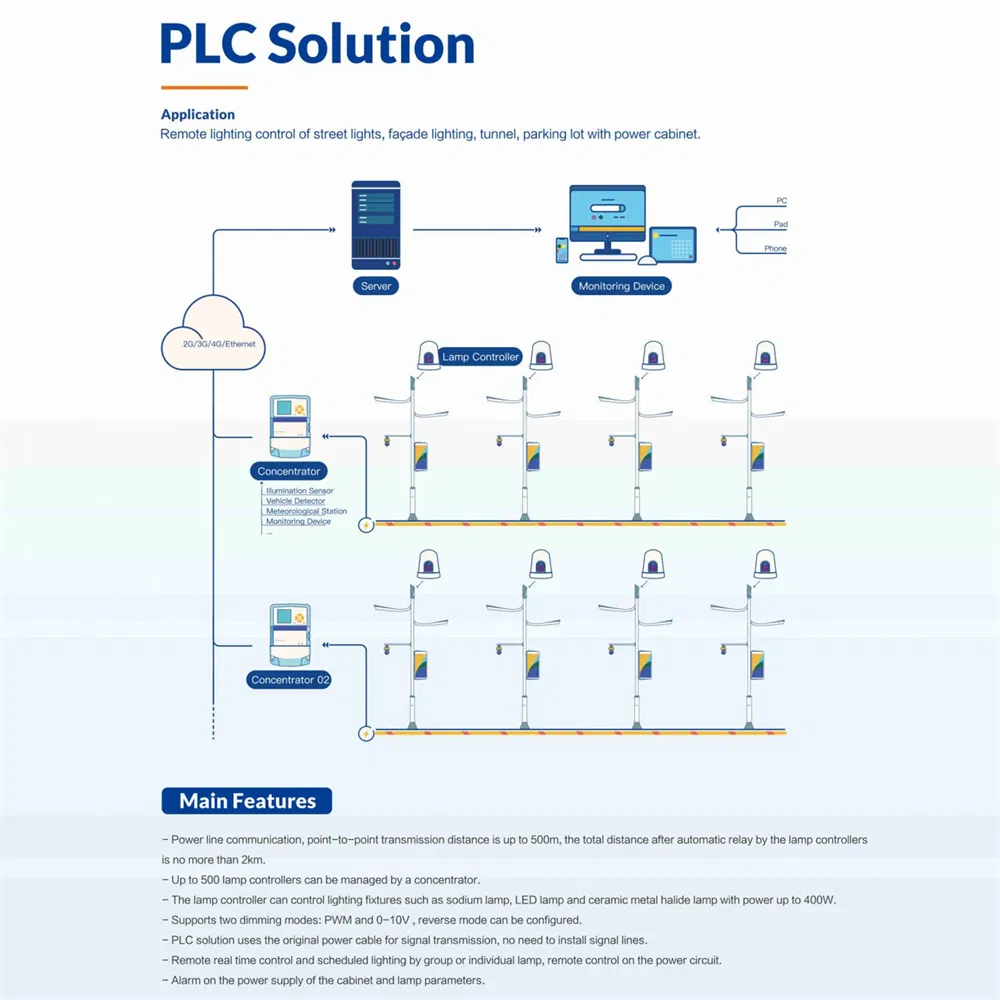

Concentrator: A communication bridge between the server (by 2G/4G/Ethernet) and LCU (by PLC).

Built-in LCD display and smart meter
Supports 4 digital switches
Online OTA update support
100-500VAC Input, IP54 Rated
PLC communication module
High-performance 32-bit ARM9 MCU
Embedded Linux OS platform
Interfaces: 10/100M Ethernet, RS485, USB
Firmware upgrading via online/cable/USB
Built-in RTC for local scheduled tasks
Fully sealed anti-interference enclosure
Integrated lightning and high voltage protection

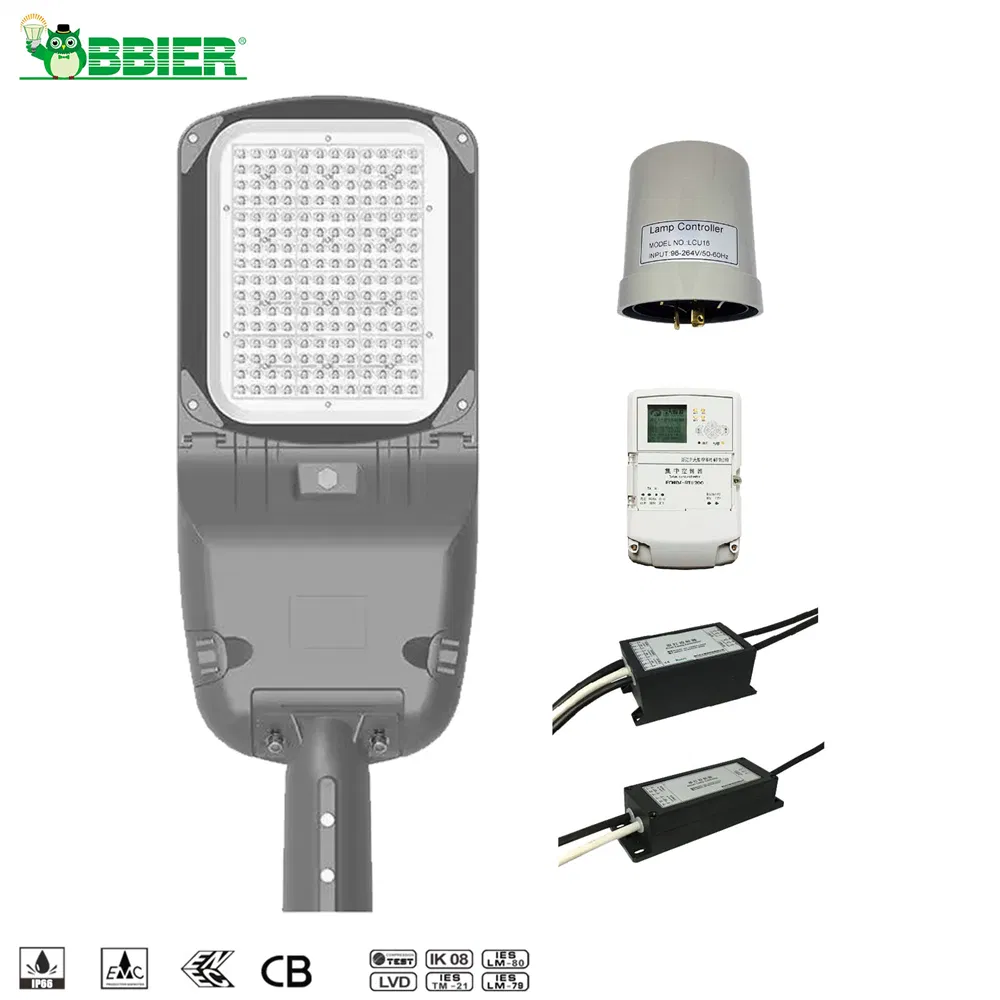

Smart 80W LED Solar All-in-One Road Lamp Energy-Efficient Street Lighting System
Smart 80W LED Solar All-in-One Road Lamp Energy-Efficient Street Lighting System
Smart 80W LED Solar All-in-One Road Lamp Energy-Efficient Street Lighting System
Detailed Photos

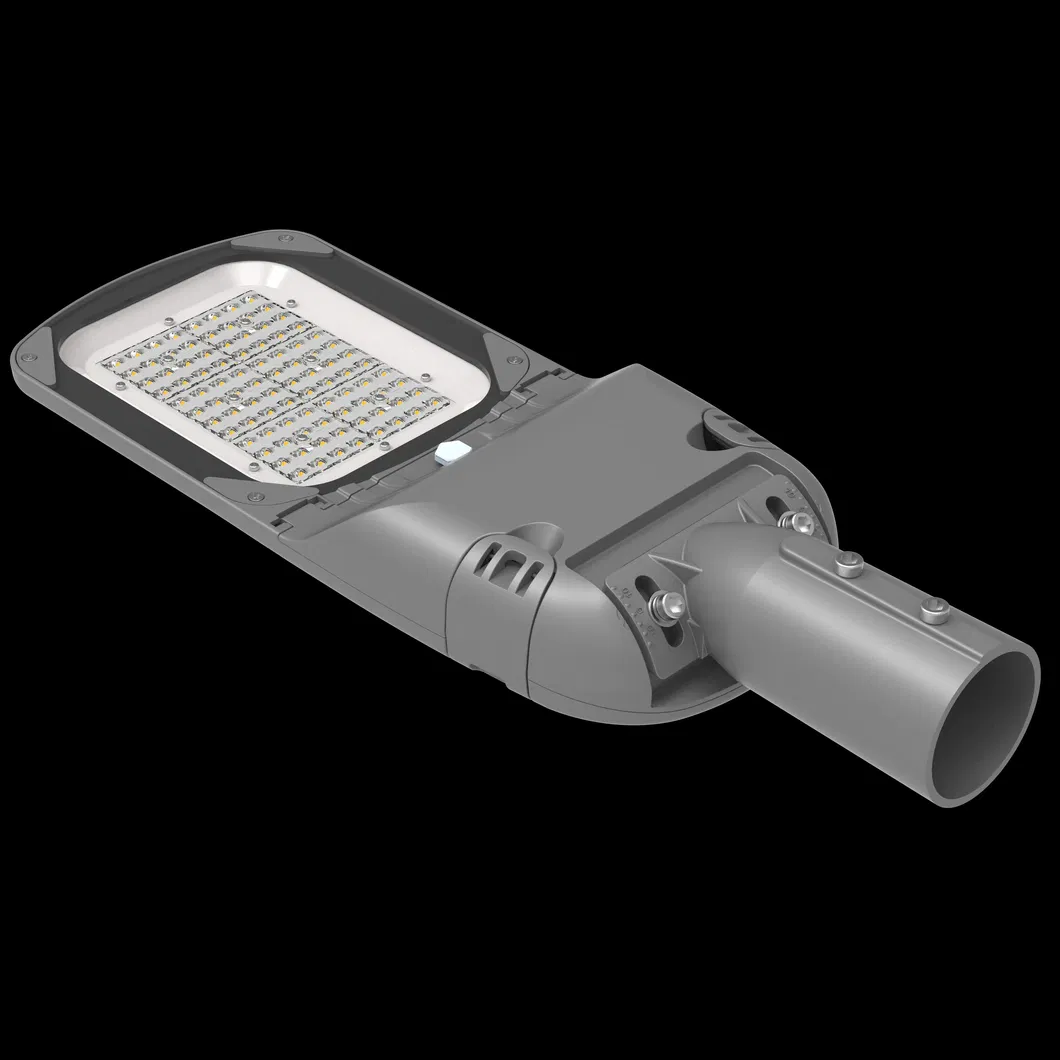

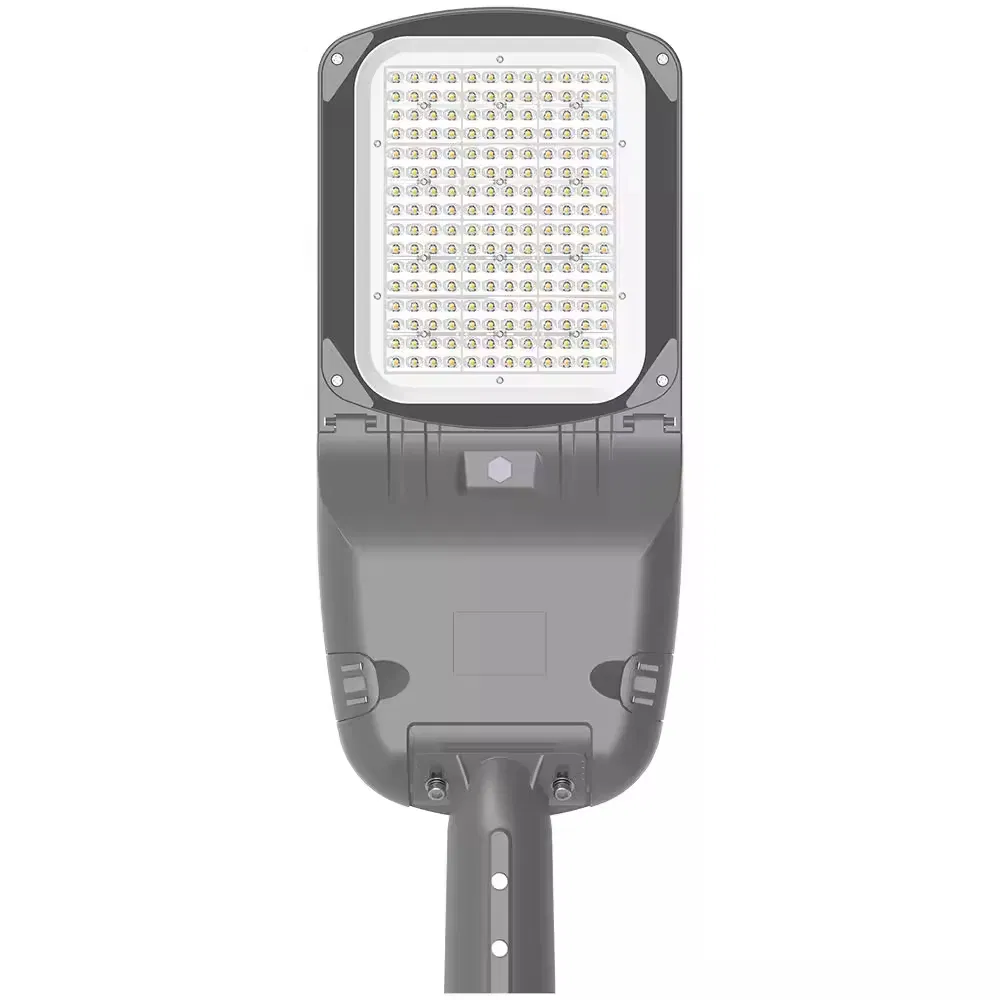

Smart 80W LED Solar All-in-One Road Lamp Detail View
Smart 80W LED Solar All-in-One Road Lamp Detail View
Smart 80W LED Solar All-in-One Road Lamp Detail View
Smart 80W LED Solar All-in-One Road Lamp Detail View
Product Parameters

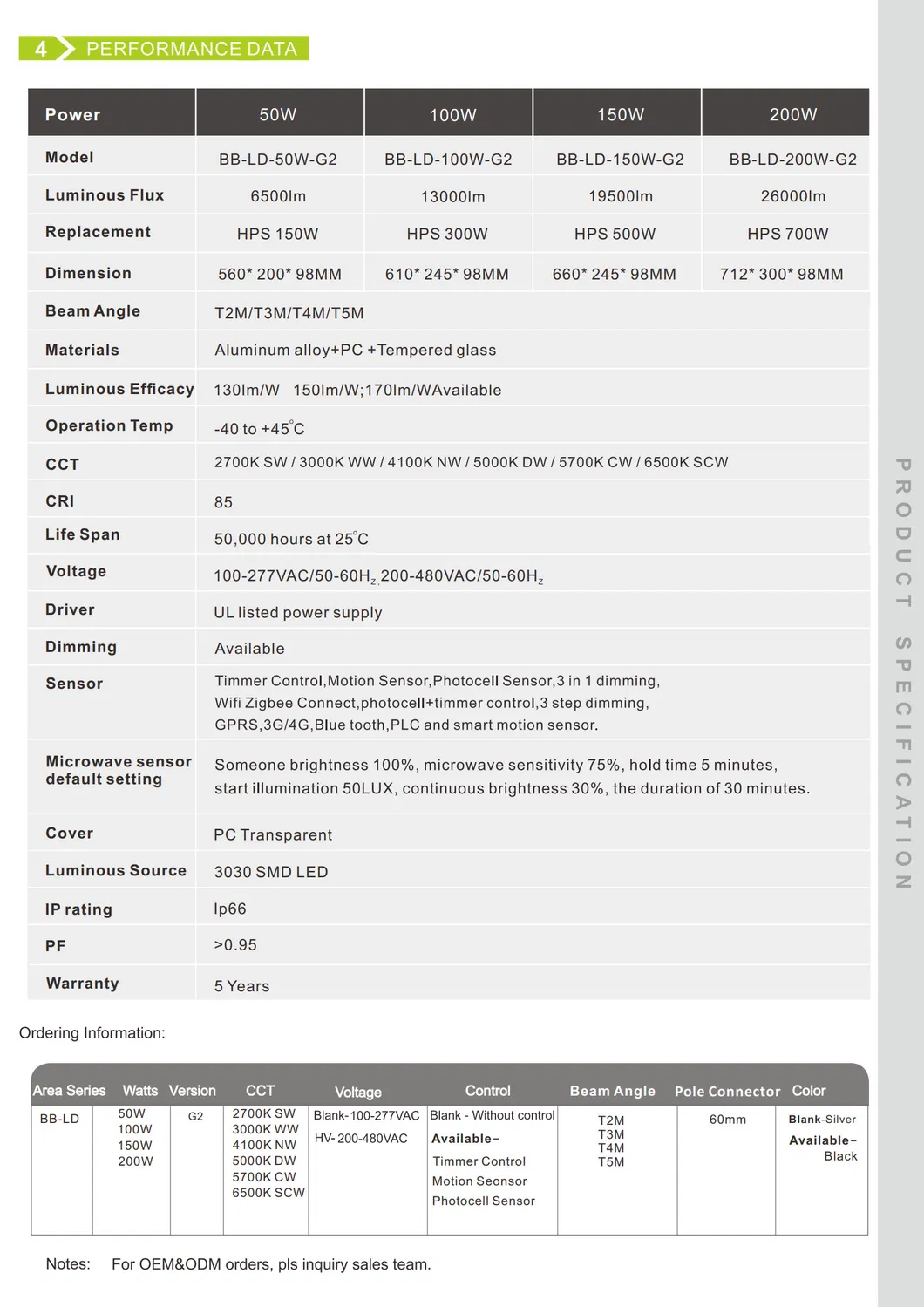

Product Parameter Diagram
Parameter Specifications Details
Product name Smart Lighting Street Light Centralized Controller
Light Source SMD LED
Application ROAD
IP 54
Model Number LCU16
CRI >80
Certification EMC, RoHS, CE, FCC, SAA
Dimming 0-10V/DALI
Support dimming interface PWM and 0-10V
Remotely read electrical parameters Current, power, power factor and consumed energy.
Optional sensor GPS, tilt detection
Warranty(Year) 3-Year
Microwave sensor default setting Someone brightness 100%, microwave sensitivity 75%, hold time 5 minutes, start illumination 50 LUX, continuous brightness 30%, duration of 30 minutes.
Product information Concentrator, a communication bridge between server (by 2G/4G/Ethernet) and LCU (by RF-mesh), update by OTA, 100-500VAC, 2W, IP54.
Certifications
Product Compliance Certificates
Packaging & Shipping

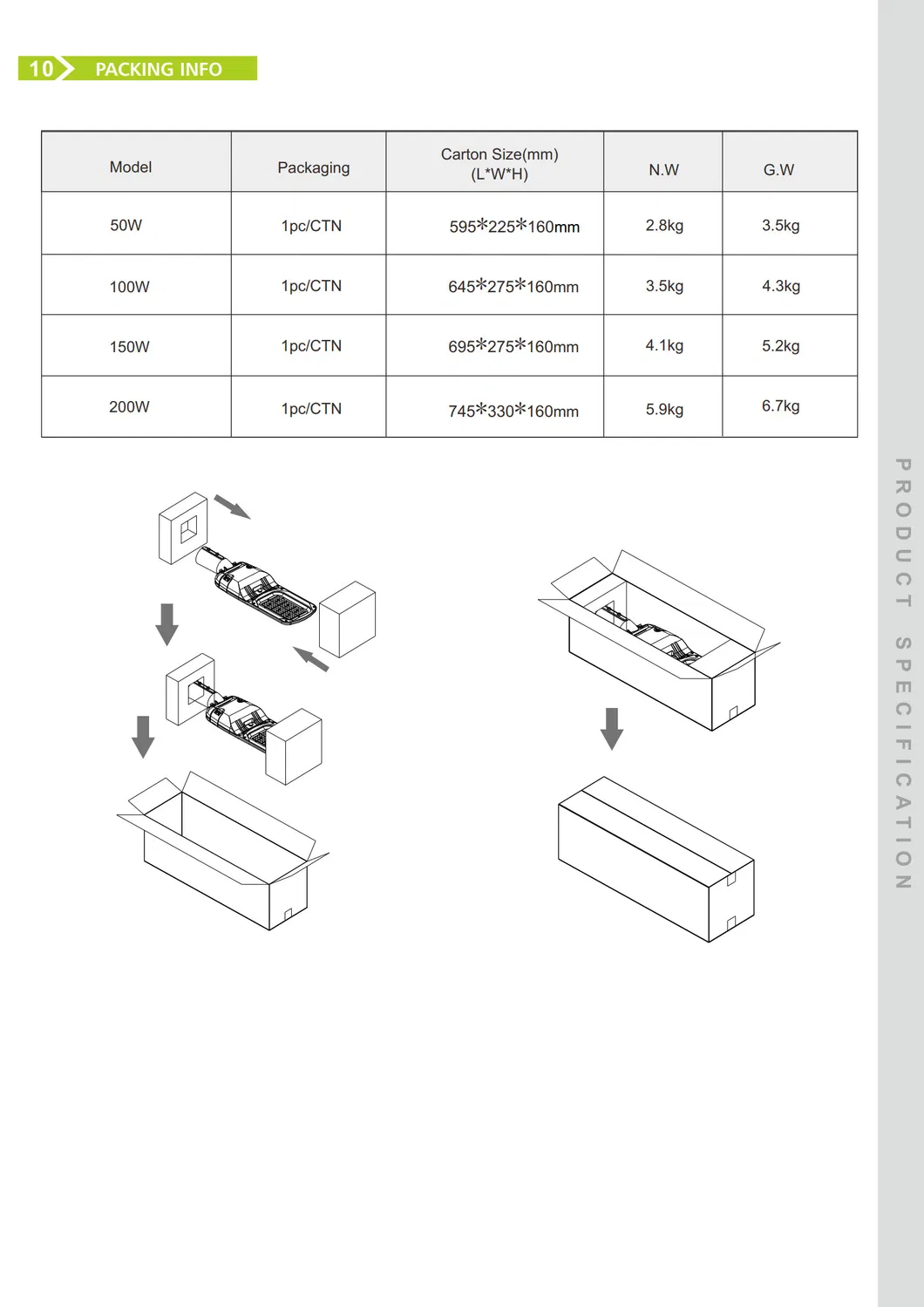

Packaging Box Dimension Diagram

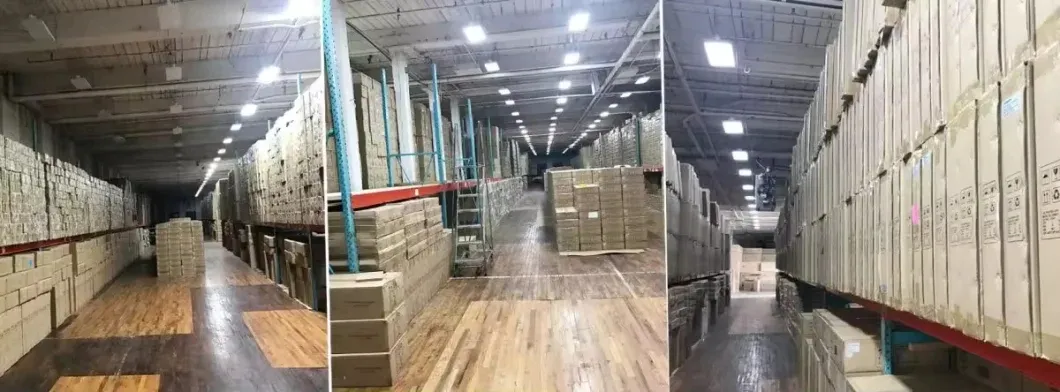

Packaging Box Detail Side A

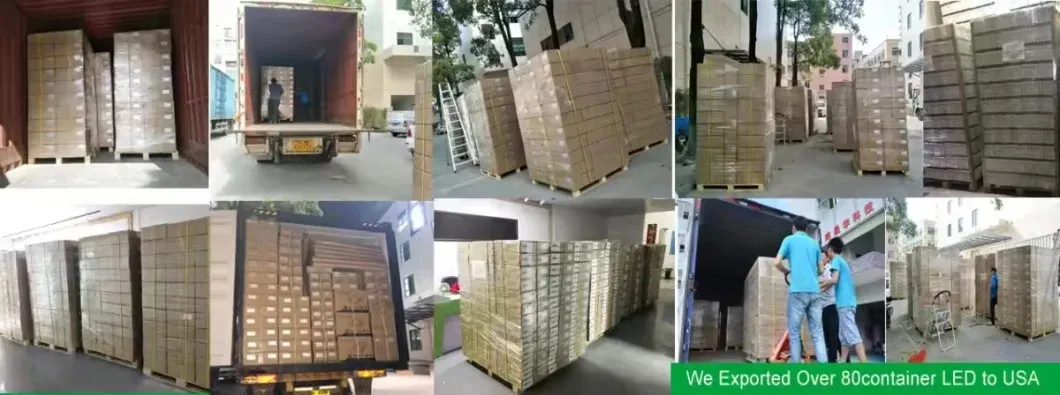

Packaging Box Detail Side B
Shipping Carton Storage
Installation Instructions

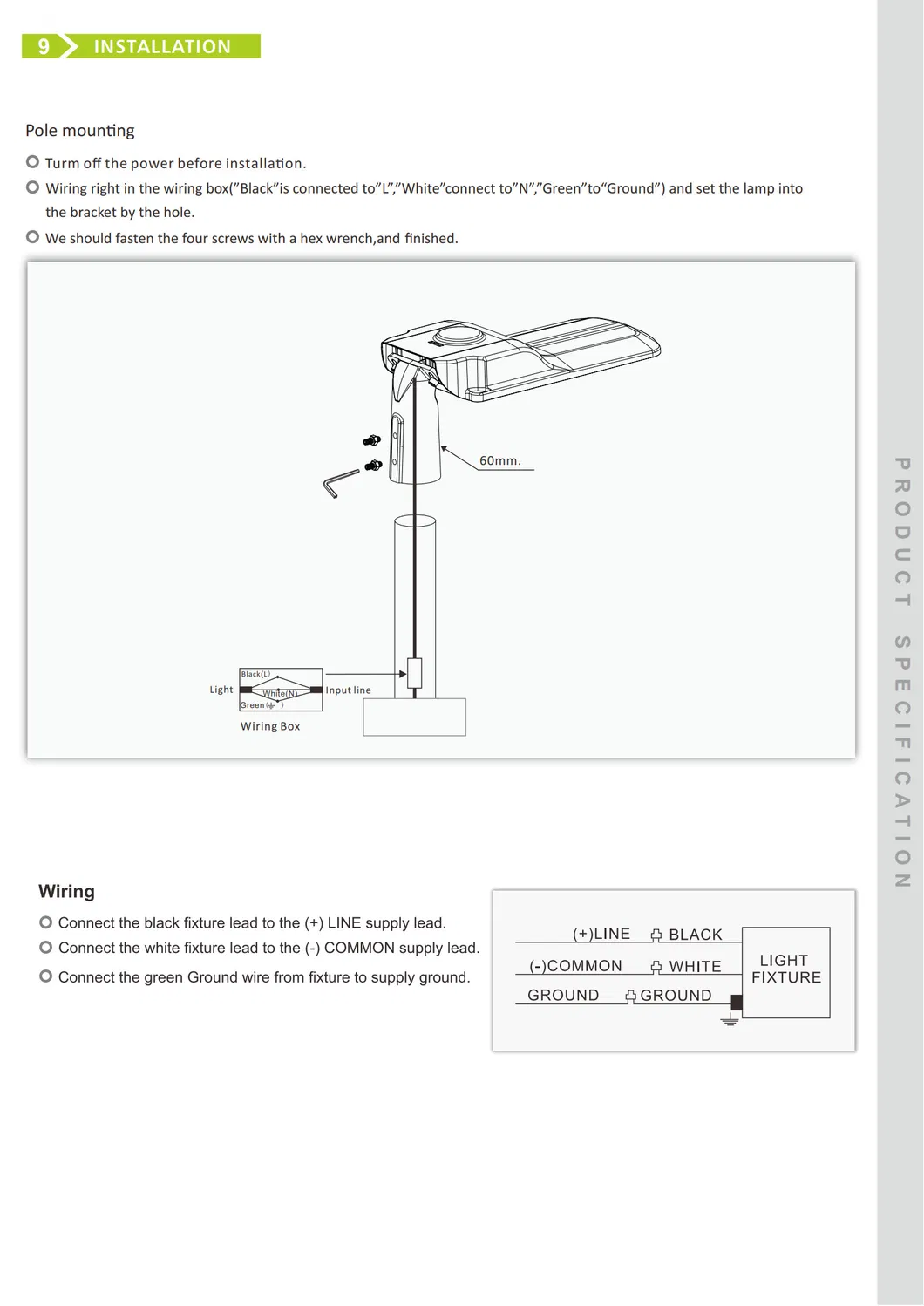

Installation Instruction Guide Diagram
FAQ
Where are major markets located and what is the regional distribution?
Products are supplied globally with key market distribution: North America (50.00%), South America (10.00%), Eastern Europe (10.00%), Central America (5.00%), Domestic Market (5.00%), Western Europe (4.00%), Southern Europe (3.00%), Northern Europe (3.00%), Eastern Asia (2.00%), Oceania (2.00%), Mid East (2.00%), Southeast Asia (2.00%), South Asia (1.00%), and Africa (1.00%).
How is product quality guaranteed?
Quality is consistently maintained by providing a pre-production sample before starting mass production and conducting a comprehensive final Inspection before shipment.
What types of outdoor lighting products can be purchased?
A wide range of LED outdoor lights is available, including LED Solar Lights, Post Top LED Garden Lights, LED Stadium Lights, LED Shoebox Street Lights, LED Portable Work Lights, UFO LED High Bay Lights, and LED Explosion Proof Flood Lights.
What advantages make these products stand out from other options?
Key advantages include fast delivery options, on-time dispatch with tracking via a visualized manufacturing process, over 10 years of experience in source sample project design, custom lighting solutions, and low MOQs directly from the factory.
What delivery terms and payment methods are accepted?
Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery.
Payment Currency: USD, EUR, CNY, CHF.
Payment Type: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow.
What dimming options and controls are supported?
The street lighting and centralized controller units support multiple dimming protocols, including 0-10V, DALI, and PWM interfaces, allowing for flexible remote control configuration.
