Energy Efficient Circular Vertical Lift Parking System with LED Lighting for 24/7 Operation

Customization: Available
Level: 5-9 Levels
Parking Post: 25-99 Posts

Product Description

Basic Info

Color
Black
Installation Type
Multi-Level
Material
Steel
Operation Mode
Automatic
Power Source
Electric
Safety Features
Anti-slip Surface, Emergency Stop Button, Overload Protection, Safety Railings, Safety Sensors
Suitable for
Commercial Use, Public Parking, Residential Use
Warranty
2 year
Drive Mode
Traction + Wire Rope
Car Size
Sedans 5300X1900X1550mm, SUV 5300X1900X2050mm
Car Weight
≤2350kg
Vehicle Access Method
Forward in and Forward out
Power Resource
3p 380V 50Hz and Customization
Turn Power
2.2kw
Turn Speed
4.5 Rpm
Lifting Power
30kw
Lifting Speed
Max: 95m/Min
Transport Package
Wooden Crate, Steel Straps
Specification
Customizable
Origin
China
Production Capacity
200,000 PCS/Year

Packaging & Delivery Specs

Package Size
650.00cm * 150.00cm * 80.00cm
Package Gross Weight
800.000kg

Product Description

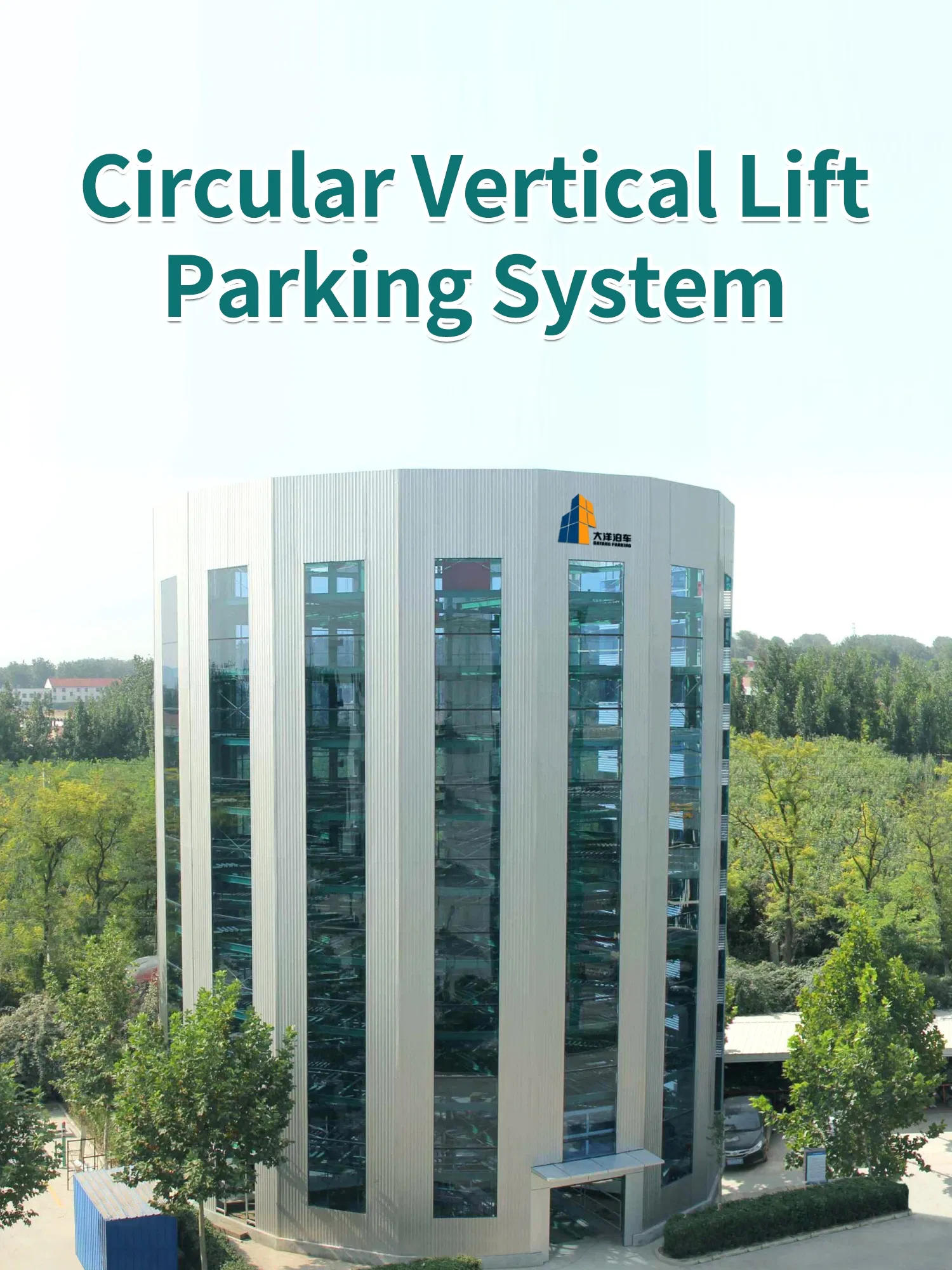

Energy Efficient Circular Vertical Lift Parking System
Specification Details
Drive Mode Traction + wire rope
Car Size Sedan ≤ 5300 × 1900 × 1550mm
SUV ≤ 5300 × 1900 × 2050mm
Car Weight ≤ 2350kg
Power & Speed Lifting 30kw Max: 95m/min
Turn 2.2kw 4.5 rpm
Vehicle Access Method Forward in and forward out
Power Resource 3P 380V 50Hz and customization

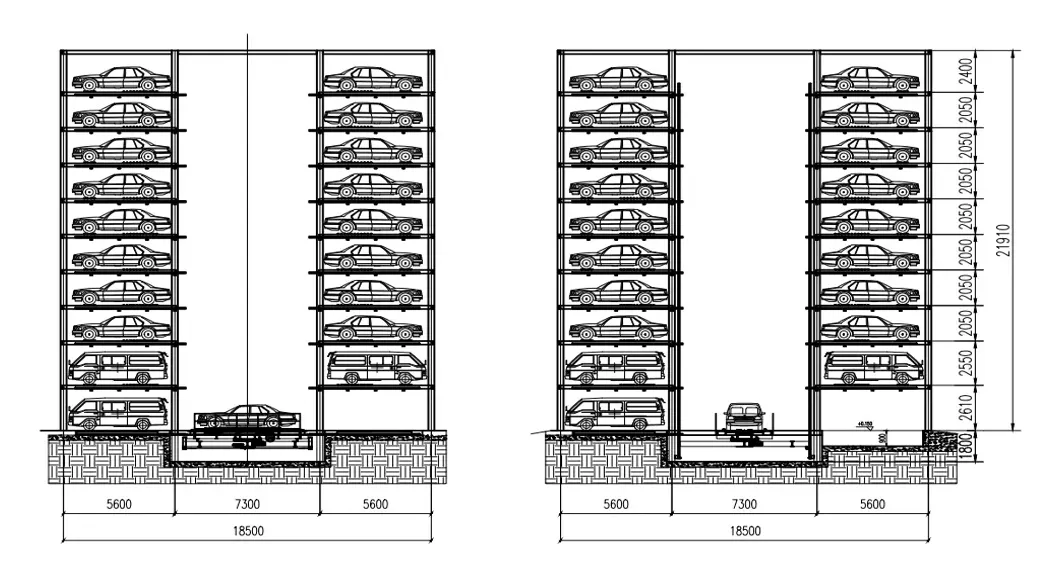

System Dimensions and Structure

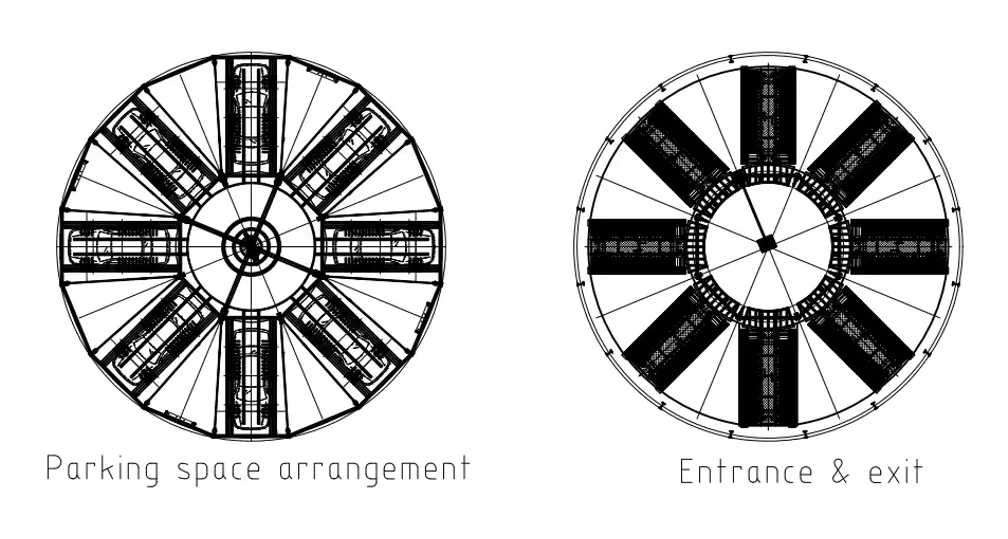

System Layout Plan
1. Extremely High Space Utilization
Develops vertically with a small footprint: The system adopts a vertical tower design, requiring only a small circular foundation to construct dozens of parking levels upwards, achieving exceptionally high land utilization. This is crucial for expensive urban central areas, potentially increasing capacity several-fold or even dozens of times compared to traditional surface parking.

No need for ramps or driveways: Unlike traditional parking facilities that require significant space for vehicle circulation and access, this system uses elevators for vertical transport, completely eliminating internal traffic lanes and dedicating all space purely to parking.

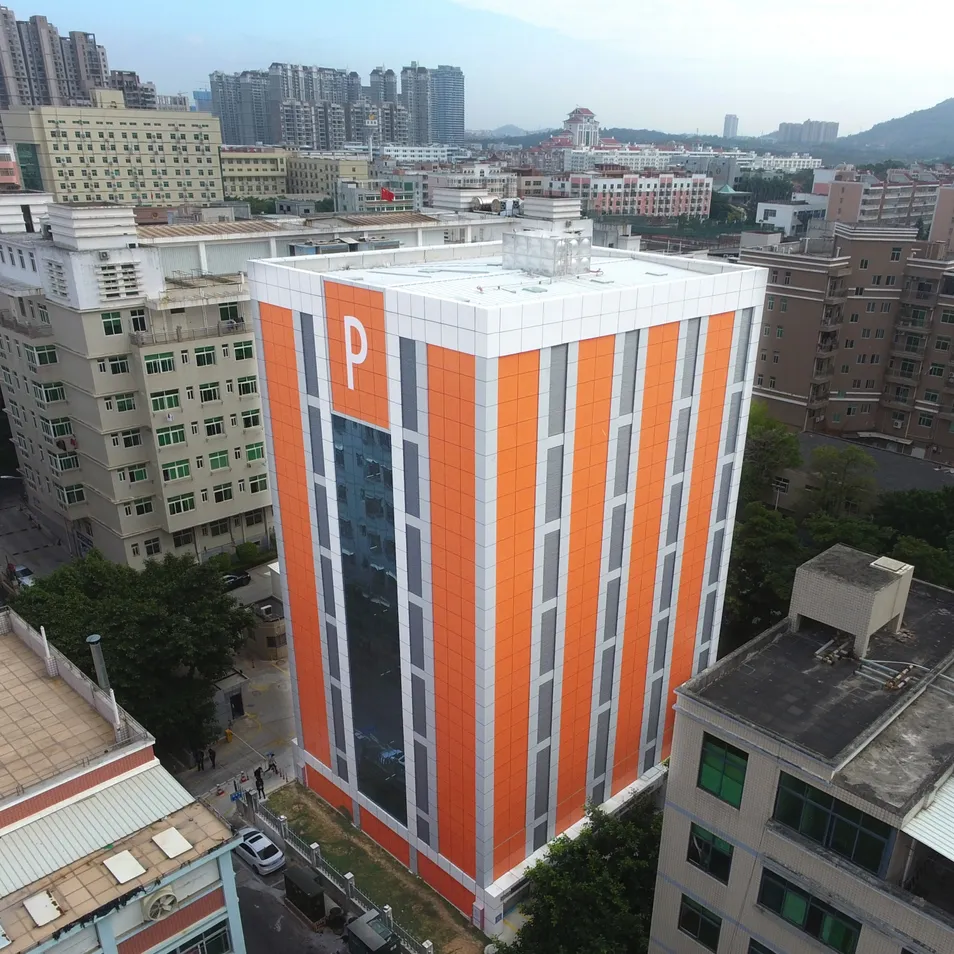

High Space Utilization Feature
Vehicle Access Efficiency Feature
2. Excellent Vehicle Access Efficiency
Single, efficient vertical transport core: The system is typically equipped with one or two high-speed elevators responsible for vertically transporting all vehicles to target levels.

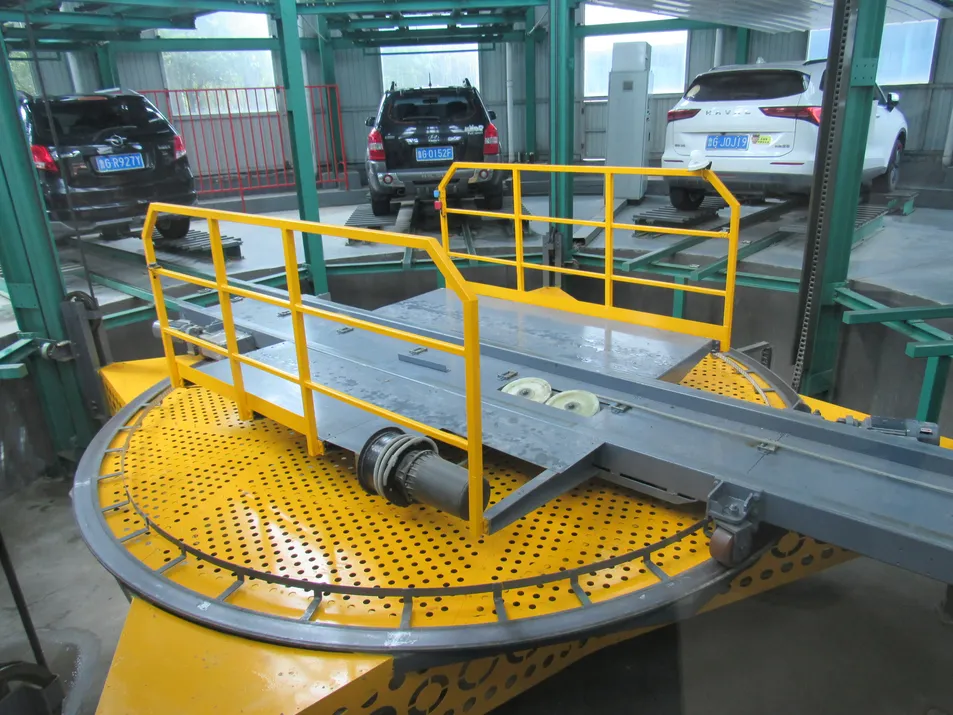

Rotating platform technology: This is one of its core advantages. The rotating platform on the elevator can perform 360-degree rotation while the vehicle is being lifted or lowered. This means vehicles don't need to turn around inside the tower for access and exit directly facing forward ("head-in, head-out"), greatly simplifying driver operation and reducing access time.
3. Outstanding Safety and Vehicle Protection
Fully enclosed structure: Vehicles are parked within a fully enclosed steel structure tower, effectively avoiding damage from sun, rain, hail, and other natural elements, as well as preventing manual scratches, theft, or vandalism.

Automated operation, minimizing human error: The entire parking and retrieval process is completed automatically by the computer system. Drivers only need to park the vehicle on the entrance turntable. This completely avoids potential collision accidents caused by driving in confined spaces.

Multiple safety devices: The system is equipped with audible and visual alarms, emergency stop buttons, oversize/overweight vehicle detection, personnel intrusion detection, fall prevention devices, etc., ensuring fail-safe operation.
Safety Protection Feature

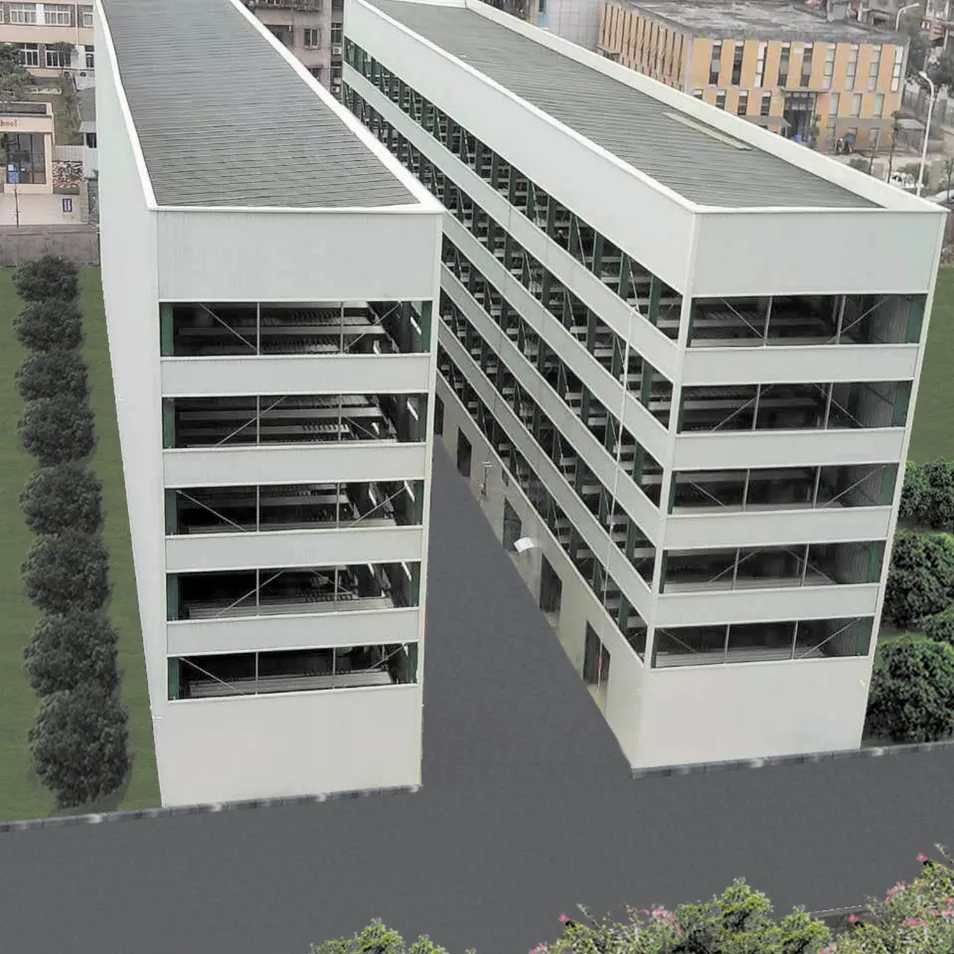

Environmental Protection Feature
4. Environmental Protection and Energy Saving
Reduces land development and concrete use: Due to the small footprint, there is less disruption to the original ecological environment and reduced carbon emissions during development.

Reduces vehicle emissions: Drivers avoid prolonged low-speed driving searching for spaces within parking lots, thereby reducing tailpipe emissions inside the facility and improving internal air quality.

Electric drive, high energy efficiency: The system uses electric drive. Compared to traditional parking facilities requiring extensive lighting and ventilation systems, its total energy consumption is typically lower. Some advanced models also incorporate energy feedback systems to recover electricity during descent.
5. Intelligent Features & User Experience

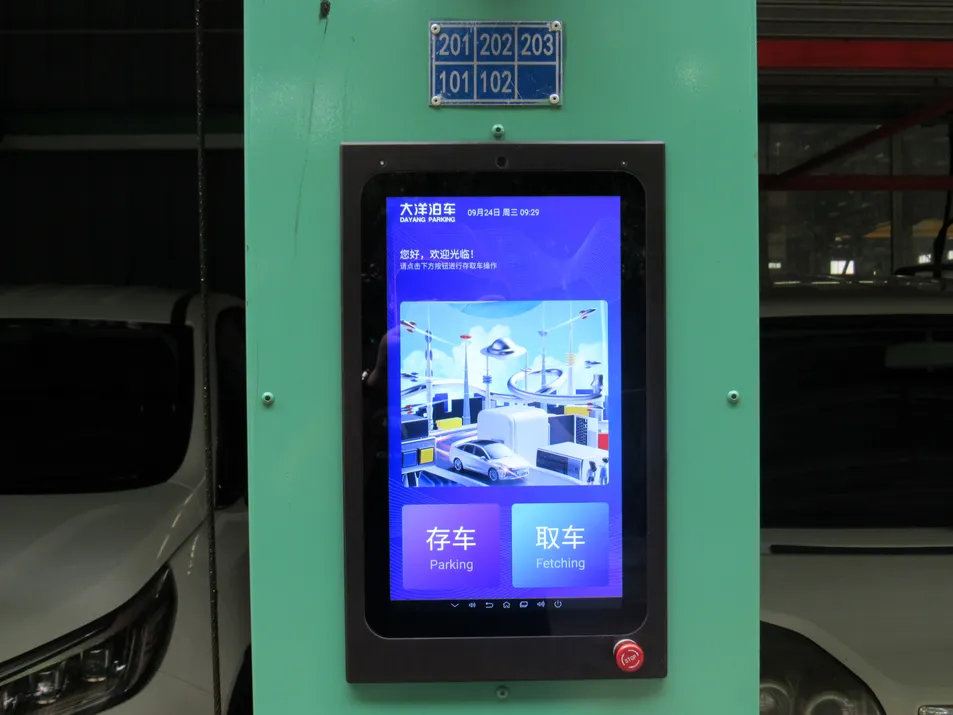

Automated control: Users can complete parking and retrieval operations simply via touchscreen, card swipe, mobile app, or license plate recognition, making the process straightforward and quick.

Fast retrieval: The system automatically optimizes access paths, with average retrieval times typically between 1 to 3 minutes, which is highly beneficial for turnover during peak hours.

Status monitoring and remote diagnostics: Most systems are equipped with remote monitoring and diagnostic functions, allowing maintenance personnel to understand equipment status in real-time and identify and address issues promptly.
Intelligent Control Feature
Divider Decor

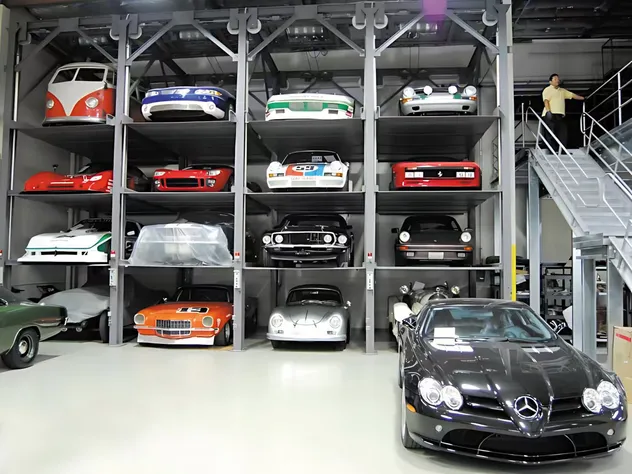

United States Parking Project
United States Parking Project
Type: Vertical Horizontal Parking System
Floor: 5 (1 underground, 4 onground)
Spaces: 38

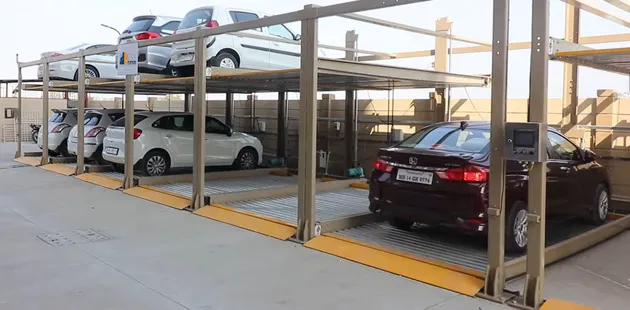

Saudi Arabia Parking Project
Saudi Arabia Parking Project
Type: Mechanical Puzzle Parking System
Storey: 2
Spaces: 926

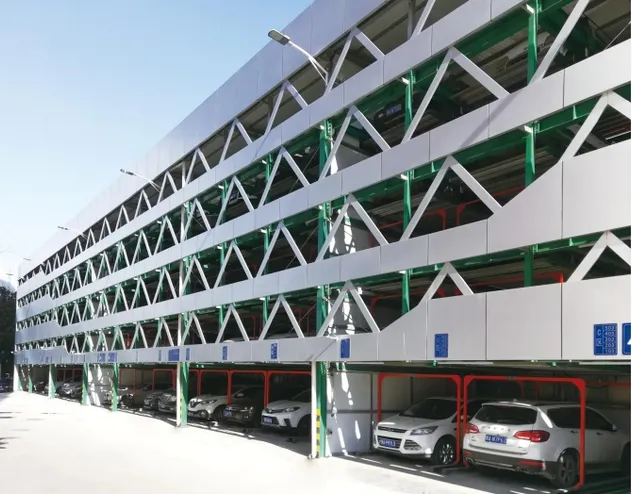

Construction Committee Parking Project
Zhengzhou Construction Committee Parking Project
Type: Smart Vertical Horizontal Parking System
Floor: 5
Spaces: 1,338
Advantage: Customized Design with Comprehensive Facilities, High Safety Standards, Fire & Earthquake Resistant
System Operations Facility Overview

Packing & Delivery

Packaging Setup 1
Packaging Setup 2
Delivery Load 3

After Sales Service

After Sales Service System Map

Frequently Asked Questions

1. How to prevent equipment corrosion in high-humidity areas?
Hot-dip galvanized steel and fluorocarbon spraying technology are used, with a salt spray test reaching 1000 hours. A dehumidification system can be optionally equipped to control humidity below 60%.
2. How to deal with icing in cold regions?
Heated car carriers (adjustable from -30ºC to 50ºC) are equipped, and the guide rails use anti-slip coatings. The low-temperature start-up technology can operate reliably in environments as low as -40 °C.
3. Can unmanned management be realized?
It supports AGV robots to transport vehicles; car owners only need to park at the entrance and leave. The IoT system can monitor equipment status in real-time and automatically alert to abnormalities.
4. What is the construction cost of a multi-story parking garage?
Lifting and traversing types cost about 15,000-30,000 yuan per parking space, and vertical lifting types cost about 60,000-100,000 yuan per parking space. Full-cycle cost optimization solutions from design to operation are provided, which can reduce energy consumption by 20%.
5. Are there government subsidy policies?
Places like Shenyang provide a maximum subsidy of 20,000 yuan per parking space for public multi-story parking garages. We can assist customers in applying for special funds and provide policy interpretation and declaration services.
