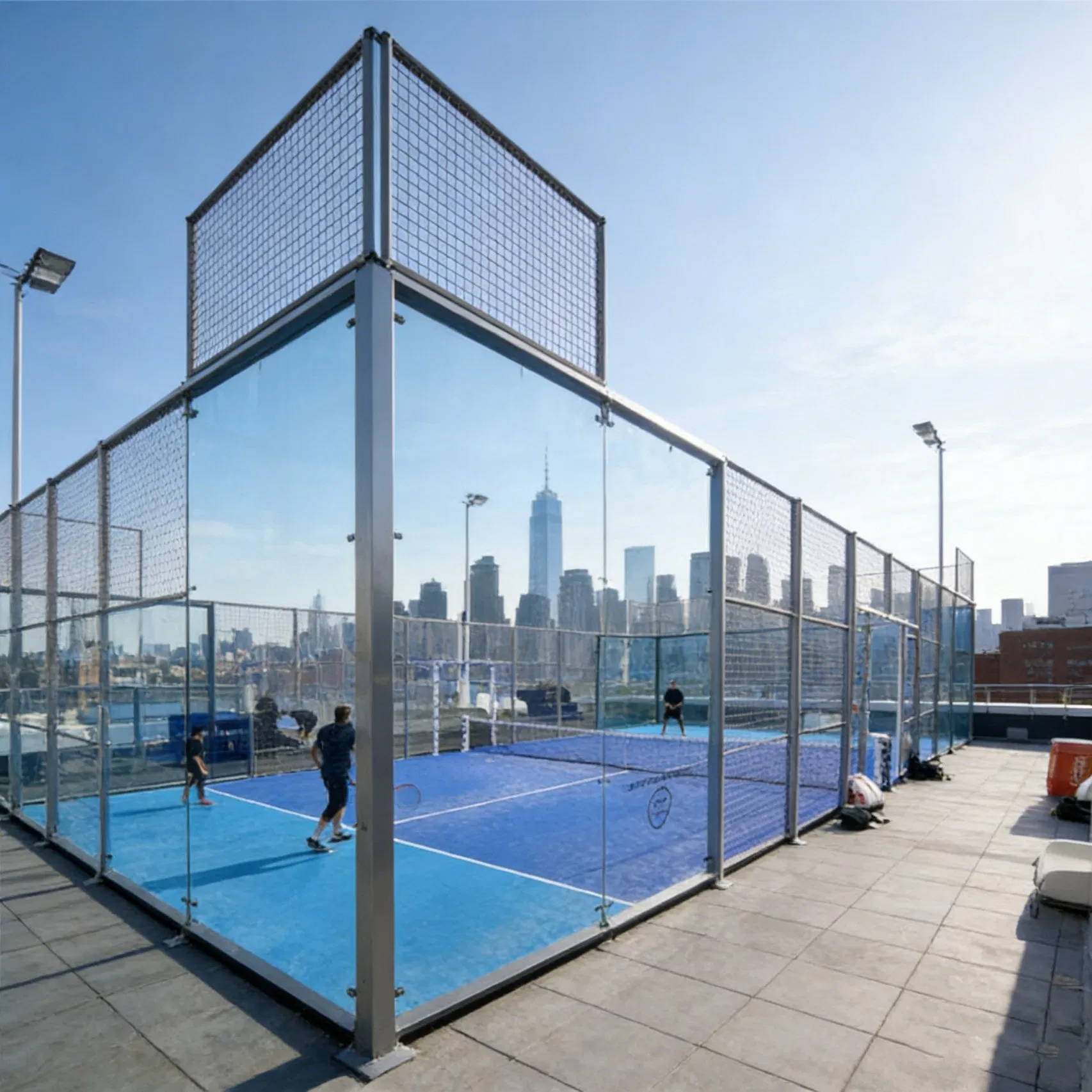

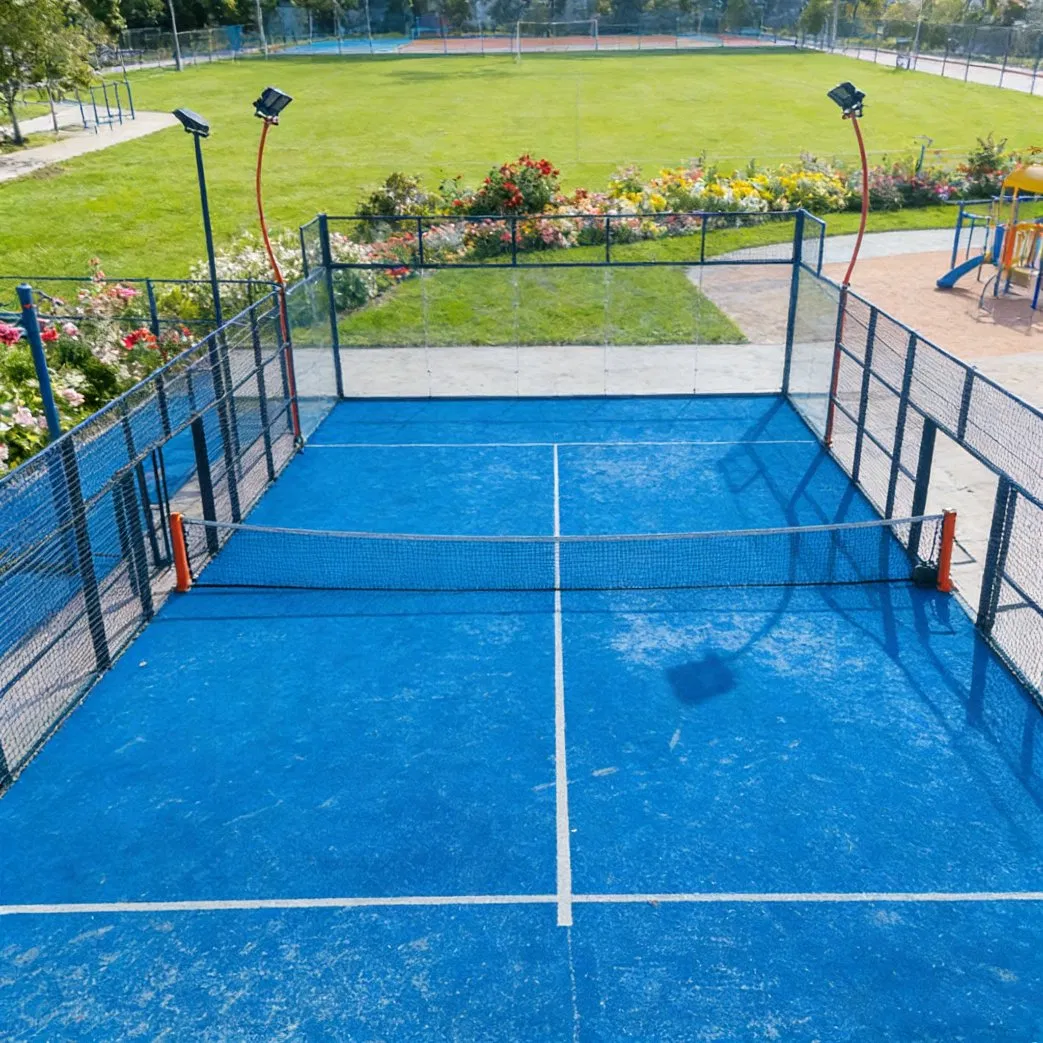

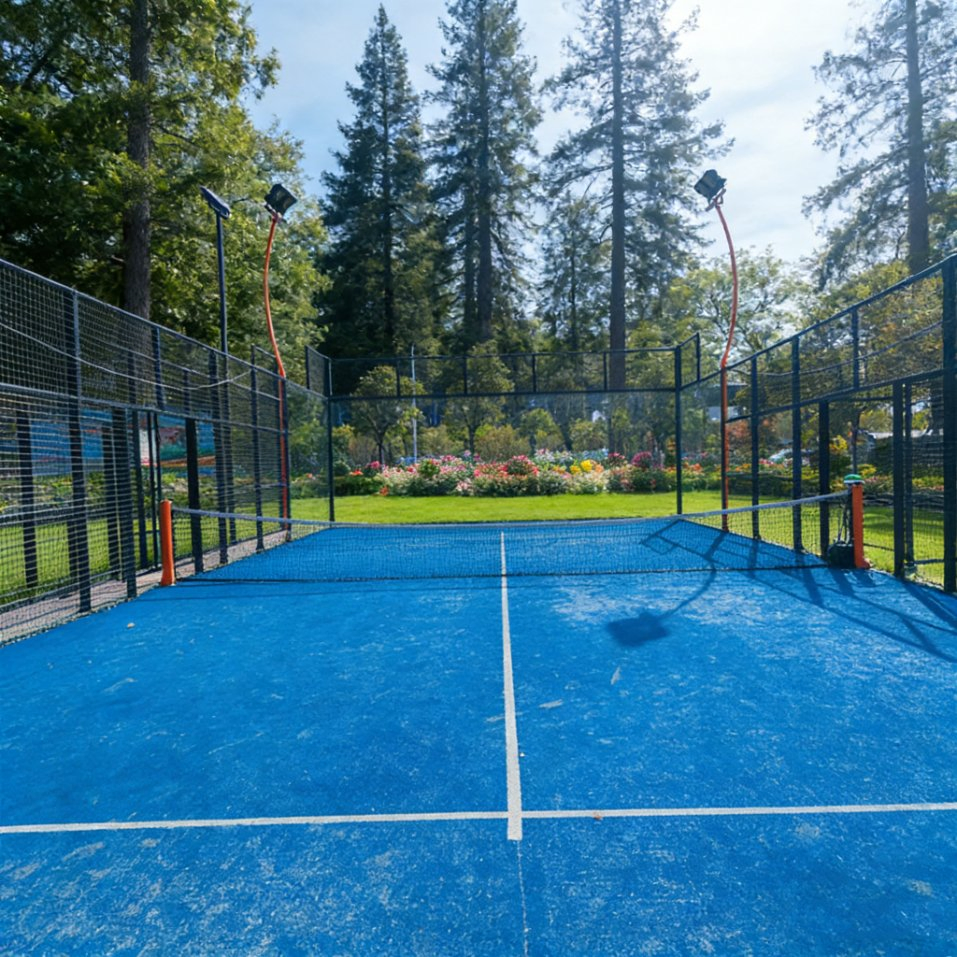

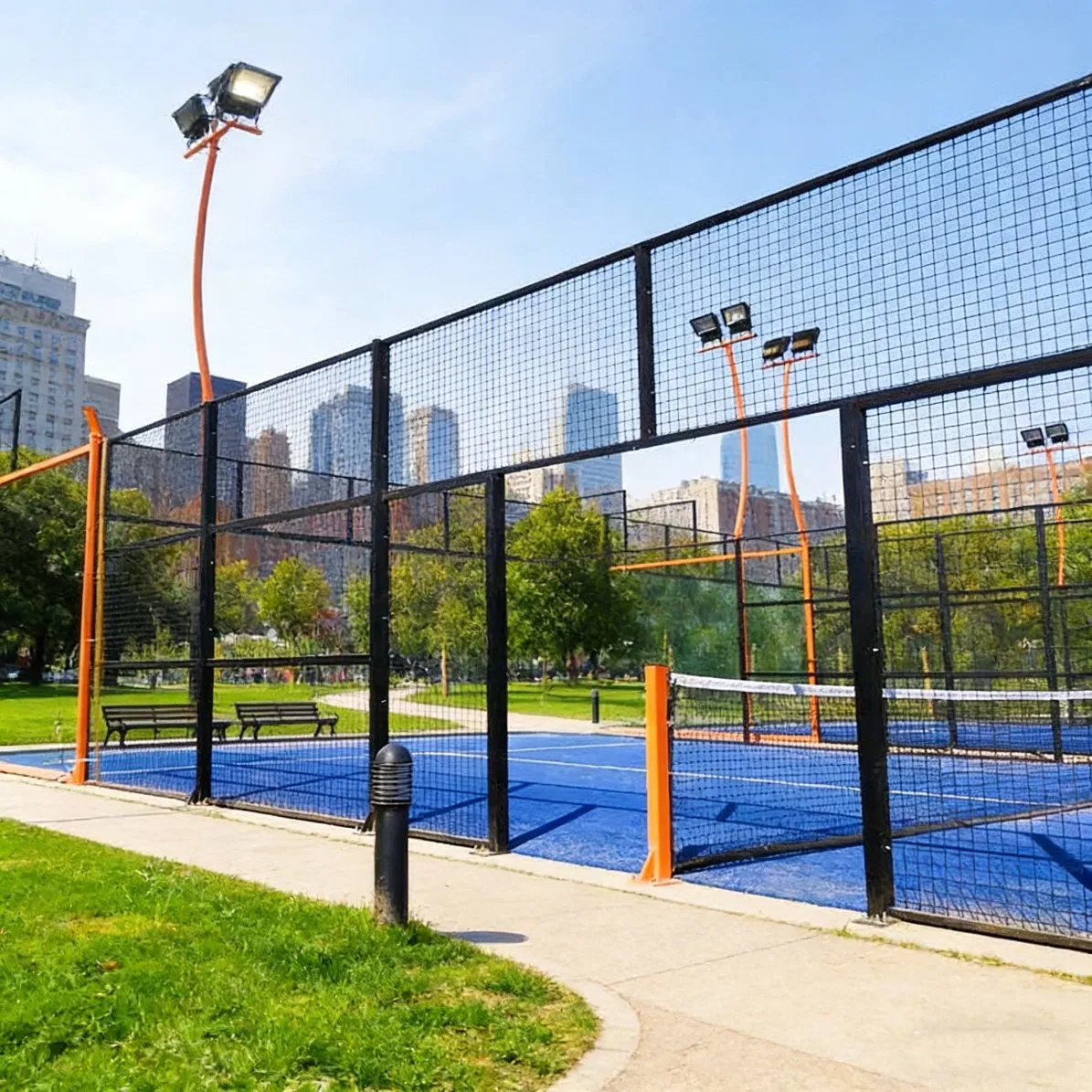

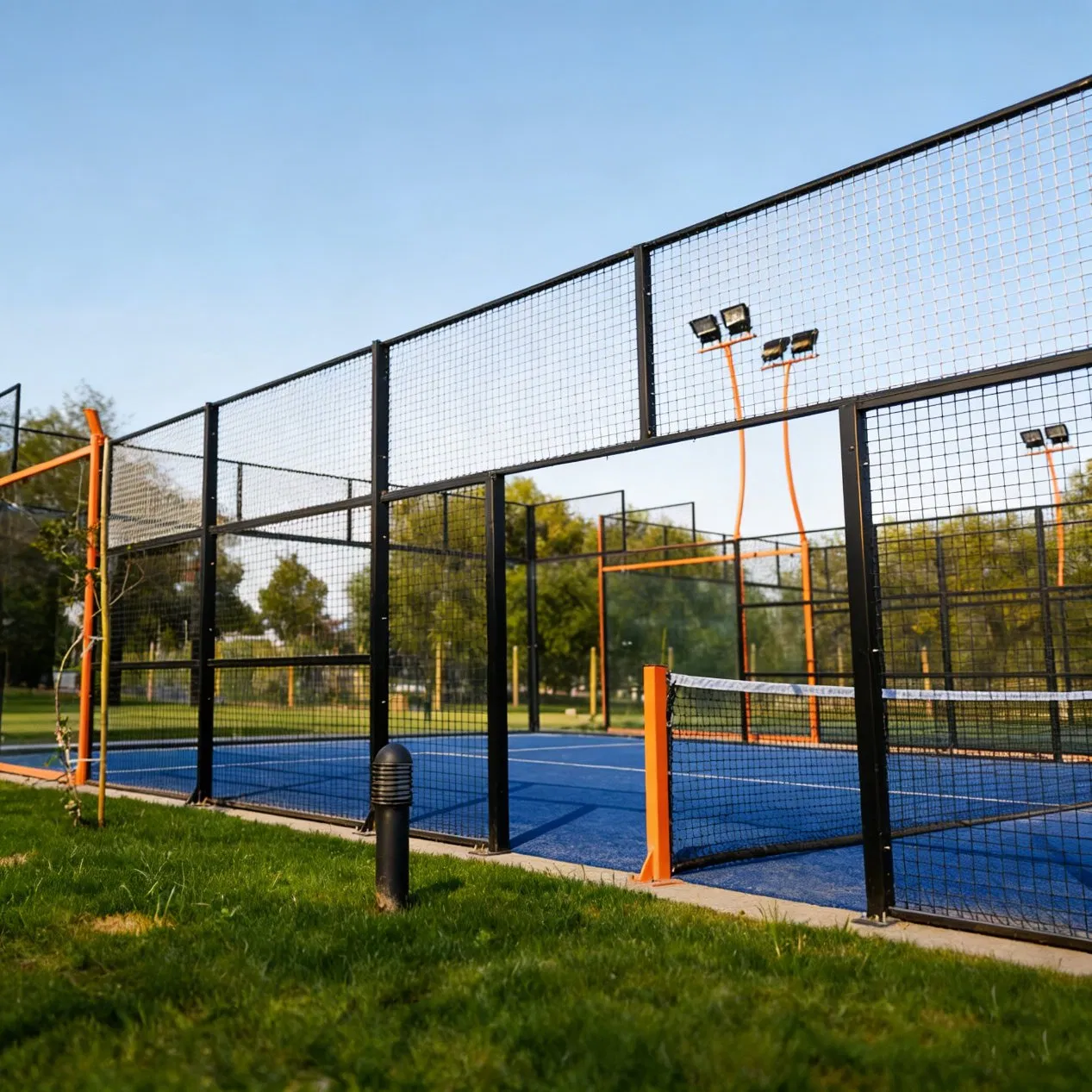

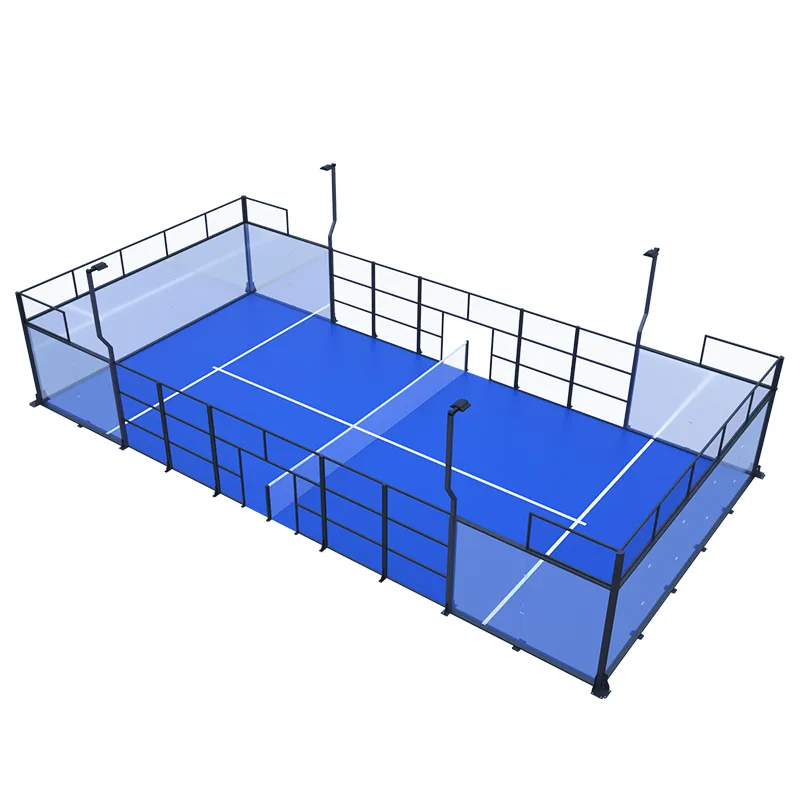

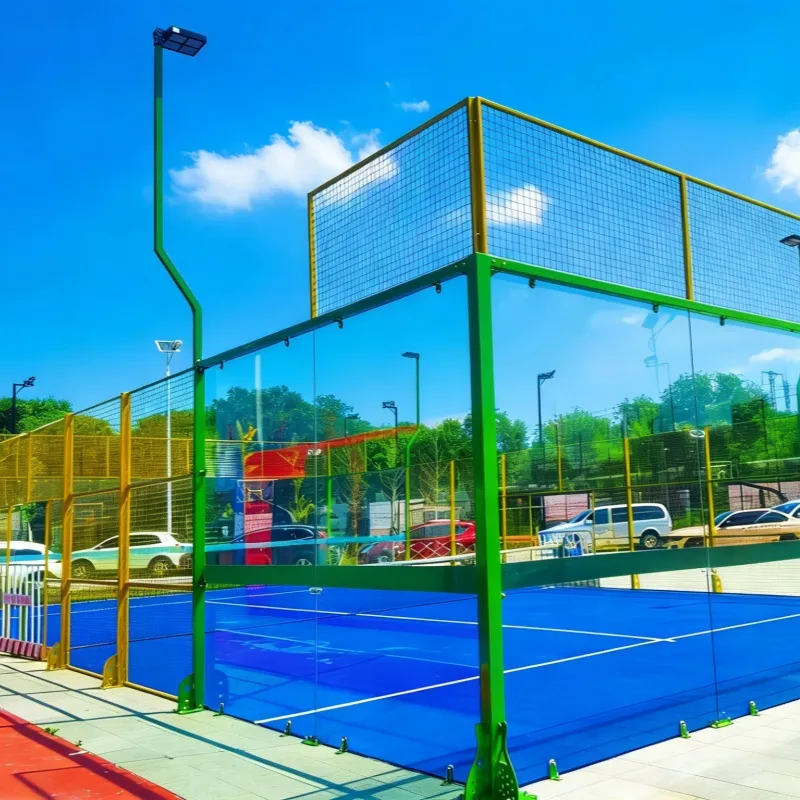

| Item | Specification |
|---|---|
| Corner post | Steel pipe spec: 100mm*100mm*3mm Height: 3m A 10mm thick flange plate is welded at the bottom. With an 8mm thick reinforcing rib. Electrostatic powder coating after shot blasting rust removal. |
| Other Column/post | Steel pipe spec: 100mm*50mm*2.75mm Height: 3m A 10mm thick flange plate is welded at the bottom. With an 8mm thick reinforcing rib. Electrostatic powder coating after shot blasting rust removal. |
| LampPost | Size: 60mm*60mm*2.75mm Length: 3m The height of the lamp is 6 meters. Install directly on the top of the lamp post |
| Upper and lower crossbeam | Steel pipe spec: 100mm*50mm*2.75mm. Length: 4m/5m Electrostatic powder coating after shot blasting rust removal. |
| Steel mesh frame | 40*20*2.0 steel pipes + steel frames/steel plates and 50*50mm steel mesh sheet with mesh wire thickness 4mm are welded by butt welding and laser welding to form a mesh frame. Electrostatic powder coating is applied after overall galvanization. |
| Mesh pole | 80*80*3.0 aluminum alloy column tube, with built-in pure copper rope tensioner. Cast aluminum alloy pipe caps and rocker handles. The installation kit is made of steel and a 10mm thick flange plate is welded at the bottom. |
| Middle mesh | PE woven mesh (3mm thickness), mesh hole 45*45mm. The top mesh is double-layer. A 6mm thick plastic-coated steel wire rope sandwiched inside the PVC mesh fabric. Mesh in black color and the white edge is without logo. |
| Hardware | 304 stainless steel bolts and nuts. Stainless steel expansion bolts. PE gasket (for glass). Galvanized + electrostatically sprayed connectors (connect steel plate and glass) |
| LED Light | 400W LED light for padel tennis use, 4 pieces |
| Glass | Tempered glass, thickness 12mm |
