Customization: Available
Color Temperature: Warm White
Lamp Body Material: Aluminum Alloy
Send Inquiry

Product Description

Basic Info
Model NO. hola
Power 6-10W
Emitting Color Warm White
Base Type Track
Wire 3wire
IP Rating IP54
Certification EMC, LVD, RoHS, SAA, VDE
Input Voltage 24V
LED Chips Brand Osram
Origin China
HS Code 94054090
Product Description

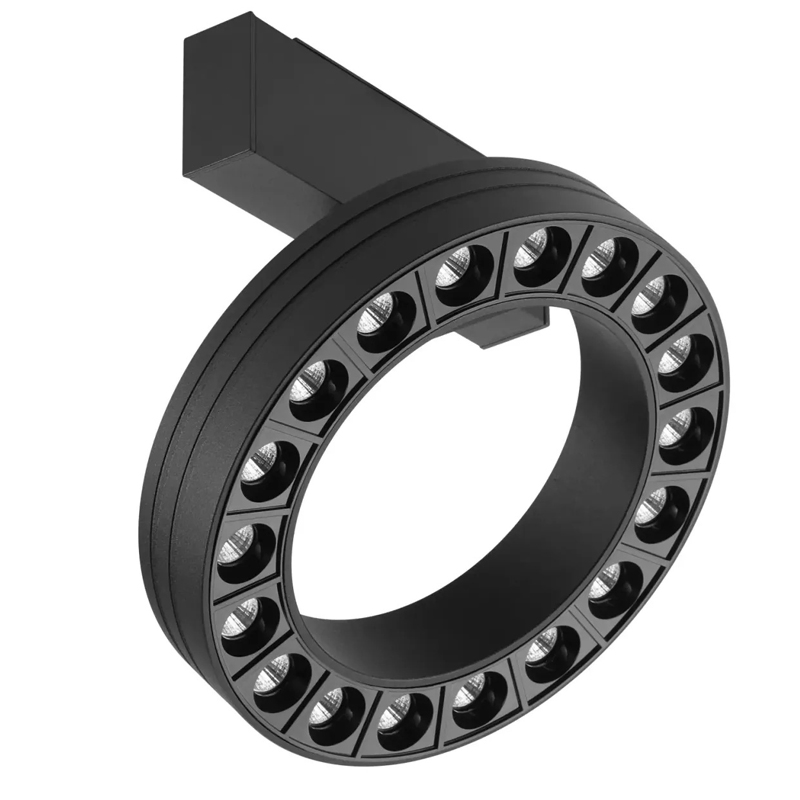

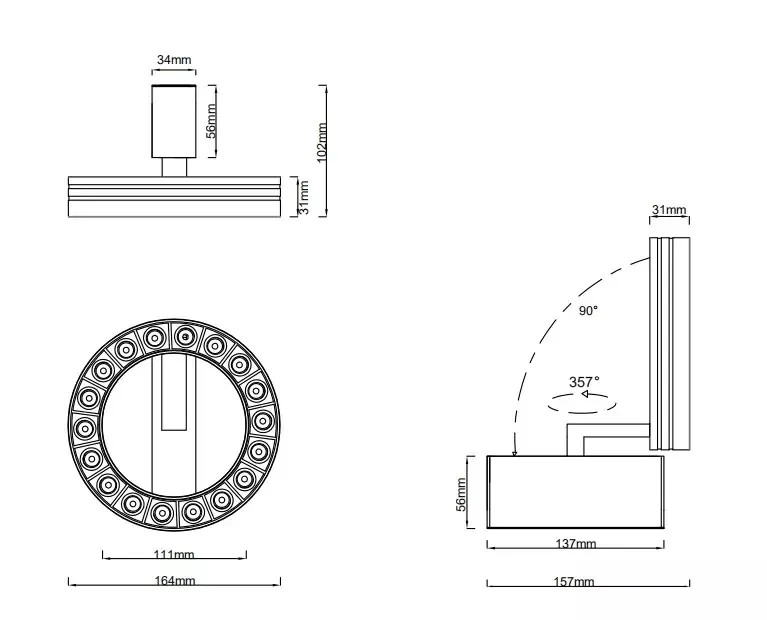

The spot light with three different beam angles each, obtained by means of refractive or hybrid optical units. Junction arm integrated in the spotlights body to keep the barycentre aligned with the track and prevent any imbalance in possible suspension versions of track. The junction allows 360° rotation. External dimming interface with Triac, 0/1-10V, Dali.
Main Specifications
Number of heads 8
Lamp category LED
Power 18W
CCT 2700K/3000K/4000K/5000K
CRI 80/90
Lumen(lm) 1716
Mountings Magnetic Track
Environment Indoor
Optical
Lighting type Direct
LED type SMD LED
Lighting distribution Symmetric
Optical type Spot

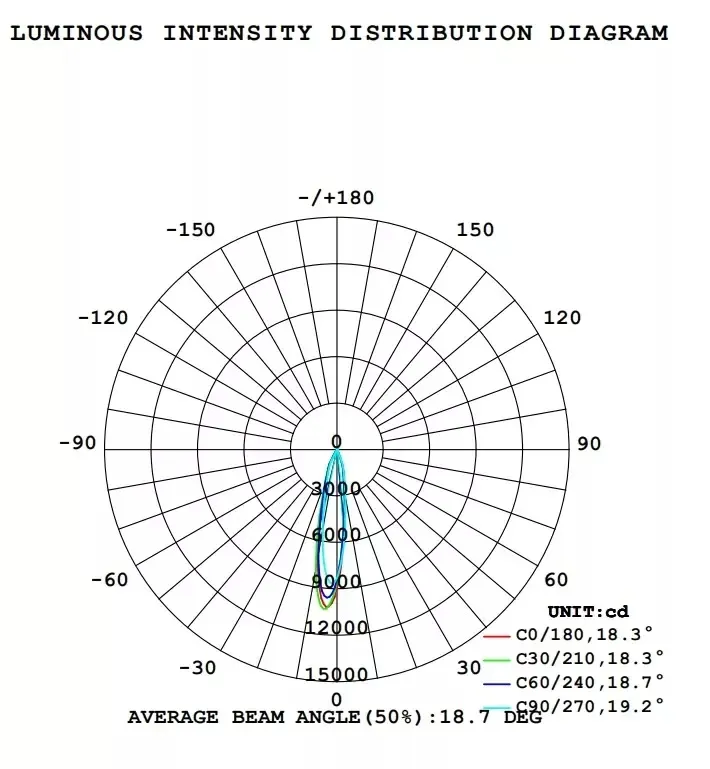

Beam angle(°) 20/30/40
Electrical
Voltage(V) 24
Dimmable Yes
Driver Remote
Driver type Electronic
Emergency Without
Insulation class -
Physical
Color Black RAL9005/white RAL9003
Orientation No
Weight(kg) 0.49
Package
Number/Ctn(pcs) 16
N.W/Ctn(kg) 5.9
G.W/Ctn(kg) 7.5
L*W*H(cm) 37*34*43
Magnetic System, Spot Light, Track Light, Linear Light, Panel Light System
Magnetic System, Spot Light, Track Light, Linear Light, Panel Light System
Magnetic System, Spot Light, Track Light, Linear Light, Panel Light System
Magnetic System, Spot Light, Track Light, Linear Light, Panel Light System
Magnetic System, Spot Light, Track Light, Linear Light, Panel Light System
Magnetic System, Spot Light, Track Light, Linear Light, Panel Light System
Magnetic System, Spot Light, Track Light, Linear Light, Panel Light System
Magnetic System, Spot Light, Track Light, Linear Light, Panel Light System
Magnetic System, Spot Light, Track Light, Linear Light, Panel Light System
Product Classifications
  • Digital LED strip light and common flexible LED strip light
  • LED corn light and high power LED bulb light
  • LED tube light (T5, T8 ballast compatible LED tube and common LED tube, Tri-proof LED light)
  • LED panel light (square panel light and round panel light)
  • LED street light and LED highbay light
  • Solar LED wall light and solar LED street light
  • Commercial lighting lamps (LED spotlight, LED track light, LED cabinet light, LED showcase display light)
Warranty & Applications
  • Warranty: 3 Years Warranty. If the item is defective within 3 years, it can be returned for replacement. Shipping terms apply.
  • Main Applications: Ideal as indoor main illumination lighting in office spaces, commercial centers, shopping malls, supermarkets, factories, and schools.
Packaging & Shipping Info
  • Payment Methods: T/T, Western Union, PayPal, Escrow, L/C
  • Production Lead Time: 5-7 days for samples; 7-10 days for bulk orders
  • Shipping Port: Mainland China ports
  • Discounts: Available depending on order volume
  • MOQ: 1 piece
Shipping Methods
  • By Express (DHL, UPS, FedEx, TNT, EMS): Fast and secure service, typically taking 3-5 business days for delivery.
  • By Air: Highly favorable shipping rates for select regions, delivering in 5-7 days.
  • By Sea: Highly economical option for heavy, high-volume, and non-urgent shipments.
  • Designated Agent: We support coordinating shipments directly with your preferred shipping agent or forwarder.
Key Advantages
  • Low power consumption with high lumens
  • Original Bridgelux 45mil LED chips, high quality, high brightness
  • Longer life span of around 50,000 hours
  • High quality pure aluminum, efficient heat dissipation design
  • Efficient LED driver, reliable performance, ROHS, CE, FCC, TUV compliant
  • Exquisite product process, unique design
  • Light's surface diameter and material thickness are greater than other products on the market
Service Features
  • Inquiries related to our products or prices will be replied to in 8 hours
  • Well-trained and experienced staff to answer all your enquiries in fluent English
  • OEM design and customizations are supported
  • Distributorships are offered for unique designs and current models
  • Protection of sales areas, ideas of design, and all private information
Frequently Asked Questions
Q: What is the warranty period for this track light?
A: This product has a 3-year warranty. If any defect occurs within this period, it is eligible for replacement, with the shipping cost covered under the standard terms.
Q: Can I request a sample to evaluate quality?
A: Yes. Sample orders are welcome and can be prepared and dispatched within 5 to 7 days after confirmation.
Q: Does the spotlight support dimming?
A: Yes, it is fully dimmable. It integrates with external dimming protocols including Triac, 0/1-10V, and DALI.
Q: What beam angle options does the spotlight offer?
A: The optical system is equipped to provide 20°, 30°, and 40° beam angles using precise refractive or hybrid lens units.
Q: What shipping options are available for orders?
A: We offer Express shipping (DHL, UPS, FedEx, TNT, EMS) for rapid 3-5 day delivery, Air freight (5-7 days), and cost-effective Sea freight for bulk orders. You can also utilize your own shipping forwarder.
Q: How do you determine the pricing for orders?
A: Pricing is based on order volume. Volume-based discounts are offered depending on the total quantity of your request.
