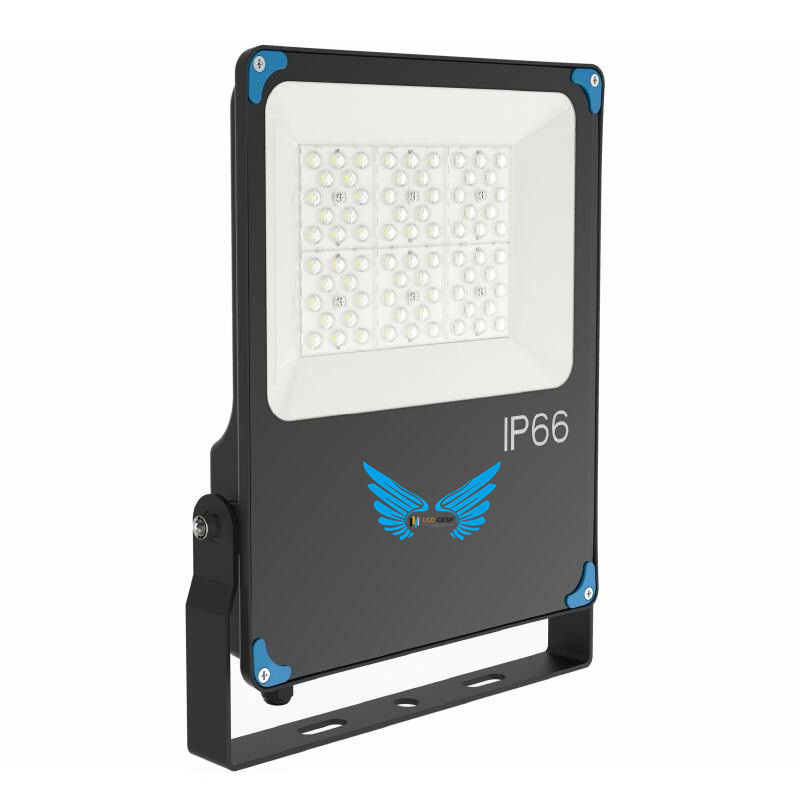

led outdoor flood light bulbs 10W DC12V 1200lm IP66 Aluminum die cast ADC12
Floodlight with broad spread light distribution. Various lighting tasks can be implemented such as floodlighting building surfaces, walls, plants etc. The use of LED technique offers optimal light output with low power and durability as well.
| Feature | Specification |
|---|---|
| Material | Aluminium die cast ADC12 housing +4mm temper glass face |
| Efficacy | up to 178 lumen /watt |
| LEDs chip | OSRAM SMD5050 |
| SDCM | <5 |
| FK flood driver | Meanwell & driver |
| Optic beam | 7°, 15°, 30°, 60°, 90°, 120°, TYPE 2/3/4/5, Asymmetric 40 |
| Ingress protection | IP66 |
| Mech. impact protection code | IK08 Impact rating |
| Mounting | "U" bracket / slipfitter |
without compromising light quality or a sense of security for those in the area.
Outdoor Pure Aluminum housing dimmable driver 1-10V water-proof IP65
30 Watt LED Flood Light 110-305V 50/60Hz or 12-32VDC
Dimmable for DALI or Triac dimmer high lumen output 4050lm IK07

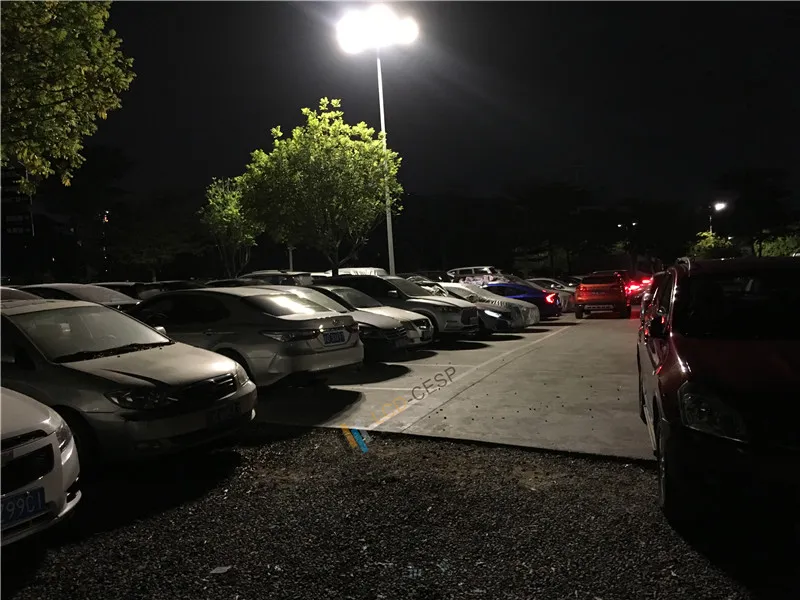

Car Parking or area lighting with Cree Luxeon OSRAM SMD3030 or SMD5050 LEDs chip for LED street Light & working site
Copper free pure Aluminum forming extruded heat-sinking house LED spotlight 30W for outdoor Security lighting with 5-7 years warranty
This luminaire was designed for its use in area, architectural or security lighting, for visible or highlighting elements of particular interest and adding high a esthetic value to buildings, monuments,etc.Available with two suspension systems: with bracket or arm on requests.
A simple, durable, reliable and great thermal management and efficient LED floodlight
| Consumption / Consumo | Assembling height / Altura de montaje |
|---|---|
| 10w 20W 30W 50W 70W 100W 150W 200W | 2-15meter |
| Voltage / Voltaje | Frequency / Frecuencia |
| 100-277 V AC or 10-24VDC | 50/60 Hz |
| Protection level / Grado de Protección | Optic / Óptica |
| IP65 IK08 | Eficiencia / Efficiency : 90% |
| UHF / FHS | Life span / Vida útil |
| <1% | L70 - 50.000h |

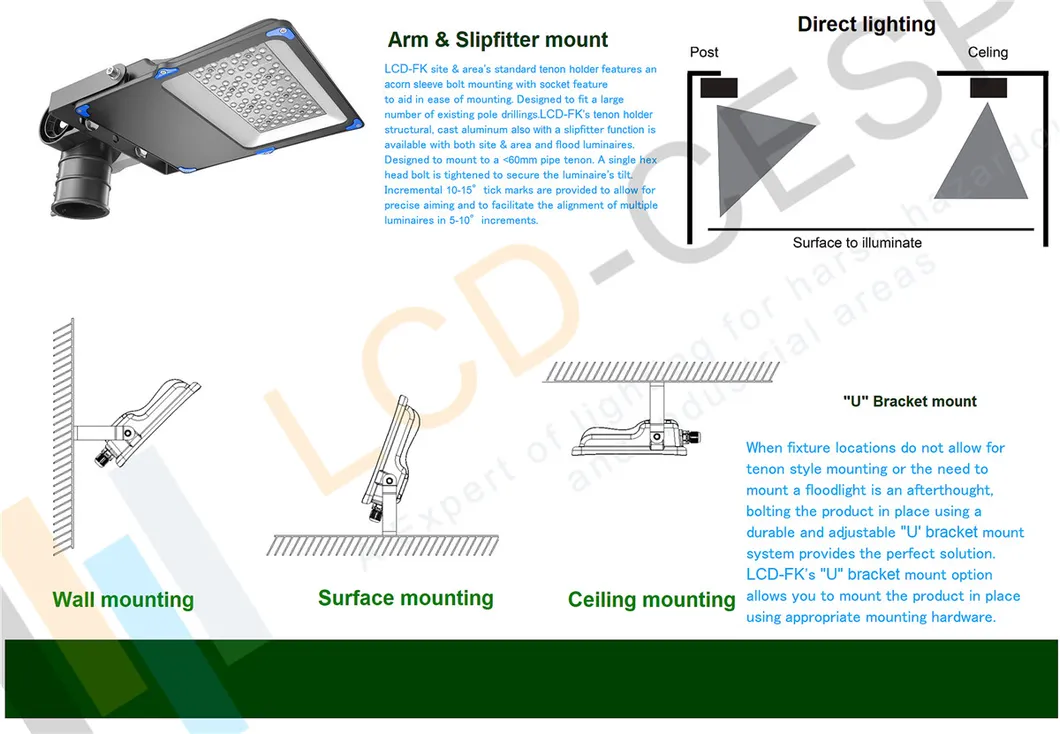

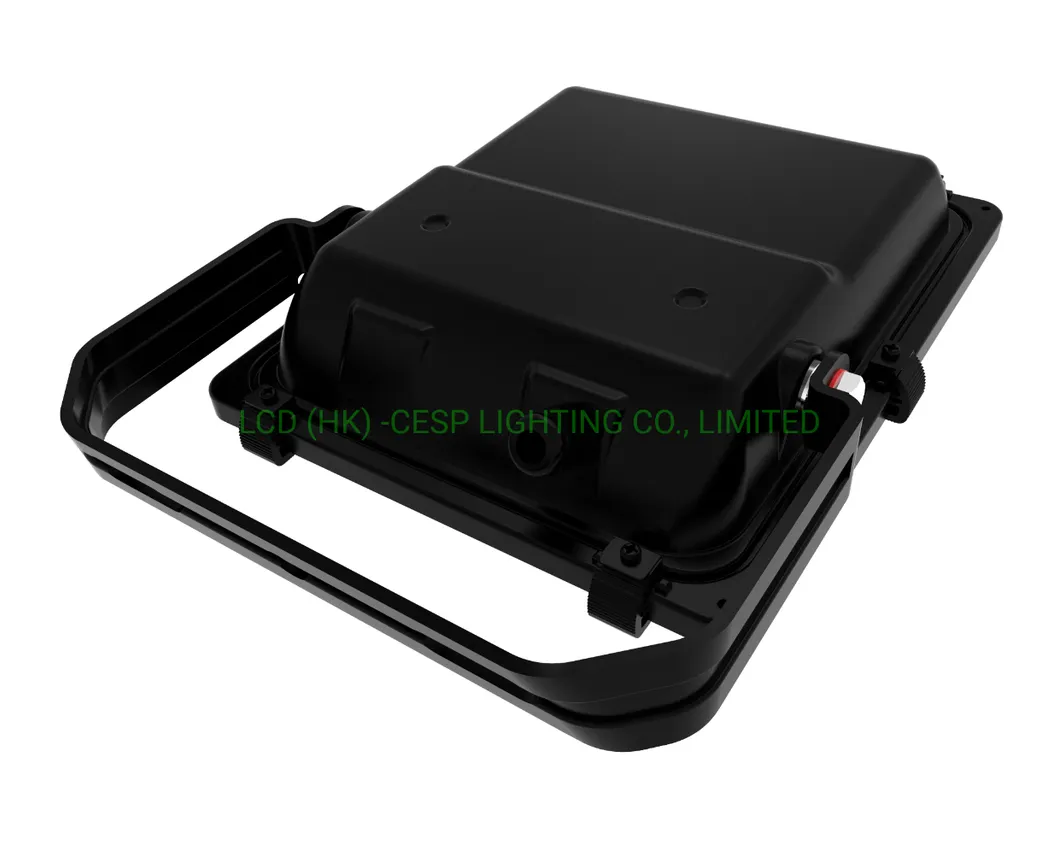

Three mounting options to cover all low area lighting applications.
HYLY features a super lightweight design and is pre-wired for effortless installation.
Slim, compact and lightweight Market leading size/weight/output ratio for high performance with low aesthetic impact.
FLY's lean lightweight design also makes it easy to carry, install and integrate onto existing structures.
Pre-wired. Quick and easy installation with no wiring.
led outdoor flood light bulbs 30W DC12V 4050lm IP66 Aluminum die cast ADC12
Floodlight with broad spread light distribution. Various lighting tasks can be implemented such as floodlighting building surfaces, walls, plants etc. The use of LED technique offers optimal light output with low power and durability as well.
| Feature | Specification |
|---|---|
| Material | Aluminium die cast ADC12 housing +4mm temper glass face |
| Efficacy | up to 178 lumen /watt |
| LEDs chip | OSRAM SMD5050 |
| SDCM | <5 |
| Optic beam | 7°, 15°, 30°, 60°, 90°, 120°, TYPE 2/3/4/5, Asymmetric 40 |
| Ingress protection | IP66 |
| Mech. impact protection code | IK08 Impact rating |
| Mounting | "U" bracket / slipfitter |
without compromising light quality or a sense of security for those in the area.

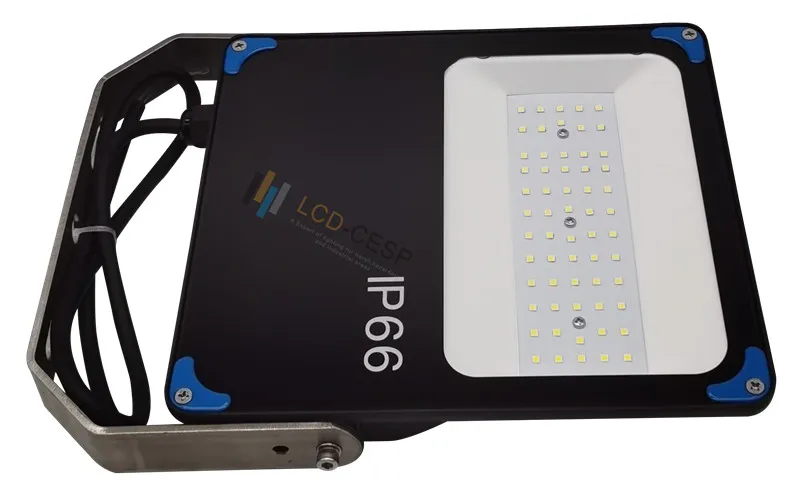

Car Parking & Security LED flood light with Super bright 12-24 Volt 50W with Super bright OSRAM or Cree LEDs chip water-proof IP66 LED Light

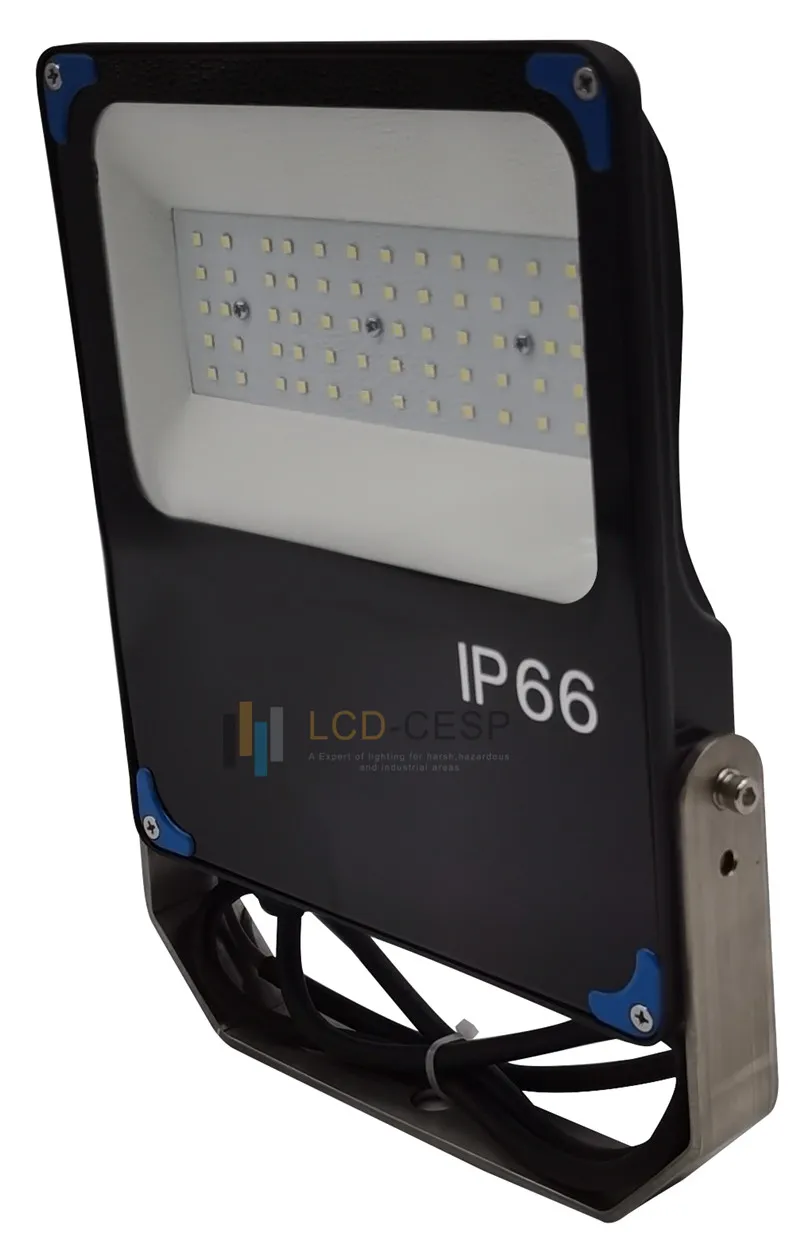

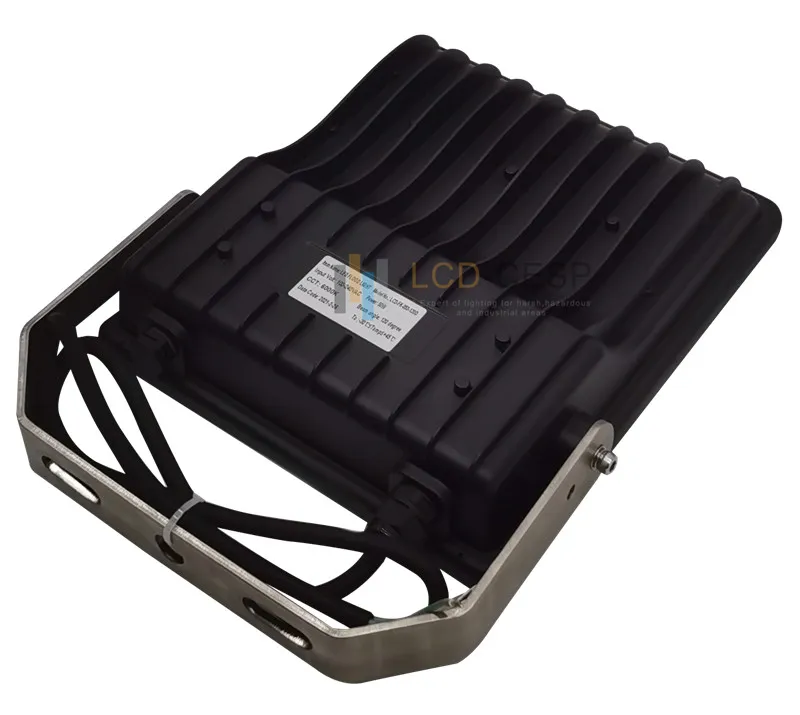

Aluminum alloy forming and stainless steel #316 bracket waterproof IP66 LED Flood Light 50W for Security lighting with 5 years warranty
This luminaire was designed for its use in area, architectural or security lighting, for visible or highlighting elements of particular interest and adding high a esthetic value to buildings, monuments,etc.Available with two suspension systems: with bracket or arm on requests.
A simple, durable, reliable and great thermal management and efficient LED floodlight
| Consumption / Consumo | Assembling height / Altura de montaje |
|---|---|
| 10w 20W 30W 50W 70W 100W 150W 200W | 2-15meter |
| Voltage / Voltaje | Frequency / Frecuencia |
| 100-277 V AC or 10-24VDC | 50/60 Hz |
| Protection level / Grado de Protección | Optic / Óptica |
| IP66 IK08 | Eficiencia / Efficiency : 90% |
| UHF / FHS | Life span / Vida útil |
| <1% | L70 >50.000h |
Three mounting options to cover all low area lighting applications.
FK features a super lightweight design and is pre-wired for effortless installation.
Slim, compact and lightweight Market leading size/weight/output ratio for high performance with low aesthetic impact.
FLY's lean lightweight design also makes it easy to carry, install and integrate onto existing structures.
Pre-wired. Quick and easy installation with no wiring.

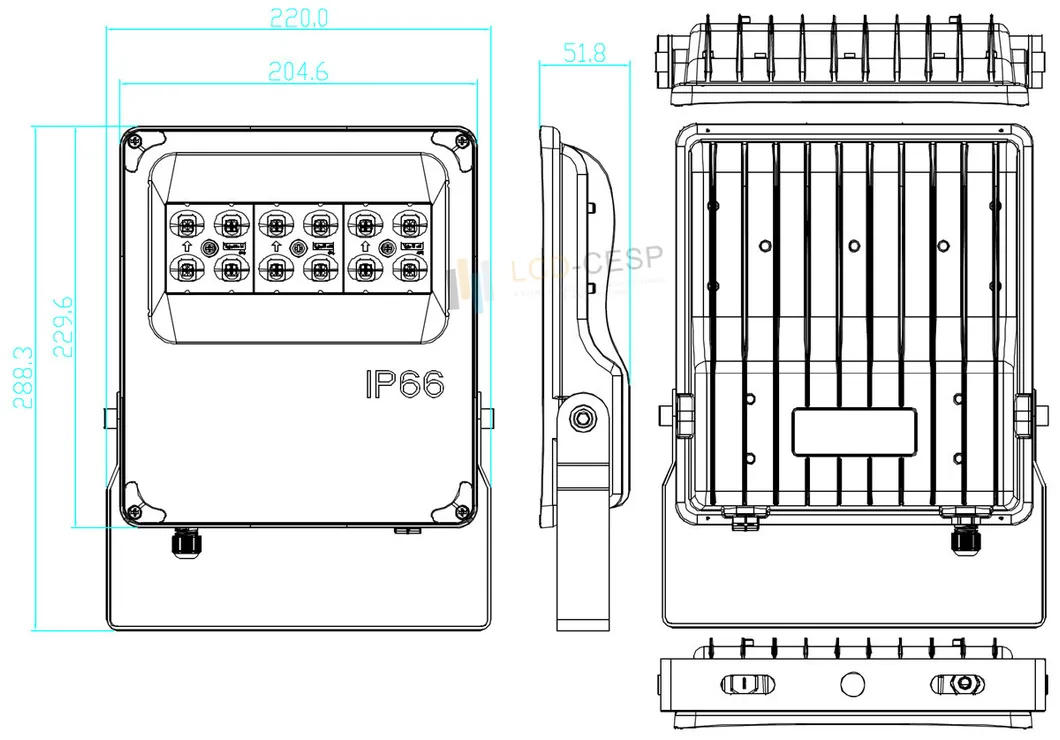

led outdoor flood light bulbs 50W DC12V 6750lm IP66 Aluminum die cast ADC12
Floodlight with broad spread light distribution. Various lighting tasks can be implemented such as floodlighting building surfaces, walls, plants etc. The use of LED technique offers optimal light output with low power and durability as well.
| Feature | Specification |
|---|---|
| Material | Aluminium die cast ADC12 housing +4mm temper glass face |
| Efficacy | up to 150 lumen /watt |
| LEDs chip | OSRAM SMD5050 |
| SDCM | <5 |
| Optic beam | 7°, 15°, 30°, 60°, 90°, 120°, TYPE 2/3/4/5, Asymmetric 40 |
| Ingress protection | IP66 |
| Mech. impact protection code | IK08 Impact rating |
| Mounting | "U" bracket / slipfitter |
without compromising light quality or a sense of security for those in the area.

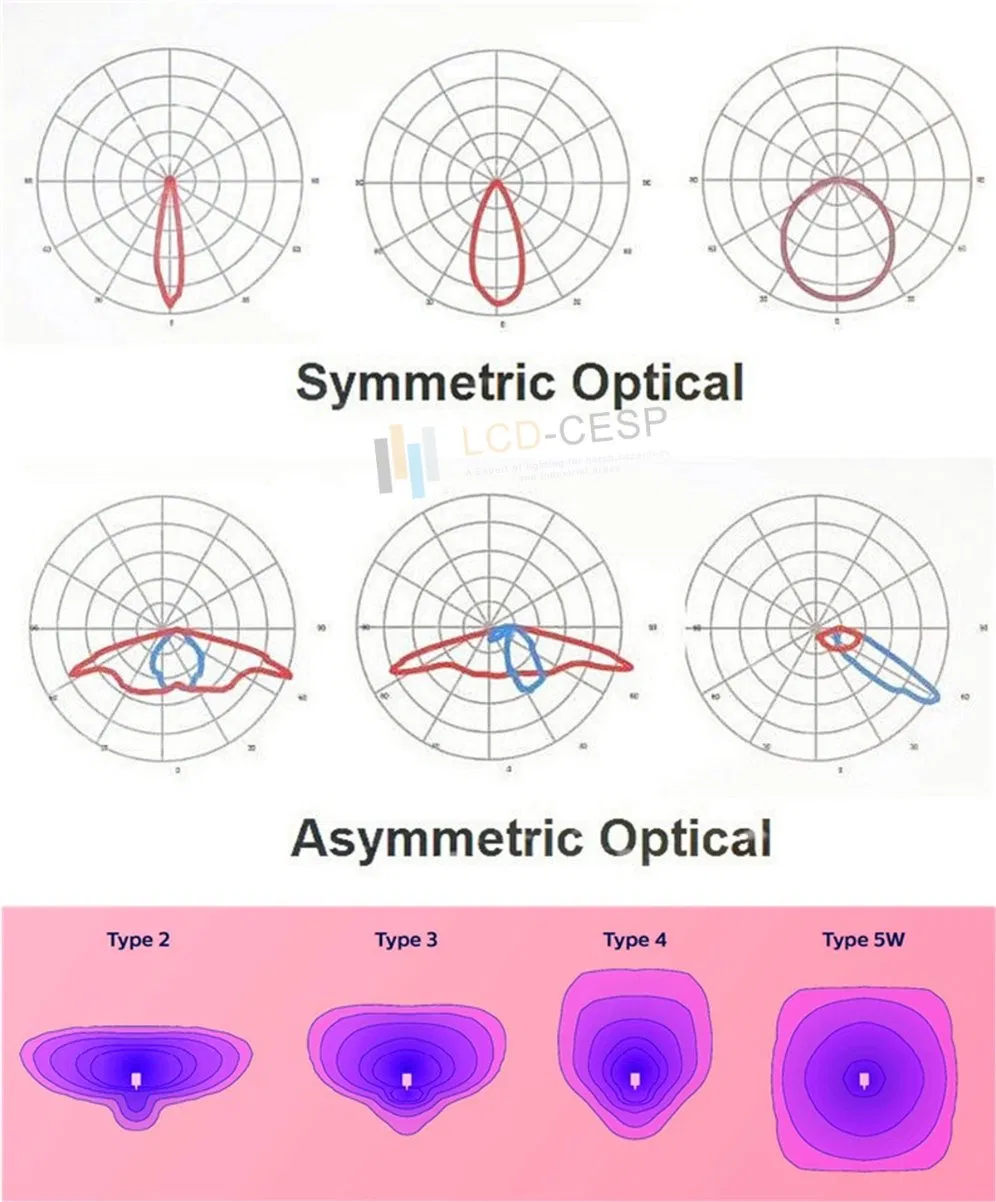

Optic lens: 7°, 15°, 30°, 60°, 90°, 120°, TYPE 2/3/4/5, Asymmetric 40

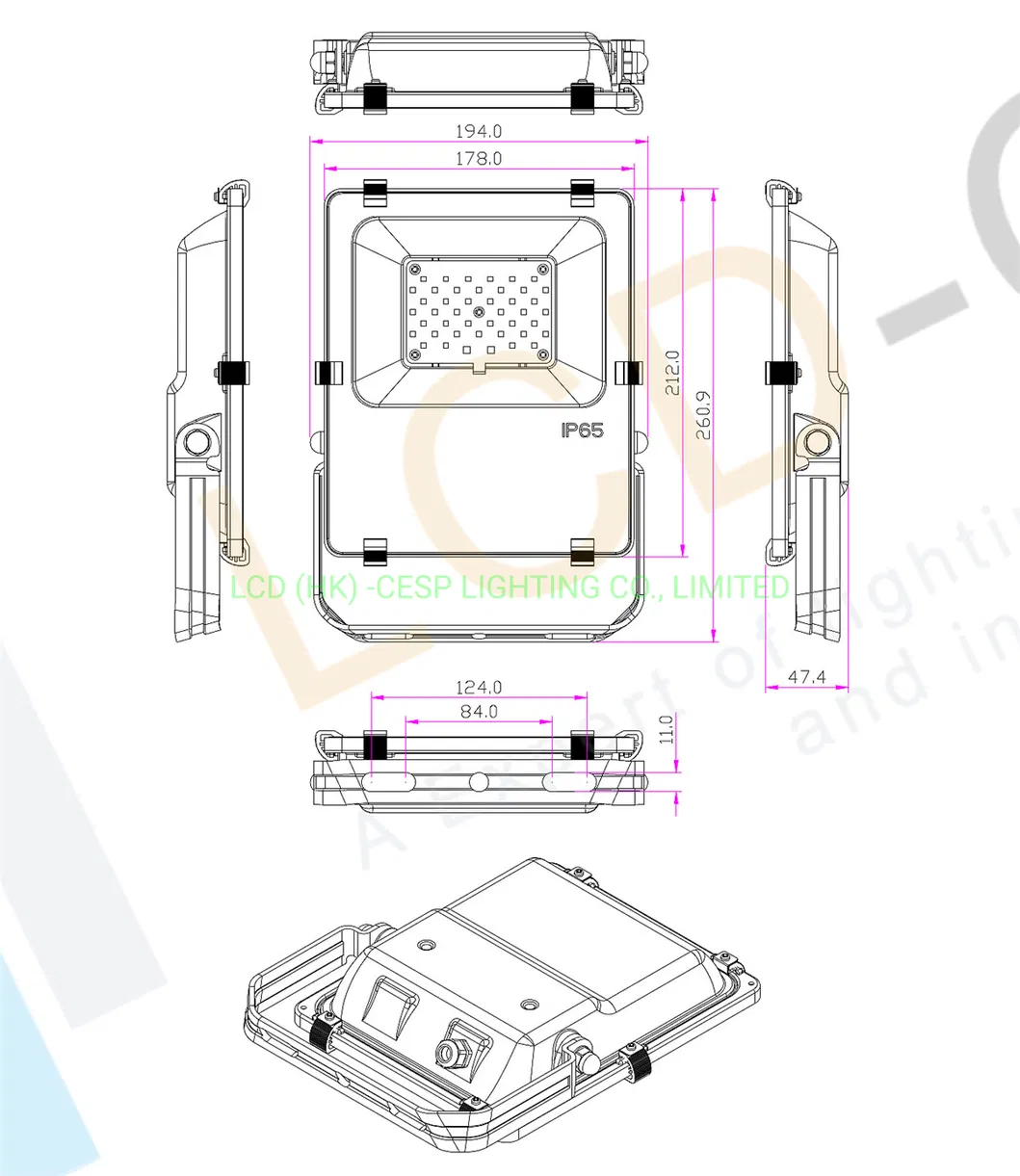

| Model No. | Power (W) | Lumens (lm) | Color Temperature | Input Voltage | Current | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|---|---|
| LCD-FLY-013 | 10W | 1300 | 3000k / 4000k / 6500K | 85 ~ 265VAC | 0.12A | 0.54Kg | 179x145x32 |
| LCD-FLY-023 | 20W | 2600 | 3000k / 4000k / 6500K | 85 ~ 265VAC | 0.12A | 0.65Kg | 189x148x32 |
| LCD-FLY-033 | 30W | 3900 | 3000k / 4000k / 6500K | 85 ~ 265VAC | 0.12A | 1.25Kg | 261x194x47 |
| LCD-FLY-053 | 50W | 6500 | 3000k / 4000k / 6500K | 85 ~ 265VAC | 0.12A | 1.50Kg | 350x265x69 |
| LCD-FLY-083 | 80W | 10400 | 3000k / 4000k / 6500K | 85 ~ 265VAC | 0.12A | 1.70Kg | 350x265x69 |
| LCD-FLY-103 | 100W | 13000 | 3000k / 4000k / 6500K | 85 ~ 265VAC | 0.12A | 2.85Kg | 397x308x68 |
| LCD-FLY-153 | 150W | 19500 | 3000k / 4000k / 6500K | 85 ~ 265VAC | 0.12A | 4.18Kg | 441x347x68 |
| LCD-FLY-203 | 200W | 26000 | 3000k / 4000k / 6500K | 85 ~ 265VAC | 0.12A | 4.50Kg | 500x385x68 |

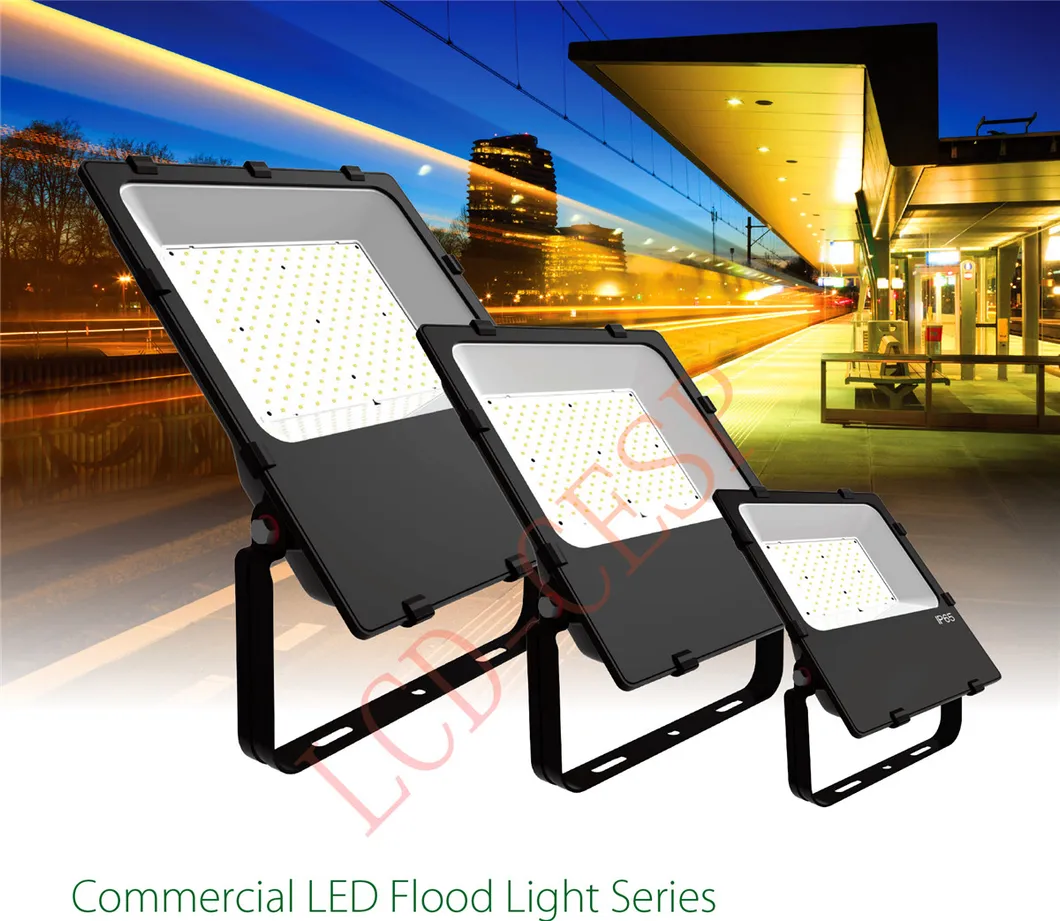

SUITABLE FOR: LED FLY Series, a professional, powerful, energy saving replacement for high intensity discharge lamps. With a compact and modern design, OSRAM (3030) SMD LED chips, a high lumen maintenance factor with Meanwell driver or high-quality CE&TUV driver, we have developed an outstanding combination of high performance & bright LEDs to create one of the most powerful fixtures on the market.
Strong housing corrosion resistant made of black Extruded aluminum, featuring high heat dissipation and superior aesthetics with longer lifetime. High transmission rate tempered glass increases rate up to 93%, anti-impact rating IK08. Advanced heat sink design ensures LED does not exceed temperature ratings across all specified ambient conditions. An overall IP65 grade to ensure fully water-proof. Our state of the art CE TUV etc driver, or be includes a built in 10kV surge suppressor with universal voltage capacity 100-277v 50/60Hz. Ideal for indoor and outdoor area lighting such as Marine, Mining, landscaping, buildings, and parking areas. Works well for wall mounting or ground mounting.
(1)DC available on special request
(2)Warm white available indent only
*AC Current rating at 85 ~ 265VAC
**Black housing
***Marine coating
***Highlight
Extruded aluminum heatsink housing body painted with epoxy powder prior to phosphating. Tempered anti-shock thermal silkscreen glass. Built-in electronic ballast Meanwell driver or TUV driver, CE standard 1m cable. The polished anodized aluminum faceted louver.

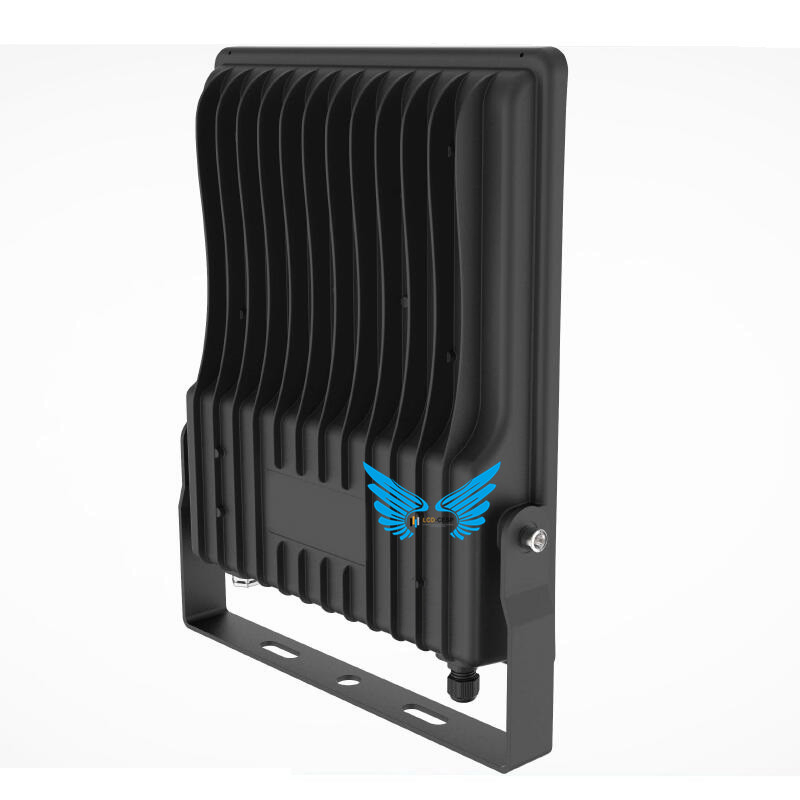

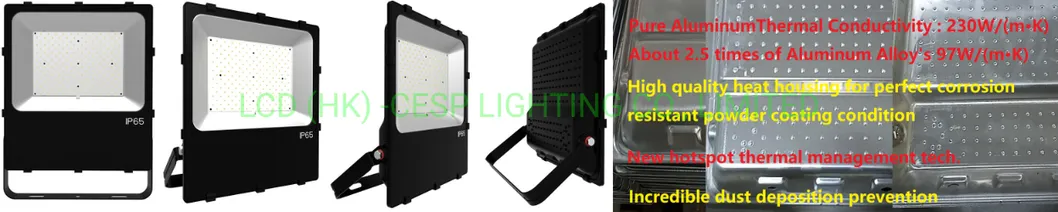

***Extruded Aluminum housing thermal conductivity about 230w/(m.k) and 2.5 times of popular aluminum alloy's 97w(m.k), the more fast way spreading LEDs engine's heat into the air ensure a long lifespan for products.
***High quality housing surface ensure a perfect painted with epoxy powder for the strongest corrosion resistant.
***New hotspot thermal management technology.
***Definitely and incredible dust deposition prevention and easily simply cleaning.
Light source: LED multichip technology with Cree or OSRAM LEDs chip. Direct light emission. Installation by mean of supplied bracket. Over-temperature control circuit inside.
