Basic Info.
Power
200W, 400W, 500W, 800W, 1000W, 1500W, 2000W
Projection Distance
40m, 50m, 60m, 70m, 80m
Usage
Highway, Port, Stadium, Square, Public Works
IP Rating
IP65, IP66, IP67
Certification
CCC, CE, CQC, EMC, FCC, LVD, RoHS, SASO
LED Chips Brand
Epistar, Semileds, CREE, Bridgelux
Painting Color
Customized

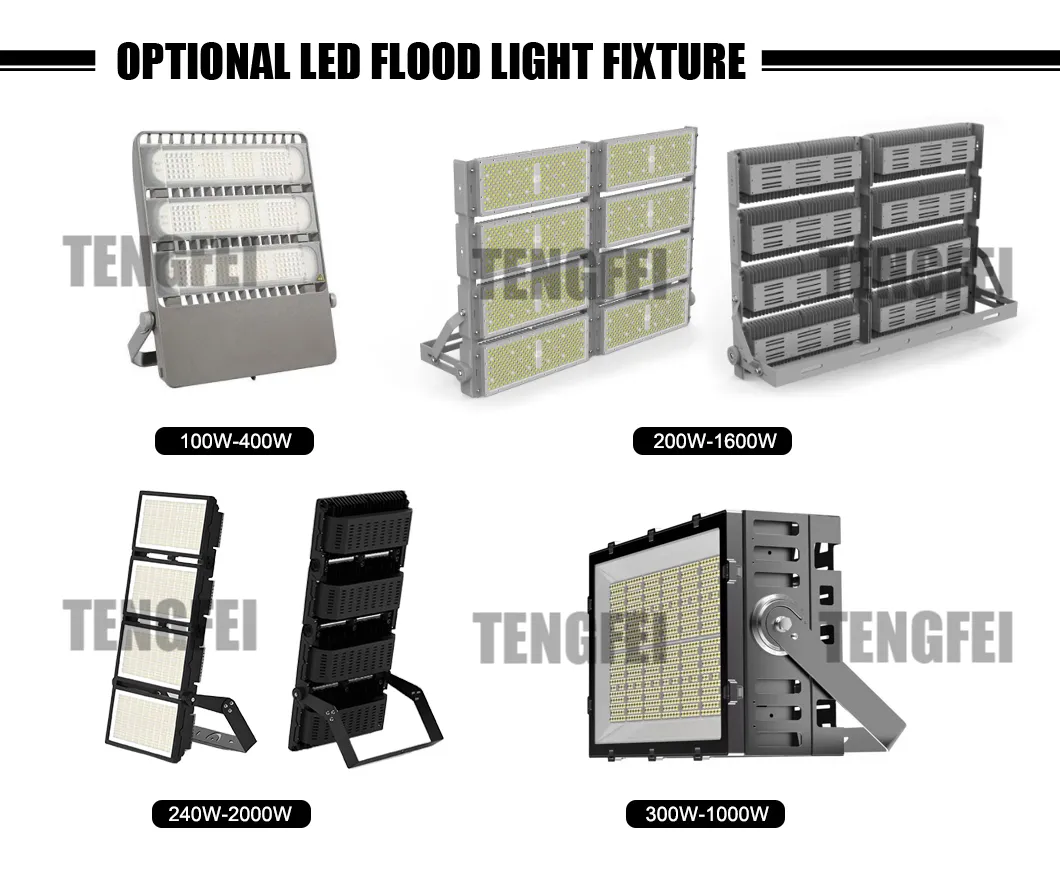

Luminaire
200W to 2000W LED Flood Light
Thickness of Galvanizing
Above 85um
Surface Treatment
Hot Hip Galvanization
Lighting Area
80m, or Details According to The Specification
Lantern Fixing Arms and Plates
Welded to The Carriage
Welding
Two Oxygen Welding
Warranty
10 Year for The Pole
Transport Package
Bubble Packing
Production Capacity
2000PCS/Month
Packaging & Delivery
Package Size
600.00cm * 260.00cm * 260.00cm
Package Gross Weight
45.000kg
ℹ
Double oxygen protective welding ensures robust joints and safety. Surface treatment includes hot-dip galvanization matching standard ASTM A123 to deliver excellent outdoor rust protection.
Product Parameters
| Height |
13-50m |
| Applications |
Highway, expressway, parkway, freeway, central motorway junction, truck and bus terminals, railyards, ship docks, airports, ferry terminals, prisons, industrial and commercial sites, international borders, etc. |
| Shape |
Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagon, etc) |
| Material |
Q345B/A572, minimum yield strength >= 345n/mm²
Q235B/A36, minimum yield strength >= 235n/mm²
|
| Surface Treatment |
Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123 or AS/NZS 4680:2006.
Can be powder coated or painted according to clients' request.
|
| Wall Thickness |
6~30mm |
| Joint of Poles |
16m Once forming without joint |
| Welding |
Welding complies with AWS D1.1 standard.
CO2 welding or submerged arc auto methods;
No fissure, scar, overlap, layer or other defects;
Internal and external welding makes the pole more beautiful in shape;
Adjustments can be made upon client's specific requirements.
|
| Joint Modes |
Joint with insert mode, flange mode, face to face mode |
Product Description

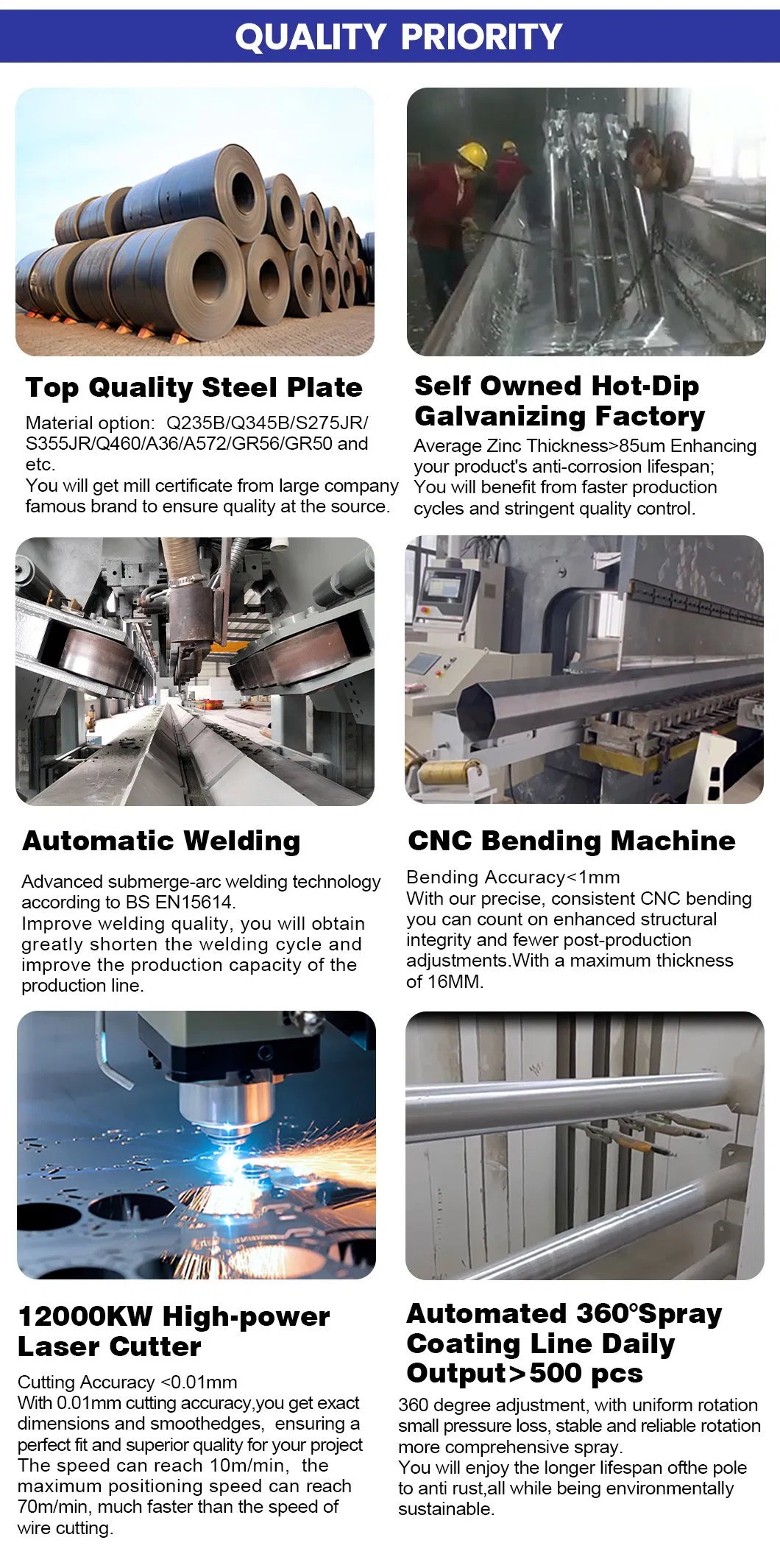

Priority Quality

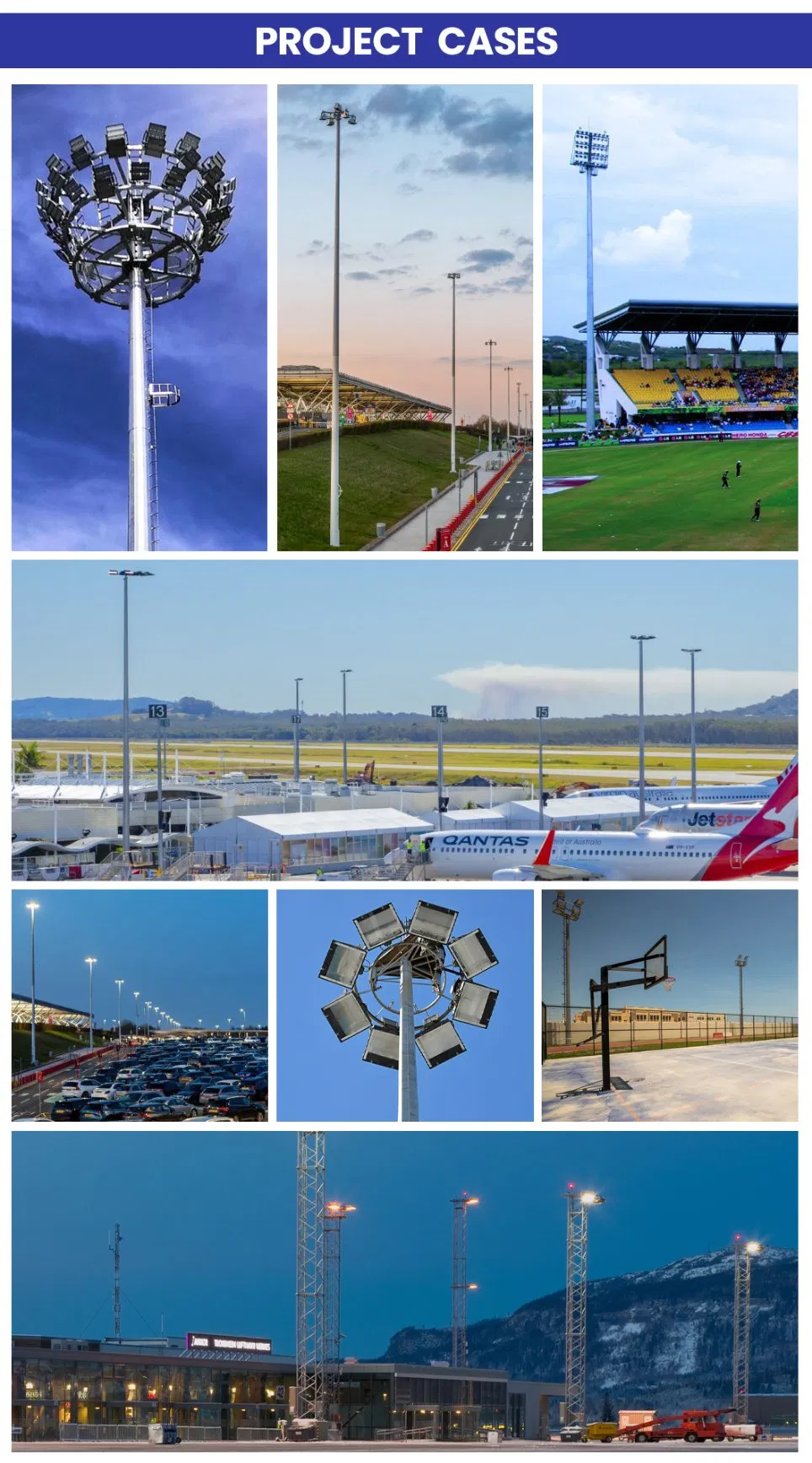

Project Cases
Why US
Frequently Asked Questions
What steel materials are used for the high mast poles?
We utilize premium Q345B/A572 structural steel with a minimum yield strength of 345n/mm², and Q235B/A36 steel with a minimum yield strength of 235n/mm² depending on design parameters and requirements.
How is the surface treated to prevent corrosion?
All poles undergo hot-dip galvanization in full compliance with Chinese standard GB/T 13912-2002 or American standard ASTM A123. Galvanizing thickness is kept above 85um. Additional powder coating or painting options are available on request.
What wind speed rating can these lighting poles withstand?
Our high mast lighting poles are engineered to be wind-resistant up to 160 km/h, securing structural integrity in harsh atmospheric conditions.

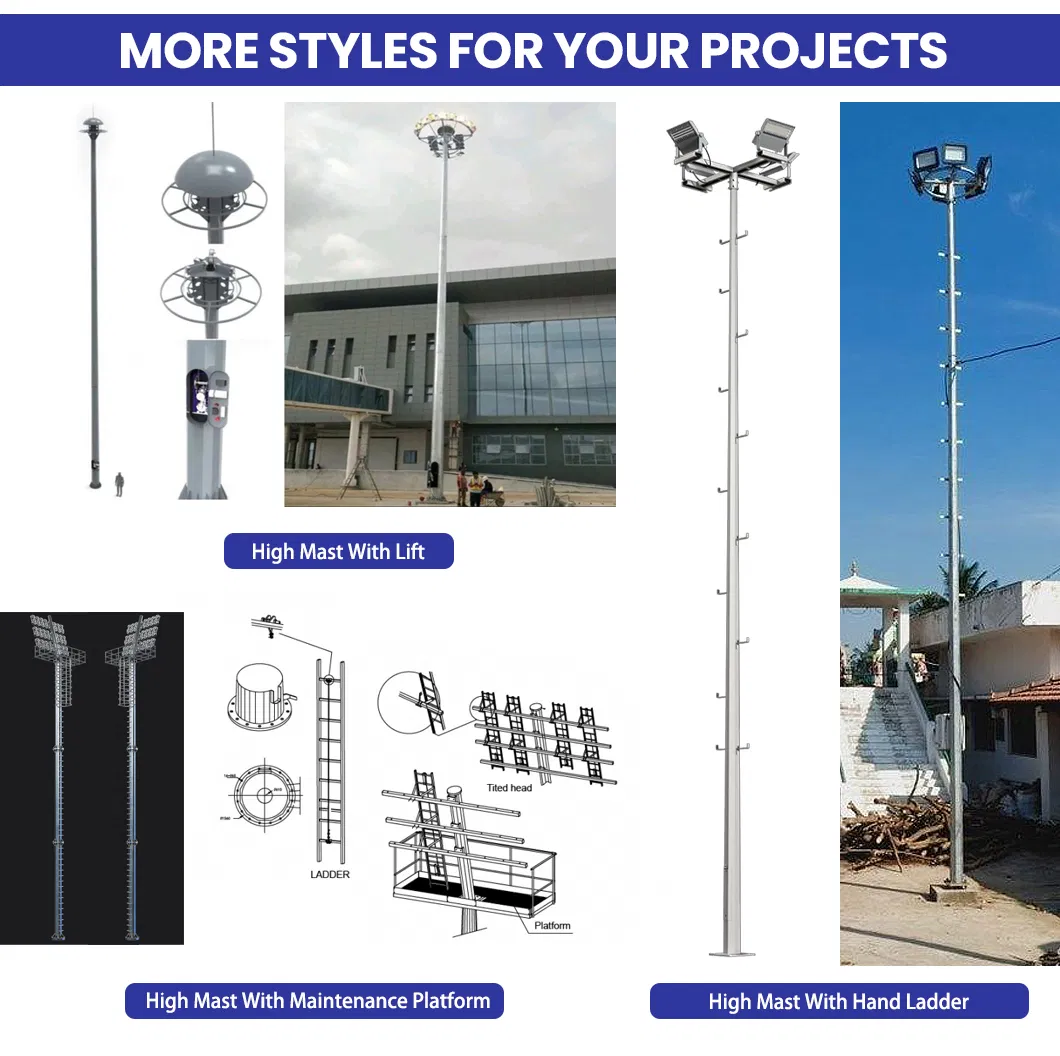

Is a lowering winch mechanism optional for these poles?

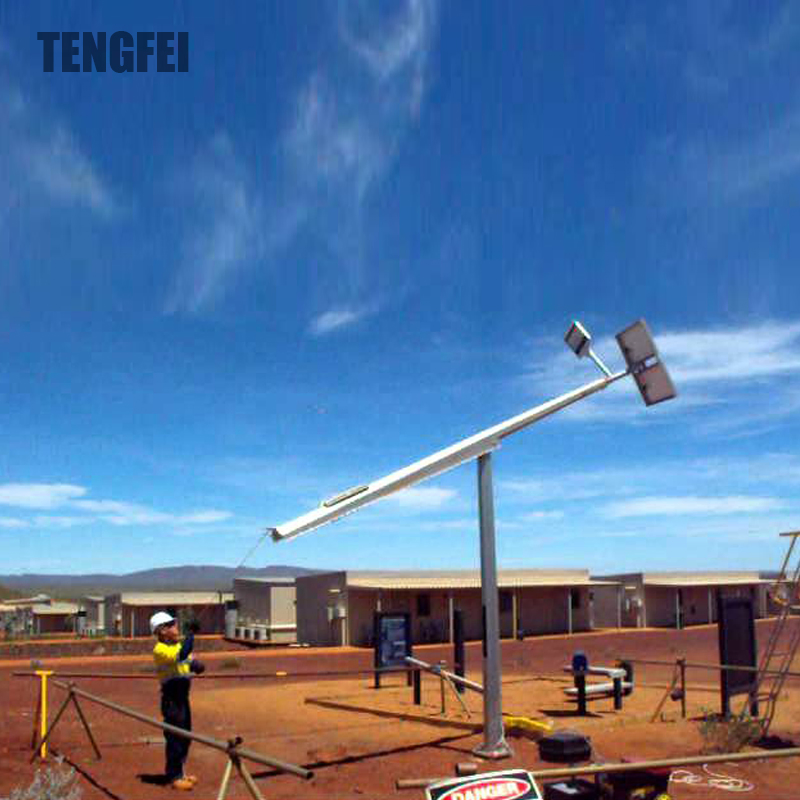

Yes, winch systems are optional and can be integrated into the mast to make maintenance and installation of the lighting carriage safe and simple from ground level.
What types of welding standards are followed during fabrication?
Welding is executed using CO2 shielding or automatic submerged arc methods in compliance with AWS D1.1 standards. We ensure there are no fissures, scars, overlaps, or layer defects.
What is the typical warranty period?
We provide a 10-year structural warranty specifically covering the high mast pole structure.
