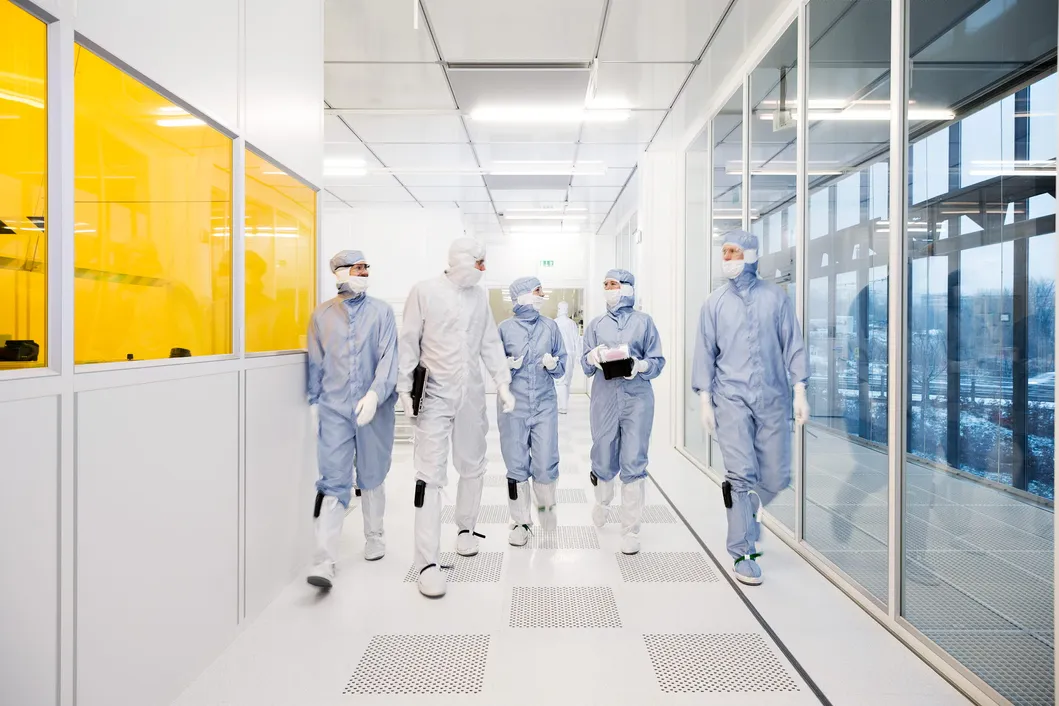

We are a leading manufacturer and supplier of clean room lighting equipment for laboratories, pharmaceutical areas, semi-conductor manufacturing areas, healthcare, kitchens and food preparation applications. We have provided integrated lighting solutions for many of the pharmaceutical manufacturers, both in Asia and world wide.

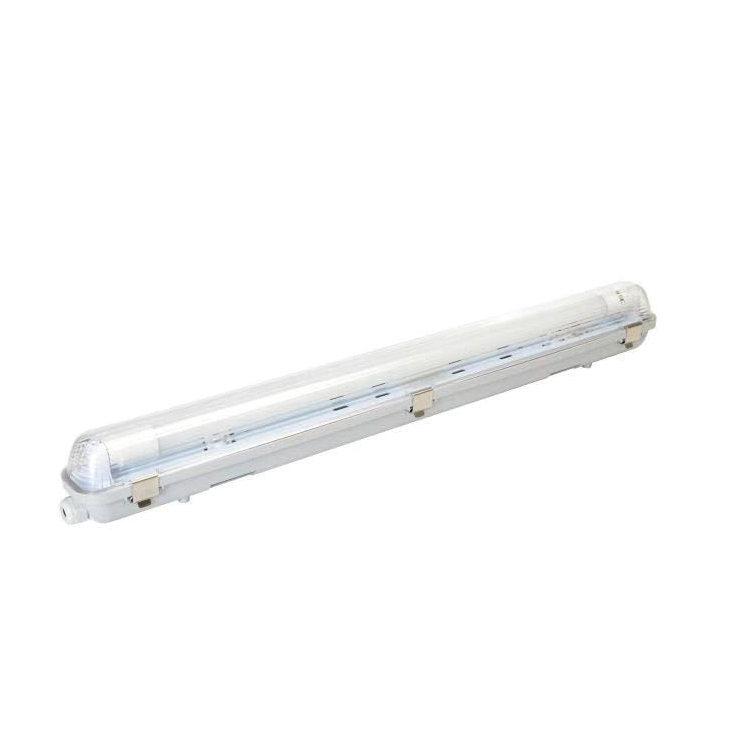

LED Tri-proof Light Overview

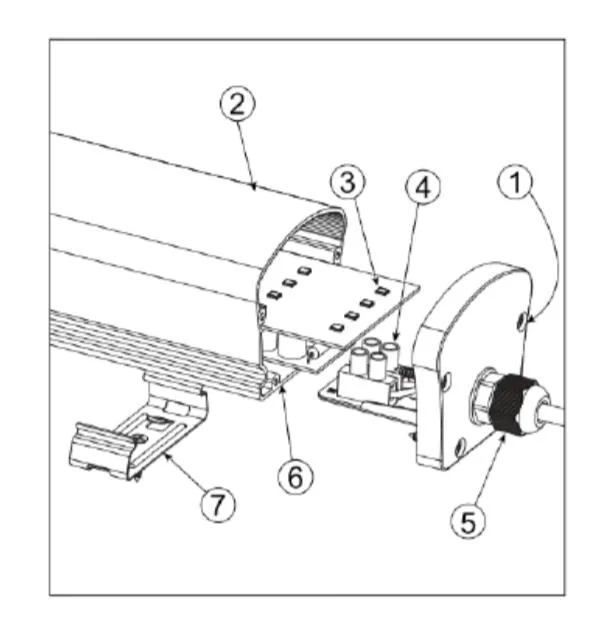

Design Highlights
Use stainless steel screws.
Clear or milky PC cover for option. Milky PC cover with light guide material inside to improve light transmittance; beautiful, no dazzling, no glare.
Light source with SMD2835, high lumen and long lifetime.
With terminal block inside, easy for the wiring connection, more safe.
Using cable gland.
Power supply built-in.
Using stainless steel clips, easier for installation and maintenance.
Product Description

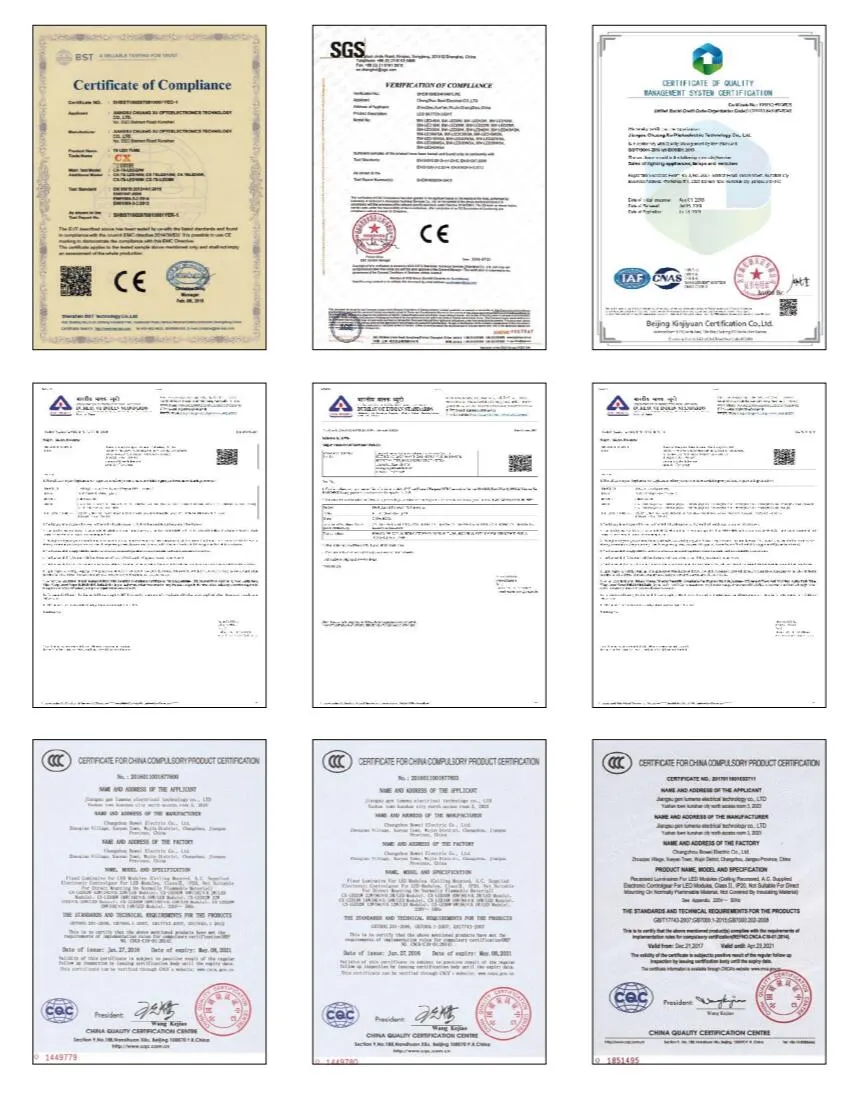

PC material for the lamp house. It has good weatherability, waterproof level is IP65 and the insulation class. 10sec 3750V high voltage test and 80°C high temperature test. Satisfaction guarantee, over 8 years at 12 hours per day. Energy savings, no UV and IR radiations, emits low heat. Certifications: CE, ROHS.
Application Areas

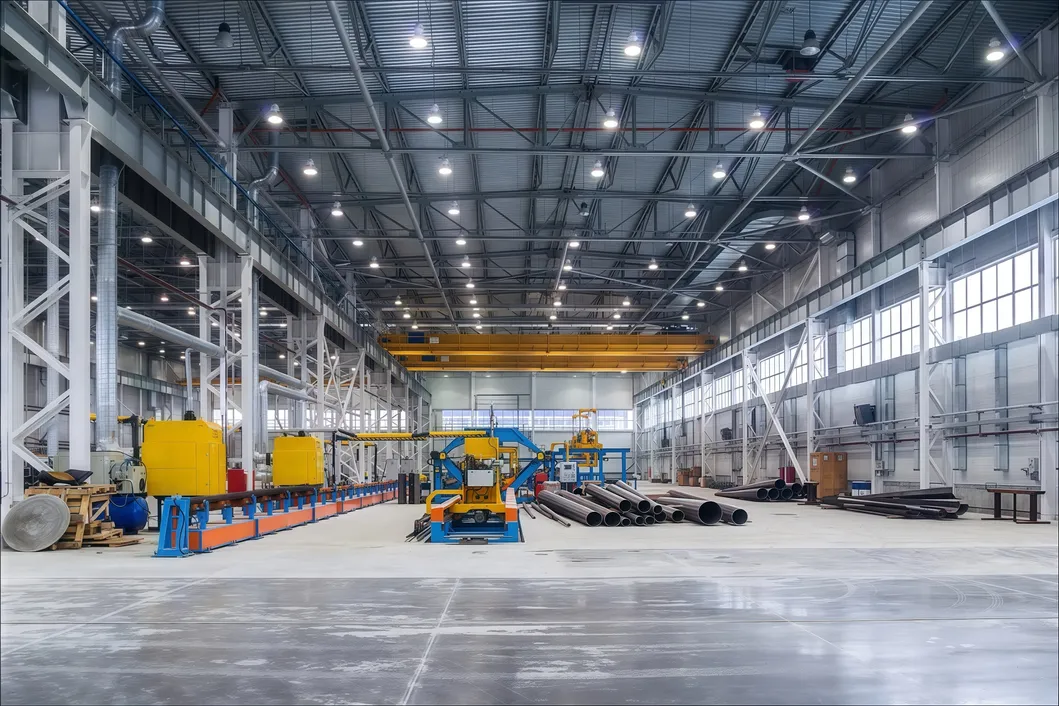

Warehouse, Park lot, Supermarket, Office, School, Corridor, Workshop, Chicken farm, Bath house etc, indoor or outdoor all available.
Technical Specifications

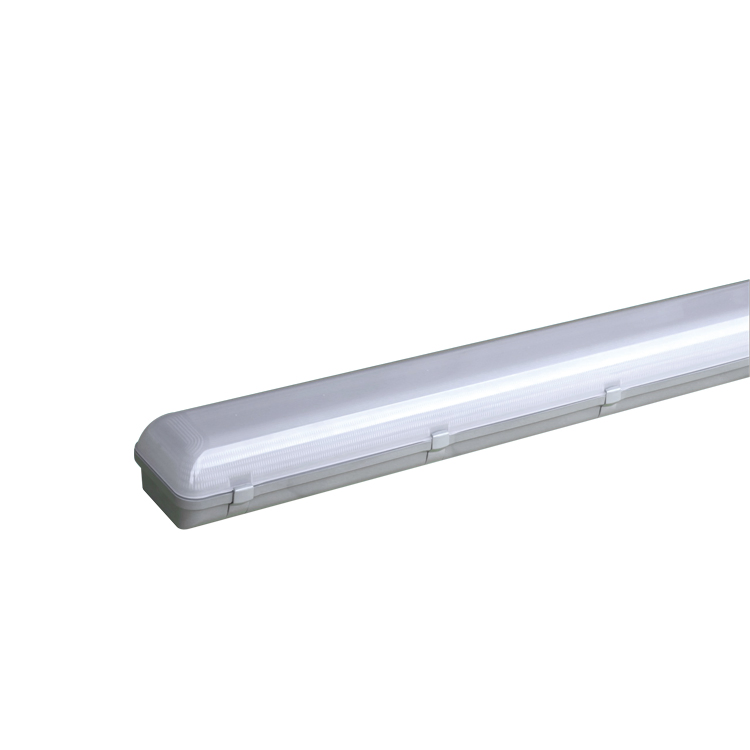

LED Tri-proof Light Spec Type 1
Model
Power
CCT
CRI
Rated Life
Size
PF
CX-LED-PR01-18W
18W
2700-6500K
Ra>80
30000/50000h
600mm
>0.95
CX-LED-PR01-36W
36W
2700-6500K
Ra>80
30000/50000h
1200mm
>0.95
CX-LED-PR01-45W
45W
2700-6500K
Ra>80
30000/50000h
1500mm
>0.95

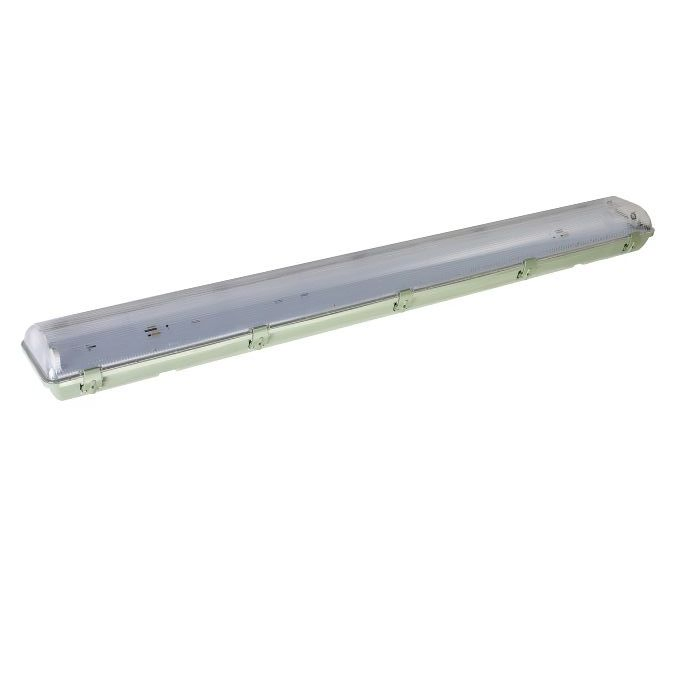

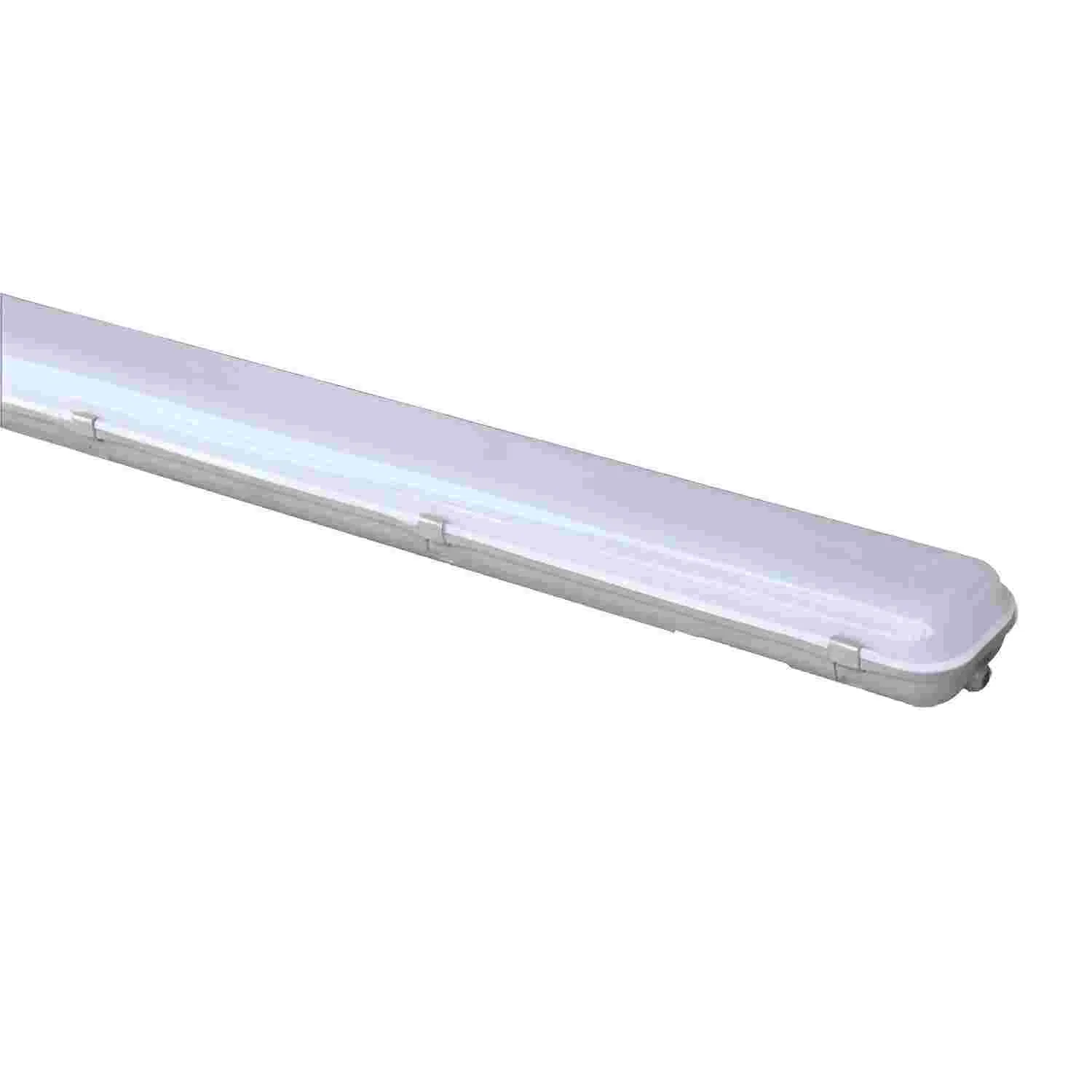

LED Tri-proof Light Spec Type 2
Integrative design, no need to install light source, transmittance up to 90%, using silicone ring sealant tape, protection grade up to IP65, waterproof and dust-proof performance, flexible installation, can be adapted to ceiling, suspension line, hanging pipe installation.
Material Information
Body: PMMA
Diffuser: PC or PS
Reflector: Spraying of High Quality Steel Plate
Wire: National Standard Wire with Pure Copper Core, CCC Certification
Light-socket: High quality flame retardant
* Can be option dimmable control
Model
watts
Light Source
Lumens
Size
Color
CX-LED-PR02-20W
20W
SMD
1600lm
610mm
Light grey
CX-LED-PR02-32W
32W
SMD
2560lm
1210mm
Light grey
CX-LED-PR02-38W
38W
SMD
3040lm
1210mm
Light grey

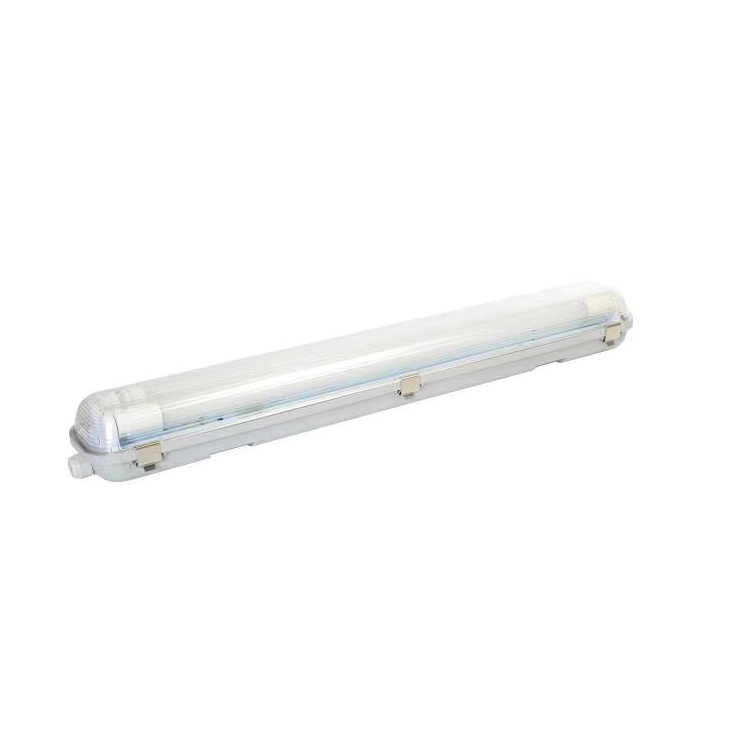

LED Tri-proof Light Spec Type 3
The body is made of high strength engineering plastics and the light transmitter is made of polycarbonate. Shock resistance, long service life, protection grade up to IP65, waterproof and dust-proof performance, flexible installation, can be adapted to ceiling, suspension line, hanging pipe installation.
Model
Light Source
Watts
Size
Color
CX-LED-PR03-218
T8
2*18W/2*LED
649*98*76mm
Light grey
CX-LED-PR03-136
T8
1*36W/1*LED
1259*61*74mm
Light grey
CX-LED-PR03-236
T8
2*36W/2*LED
1259*98*76mm
Light grey
CX-LED-PR03-158
T8
1*58W/1*LED
1559*61*74mm
Light grey
CX-LED-PR03-258
T8
2*58W/2*LED
1559*98*76mm
Light grey
CX-LED-PR03-114
T5
1*14W
649*61*74mm
Light grey
CX-LED-PR03-128
T5
1*28W
1259*61*74mm
Light grey
CX-LED-PR03-135
T5
1*35W
1559*61*74mm
Light grey
Company Profile & Workshop
Focus on Lighting SolutionWe are a national high-tech enterprise focusing on clean room lighting products, integrating design, research and development and manufacturing. Through the whole industry chain, the application of products covers industrial electronics plants, food processing, biotechnology, pharmaceuticals, new energy, plate factory, semiconductor factory and other lighting fields. The company is now among the domestic clean lighting industry more comprehensive competitive strength among the lamp manufacturers.
The company has modern standard workshops, office buildings, staff dormitories, with a total area of about 18,000 square meters, including workshops 12,000 square meters; With automatic cutting machine, automatic spraying line, automatic laser cutting machine, automatic spot welding machine, SMT automatic placement machine, 24 temperature zone automatic reflow welding, LED lamp automatic production line, drive power performance test Instrument, lightning surge tester, oscilloscope, multi-channel temperature monitor, multi-channel adjustable electronic load, electrical parameter measuring instrument, electrolysis Capacitance tester, triode sorter, batch torque tester... Production equipment, research and development instruments, ranking first in the domestic industry. Our products not only meet the needs of domestic customers, but also sell to India, Vietnam, Thailand, Singapore, Mexico and other countries.

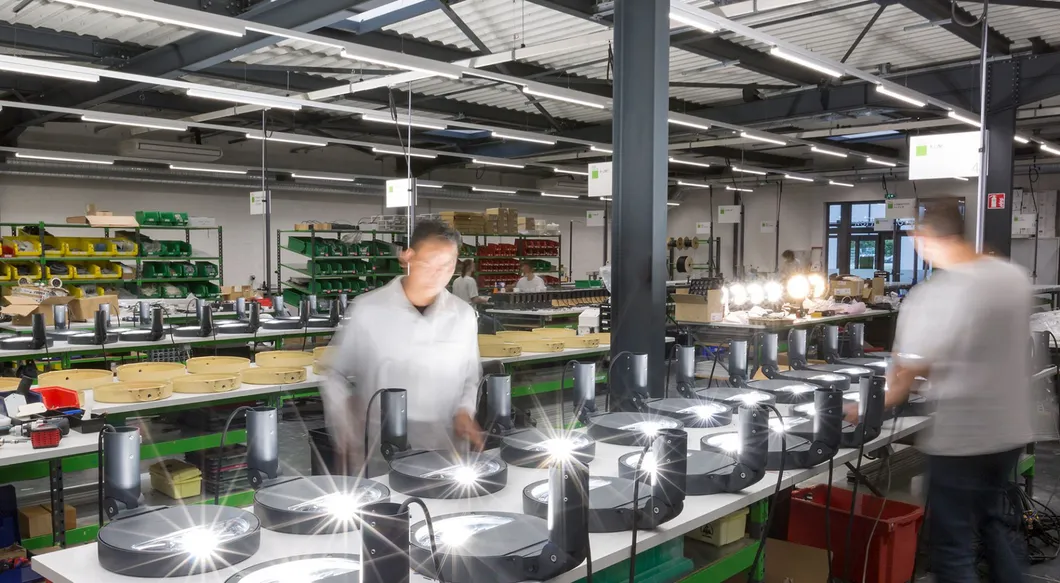

Our Workshop Gallery
In the past 16 years, we have been developing, insisting on innovation and developing new products, and now we have developed into a modern and professional factory. All staffs work in a clean and bright modern workshop or multi-functional office area, and the excellent working environment guarantees the quality of production. From design, research and development, testing and mass production, we have a set of perfect production management process, and insist on the business philosophy of winning by quality.
Innovative Cleanroom Lighting: Showcased Globally
We specialize in providing high-quality lighting solutions for cleanroom environments. We are dedicated to designing and manufacturing innovative lighting products that meet the stringent requirements of various cleanroom applications. Our product range includes T8 LED Plastic Tubes, Anti-Blue Light Tubes, Smart IoT Tubes, and Anti-Ultraviolet Yellow Light Tubes, widely used in laboratories, pharmaceutical facilities, museums, and other environments with specific lighting needs.
Our participation in international lighting exhibitions, including the Middle East Dubai Lighting Exhibition, the Moscow Lighting Exhibition, and the Hong Kong International Lighting Fair (Autumn Edition), has showcased our products and earned us high recognition in the industry. With advanced technology and exceptional service, we continuously drive the development of cleanroom lighting technology, offering outstanding product experiences to our global customers.

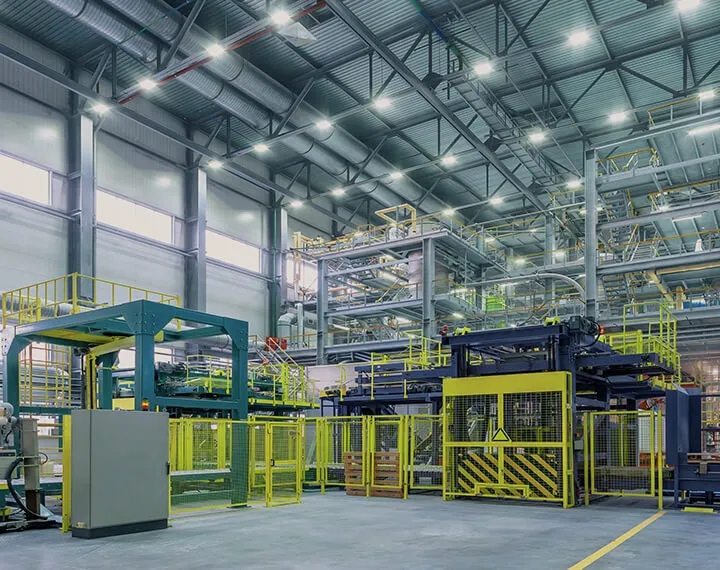

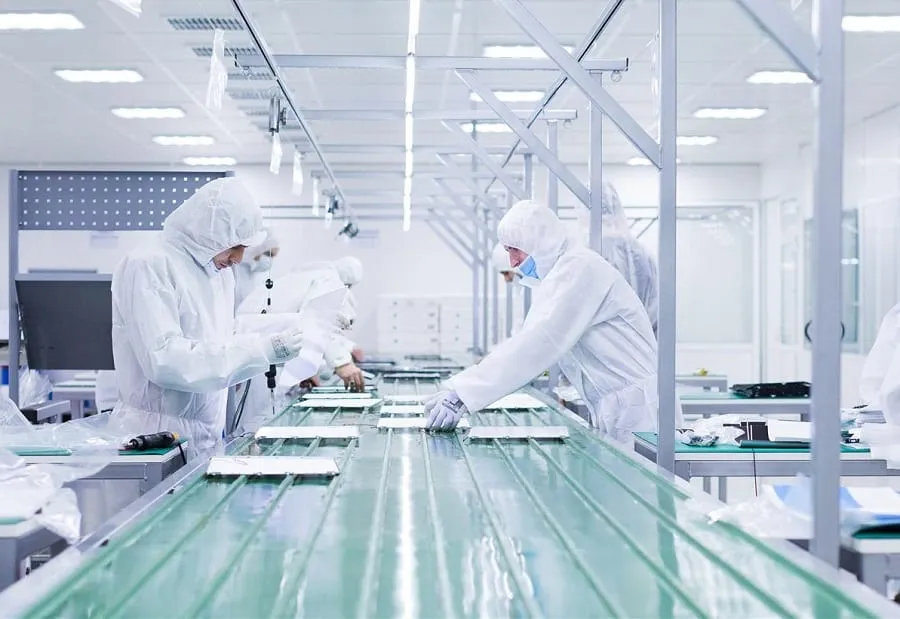

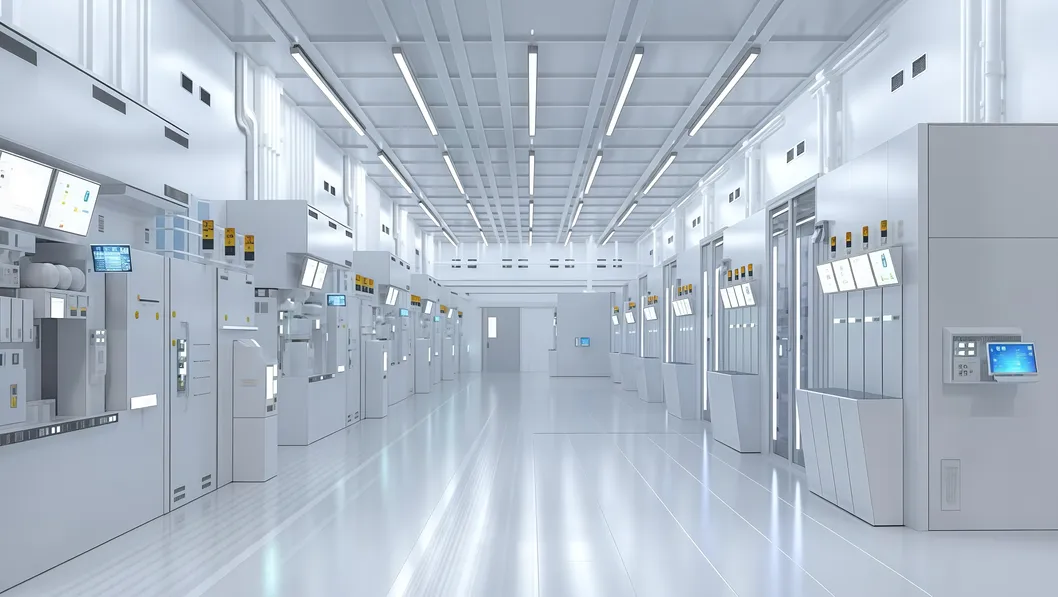

Project Cases
Frequently Asked Questions
What is the warranty for the LED light?
For the LED light, we provide a 2-year warranty. We also offer 3 or 5-year warranties for special projects upon customers' request.
What is CRI?
CRI (Color Rendering Index) is a quantitative measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. Higher CRI values provide better color accuracy. For our LED lights, the CRI is higher than 80.
How do you offer samples?
We offer free samples in certain quantities, with the shipping costs paid by the clients.
Can your factory make the lights based on customers' designs?
Yes, we offer both OEM and ODM services. We have professional engineers in our R&D department to handle custom designs.
What is your delivery time?
For sample orders, the delivery time is 3-7 working days. For mass orders, it takes 25-30 days after receiving a 30% deposit.
What are your payment terms?
Payment terms require a 50% deposit by T/T, with the remaining balance due against the copy of B/L or via L/C at sight.
