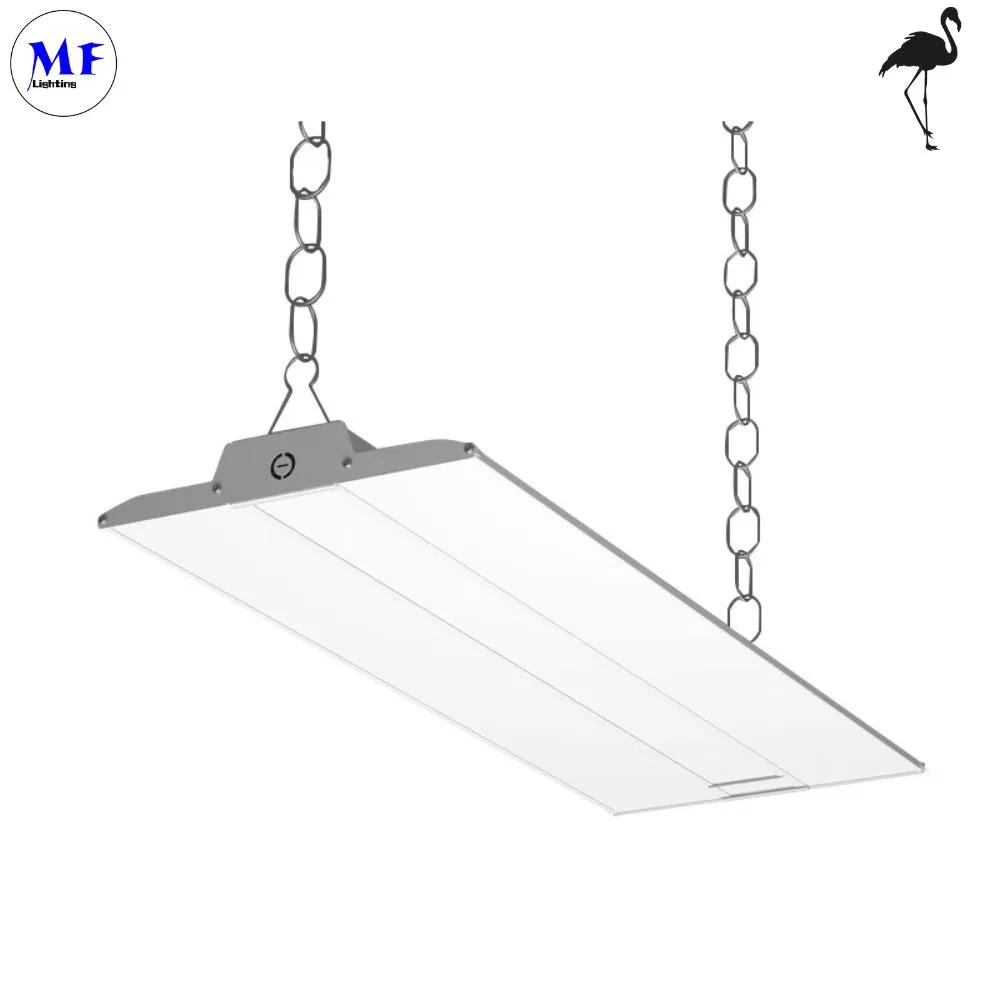

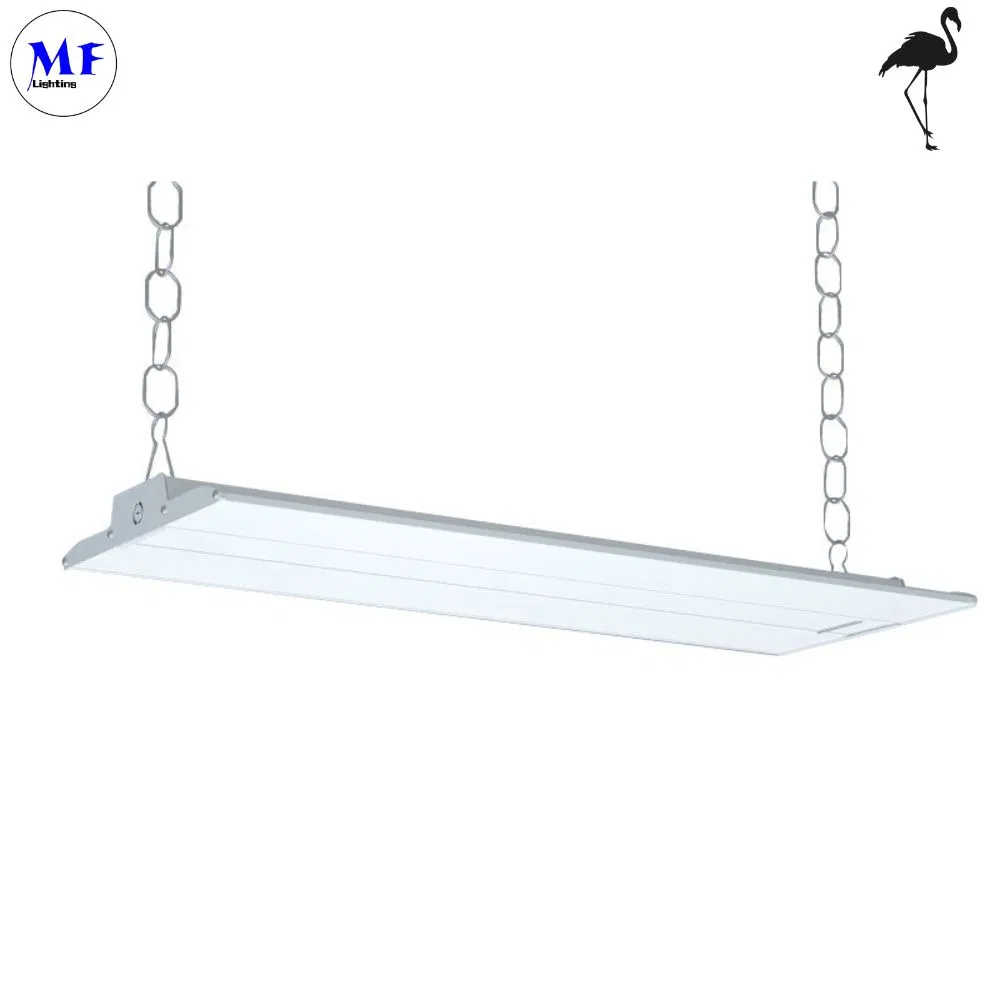

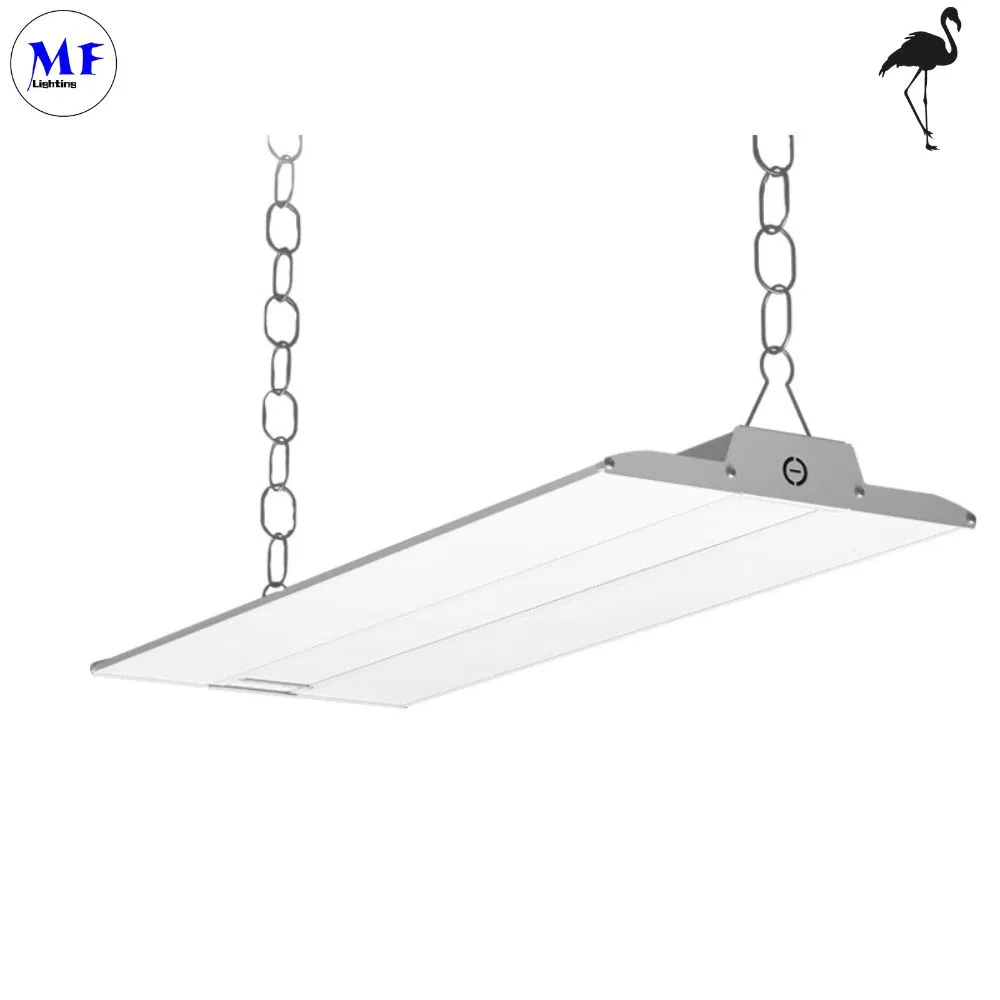

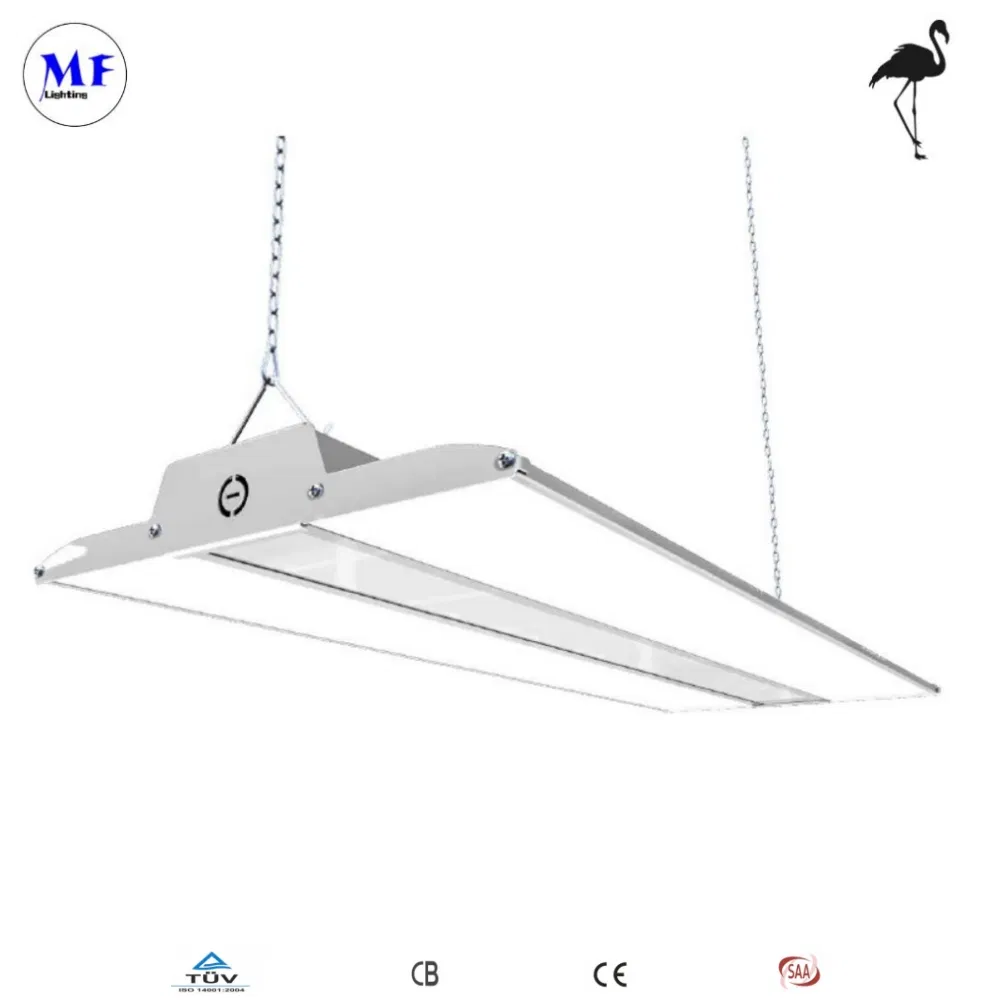

Industrial 40W/80W/100W/150W/200W/250W/300W Smart LED High Bay Light 200lm/W Linear Highbay Lighting for Office Building Manufacturing Plant Facility

Product Description

Industrial 40W/80W/100W/150W/200W/250W/300W Smart LED High bay Light 200LM/W Linear Highbay Lighting For Office building Manufacturing plant facility
Features
  • Housing material: aluminum
  • High luminous output 200LM/W, energy saving 50%
  • Translucent lens standard to minimize glare
  • L80 lumen maintenance of 100,000 hours
  • Intelligent control: infrared remote control, Zigbee, Bluetooth Mesh, high-altitude microwave sensor, infrared light sensor, Zigbee version supports heat map, supports light decay compensation
  • Multiple Mounting Options: Suspended mounted
ENERGY SAVING CONTROL OPTION DIM - 0-10 volt dim-ming enabled with controls by others.
EXPECTED LIFE 100,000 hours depending upon the ambient temperature of the installation location.
LEDS Select high-brightness LEDs in Warm White, Neutral White or Cool White color temperature.
DISTRIBUTION/PERFORMANCE High performance, multifaceted, reflector provides uniform Forward Throw (FT) distribution with sharp backlight cutoff. Photometric data is tested in accordance with IESNA guidelines.
HOUSING One-piece, die-formed aluminum housing contains factory prewired driver in a gasketed. Fixture is IP22 rated.
OPTICAL UNIT PC lens with frosted and corrugated for options.
OPERATING TEMPERATURE -3° C to +55°C (-40°F to +122°F)
WARRANTY 5 years warranty

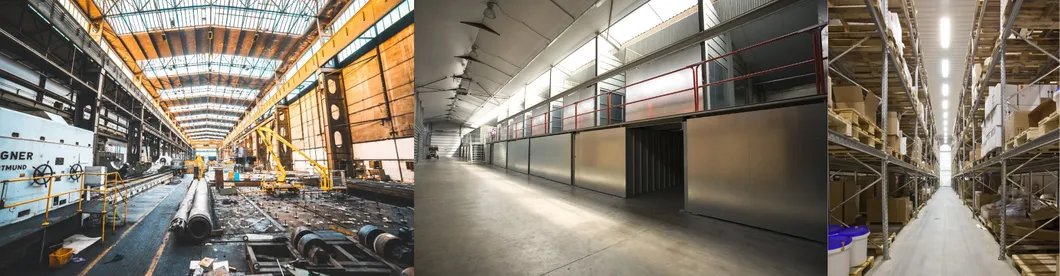

Smart LED High Bay Light Features Overview
Specification
The Economic L2 High Bay is a cost-effective and quality solution for lighting warehouses, distribution centers, manufacturing facilities, big box retailers, and other industrial applications. A dimmable and compact product, it delivers a high lumen output to replace both traditional fluorescent and HID high bay fixtures.
Economic L2 High Bay Design
Product Parameters - 150LM/W
Watt Lumen Output LED Chip Efficacy LED Quantity Light Angle CCT & CRI Voltage
40W 6000lm Lu-miled 2835 150 LM/W 72pcs 120° 3000K-6500K/>80 AC100-277V
347V/480V
50/60Hz
80W 12000lm 144pcs
100W 15000lm 168pcs
150W 22500lm 250pcs
200W 30000lm 336pcs
250W 37500lm 416pcs
300W 45000lm 500pcs
Product Parameters - 200LM/W
Watt Lumen Output LED Chip Efficacy LED Quantity Light Angle CCT & CRI Voltage
40W 8000lm Lu-miled 2835 200 LM/W 150pcs 120° 3000K-6500K/>80 AC100-277V
347V/480V
50/60Hz
80W 16000lm 150pcs
100W 20000Im 300pcs
150W 30000lm 300pcs
200W 40000lm 450pcs
250W 50000lm 450pcs
300W 60000lm 600pcs

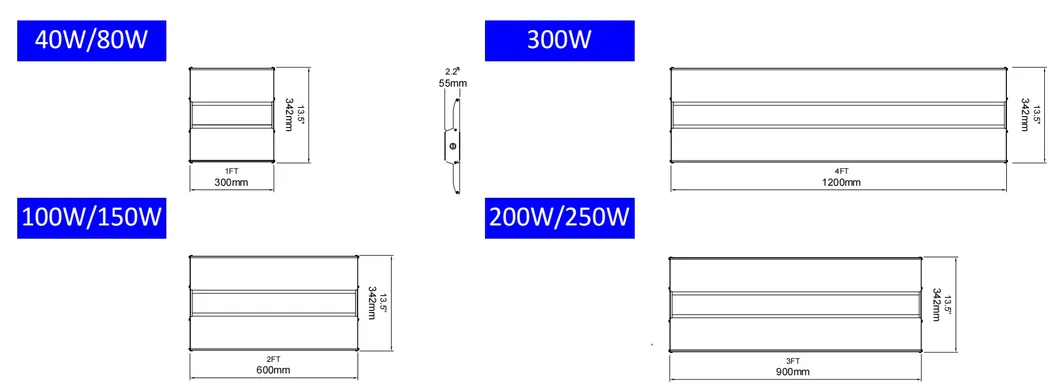

Dimensions
Smart LED High Bay Light Dimensions

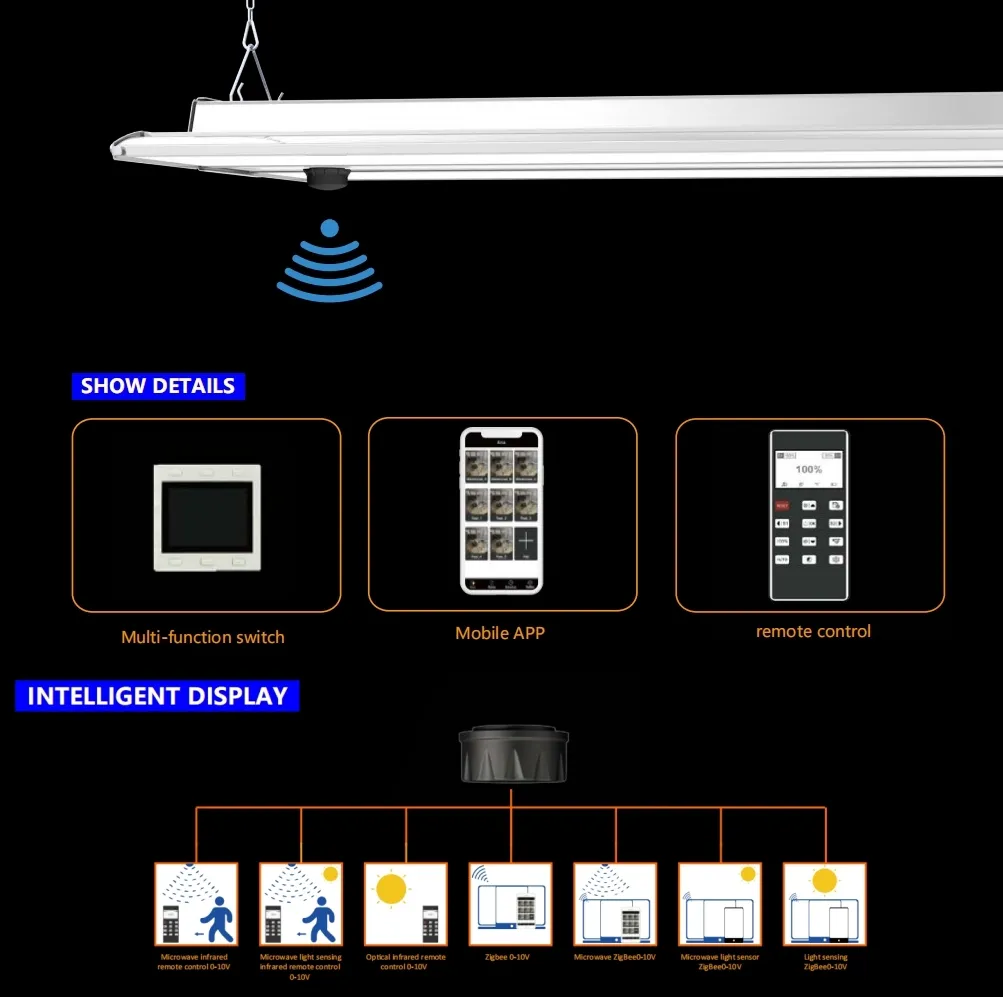

Accessories
Smart LED High Bay Light Accessories
Application
LED High Bay Lights are versatile lighting solutions that can be used in a wide range of indoor and outdoor spaces with high ceilings. Below are some common applications of LED High Bay Lights:
Widely use in Factory, Workshop, Warehouse, Logistics Center, Exhibition Hall, Stadium, Gas Station, Supermarket and etc.
  • Gymnasium, badminton hall, and other indoor and outdoor sports venues
  • Warehouses and Storage Facilities: LED High Bay Lights are ideal for illuminating large storage spaces and warehouses. They provide uniform and bright lighting that makes it easier to navigate the space and locate items.
  • Manufacturing Plants: LED High Bay Lights are often used in manufacturing plants to provide bright and efficient lighting for workers. They can also be used in areas where high-temperature equipment is used, as they are designed to operate in high-temperature environments.
  • Gymnasiums and Sports Facilities: LED High Bay Lights can provide bright and uniform lighting for indoor sports facilities, such as basketball courts, gyms, and indoor soccer fields.
  • Retail Stores: LED High Bay Lights can be used in retail stores to create a bright and welcoming environment for customers. They can be used to highlight products and create a pleasant shopping experience.
  • Parking Garages and Outdoor Areas: LED High Bay Lights can be used to illuminate parking garages and outdoor areas, such as loading docks and construction sites. They provide bright and efficient lighting that enhances safety and visibility.
  • Exhibition Halls and Event Spaces: LED High Bay Lights can be used in exhibition halls and event spaces to create a bright and inviting atmosphere for attendees. They can be used to highlight exhibits, stage areas, and other key features of the space.
  • Supermarket, shopping mall

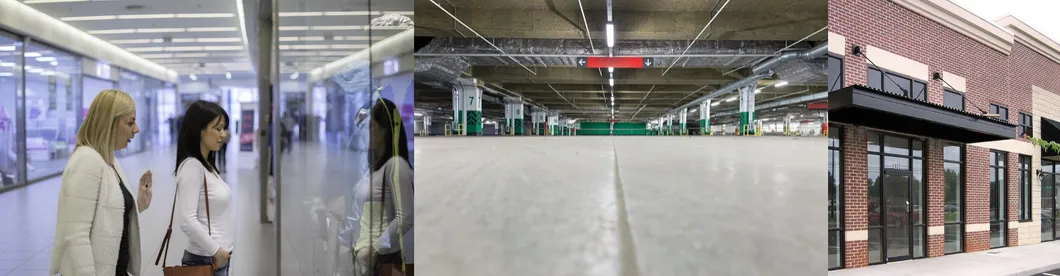

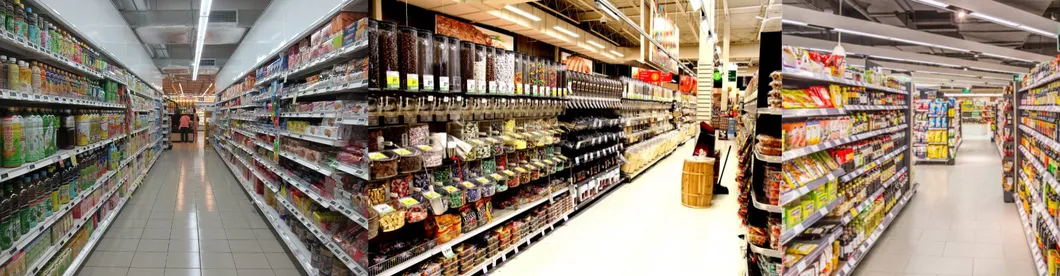

Warehouse LED lighting installation Factory workshop high bay lighting
Linear High Bay Lights are widely used in various applications, including large warehouses, factories, sports arenas, and parking lots. These high-intensity and efficient lighting fixtures provide exceptional illumination for different environments. Here is a paragraph describing the applications of Linear High Bay Lights: Linear High Bay Lights find extensive application in large warehouses and logistics centers. These facilities often have high ceilings and expansive spaces that require bright and efficient lighting to ensure the safety and productivity of the work areas. With their excellent brightness and lighting quality, Linear High Bay Lights can evenly illuminate the entire space, eliminating shadows and dark spots, providing workers with a clear visual environment, and enhancing work efficiency and safety. Moreover, Linear High Bay Lights are widely used in factories and production lines. In these environments, precise task execution and operational safety are crucial. Linear High Bay Lights offer a highly reliable lighting solution, ensuring that workers can see machines and tools clearly, operate equipment accurately, and avoid accidents and errors. Their high efficiency also helps reduce energy consumption and operational costs.

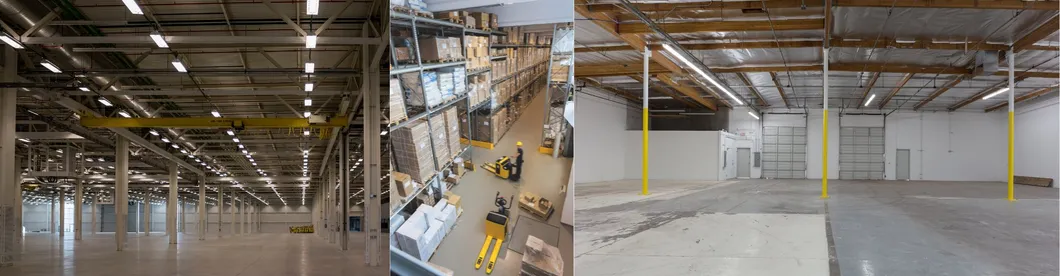

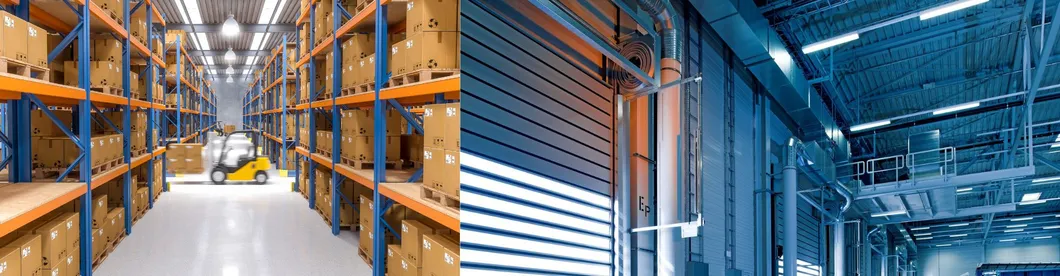

Industrial lighting implementation Supermarket high bay lighting installation
Sports arenas and indoor sports facilities are also common applications for Linear High Bay Lights. These venues require strong illumination to provide optimal visual experience and competitive environments. With their high brightness and uniform light distribution, Linear High Bay Lights ensure that spectators and athletes can see the game and activities clearly, offering the best visual effects and safety. Parking lots are another suitable location for Linear High Bay Lights. These areas typically require bright lighting to ensure the safety of pedestrians and vehicles. Linear High Bay Lights can provide high-intensity illumination, filling the entire parking lot with brightness, improving visibility, reducing the risk of accidents, and providing a sense of security. In summary, Linear High Bay Lights have a wide range of applications, including large warehouses, factories, sports arenas, and parking lots. Their high brightness, uniform light distribution, and energy efficiency make them an ideal choice for providing safe, efficient, and comfortable lighting solutions.
Smart LED High Bay Lighting Scenarios
Packaging
Part Number Dimensions (MM) N.G (KG) G.W (KG) Package Size (MM) Warranty Lifespan
MF-HB40W-L2 300 L x 342 W x55 H 1.9kg 4.7kg 345 L x387 W x 228H 5 years ≤100,000hrs
MF-HB80W-L2
MF-HB100W-L2 600 L x342 W x 55 H 3kg 7.7kg 645L x387 W x 228 H
MF-HB150W-L2
MF-HB200W-L2 900L x 342 W x 55 H 4.3kg 11.5kg 945L x387 W x 228 H
MF-HB250W-L2
MF-HB300W-L2 1200L x 342 W x 55 H 5.5kg 15.5kg 1245L x387 W x 228 H

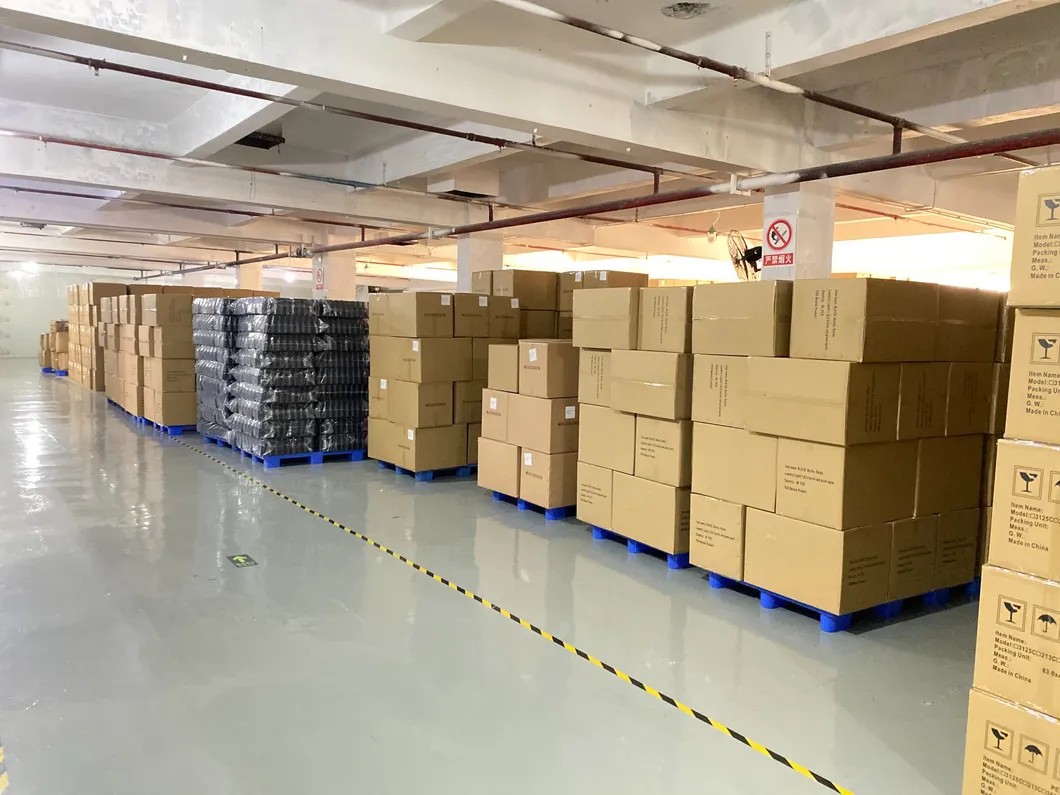

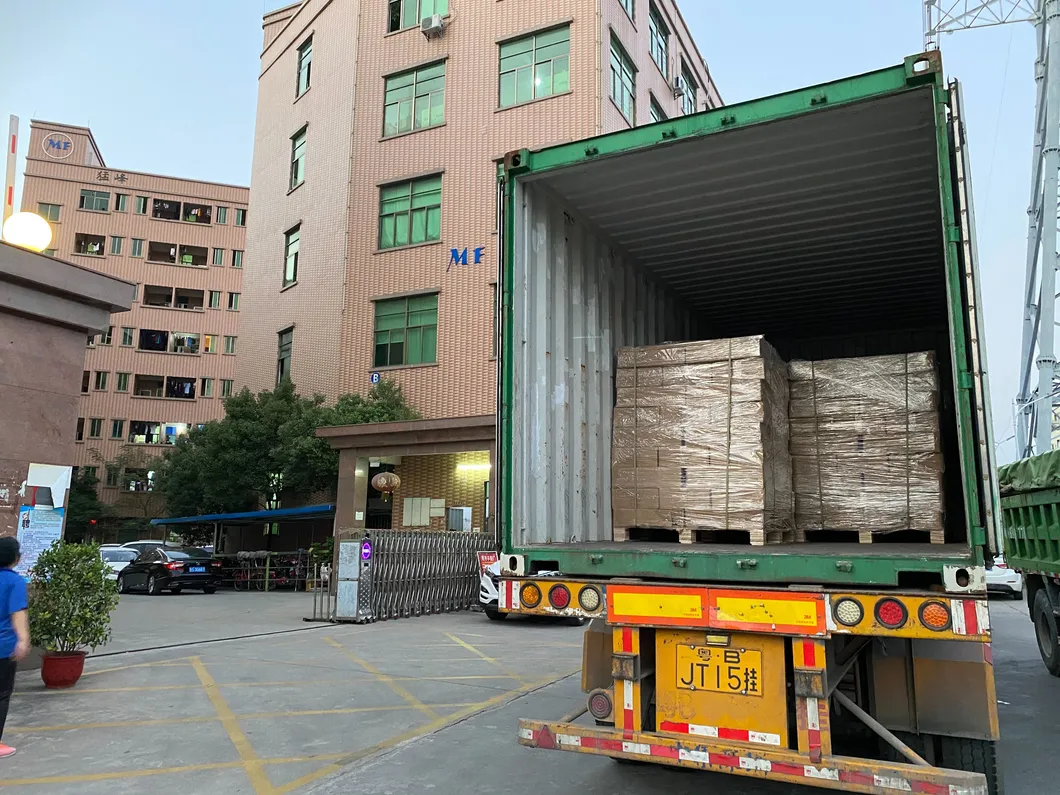

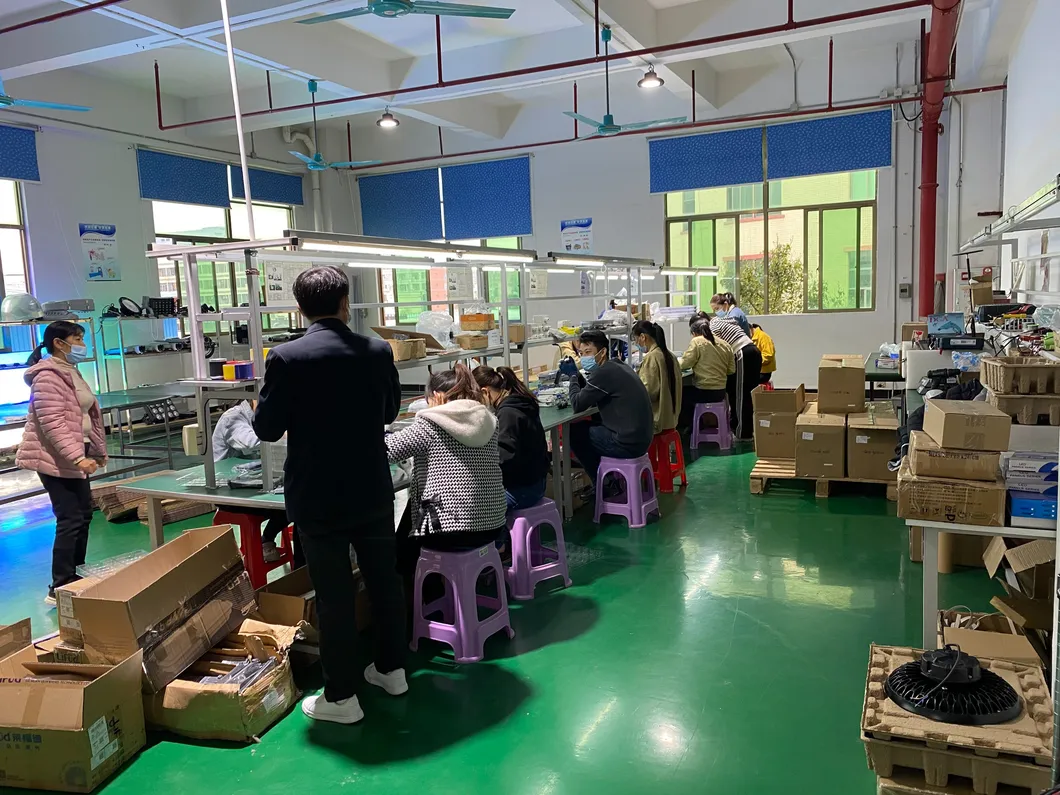

Packaging Detail 1 Packaging Detail 2 Packaging Detail 3
Packaging Detail 4 Packaging Detail 5 Packaging Detail 6
Warehouse ready goods packaging Product packaging presentation
Frequently Asked Questions
What intelligent control systems can be integrated with these Smart LED High Bay Lights?
They support a wide range of intelligent control mechanisms, including infrared remote control, Zigbee, Bluetooth Mesh, high-altitude microwave sensors, and infrared light sensors. The Zigbee version also supports heat mapping and light decay compensation.
What is the expected life expectancy and warranty of the product?
The lights offer an expected L80 lumen maintenance life of 100,000 hours, depending on the ambient temperature of the installation site. Additionally, they come with a comprehensive 5-year warranty.
Are these fixtures dimmable, and what dimming options do they support?
Yes, these fixtures support 0-10 volt dimming controls (controls provided by others), allowing users to adjust output for optimized energy saving.
What is the operating temperature range for these fixtures?
The operating temperature range is -3°C to +55°C (-40°F to +122°F), making them highly reliable in challenging environments from warehouses to manufacturing plants.
What mounting options are available for the Economic L2 High Bay?
The fixtures feature multiple mounting options, including standard suspended mounting configurations.
What are the luminous efficacy and light distribution properties of these models?
We offer configurations with high luminous outputs of 150 LM/W and 200 LM/W, translating to up to 50% energy savings. They feature a high-performance, multifaceted reflector for uniform Forward Throw (FT) distribution with a sharp backlight cutoff.
