Customization:	Available
Type:	Lithium-Ion Batteries
Usage:	Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Home

Send Inquiry

Product Description

⚡ Overview

Model NO. 10KW Li-10KWH

Nominal Voltage AC220V

Discharge Rate High Discharge Rate

Shape Square Battery

Electrolyte Li-ion

Installation Packaged

Rechargeable Chargeable

Product Name Solar Panel System for Home

Model 10kw Li-10kwh

Power 10kw

Solar Panel Type Half Cell Solar Panel

Battery Type LiFePO4 Lithium Battery

Inverter Pure Sine Wave Inverter

Controller MPPT Solar Charge Controller

Solar Panel Bracket Aluminum Alloy

Mounting Support Pitched / Flat Roof / Ground

System Type Off-Grid Solar Power System

Battery Cell 3.2V 100ah LiFePO4 Cell

Transport Package Package in Carton or Custom

Specification 10KW Li-10KWH

Production Capacity 10000pieces/Month

📦 Product Description

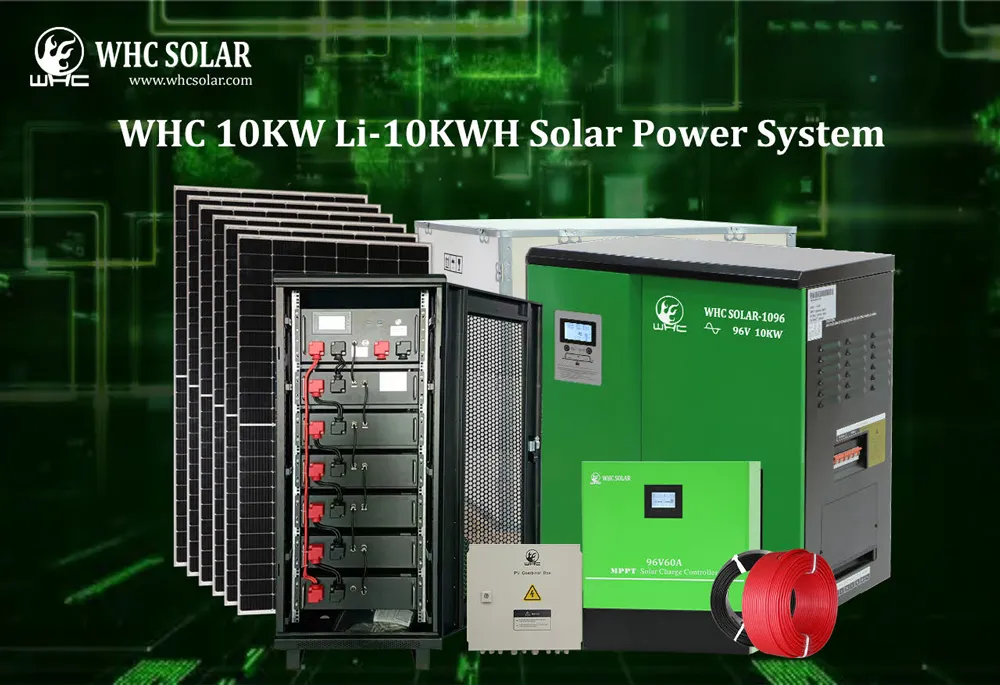

System Powerwall Solar LiFePO4 Lithium Batteries with Battery Storage

Model: 10KW-Li-10KWH
Product Name: Offgrid Solar Power System Home

High Efficient Installation Aluminium Solar Panel Brackets PV Tile Roof Mounting Systems

High Efficient Installation Aluminium Solar Panel Brackets PV Tile Roof Mounting Systems

High Efficient Installation Aluminium Solar Panel Brackets PV Tile Roof Mounting Systems

High Efficient Installation Aluminium Solar Panel Brackets PV Tile Roof Mounting Systems

High Efficient Installation Aluminium Solar Panel Brackets PV Tile Roof Mounting Systems

Solar Power System also known as off-grid solar system is the most cost-effective type for solar system. It is a complete solar setup that comes with highly efficient solar panels, off-grid solar inverter, Grade A+ lithium iron phosphate battery and other standard solar accessories. This system will not only provide you continuous electricity but will also reduce your heavy electricity bills.

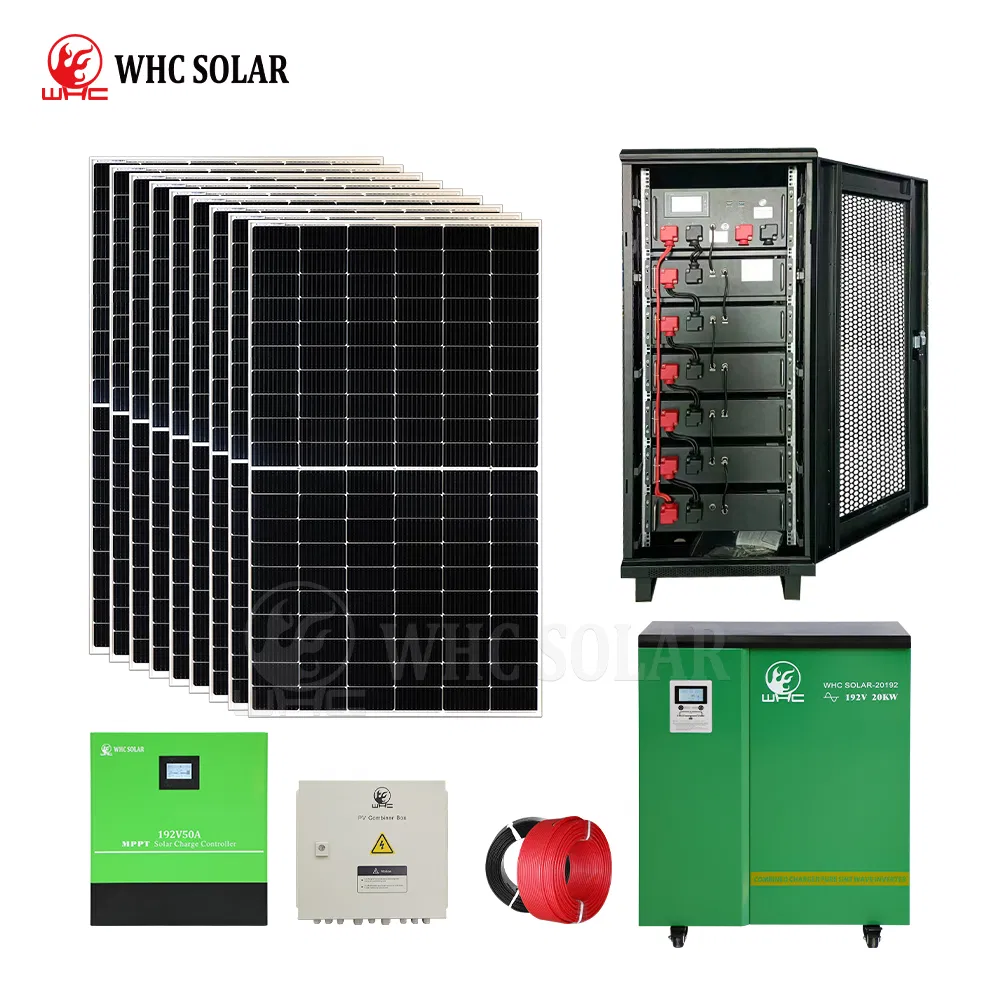

10KW-Li-10KWH System Components List
Item	Description	Quantity
Solar Lithium Battery	96V100AH LiFePO4 Lithium Battery	1 Pieces
Solar Panel	450W Solar Mono Panel	8 Pieces
Solar Controller	96V 60A MPPT Controller	1 Pieces
Solar Inverter	96V 10KW Solar Inverter	1 Pieces
PV Combiner Box	Six Input + Two Output	1 Pieces
PV Cable	Single-core 6mm² PV cable 100m	2 Pieces
PV Mounting Support	Hot Galvanizing Ground Mounting Support	1 Set
Connector	MC4 Connector	16 Pieces

⚙️ System Components Details

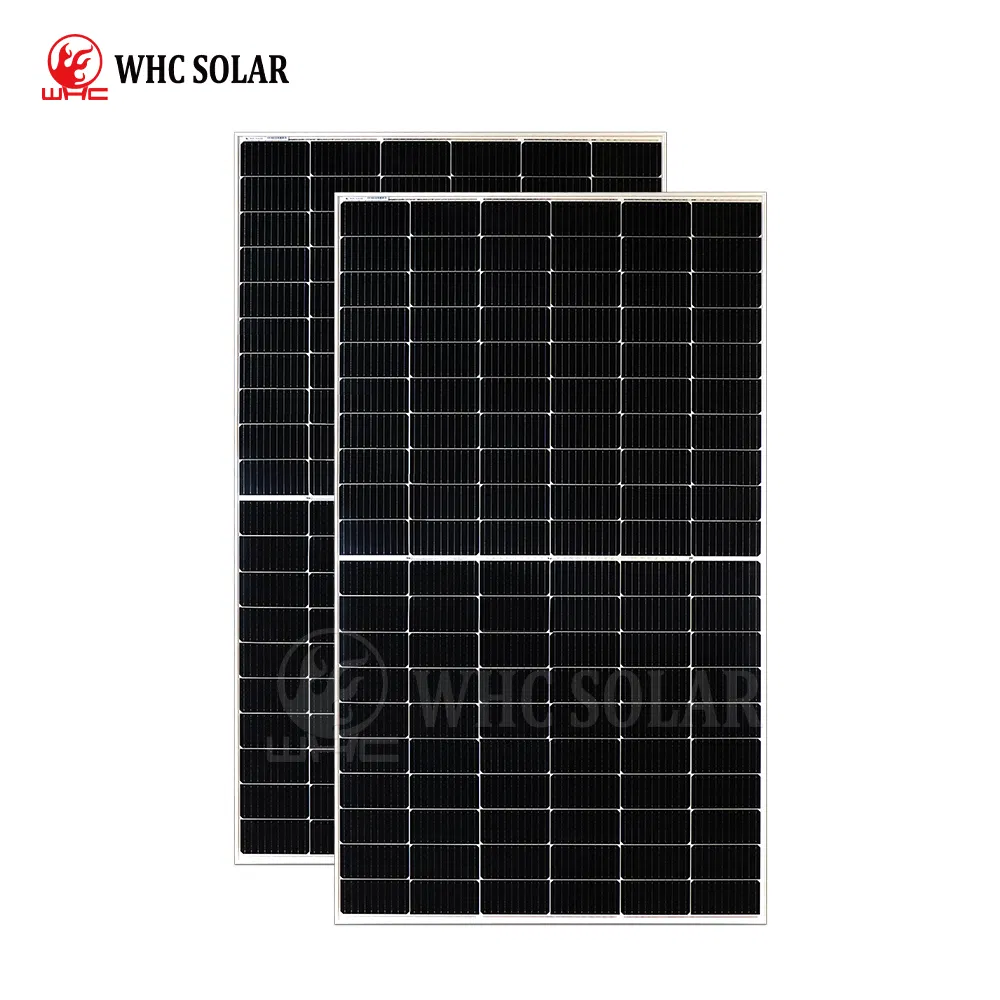

Mono Solar Panel

Mono Solar Panel

Model:450M-120
Max Power Voltage:34.67V
Max Power Current:12.98A
Open Circuit Voltage:41.25V
Short Circuit Current:13.89A
Dimensions:1909*1134*35mm

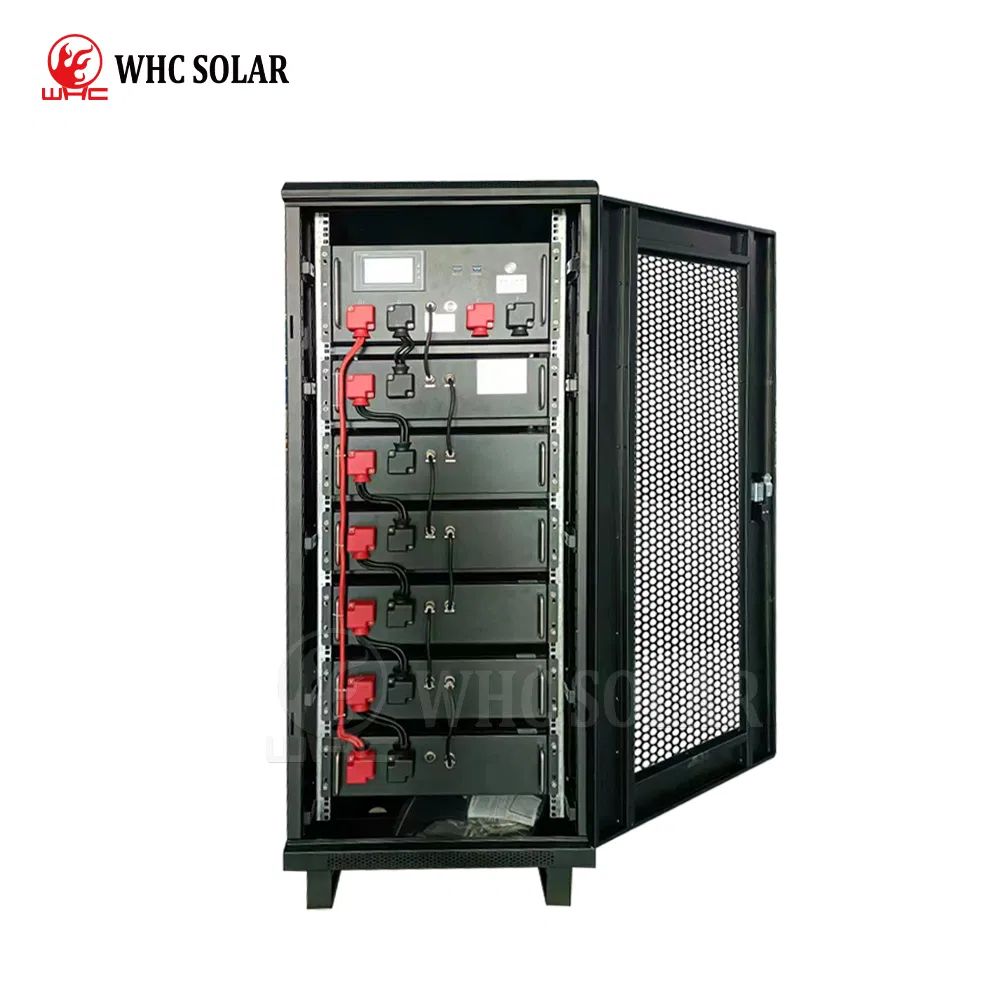

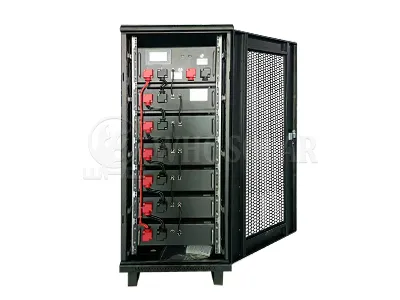

LiFePO4 Lithium Battery

LiFePO4 Lithium Battery

Model:96V100AH
Type:LiFePO4 Lithium Battery
Nominal Voltage:102.4V
Capacity:10240WH
Lifespan:10 Years
BMS Max Discharging Current:100A

Solar Controller

Solar Controller

Model:MPPT/9960F
Type:96V60A MPPT
PV(VOC):230V
Charging Efficiency:99%
Charging Mode:Intelligent Control
Protections:Various Protection Functions

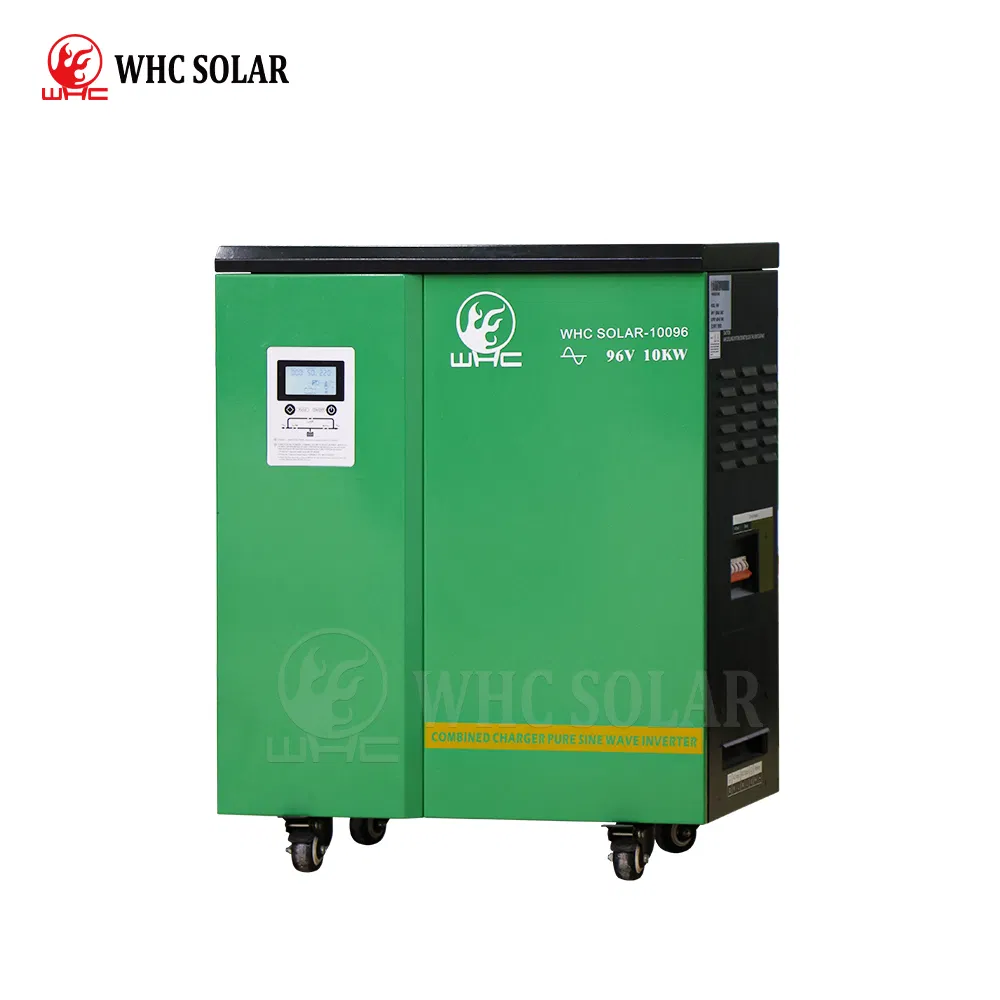

Solar Inverter

Solar Inverter

Model:96V10KW Inverter
Type:Low Frequency IGBT Pure Sine Wave
DC Input Voltage:96V
AC Input Voltage:220V 50/60HZ
Recharging Current:10A
AC Output Voltage:220V 50/60HZ

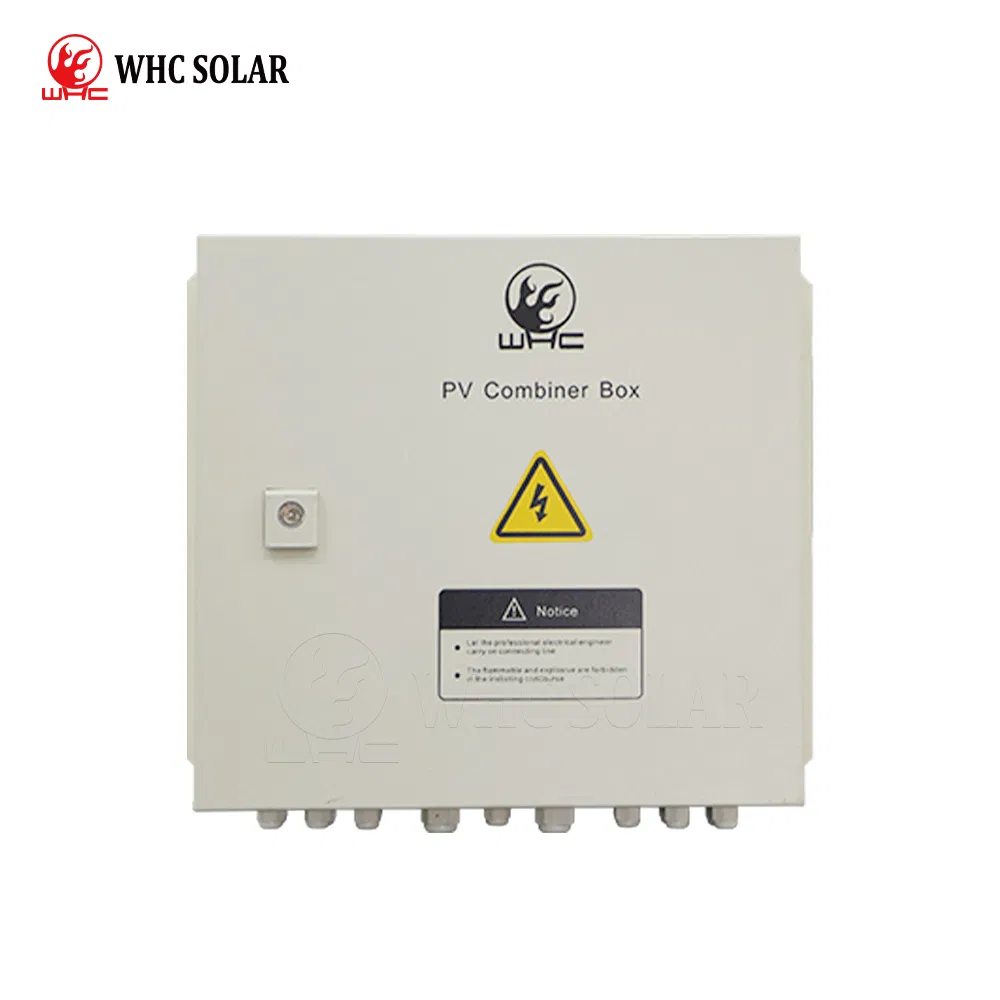

PV Combiner Box

PV Combiner Box

Model:Combiner Box: N6 Plus
Waterproof Grade:IP65
Max Output Voltage:1000V
DC Output Circuit Breaker:Yes
Lightning Protection:Yes

Mounting Support

Mounting Support

Structure Type:Solar Panel Bracket
Wind Load:55m/s
Structure Material:Anodized Aluminum
Hardware:Stainless Steel
Flexibility:Angle Adjustable

PV Cable

PV Cable

Length:Solar Cable 100m
Type:RVV 1*6mm²
Material:Pure Copper
Temperature Rating:-40°C - 120°C (Over 25 Years)

MC4 Connector

MC4 Connector

Model:MC4 Solar Connector
Waterproof Grade:IP68
Protection Features:High Quality, Safe Protection
Material:Copper MC4 Connector

System Connection Overview Diagram

🏢 Company Profile & Strength

COMPANY PROFILE

High Efficient Installation Aluminium Solar Panel Brackets PV Tile Roof Mounting Systems

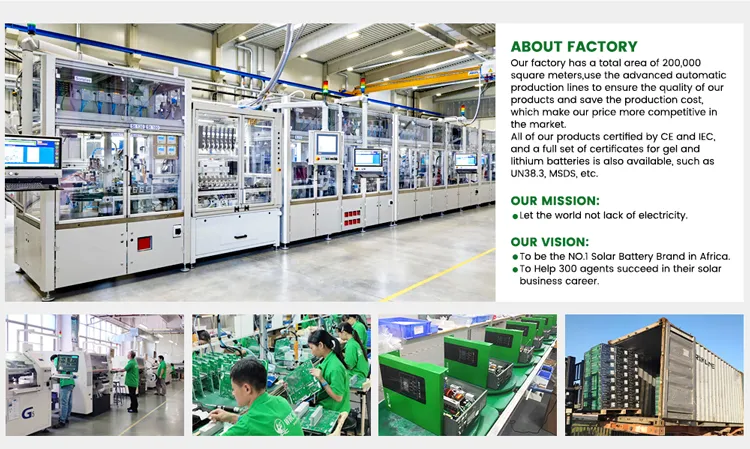

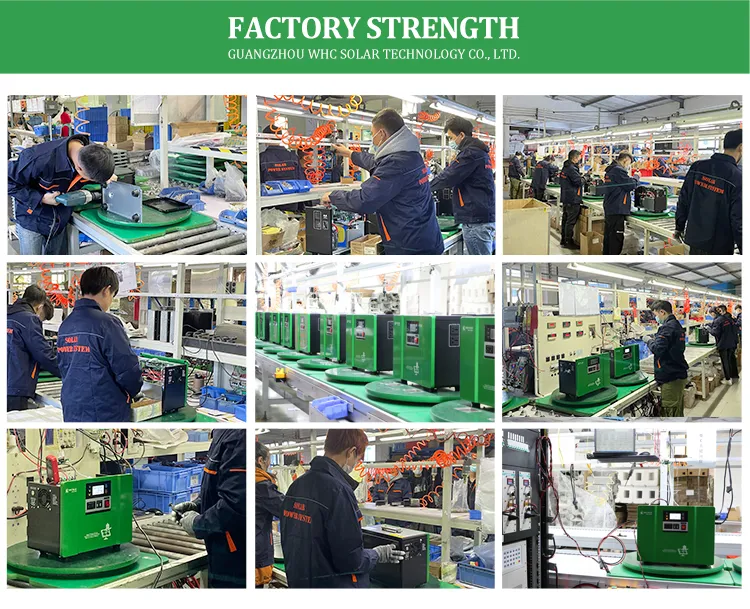

FACTORY STRENGTH

Factory Strength Showcase

CERTIFICATE DISPLAY

Certificates and Patents Certification Display

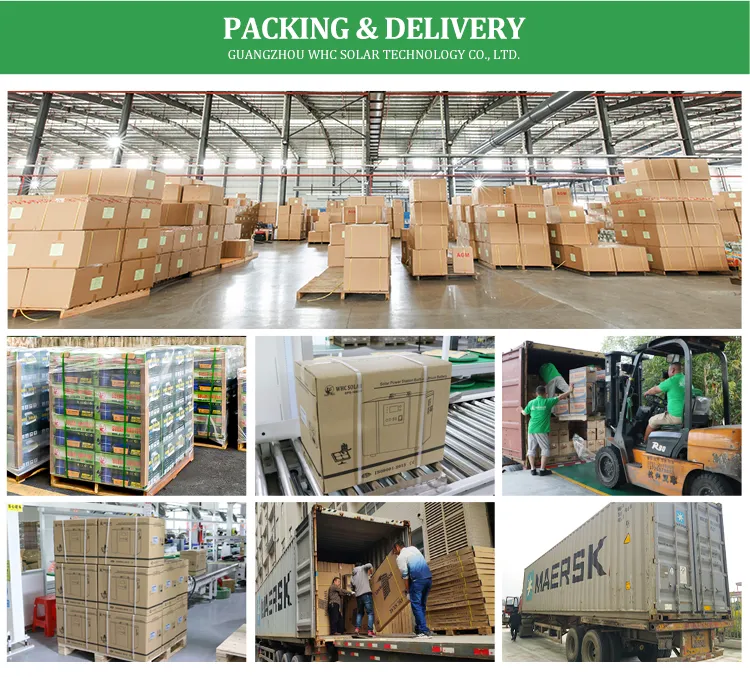

PACKING & DELIVERY

Packing and Delivery Process Standard

💡 Frequently Asked Questions

Q1. Are you a factory or trading company?

We are a professional factory specializing in solar power system equipment.

Q2: Can you print my logo on the product cover?

Yes, OEM is available. We can print your customized logo on the battery case.

Q3. What kind of certificate do you have?

Our products have won a number of national patents and passed CE, RoHS, and ISO9001: 2008 quality management system certifications.

Q4. What is your standard delivery time?

Standard delivery is typically within 14-20 days. Delivery time may vary depending on the specific product configuration and quantity.

Q5. Where is your main market located?

Our products are widely exported to various global markets, including Africa, South America, the Middle East, and Occident countries.

Q6. What payment methods do you accept?

We accept Money Gram, Western Union, T/T, and other convenient payment methods upon mutual agreement.
