Food Processing Industrial Facilities Dali Dimming 60W/80W/100W/120W/150W/180W/200W LED High Bay
Food Processing Industrial Facilities Dali Dimming 60W/80W/100W/120W/150W/180W/200W LED High Bay
Food Processing Industrial Facilities Dali Dimming 60W/80W/100W/120W/150W/180W/200W LED High Bay
Food Processing Industrial Facilities Dali Dimming 60W/80W/100W/120W/150W/180W/200W LED High Bay
Food Processing Industrial Facilities Dali Dimming 60W/80W/100W/120W/150W/180W/200W LED High Bay
1 / 5
Food Processing Industrial Facilities Dali Dimming 60W/80W/100W/120W/150W/180W/200W LED High Bay
Food Processing Industrial Facilities Dali Dimming 60W/80W/100W/120W/150W/180W/200W LED High Bay
Food Processing Industrial Facilities Dali Dimming 60W/80W/100W/120W/150W/180W/200W LED High Bay
Food Processing Industrial Facilities Dali Dimming 60W/80W/100W/120W/150W/180W/200W LED High Bay
Food Processing Industrial Facilities Dali Dimming 60W/80W/100W/120W/150W/180W/200W LED High Bay

Food Processing Industrial Facilities Dali Dimming 60W/80W/100W/120W/150W/180W/200W LED High Bay

Customization: Available
Color Temperature: Cool White
Lamp Body Material: Aluminum
Send Inquiry

Product Description

Basic Info.

Model NO.
UF60WF
Power
100W
Usage
Mine, Gymnasium, Shipyard, Exhibition, Warehouse, Shopping Mall, Factory, Tunnel, Food/Milk/Meat Processing Plant, Crude Oil Plant
Lifespan
≥50000H
IP Rating
IP67
Certification
CE, C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA
Beam Angle
120°
LED Chips
Nichia
Product Name
UFO LED High Bay Light
LED Driver
Meanwell Hbg Series
LED Chip
Lumiledssmd3030
Product Type
SAA TUV UL PSE CE LED Industrial Lighting
Shape
UFO/Round
PF
>0.95
IP Grade
IP66/IP67/IP68
Body Colour
Black, White, Silver, Orange, Blue, Gray, Red
Material
Die-Cast Aluminum
Warranty
5 Years
Transport Package
Pearl Foam Inner Box and K=K Carton
Specification
D290*H170, D340*H180, D400*H194MM
Origin
Made in China
HS Code
9405409000
Production Capacity
300000piece/Pieces /Month

Product Description

Best choice for food processing plant, crude or oil refinery factory, slaughterhouse, cold storage, winery plant, bread factory, milk processing plant, meat processing plant

It is a definitely new-fashioned LED high bay light, which can be used as a normal LED high bay, covering applications such as warehouse, shopping mall, exhibition centers, etc.

Especially, it can be installed in those applications having special requirements on safety and daily cleaning, like food processing plants.

Product Advantages

  • Special design without screws, No bacterial, dust-free, no greasy dirt, easy to clean
  • No glass and No exposed screws, avoid dropping glass fragments or screws into food or machinery
  • A perfect solution for food-processing application
  • Hosed down frequently for cleaning acceptable
  • Smooth body, Seamless design greatly diminish dust and water accumulation, Easier cleaning
  • Die-cast aluminum, scratch and fade resistant, efficient cooling structure
  • IP67 water spraying, corrosion-resistant and anti-aging
  • IP69K hot steam resistant
  • Fresnel lens, Lumen efficacy up to 150-170LM/W, Achieve higher lumen output than ordinary lens
  • Beam Angle 60° /90°/120° available
  • Colorful housing optional, black, silver, orange, blue, gray, red
  • Glare-free UGR<19, Provides Improved Visual Comfort High CRI>80
  • SAA TUV UL PSE CE, safe and food certificate

Specifications Details

  • PF>0.95, CRI >80Ra, THD<15%, UGR<19
  • Anti-thunder: 4KV
  • IK Grade: IK10
  • Surge Protection: 10KV
  • LED Junction Temperature: ≤65°C
  • Working Temperature: -40ºC~+50ºC
  • Humidity: 10%~90%RH
  • LumiledsSMD3030, 150-170lm/w
  • Meanwell driver, 100-277VAC, 90-305V, 180-528V also available
  • Optional Function: DALI, 1-10V dimmable, daylight sensor, microwave sensor
  • Material: Die-cast aluminium, Optical lens
  • Ideal mounting height: 8-15 m
  • Simple and elegant appearance, anodized housing, durable
  • Unique UFO shape, lighter and smaller, no reflector, saving much freight cost
  • Wide aluminium plate + large diameter PCB, heat dissipation fast and evenly
  • One-piece PC lens and high-quality silicone ring for excellent airtight effect, protecting from heavy rain and dust
  • Certification: SAA, PSE, UL, cUL, DLC, TUV, GS, CB, SAA, FCC, CE, RoHS
  • Warranty: 5 years

Technical Specifications

Power 100W 150W 200W 240W
Power consumption 100W±5W 150W±5W 200W±5W 240W±5W
Input Voltage AC100-277V AC100-277V AC100-277V AC100-277V
Power Frequency 50-60Hz 50-60Hz 50-60Hz 50-60Hz
Output Voltage DC28.8-48V DC28.8-48V DC28.8-48V DC28.8-48V
Output Current 2A(Constant Current) 3.3A(Constant Current) 4.8A(Constant Current) 5.0A(Constant Current)
Luminous Flux 13500LM(CCT=5000K) 22500LM(CCT=5000K) 27000LM(CCT=5000K) 27000LM(CCT=5000K)
Fixture Material Die-cast Aluminum Die-cast Aluminum Die-cast Aluminum Die-cast Aluminum
LED Type LumiledsSMD3030
Power Supply MeanWell
System Efficacy 150-170LM/W (CCT=5000K)
CCT 4000K, 5000K, 5700K, 6000K, 6500K
Beam Angle 60 / 90 / 120
CRI >80Ra
System Efficiency >90%
LED Junction Temperature <75ºC(Ta=30ºC)
Storage Temperature (-40~+70ºC)
Operating Temperature (-30~+50ºC)
Working Environment 15-90%RH
Power Efficiency >93%
Power Factor >0.93
Total Harmonic Distortion <15%
Luminaire Net Weight 3.2kg 4.2kg 5.5kg 6.5kg
Package Size 300*164.8mm 360*169mm 400*185.3mm 400*185.3mm
Certificates SAA, PSE, UL, cUL, DLC, TUV, GS, CB, SAA, FCC, CE, RoHS
Life span >50000Hrs(Ta=30ºC @L70)
Ingress Protection IP67
Quality Warranty 5years
Installation Lifting, Tube, Wall Installation

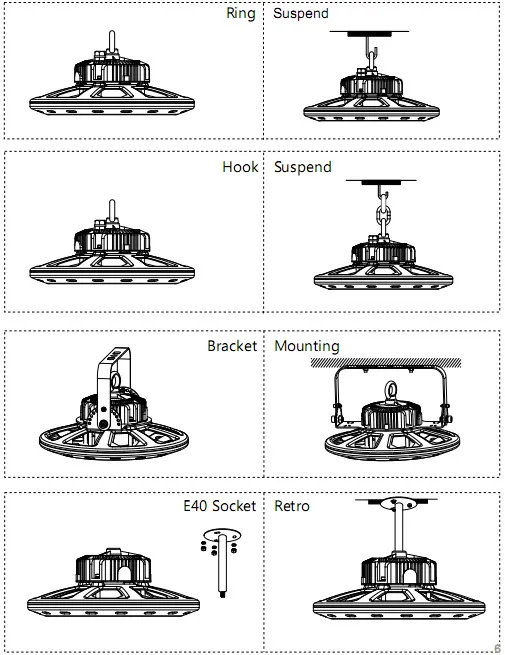

Installation

Loop & Hook hanging / Wall mount / Surface mount / Rack mount
Food Processing Industrial Facilities Dali Dimming 60W/80W/100W/120W/150W/180W/200W LED High Bay

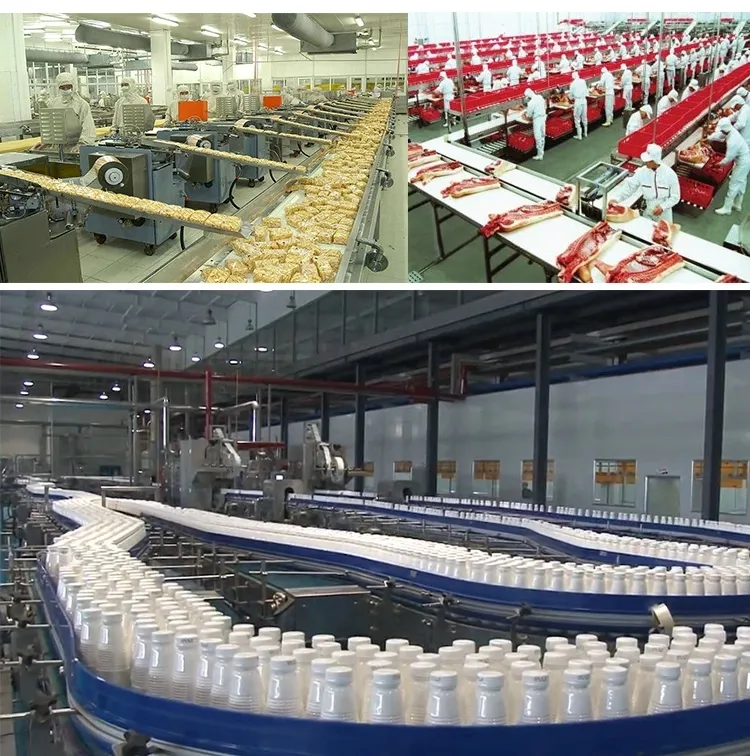

Applications

Ideal for food processing plant, crude or oil refinery factory, slaughterhouse, cold storage, winery plant, bread factory, milk processing plant, meat processing plant.
Food Processing Industrial Facilities Dali Dimming 60W/80W/100W/120W/150W/180W/200W LED High Bay

User Manual

  • Switch off power of the mains supply or respectively of the connection lead before doing any works.
  • Assembly must not damage or destroy conducting paths.
  • Make sure that the product is mounted on a stable, even and tilt-fixed background.
  • The complete installation must be done by an electrical expert who is familiar with the valid directives.

Quality Control

  • Stability TEST: make sure 100% of the lamps be aging test at least 48hours
  • Lighting TEST: make sure 100% of the lamps be lighted before packing
  • Drop TEST: make sure every single light have been well protected by box

Frequently Asked Questions

What makes this UFO LED High Bay Light suitable for food processing plants?
The light is designed with a seamless, screwless structure to avoid dust, grease, or bacteria accumulation. It contains no glass or exposed screws, ensuring no fragments fall into food processing lines.
How waterproof and cleanable is this high bay light?
It has an IP67 water-spraying certification and IP69K hot steam resistance, making it highly robust against high-pressure washdowns and chemical cleaning agents.
Which LED chips and drivers are equipped in this light?
This fixture features high-efficiency Lumileds SMD3030 LED chips and a durable Meanwell HBG Series driver, providing excellent performance and longevity.
What are the available installation methods?
It supports versatile installation setups including Loop & Hook hanging, Wall mounting, Surface mounting, and Rack mounting options.
What is the lifespan and warranty coverage of the product?
The LED high bay light comes with a 5-year quality warranty and is rated for a lifespan of ≥50,000 hours under standard conditions.
