Product Features

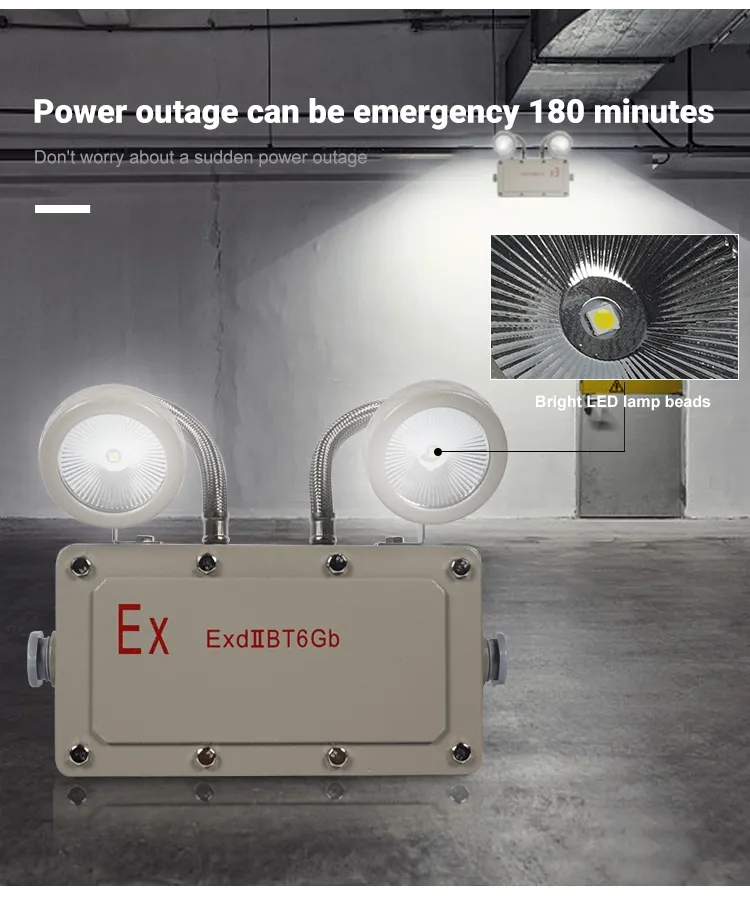

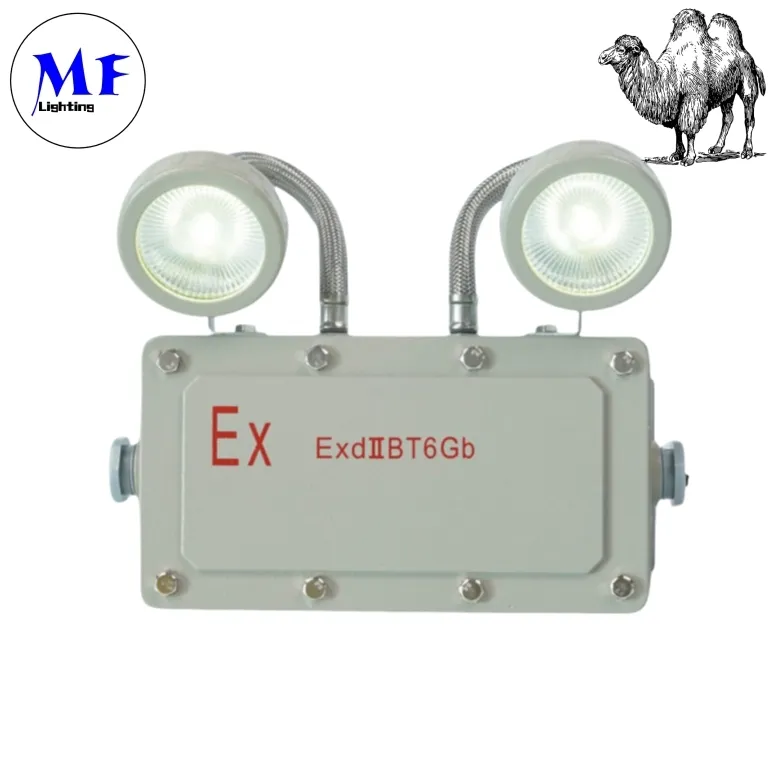

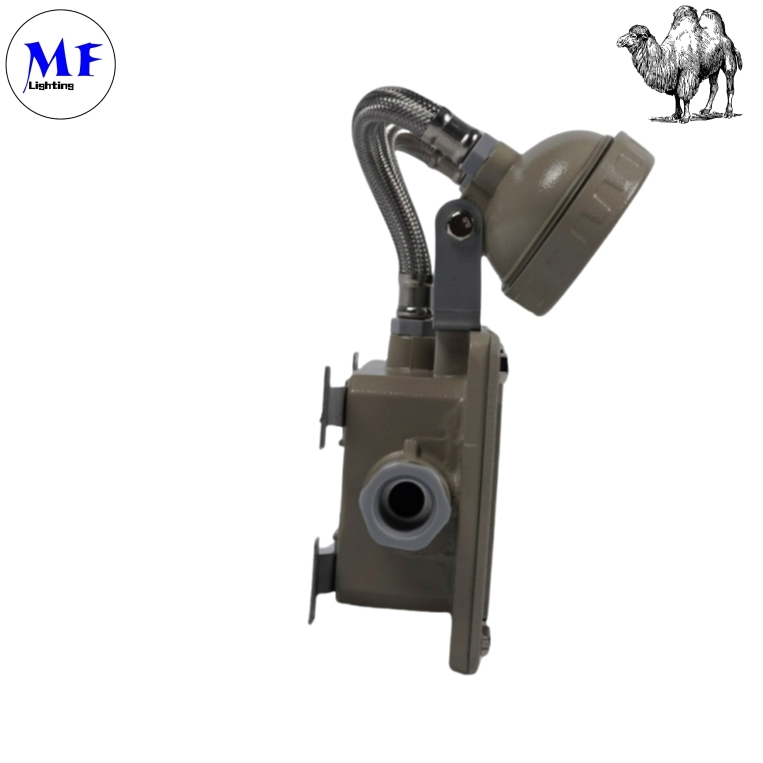

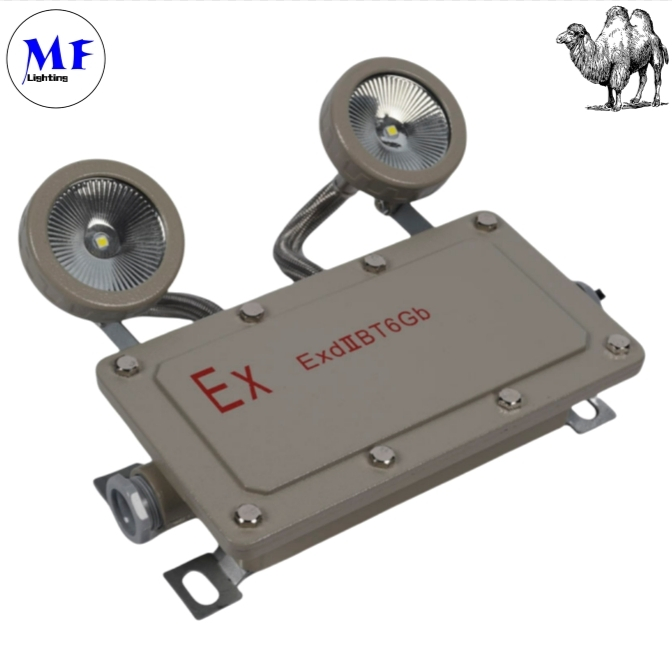

Explosion-proof Emergency LED Light MF-S230 is specially designed for industrial environments and has superior explosion-proof capabilities. Its main role is to effectively prevent the arc, spark and high temperature that may occur inside the lamp to cause the explosion of flammable gases and dust in the surrounding environment, so as to ensure the safety of the workplace. In accordance with explosion-proof safety standards, all flammable and explosive areas must use certified explosion-proof lighting fixtures. Equipped with two lighting sources, this luminaire provides powerful lighting effects to meet the lighting needs of a variety of complex environments.
Products Parameters
| Lighting Data |
Electrical Data |
| LED Type |
Cree |
Power Supply |
IEC certified driver |
| System Efficacy |
110lm/W |
Input Voltage |
100~240V ac |
| System Power Consumption |
2x5W |
Power Frequency |
50~60Hz |
| CCT |
6000K |
Charging Time |
24 H |
| Beam Angle |
90° |
Discharging Time |
3 H |
| CRI |
Ra80 |
Power Efficiency |
>90% |
| Lens |
Clear/Mist |
Power Factor |
>0.90 |
| SDCM |
<5 |
Battery |
Lithium Battery 1.2V800mAh |
| Material Data |
Packing Data |
| Fixture Material |
Metal+Alu.+Temple glass |
Junction Temperature(Tj) |
<70°C(Ta=30°C) |
| Powder Coating |
AkzoNobel |
Storage Temperature |
-40~+80°C |
| Cable |
3x 0.75mm |
Operating Temperature |
-40~+60°C |
| Ingress Protection |
IP66 |
Outlook Size(MM) |
260x60x215 |
| Life Span |
10 years at 12 hours/day |
Export Carton Size |
57x46x25.5CM/8pcs/10KG |
| Optional Info. |
| Installation Method |
Wall |
Certificates |
CE,CB,RoHs |
| Fixture Color |
Grey(Standard) |
| Intelligent Control |
N/A |
Main features

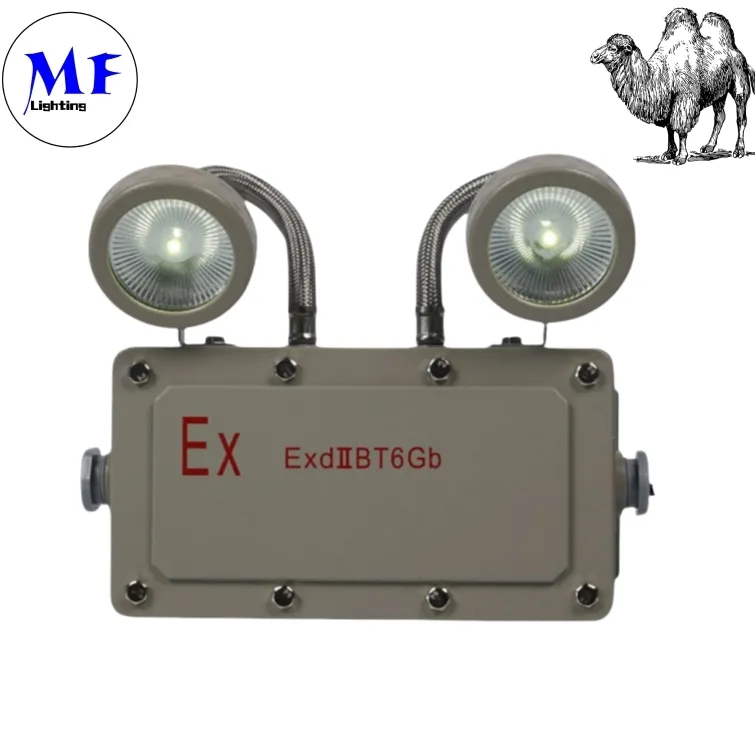

Excellent explosion-proof performance: explosion-proof double-head lamps have passed strict explosion-proof certification and can be used safely in flammable and explosive environments. Aluminium alloy for better heat dissipation. Superior gasketing seals between the mounting module housing, and optical assembly for optimum performance in wet and corrosive environments. It uses special explosion-proof structure and materials to effectively prevent the explosion caused by arc, spark and high temperature.

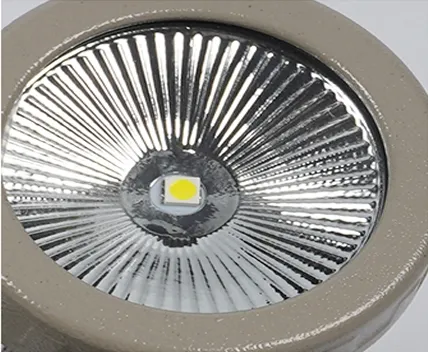

Excellent lighting: Equipped with two high-brightness LED light sources, explosion-proof dual headlights provide a wide and uniform lighting range. Saves in energy, maintenance and installation costs. Instant, bright illumination. Whether in narrow passageways or open work areas, it can provide enough lighting brightness to ensure a clear line of sight for the operator.
Durable and reliable: Stainless steel explosion-proof coiled tube, good sealing, high safety factor. Made of high quality materials and exquisite workmanship, explosion-proof double-head lamps have excellent impact resistance, corrosion resistance and water resistance. Even if used for a long time in harsh environments, it can maintain a stable lighting effect.

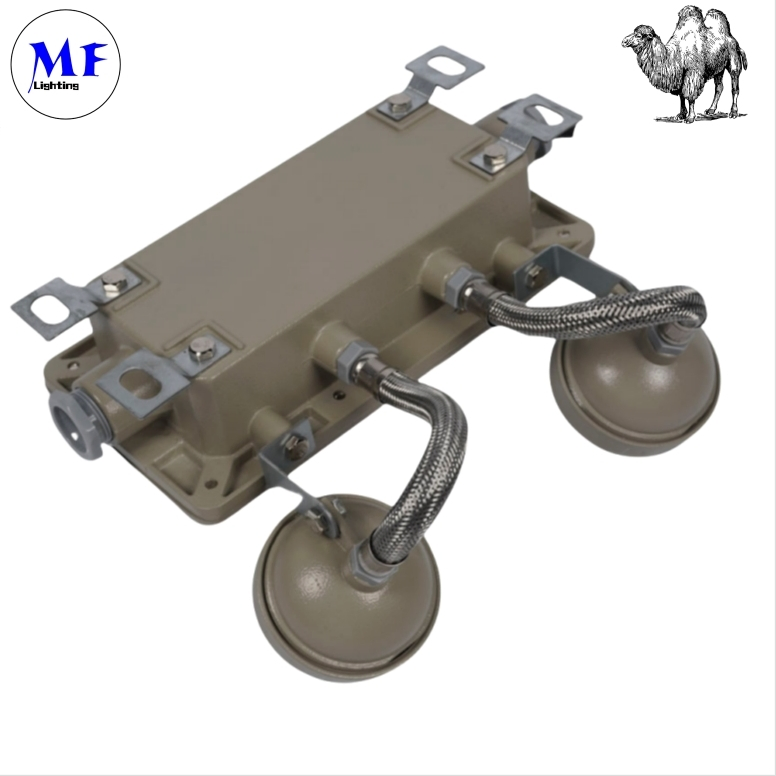

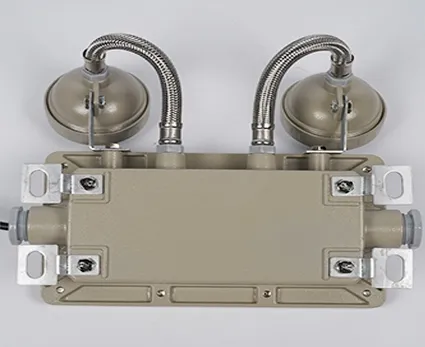

Portable design: Multi-mounting arrangements to suit any lighting layout. Explosion-proof double-head lamps are usually made of lightweight materials and humanized design, which is convenient for operators to carry and operate. At the same time, it is also equipped with adjustable hooks and brackets, which can flexibly adjust the lighting Angle and position according to actual needs.
Company Profile

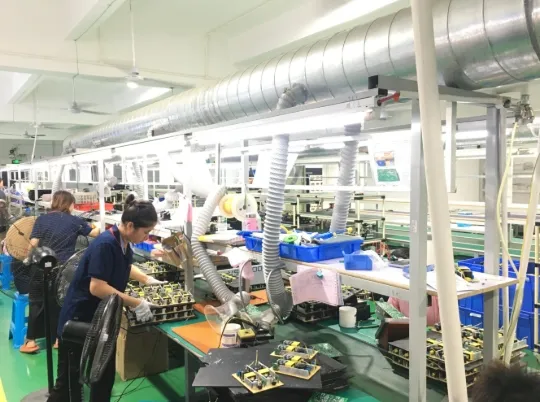

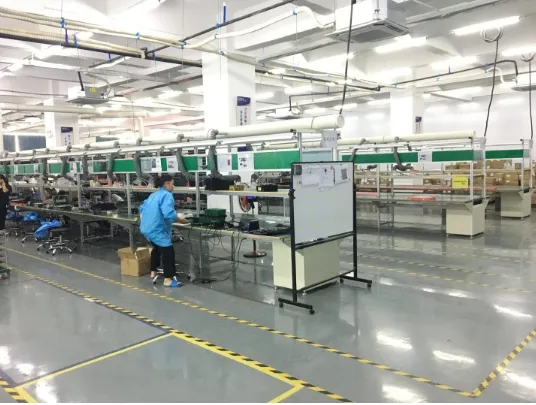

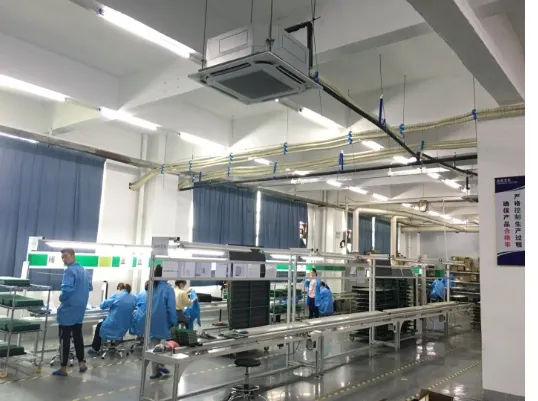

We are a leading LED lighting manufacturer with our own factory. Our company specializes in the design, production, and distribution of high-quality LED lighting products. With years of experience in the industry, we have established a reputation for excellence and innovation in LED lighting technology. Our team of skilled professionals is dedicated to providing customers with the best LED lighting products and services. We pride ourselves on our commitment to quality and customer satisfaction. Whether you are looking for residential or commercial LED lighting solutions, we have the expertise and resources to meet your needs.
Frequently Asked Questions
Q1 What do you sell?
We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.
Q2 Is it OK to print my logo on led light product?
Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3 How to deal with the faulty?
During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q4 Can I have a sample order for led light?
Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.
Q5 How long time to ship the goods if place an order?
Usually 7 days for sample or small order, 15 working days for bulk order, but sometimes depend on the order quantity.
Q6 What are the charging and discharging durations for the battery?
The built-in lithium battery requires a full charging time of 24 hours, and it provides a reliable discharging time of up to 3 hours in emergency mode.
