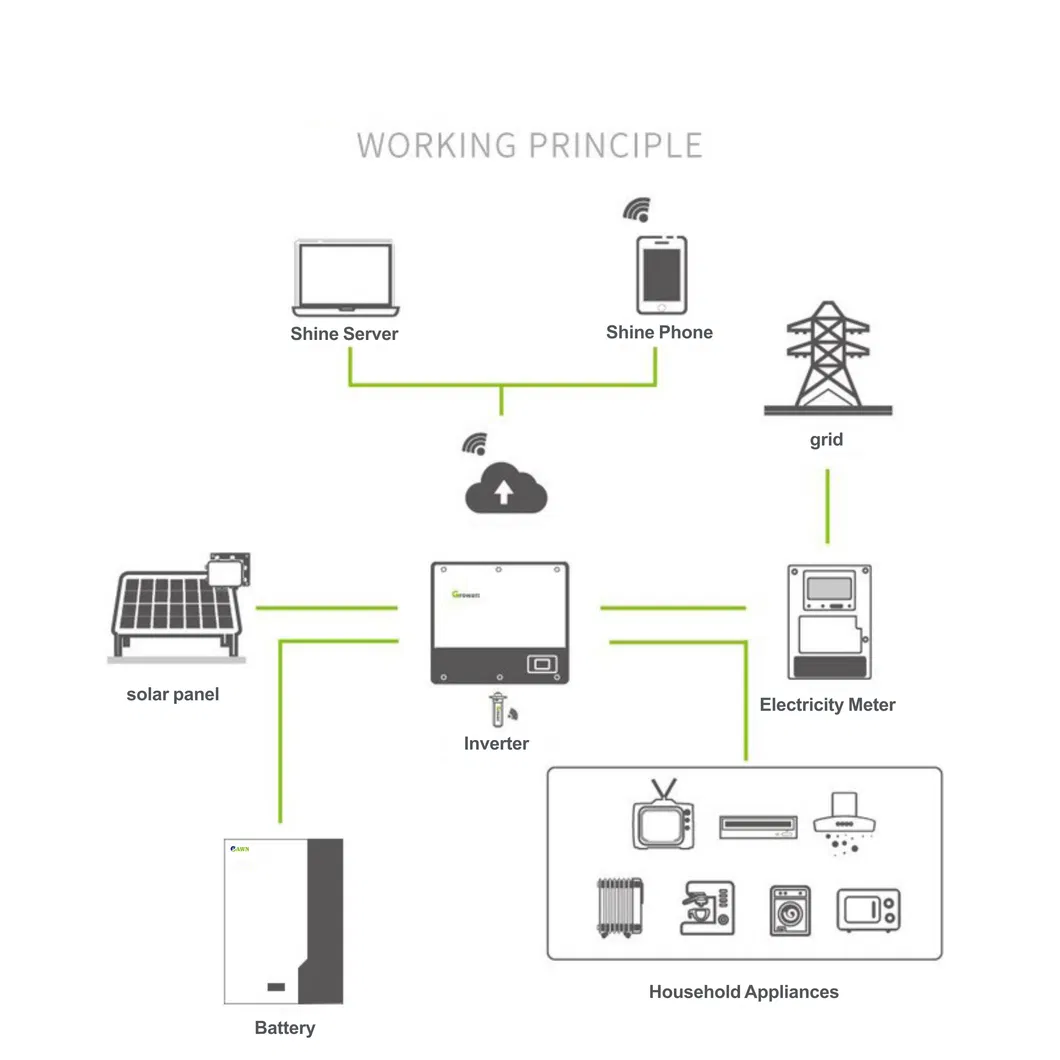

What is the Hybrid Solar Energy System? Hybrid Solar Energy System Also Named On&Off Grid Solar Energy System. With the feature and function of both on grid and off grid solar energy systems. If you have a set of hybrid solar energy system, you could use electricity from solar panels in the daytime when is sunny, you could use electricity stored in a battery bank in the evening or on rainy days.

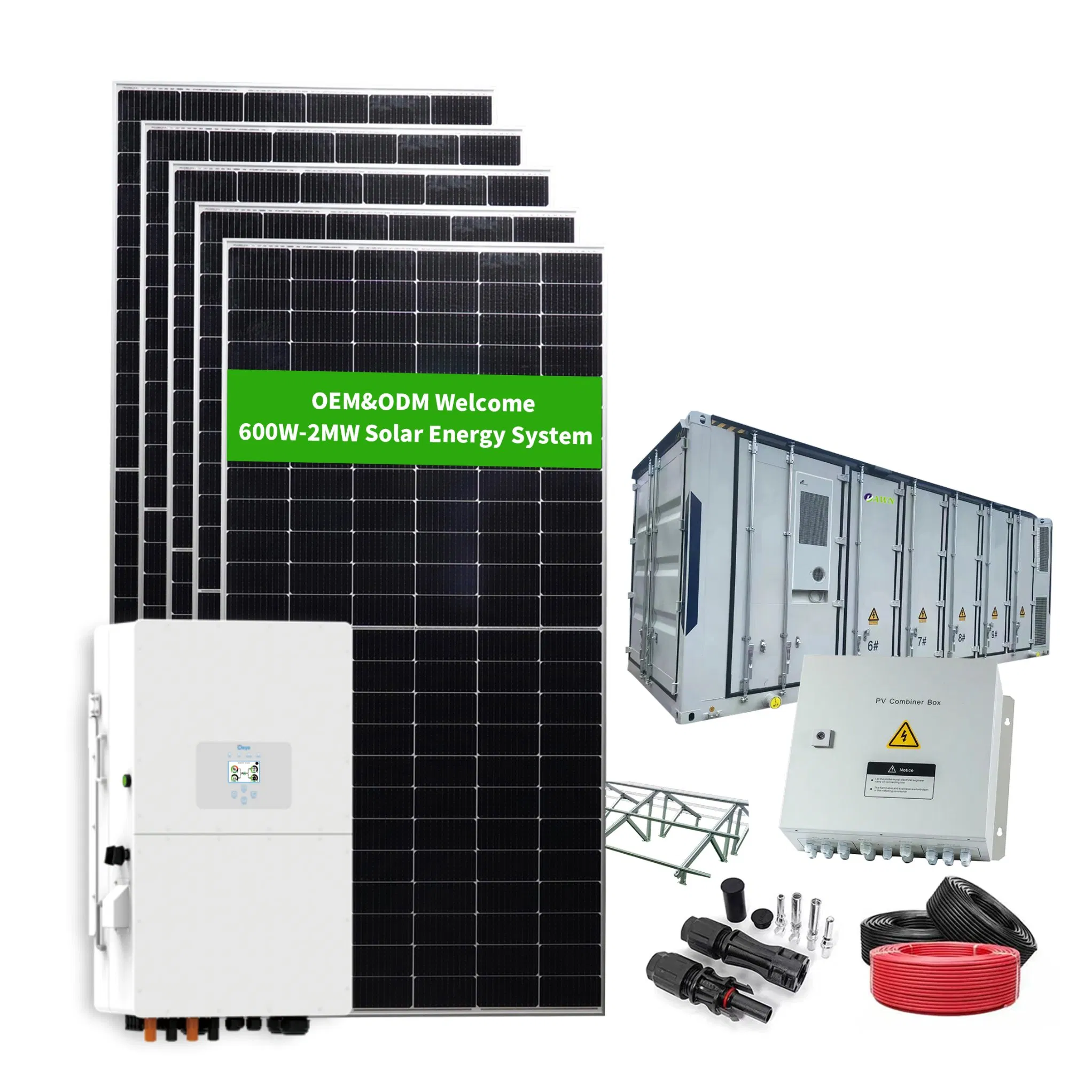

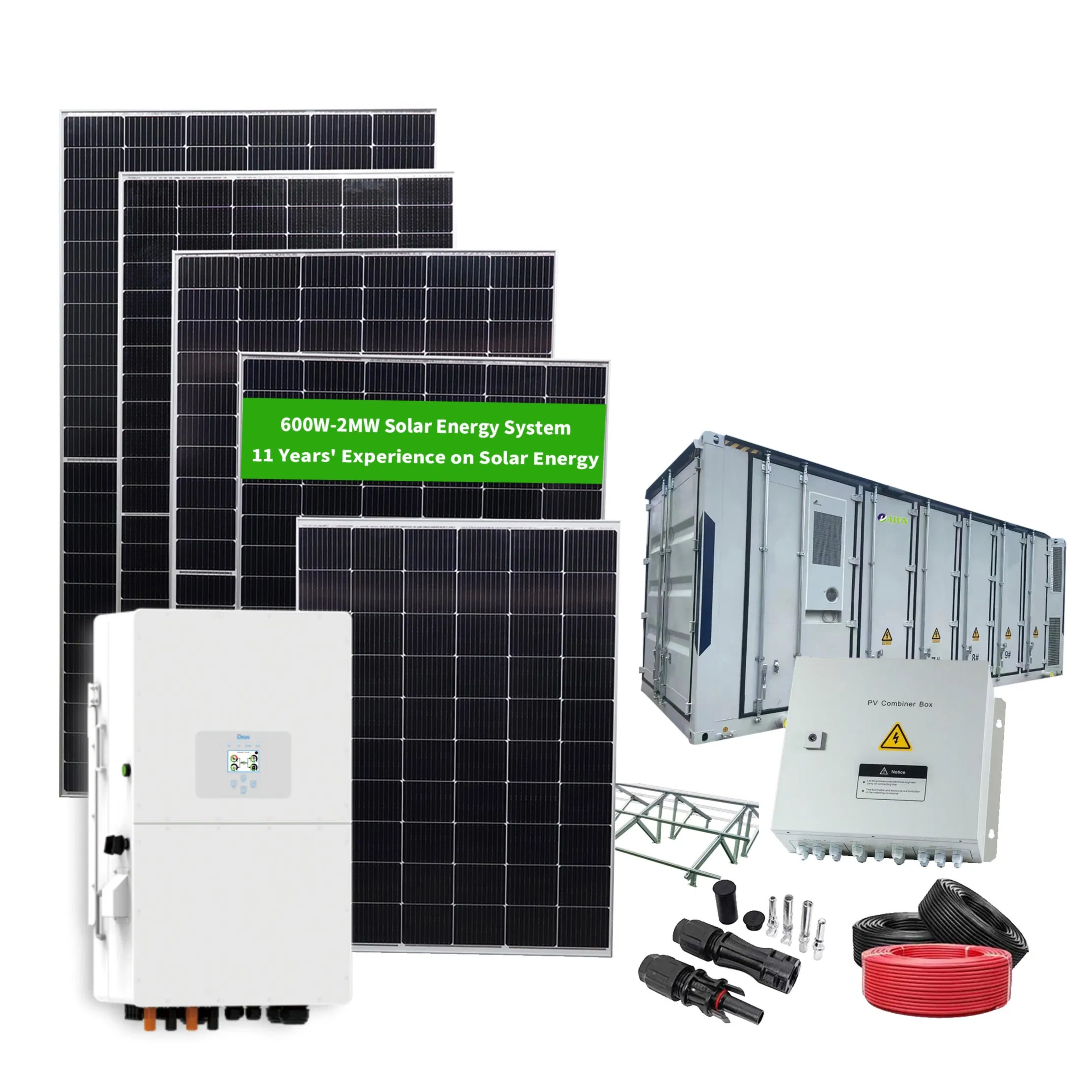

| Model NO. | DL-HSS600W | DL-HSS1KW | DL-HSS2KW | DL-HSS3KW | DL-HSS4KW | DL-HSS5KW |
|---|---|---|---|---|---|---|

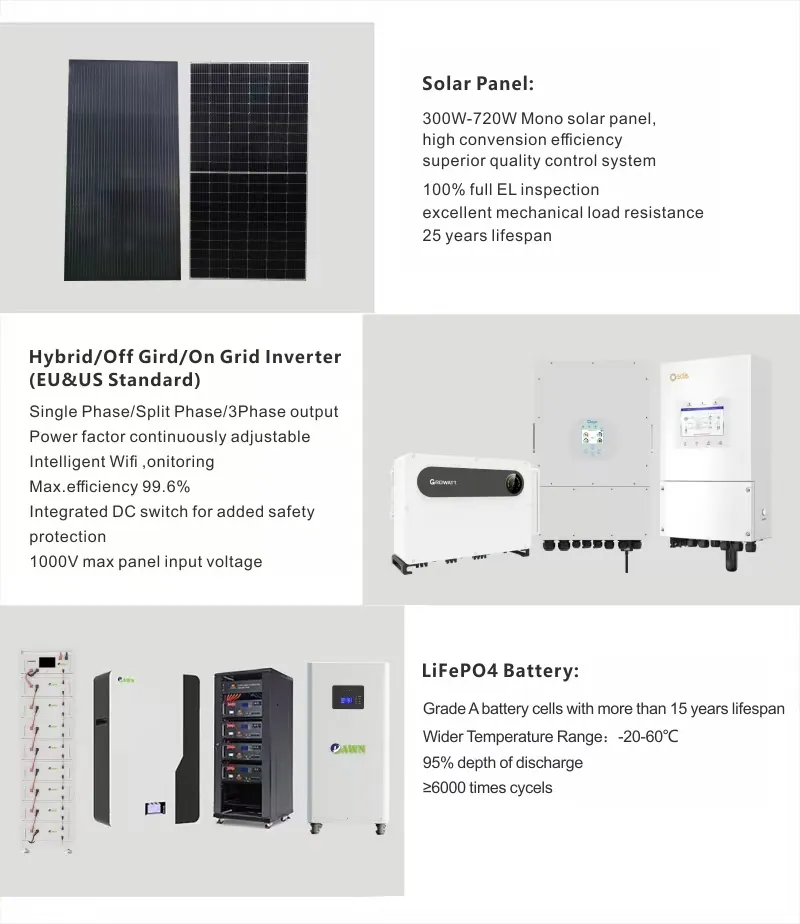

| Mono Solar Panel | 2pcs of 300W | 3pcs of 300W | 7pcs of 300W | 10pcs of 300W | 7pcs of 550W | 9pcs of 550W |
| Hybrid Inverter | 600W | 1KW | 2KW | 3KW | 4KW | 5KW |
| Battery Type & Capacity | 604WH LiFePO4 | 1.28KWH LiFePO4 | 2.56KWH LiFePO4 | 3.84KWH LiFePO4 | 5.12KWH LiFePO4 | 7.68KWH LiFePO4 |
| PV Cable 4mm² | 20m | 50m | 50m | 100m | 100m | 100m |
| MC4 Connector | 1 Pairs | 2 Pairs | 4 Pairs | 5 Pairs | 4 Pairs | 5 Pairs |

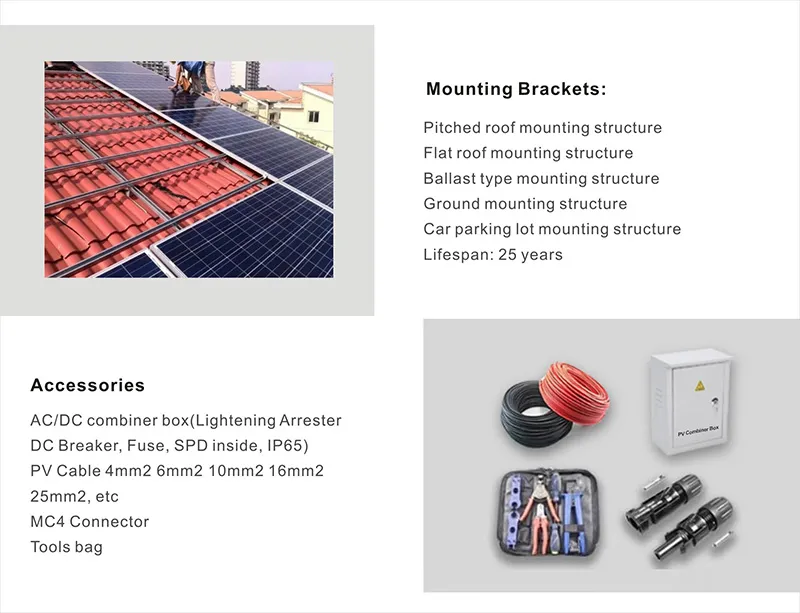

| Mounting Brackets | Roof/Balcony | Roof/Ground | Roof/Ground | Roof/Ground | Roof/Ground | Roof/Ground |
| Model NO. | DL-HSS6KW | DL-HSS8KW | DL-HSS10KW | DL-HSS12KW | DL-HSS15KW | DL-HSS20KW |
|---|---|---|---|---|---|---|
| Mono Solar Panel | 11pcs of 550W | 14pcs of 550W | 18pcs of 550W | 22pcs of 550W | 27pcs of 550W | 36pcs of 550W |
| Hybrid Inverter | 6KW | 8KW | 10KW | 12KW | 15KW | 20KW |
| Battery Type & Capacity | 10KWH LiFePO4 | 12KWH LiFePO4 | 15KWH LiFePO4 | 18KWH LiFePO4 | 20KWH LiFePO4 | 25KWH LiFePO4 |
| PV Cable 4mm² | 150m | 200m | 200m | 250m | 300m | 350m |
| MC4 Connector | 6 Pairs | 7 Pairs | 9 Pairs | 11 Pairs | 14 Pairs | 18 Pairs |
| Mounting Brackets | Roof/Ground | Roof/Ground | Roof/Ground | Roof/Ground | Roof/Ground | Roof/Ground |
| Model NO. | DL-HSS25KW | DL-HSS30KW | DL-HSS40KW | DL-HSS50KW | DL-HSS60KW | DL-HSS100KW |
|---|---|---|---|---|---|---|
| Mono Solar Panel | 45pcs of 550W | 54pcs of 550W | 72pcs of 550W | 91pcs of 550W | 109pcs of 550W | 182pcs of 550W |
| Hybrid Inverter | 25KW | 30KW | 40KW | 50KW | 60KW | 100KW |
| Battery Type & Capacity | 28KWH LiFePO4 | 30KWH LiFePO4 | 150KWH LiFePO4 | 192KWH LiFePO4 | 230KWH LiFePO4 | 100-450KWH LiFePO4 |
| PV Cable 4mm² | 400m | 450m | 500m | 600m | 700m | 1000m |
| MC4 Connector | 23 Pairs | 27 Pairs | 36 Pairs | 46 Pairs | 55 Pairs | 91 Pairs |
| Mounting Brackets | Roof/Balcony | Roof/Ground | Roof/Ground | Roof/Ground | Roof/Ground | Roof/Ground |
| Model NO. | DL-HSS150KW | DL-HSS200KW | DL-HSS300KW | DL-HSS500KW | DL-HSS1MW | DL-HSS2MW |
|---|---|---|---|---|---|---|
| Mono Solar Panel | 182pcs of 550W | 363pcs of 550W | 545pcs of 550W | 909pcs of 550W | 1818pcs of 550W | 3636pcs of 550W |
| Hybrid Inverter | 150KW | 200KW | 300KW | 500KW | 1MW | 2MW |
| Battery Type & Capacity | 150-600KWH LiFePO4 | 215-800KWH LiFePO4 | 300-1200KWH LiFePO4 | 500KWH-2MWH LiFePO4 | 1-4MWH LiFePO4 | 2-8MWH LiFePO4 |
| PV Cable 4mm² | 1500m | 2000m | 3000m | 5000m | 10,000m | 20,000m |
| MC4 Connector | 91 Pairs | 182 Pairs | 273 Pairs | 455 Pairs | 909 Pairs | 1818 Pairs |
| Mounting Brackets | Roof/Ground | Roof/Ground | Roof/Ground | Roof/Ground | Roof/Ground | Roof/Ground |
A: We are an original factory with more than 10 years of experience.
A: Yes, the warranty is 5 years. If there's any quality problem during the warranty period, we can send new components as replacements.
A: Yes, OEM/ODM orders are warmly welcome.
A: Samples take 3-5 days, and bulk orders take 7-15 days.
A: Yes, all of our battery cells are 100% new Grade A with real capacity.
A: We hold ISO, CE, FCC, IEC62133, MSDS, UN38.3, and other international standard certifications.
