Eastar High Mast Lighting System with Efficient LED Flood Light

Color Temperature:	Pure White
Lamp Body Material:	Aluminum
Pole Height:	20~45m

Basic Info

Model NO. YSD-GGD-006

Power 1000~3000W

Projection Distance 50m

Usage Square

IP Rating IP67

Certification CCC, CE, CQC, EMC, Energy Star, RoHS

Input Voltage 220V

LED Chips Brand Bridgelux

Transport Package Bubble Pack, Non-Woven Fabric

Specification pole, led flood light, lifting system

HS Code 9405409000

Production Capacity 1000 Sets/Month

Product Description

High Mast Lighting System with Efficient LED Flood Light

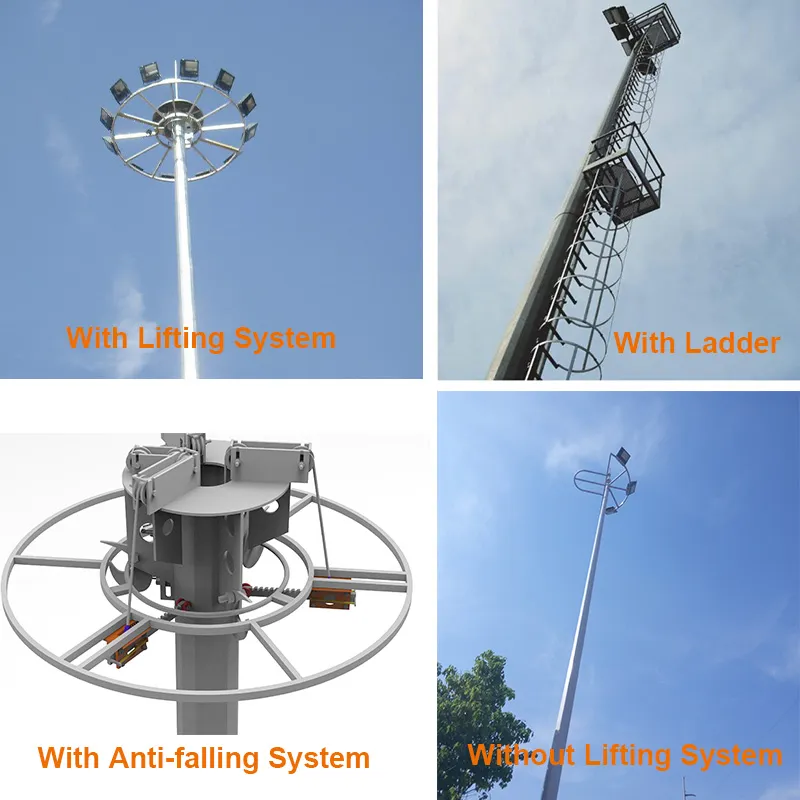

Types of High Mast Light Pole:

Discover the expansive spectrum of High Mast Light Poles, each meticulously crafted to address the diverse outdoor lighting needs of our clients. Our carefully curated selection features revolutionary designs and sturdy constructions, ensuring unparalleled illumination across any setting.

Technical Data of High Mast Light Pole:

Dive deep into the exhaustive technical specifications that underscore the performance brilliance of High Mast Light Poles. Our precision-engineered details are a testament to the reliability, endurance, and efficiency that define all applications.

Height	From 15m to 45m
Application	Street, highway, freeway, airport, seaport, plaza, stadium, etc
Shape	Round or polygon
Material	Q345B/A572, Q235B/A36, Q460, ASTM573 GR65, GR50, SS400, SS490, ST52
Thickness	6mm/8mm/10mm/12mm
Lighting source	400W~2000W high pressure sodium flood light, LED flood light, metal halide light
Lifting system	Lifter fixed in the inner of the pole with lifting speed of 3~5 meter per minute. Equipped with antiferromagnetism brake and break-proof device; manual operation applied under power cut.
Electric appliance control device	Electric appliance box to be the hold of the pole; lifting operation could be 5 meters away from the pole through wire. Time control and light control could be equipped to realize full-load lighting mode and part lighting mode.
Surface Treatment	Hot-dip galvanized and powder coating as per customer's requirements
Joint of poles	Insert mode, inner flange mode, face to face joint mode
Wind Resistance	Normally designed against wind speed of 160km/h

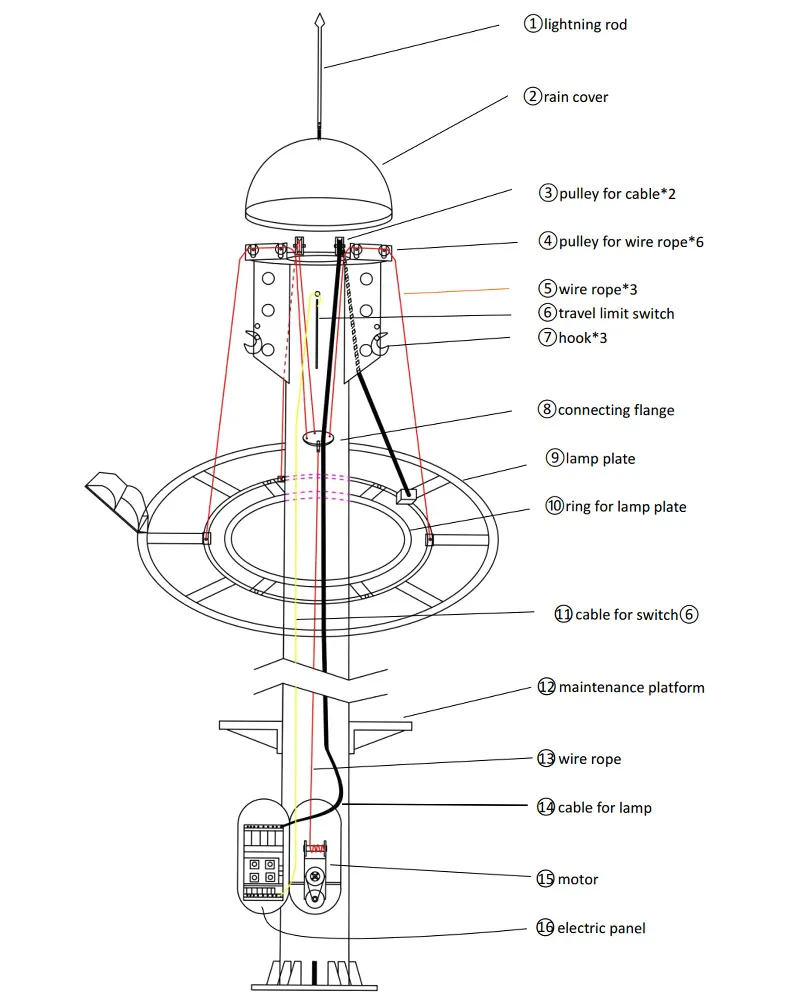

Product Structure:

Reveal the intricate engineering behind the High Mast Pole's structure. Crafted with a keen focus on stability and eco-friendliness, each component is integral to the system's seamless functionality and extended lifespan.

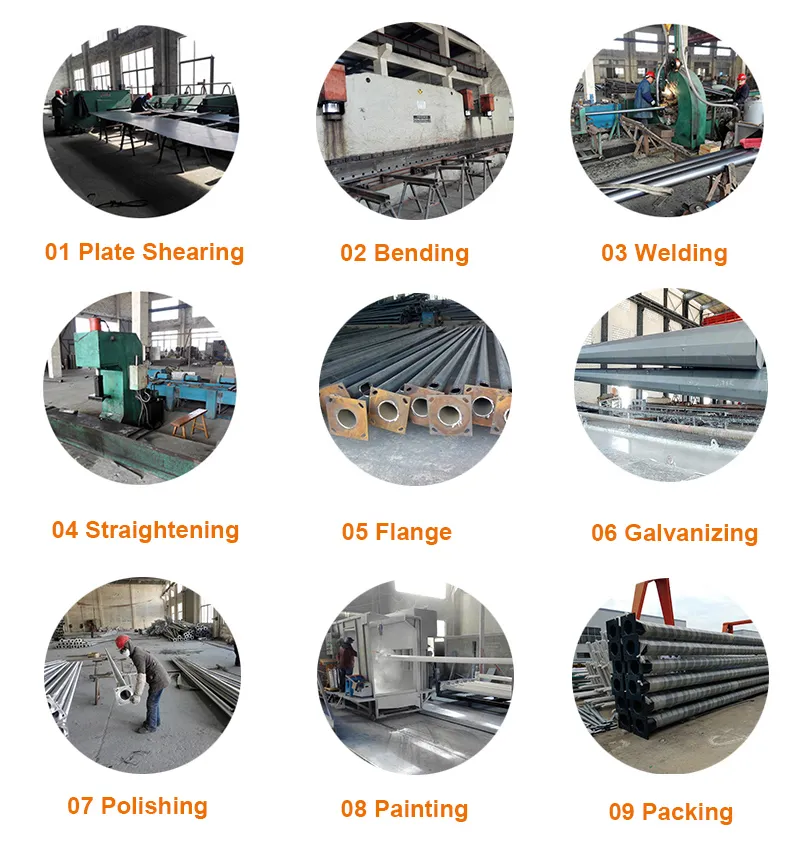

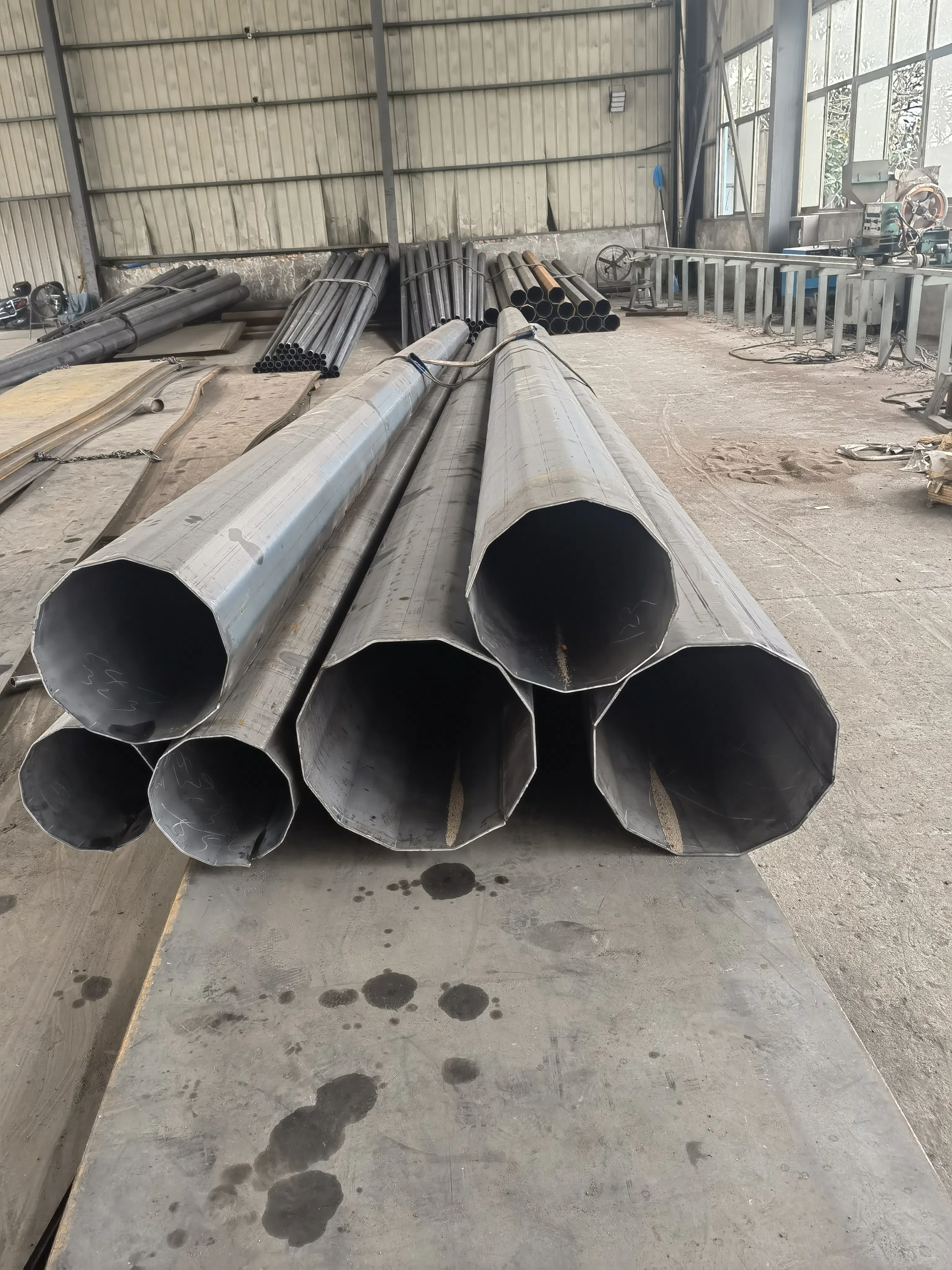

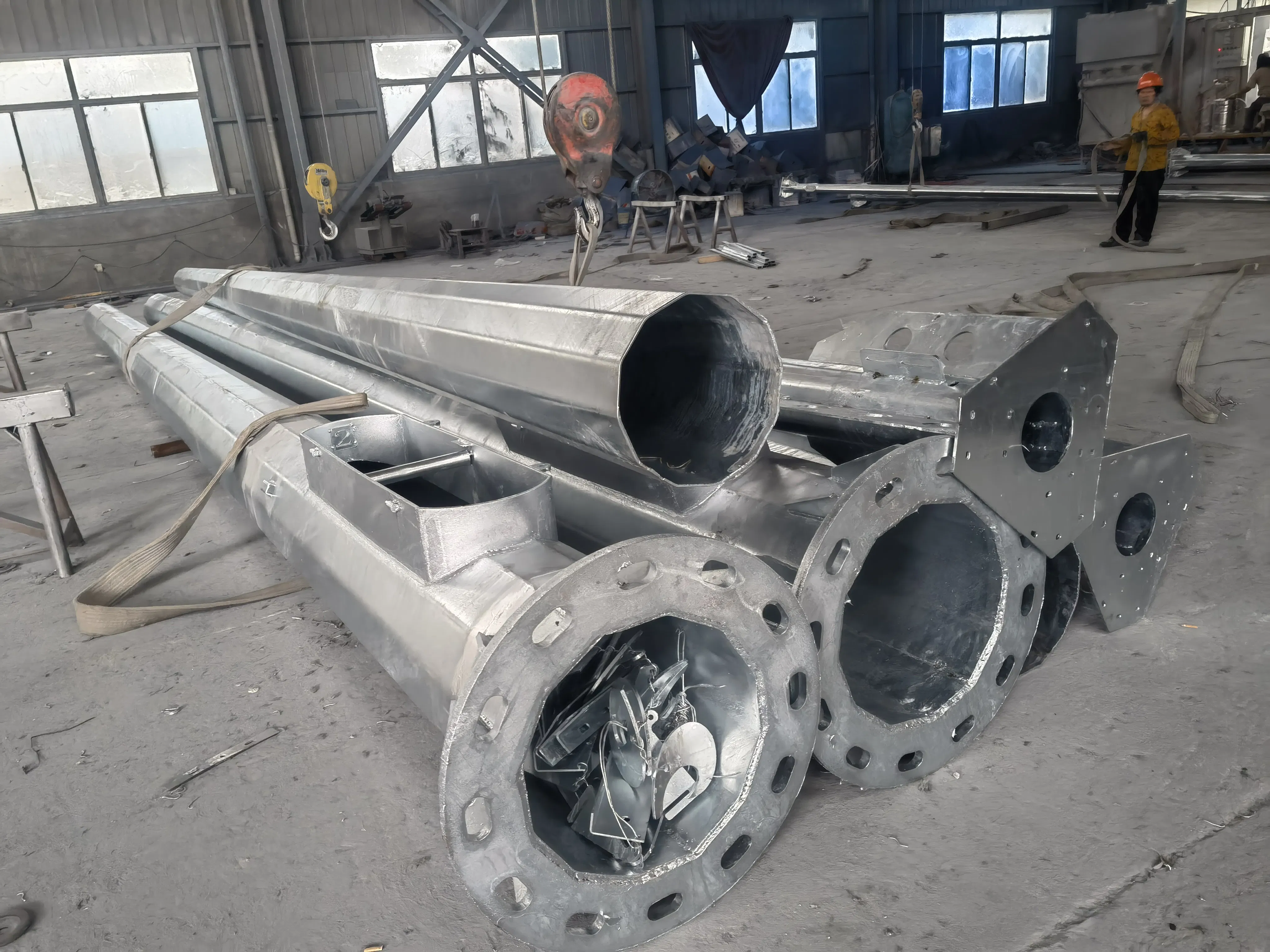

Production Process:

Discover the detailed production process that underpins the superior quality of High Mast Poles. With cutting-edge manufacturing facilities and rigorous quality control protocols, we uphold unparalleled product standards.

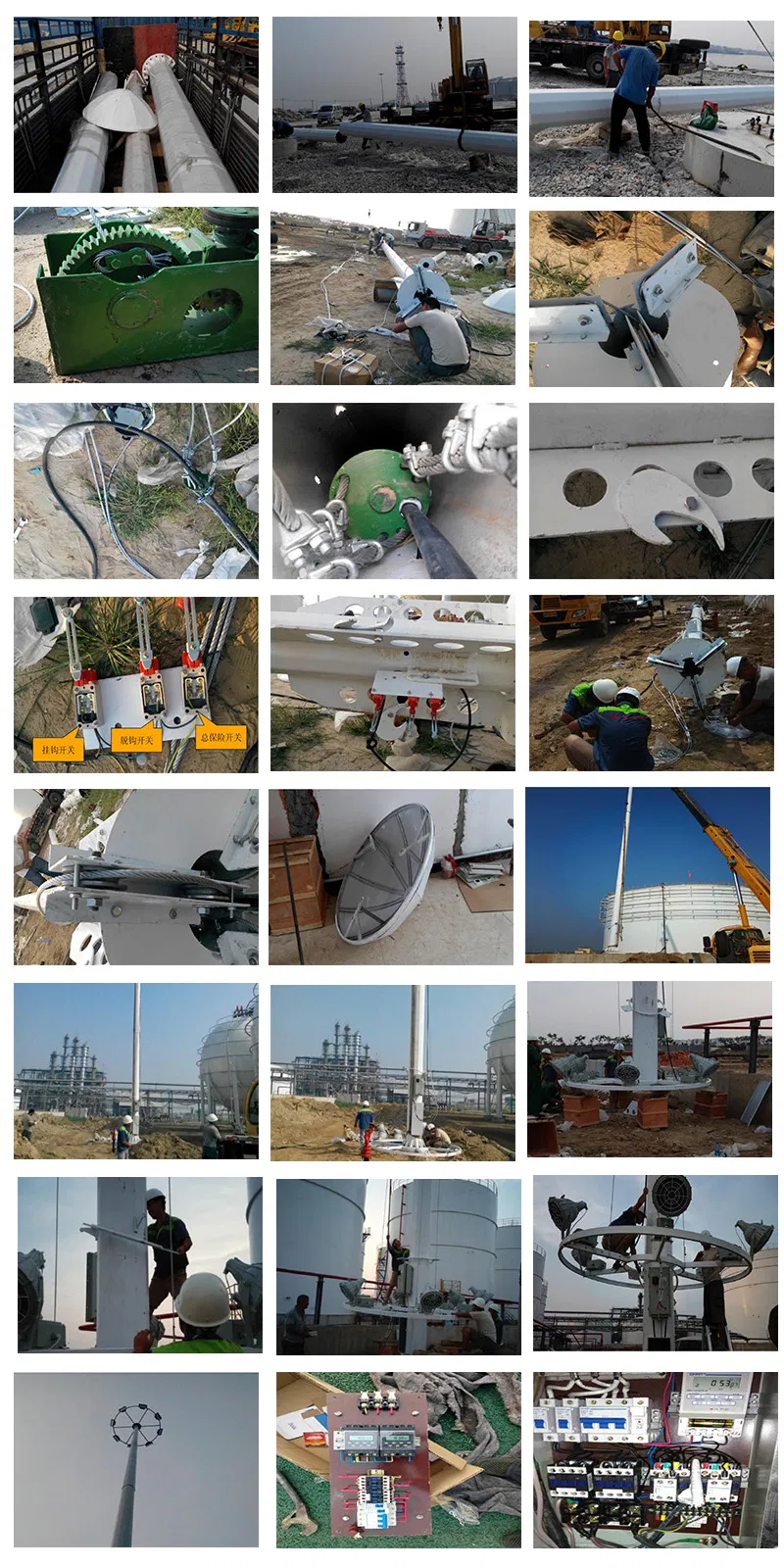

Installation Instructions

Design and Analysis

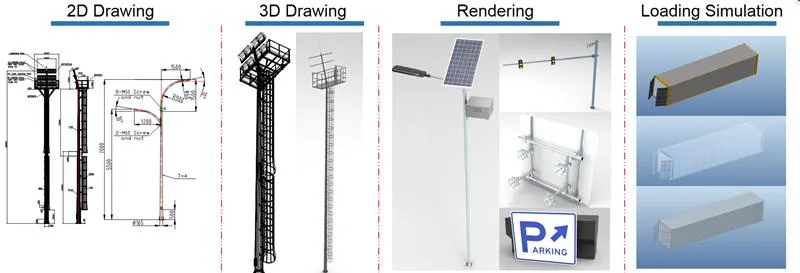

Design Ability:

Remarkable design capabilities set benchmarks in modern lighting solutions. Our expert team is dedicated to crafting cutting-edge designs that offer peak performance coupled with captivating aesthetics.

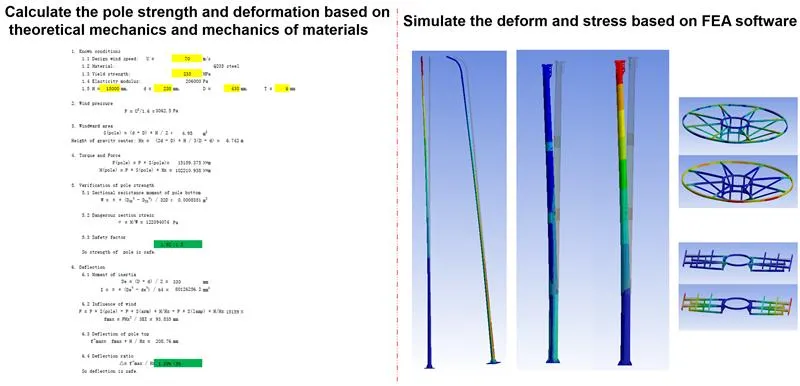

Calculation and Analysis Ability:

Witness the precision of calculation and analysis capabilities, ensuring that each High Mast Pole is engineered for optimal efficiency and safety. Our innovative methodologies are the driving force behind our product excellence.

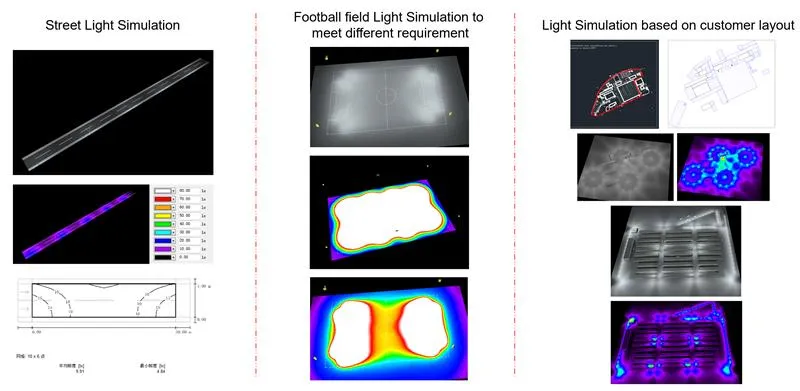

Light Simulation Ability:

Leverage state-of-the-art light simulation technology to achieve impeccable illumination results. Our sophisticated simulation tools guarantee accurate light dispersion and enhanced visibility.

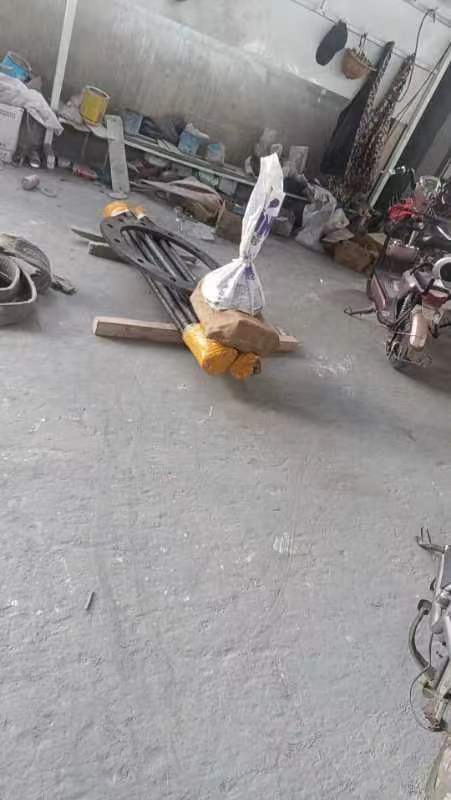

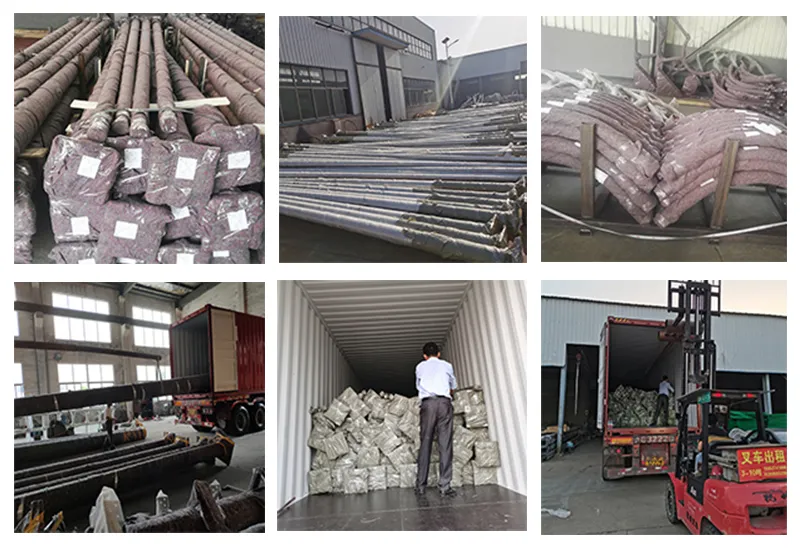

Packaging & Shipping

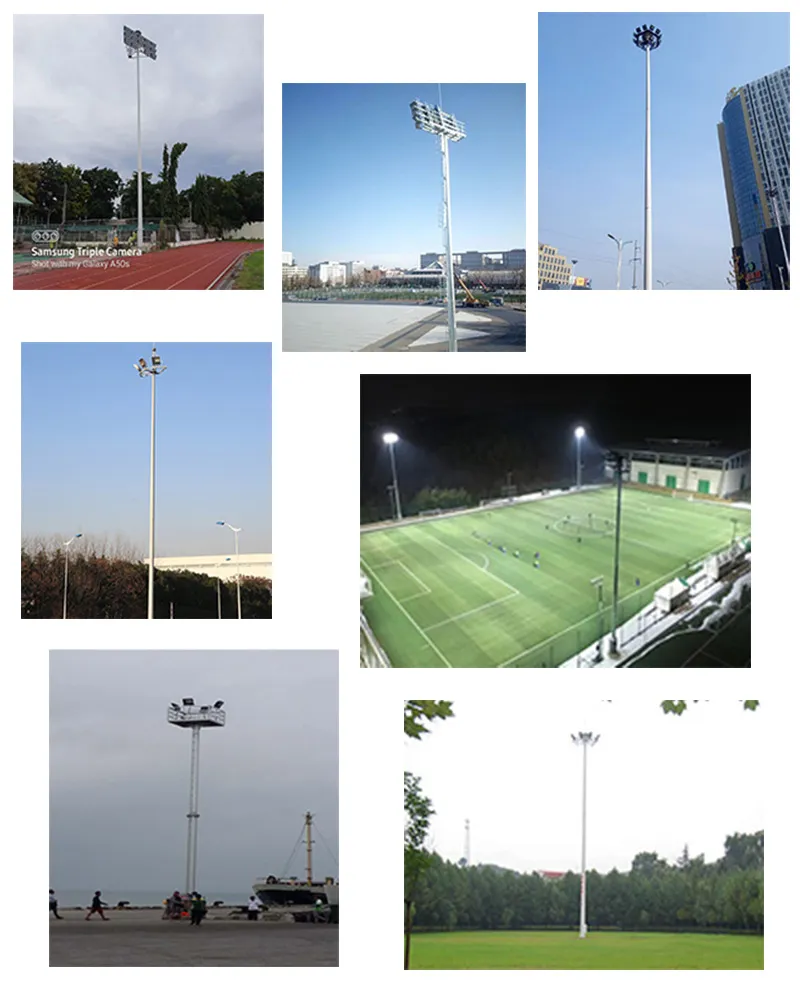

Projects

Customers and Exhibitions

Frequently Asked Questions

1. What is the height range available for these high mast light poles?

Our high mast light poles are engineered and manufactured in heights ranging from 15 meters to 45 meters, custom-tailored to suit specific area requirements such as highways, airports, seaports, plazas, and stadiums.

2. What materials are used to manufacture the high mast poles?

We utilize premium structural steel materials including Q345B/A572, Q235B/A36, Q460, ASTM573 GR65, GR50, SS400, SS490, and ST52 to ensure superior stability, load capacity, and long-term durability.

3. How does the lifting system work on the high mast pole?

The lifter is securely fixed inside the inner chamber of the pole with a lifting speed of 3 to 5 meters per minute. It is equipped with an antiferromagnetism brake and a break-proof safety device. Manual operation is also supported during power cuts.

4. What level of wind resistance can these poles withstand?

The poles are structurally calculated and designed to normally withstand wind speeds up to 160 km/h, ensuring safe operation under severe weather conditions.

5. What surface treatments are applied to protect against rust and corrosion?

All poles undergo hot-dip galvanizing and are finished with a high-durability powder coating according to our customers' specific aesthetic and environmental requirements.

6. What lighting sources can be equipped on the high mast poles?

They are compatible with 400W to 2000W high-pressure sodium floodlights, high-efficiency LED floodlights, and metal halide light fixtures to achieve optimal luminosity.
