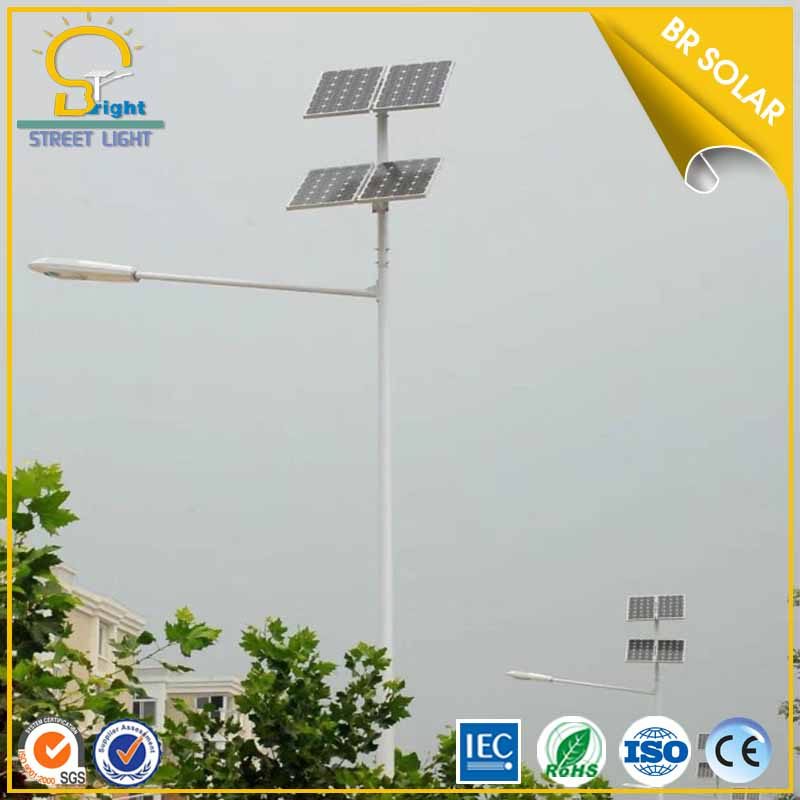

Equal to 250W HPS 60W Solar Street Lighting Systems

Detailed Specifications

Specification for 8M Pole 60W Solar Street Lighting System

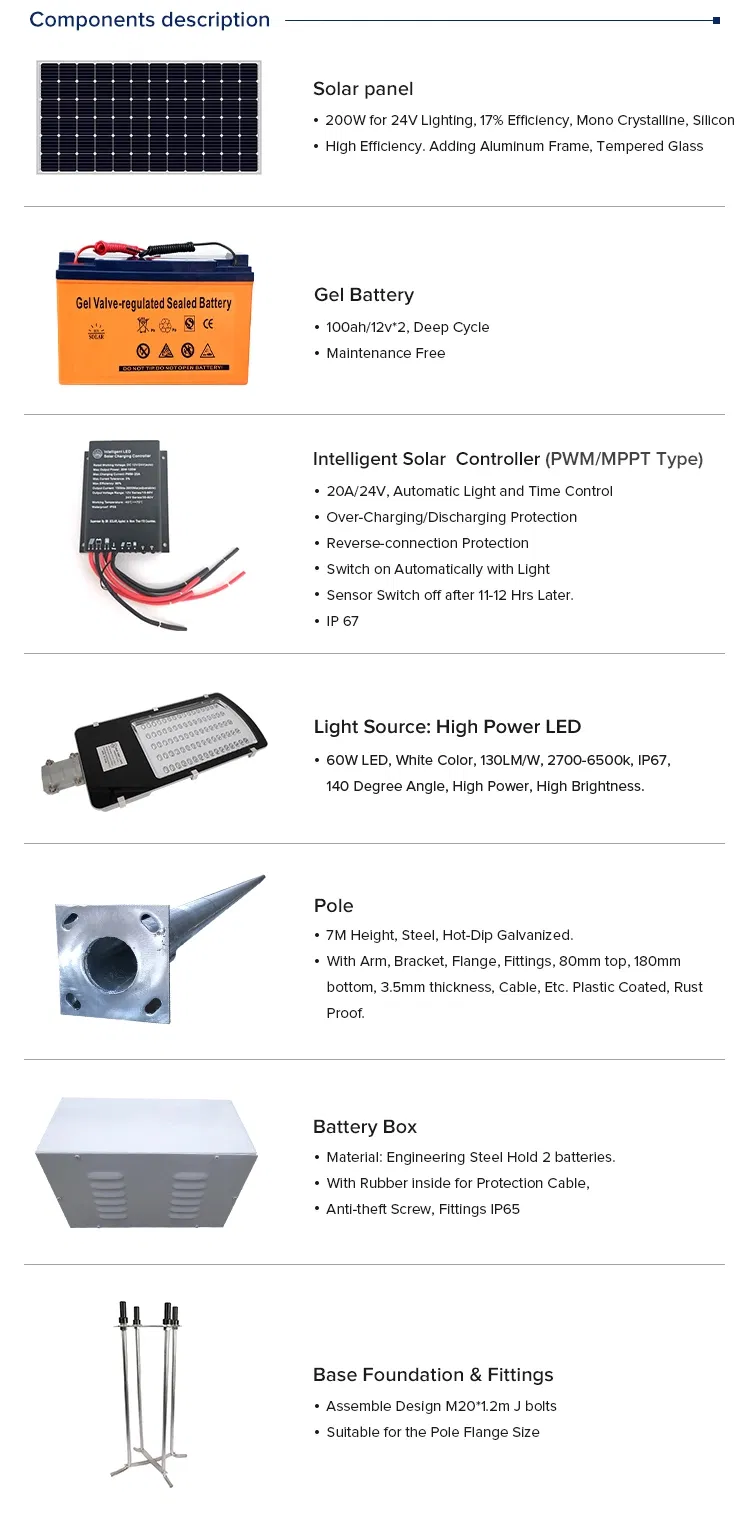

Part Name & Lifespan	Technical Specification
Solar Panel: Lifespan: 20-25 years	120W*2PC Polycrystalline. High Efficiency. A-class. Adding Aluminum Frame, Tempered Glass.
Gelled Battery: Lifespan: 5-8 years	120Ah/12V*2PC, Gelled battery, Sealed Type. Deep cycle. Maintenance Free.
Intelligent Solar Controller: Lifespan: 5-10 years	15A/24V, IP68. Automatic Light and Time Control. Over-charging/discharging Protection. Switch on Automatically with Light Sensor.
Light Source (High Power LED): Lifespan: More than 50,000-100,000 Hrs	60W LED, White Color, 7800LM/PC, 6500K, IP65. High Power, High Brightness.
Lamp Housing: Lifespan: More than 20 years	Die-casted Aluminum, IP65. High transmittance & Density toughened glass.
Battery Box:	Engineer Steel, hang on the pole.

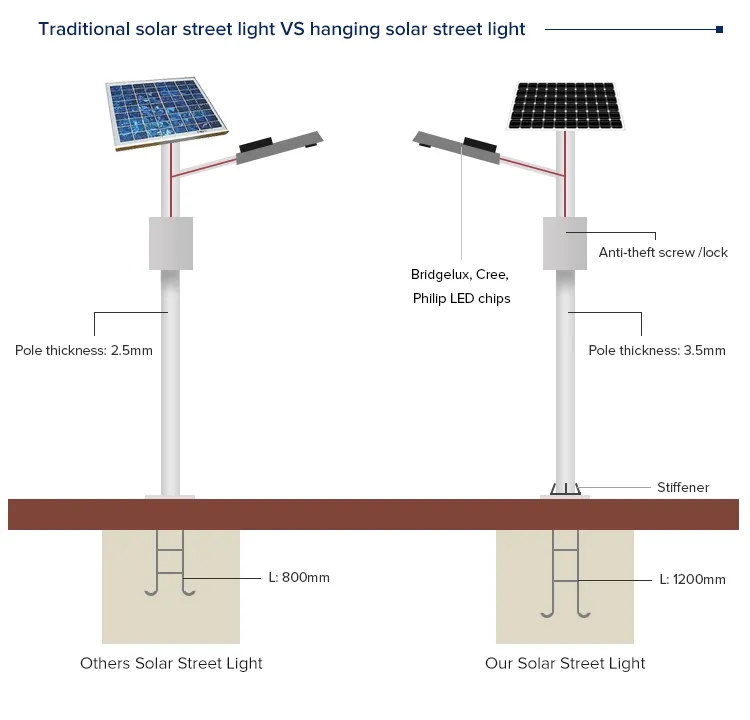

GI Pole System: Lifespan: More than 20 years	8M Height, tapered Pole, Steel, Hot-Dip Galvanized. Plastic Coated, Rust Proof. Resistant to Wind: ≥150KM/H.

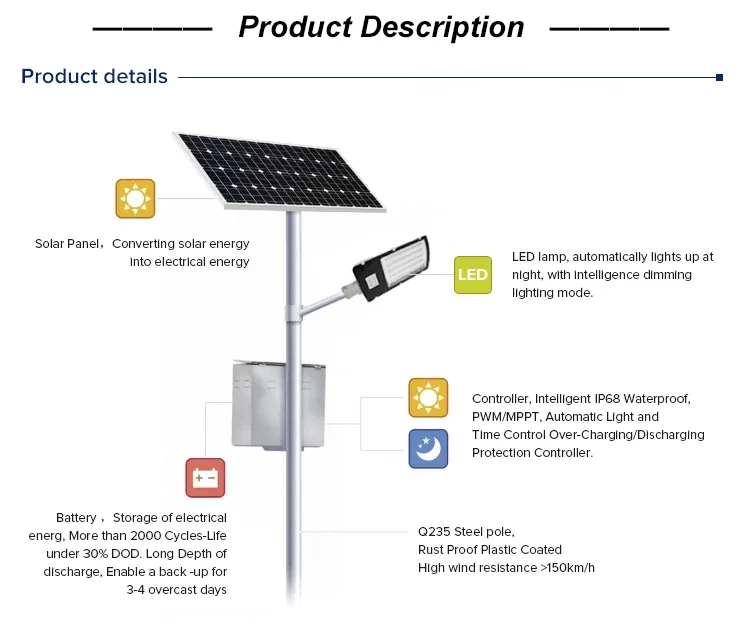

Solar Street Lighting System Working Principle

1

LED solar street light relies on solar energy, which is clean, endless and environment-friendly.

2

The system is mainly composed of solar panel, light source, controller and free-maintenance battery.

3

In daytime, when there is sunshine, the solar panel can convert the solar energy to electric energy and store it in the battery. At night or rainy or cloudy conditions, the battery shall supply power for normal lighting.

4

The controller can judge the brightness of daylight and automatically switch on the light. The whole process is operating in completely automatic mode, without human action.

Key Points Before Choosing Your Solar Street Lighting System:

First, verify your primary configuration requirements:

The power of your required LED light?
The height of the pole?
How many hours per night the light needs to work?

Second, if you do not have configuration details, we can design the system for you. Please provide:

What is the width of the road?
What is your request on the power of the light source?

Third:

Please select your preferred configuration model based on layout structures and requirements.

Frequently Asked Questions (FAQ)

Q1: How does the solar street lighting system turn on and off automatically?

The system features an intelligent solar controller with a built-in light sensor. It automatically detects the brightness of daylight, turning the LED light on at dusk and switching it off at dawn without any manual assistance.

Q2: What is the typical lifespan of the main components?

The system is built for long-term reliability. The solar panel has a lifespan of 20-25 years, the LED light source lasts over 50,000 to 100,000 hours, the pole and housing are rated for over 20 years, and the maintenance-free gelled battery lasts 5-8 years.

Q3: How does the system perform under high wind conditions?

The system utilizes an 8M hot-dip galvanized and plastic-coated steel pole structure that is highly rust-proof and designed to withstand extreme wind speeds of ≥150KM/H.

Q4: Does the system work during cloudy or rainy days?

Yes. During the day, the solar panel converts solar energy to electricity and stores it in the deep-cycle gelled battery. At night or during cloudy and rainy days, the battery automatically supplies stored power to maintain normal lighting operations.

Q5: What basic details are required to design a customized system?

To customize the design configuration, we recommend providing the width of the road, the required light pole height, and your expected lighting hours per night.
