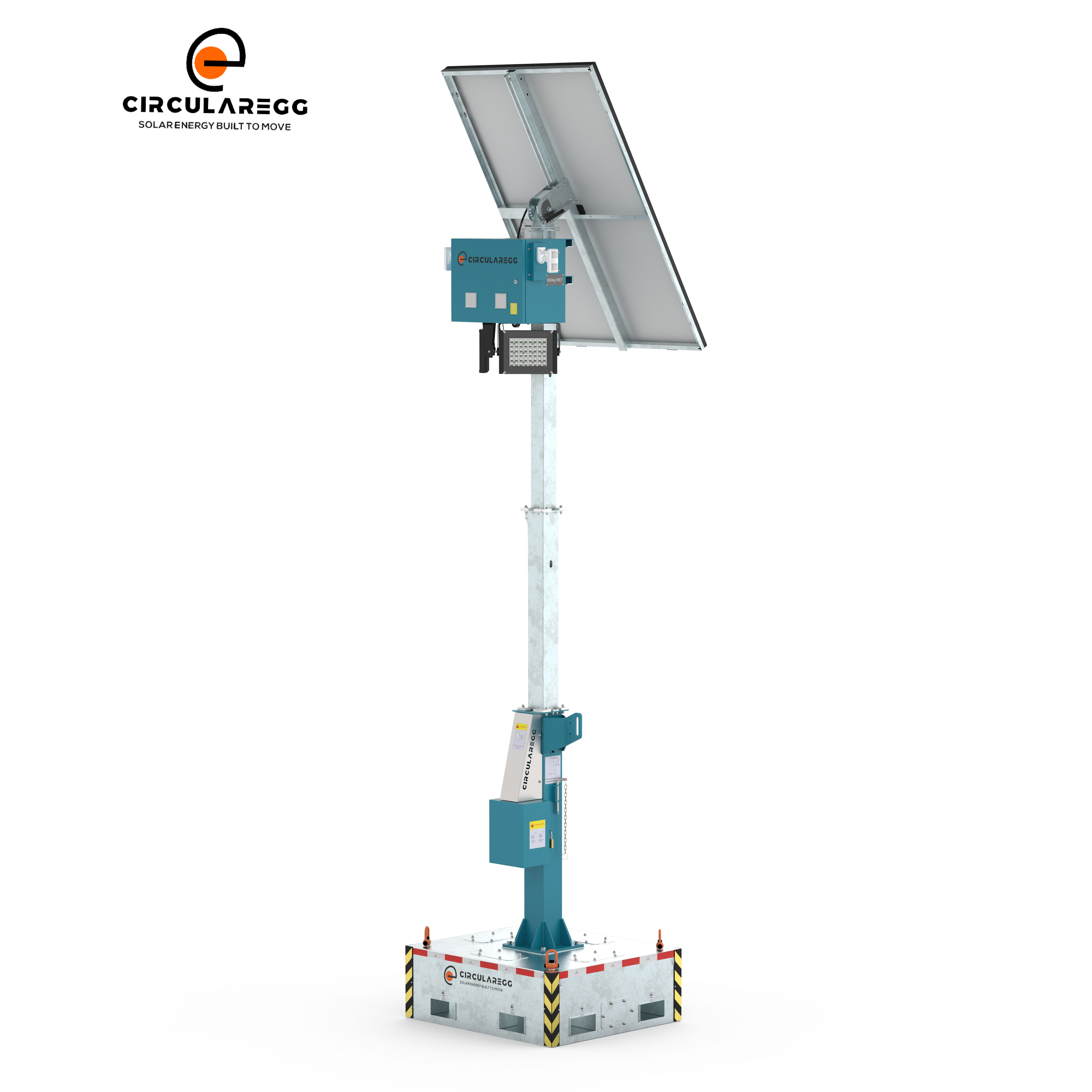

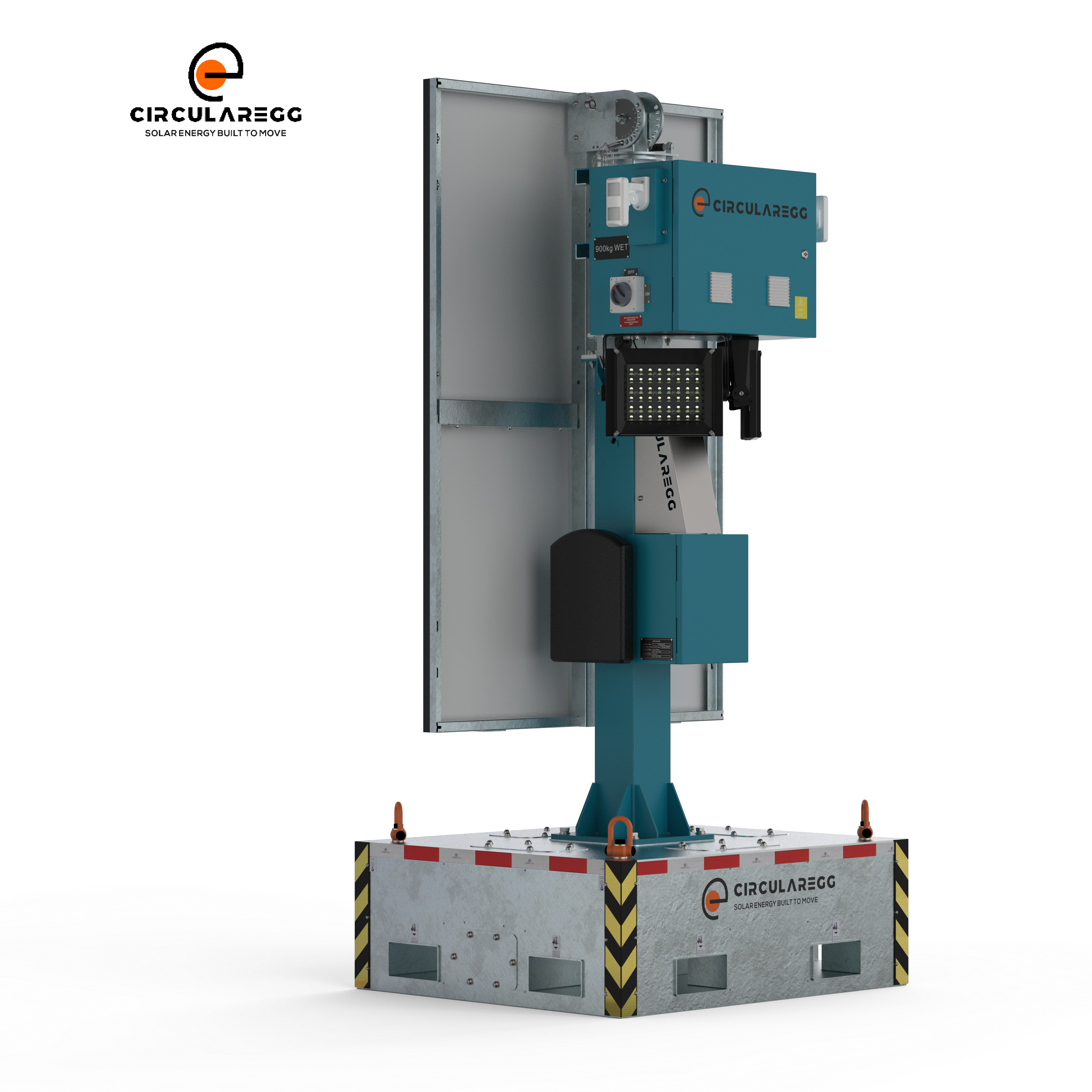

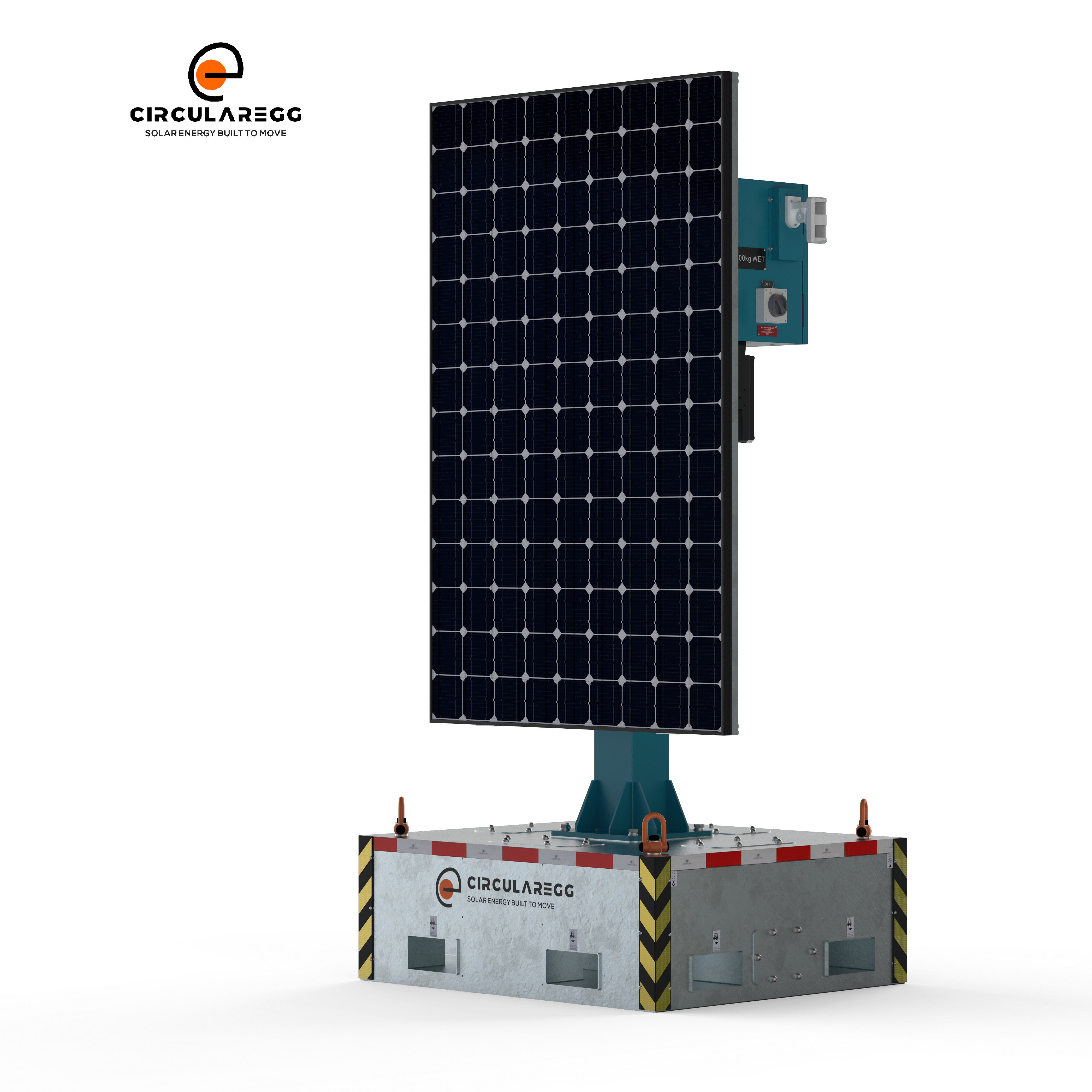

Ready To Ship Solar Powered LED Light Tower Telescopic Mast Trailer Mounted Solar For Road Construction

1 / 5

Ready To Ship Solar Powered LED Light Tower Telescopic Mast Trailer Mounted Solar For Road Construction

Send Inquiry

Product Description

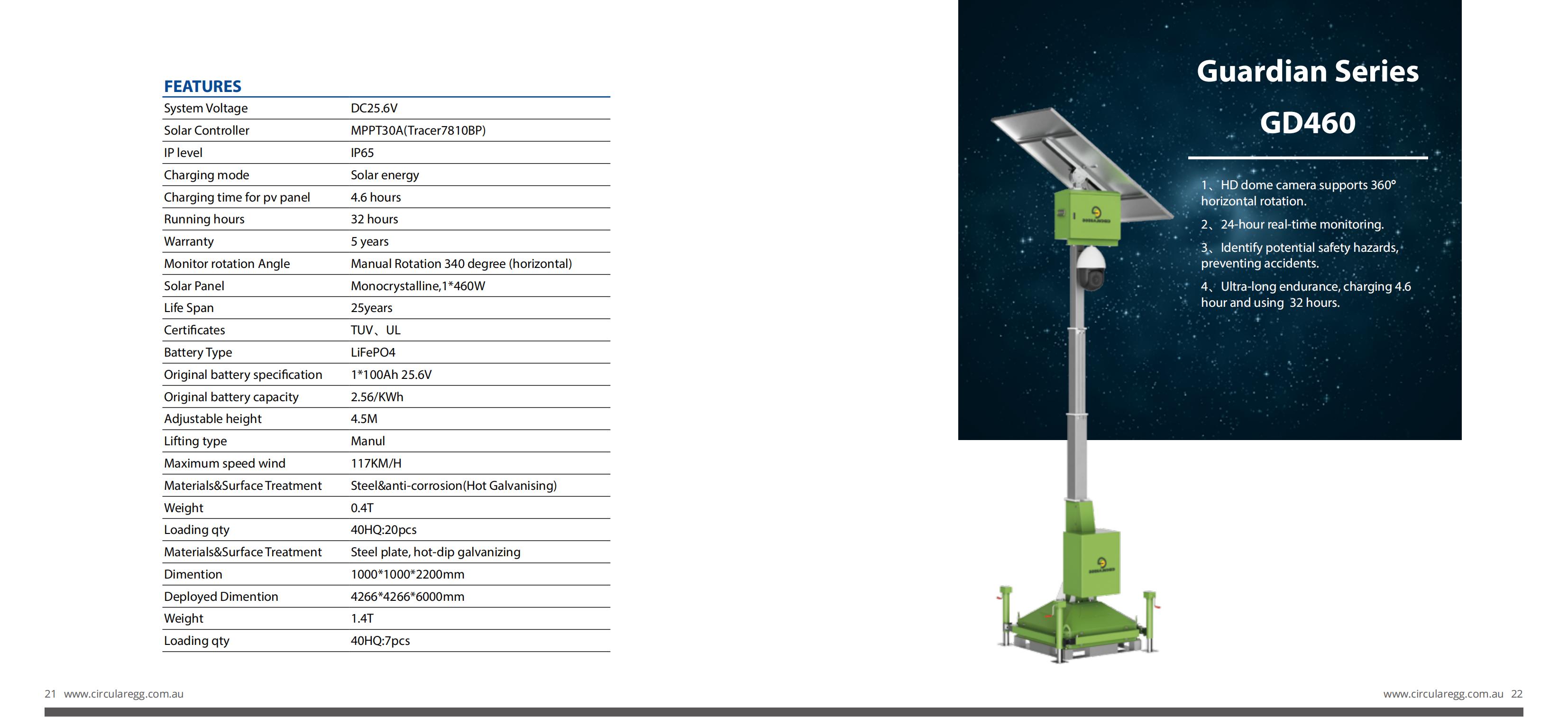

Solar Lighting Camera Illumination Tower CCTV System Features

Solar Panel 1*230W Mono Solar Panel (Angle: tilt 0°-90°, Rotation angle 340°)

PV Controller MPPT30A

LiFePO4 Battery 1*100Ah 25.6V, 2.56/KWh, System Voltage: 25.6V

Mast & Windproof Steel & anti-corrosion (Hot Galvanising), adjustable height (4.5M) Manual Winch Lifting, 117KM/H Windproof

Charging & Running Time Charging time: 4.6 Hours | Running time: 32 Hours

Dimensions & Weight Dimention: 915*915*2410mm | Deployed: 2090*2090*5140mm | Weight: 800KGS

Detailed Specifications

Parameter	Specification Details
Output Voltage (V)	110/240 V
Frequency	50/60 HZ
Battery Capacity	19 KWH/28KWH/43 KWH
Solar Panel Type	Monocrystalline Silicon
Solar Panel Wattage	4550 W/6550W/8*550 W
PV Controller	MPPT 60A, 95% efficiency/MPPT 80A, 95% efficiency
Battery Type	Lead-acid
Battery Pack	8200 AH, DC 12V / 12200 AH, DC 12 V
Communication Interface	RS-485
Output Port	110A AC outlet + 24A AC outlets + 1*5V USB
Axle Qty	Single
Tyre and Rim	15 Inch
Support Leg	4pcs, Manual

Product Gallery

Frequently Asked Questions

Q What type of battery and capacity does the Solar Illumination Tower use?

The system standard configuration uses a 1*100Ah 25.6V LiFePO4 battery (2.56/KWh) with a 25.6V system voltage. Additionally, there are options for Lead-acid battery configurations with capacities of 19 KWH, 28 KWH, or 43 KWH (consisting of 8*200 AH or 12*200 AH, DC 12V packs).

Q How long does it take to charge, and what is the running time?

The monocrystalline silicon PV panels require approximately 4.6 hours of charging time under ideal conditions, which supports a continuous system running time of up to 32 hours.

Q What are the specifications and options for the solar panels?

The standard option features a 1*230W Mono Solar Panel with a tilt angle of 0°-90° and a rotation angle of 340°. For larger capacity requirements, there are configurations supporting 4*550W, 6*550W, or 8*550W monocrystalline silicon panels.

Q What is the mast material, height range, and windproof capability?

The mast is constructed from steel with anti-corrosion hot-dip galvanizing treatment. It has an adjustable height of up to 4.5 meters operated by a manual winch lifting system and is built to withstand winds up to 117 KM/H.

Q What are the dimensions and shipping capacity for this tower?

The compact transportation dimensions are 915*915*2410mm, and the fully deployed dimensions are 2090*2090*5140mm. The unit weighs approximately 800 KGS, allowing a loading quantity of up to 20 units in a 40HQ container.

Q What output ports and communication interfaces are integrated?

The system comes equipped with an RS-485 communication interface. For output ports, it provides one 10A AC outlet, two 4A AC outlets, and one 5V USB port.

Product Detail

Ready To Ship Solar Powered LED Light Tower Telescopic Mast Trailer Mounted Solar For Road Construction

Product Description

Solar Lighting Camera Illumination Tower CCTV System Features

Detailed Specifications

Product Gallery

Frequently Asked Questions

Related Products

Product Detail

Ready To Ship Solar Powered LED Light Tower Telescopic Mast Trailer Mounted Solar For Road Construction

Product Description

Solar Lighting Camera Illumination Tower CCTV System Features

Detailed Specifications

Product Gallery

Frequently Asked Questions

Related Products

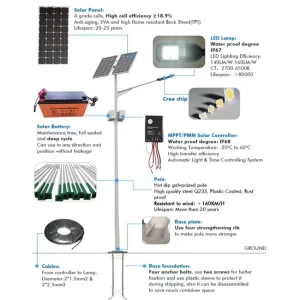

100W 200W 300W Split Solar Powered System Outdoor Remote Control Project Road IP65 Streetlight Solar Led Street Light

In Stock 2*60W LED Light With IP65 Rating 5-Year Warranty Solar Lighting Tower

NEW Design Smart Solar LED IP66 Rated Aluminum Alloy Garden &amp; Road Outdoor Lighting with Remote Control 5-Year Warranty Dimmable

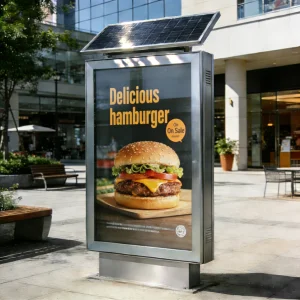

Customization Outdoors Solar Light Box Scrolling Board Light Box Solar Power Supply Used For Outdoor Urban Information Promotion

Solar Highway LED Street Light 80W 10W All-in-One Outdoor Waterproof Motion Sensor Battery Powered with SMD 2-Year Warranty

Ready To Ship Solar Powered LED Light Tower Telescopic Mast Trailer Mounted Solar For Road Construction

High Lumens Waterproof Outdoor IP65 All in One Solar Street Light for Highway Road Street Usage Long Life-span Solar Light

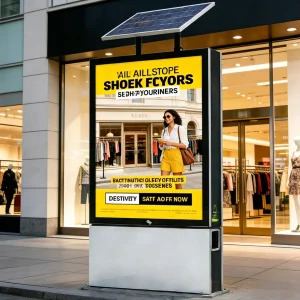

Factories Custom Outdoor Advertising Solar LED Scrolling Light Box Waterproof Vertical Lighting Use For Coffee Shop Park Block

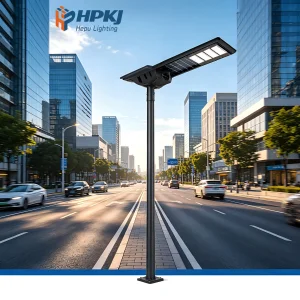

Hepu All in One Solar Street Light for Government Project Road Lighting Solar LED Street Light

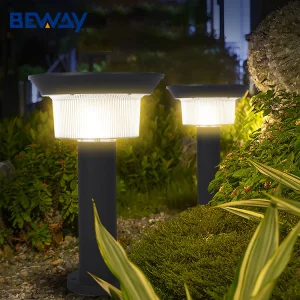

Outdoor Ip65 Waterproof Solar Powered Garden Post Lights Led Pillar Light Park Landscape Solar Lawn Lamp
