Industrial LED Lighting Solutions for Warehouses and Factories

1 / 5

Industrial LED Lighting Solutions for Warehouses and Factories

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO.ANJ6130A

Ip RatingIP65

Lifting Height5-10m

PortabilityMobile

Power SourceDiesel

Cap Power4*400W

Generator Power8kw

Temperature6000K

Lifting ModeHand Crank

Lifting EquipmentHydraulic Cylinder

Engine FormWater-Cooling

Number of CylindersThree-Cylinder

Luminous Flu4*48000lm

Transport PackageWooden Box

Specification960kg

HS Code9405410000

Product Description

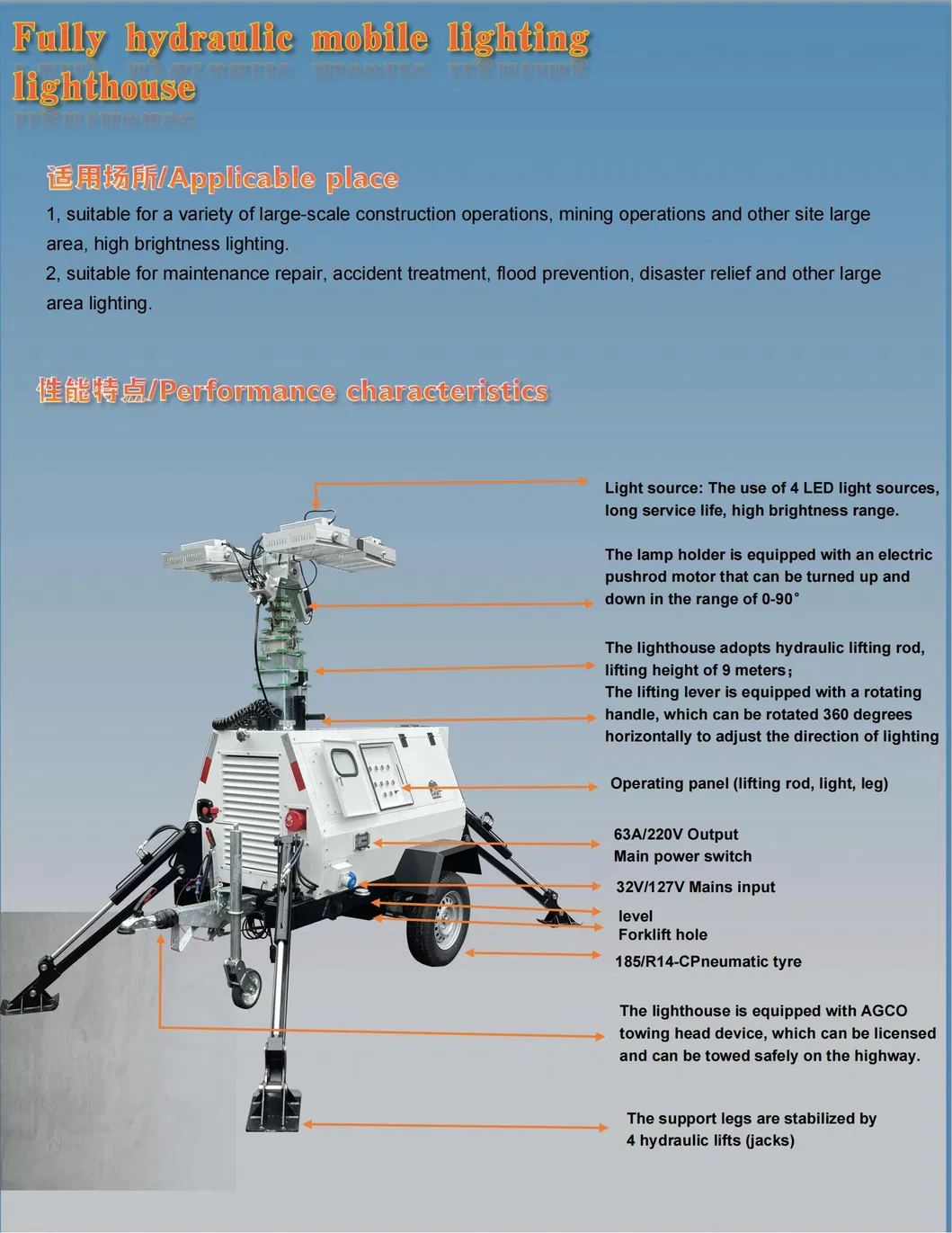

Light source
Rated voltage	AC220V	Protection level	IP65
Light source type	LED	Total luminous flux	4 * 48000lm
Lamp quantity * power	4x400W	Light source life	80000h

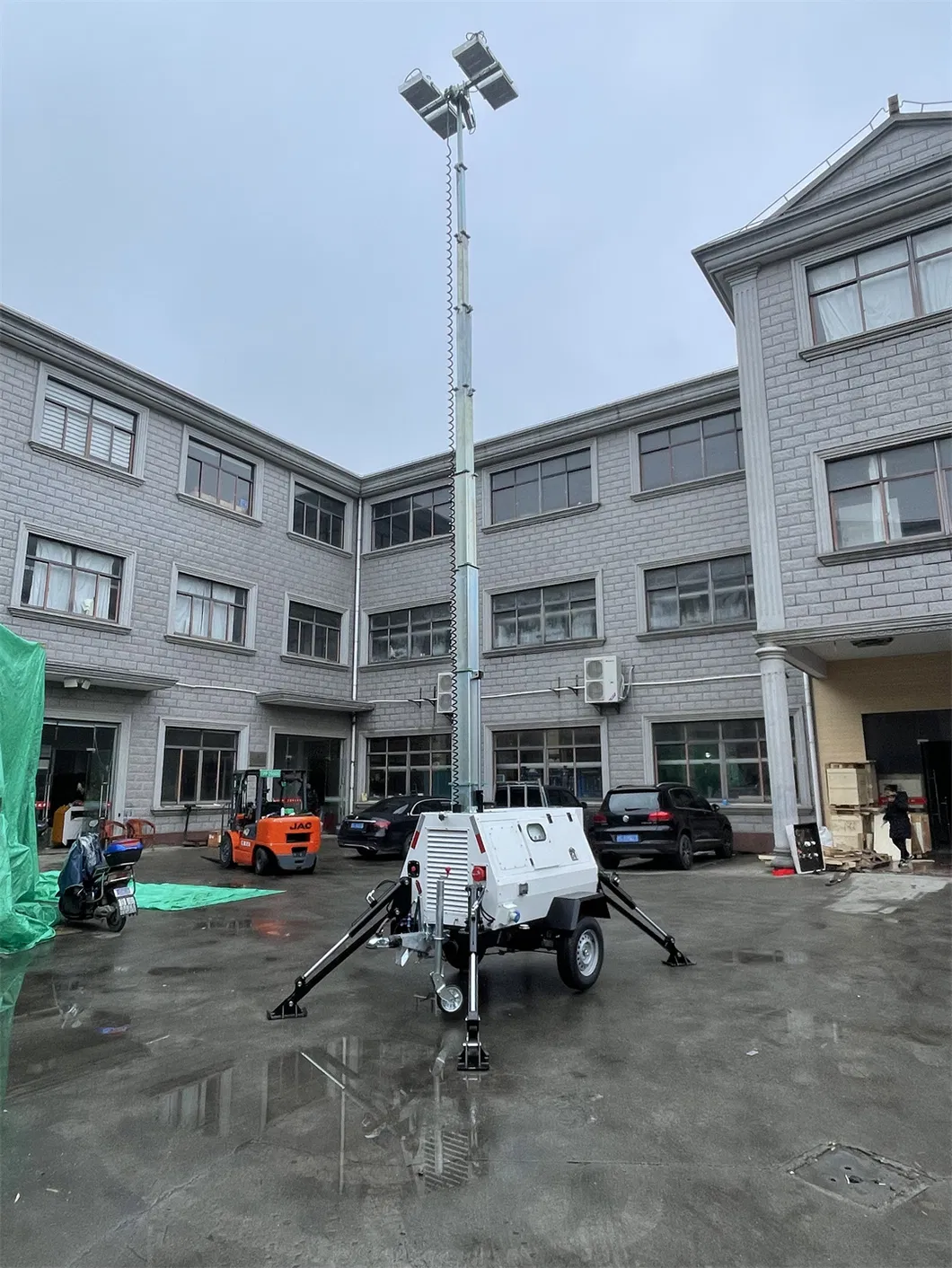

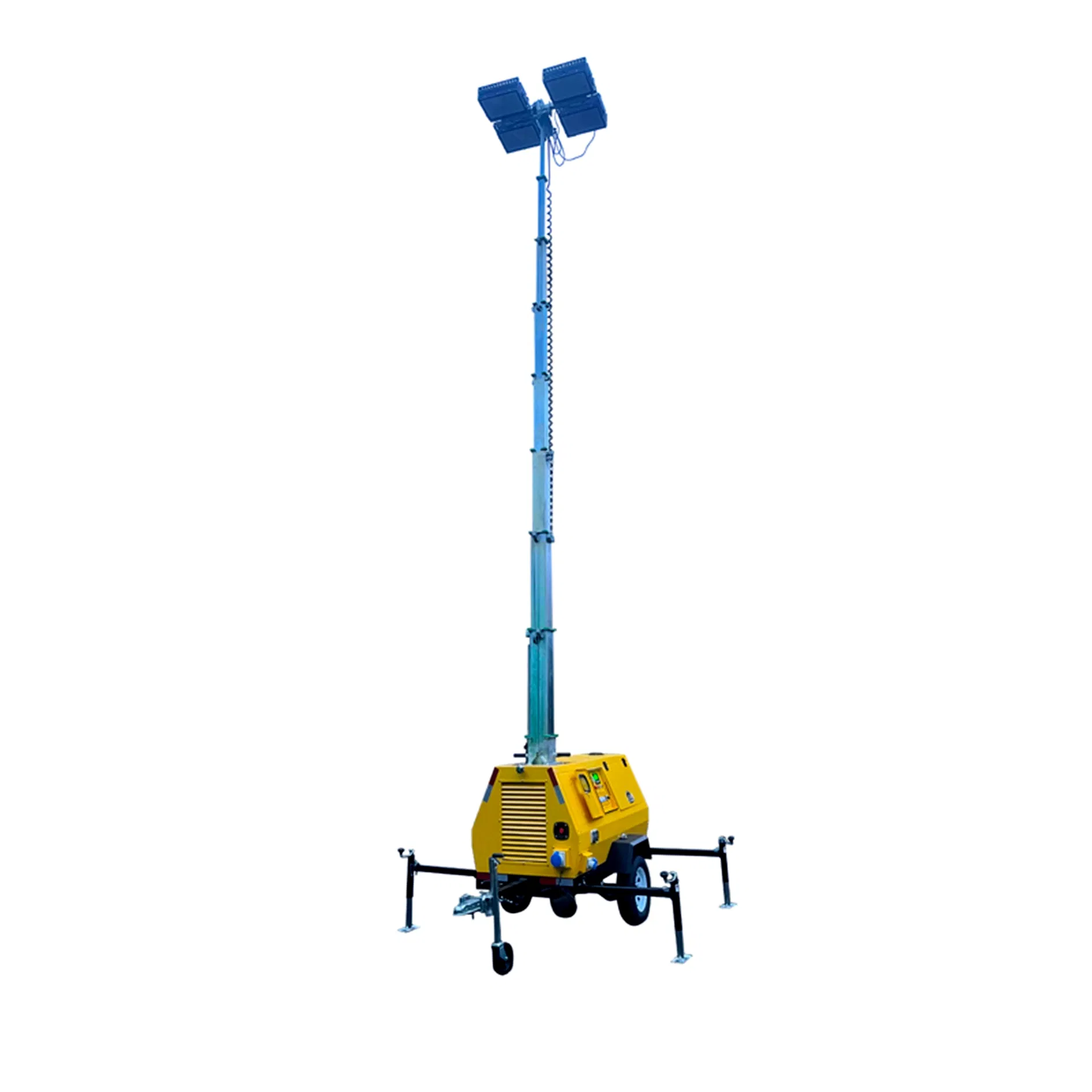

Lifting rod
Lighting direction adjustment horizontal direction	360 °	Lifting mode	Hydraulic rod
Illumination direction adjustment tilt rotation	90 °	Lifting equipment	Hydraulic cylinder
Lifting rod	Hydraulic lifting rod	Materials	High quality low alloy steel
Lifting height	9m/10 m	load bearing	110kg
Generator set
Generator power	8KW	Start mode	Electric start
Fuel Type	Diesel	Tank capacity	100L
Rated voltage	220V	Type of generator	Alternator
Rated frequency	50HZ	100%/load fuel consumption	2.2L/H
Speed	1500rpm	Insulation class	H
Cooling mode	Water cooling	Generator type	Open frame
Trailer chassis part
Support mode	Hydraulic support foot	Steering guide wheel	Liftable guide wheel
Support load	4*1000KG (jack)	Tires	inflatable
Brake mode	Handbrake device	Tire size	185*13 inches
Wind resistance grade	Level 8	Drag speed	80KW/H
Auxiliary Configuration
Battery type	Maintenance-free lead-acid battery	Shell	1.5mm steel plate forming
Voltage	12V	Surface treatment	surface spray plastic
Capacity	40AH	Color	Medium Yellow/Medium White/Red
Electrical protection	Automatic protection	Traction device	Ring

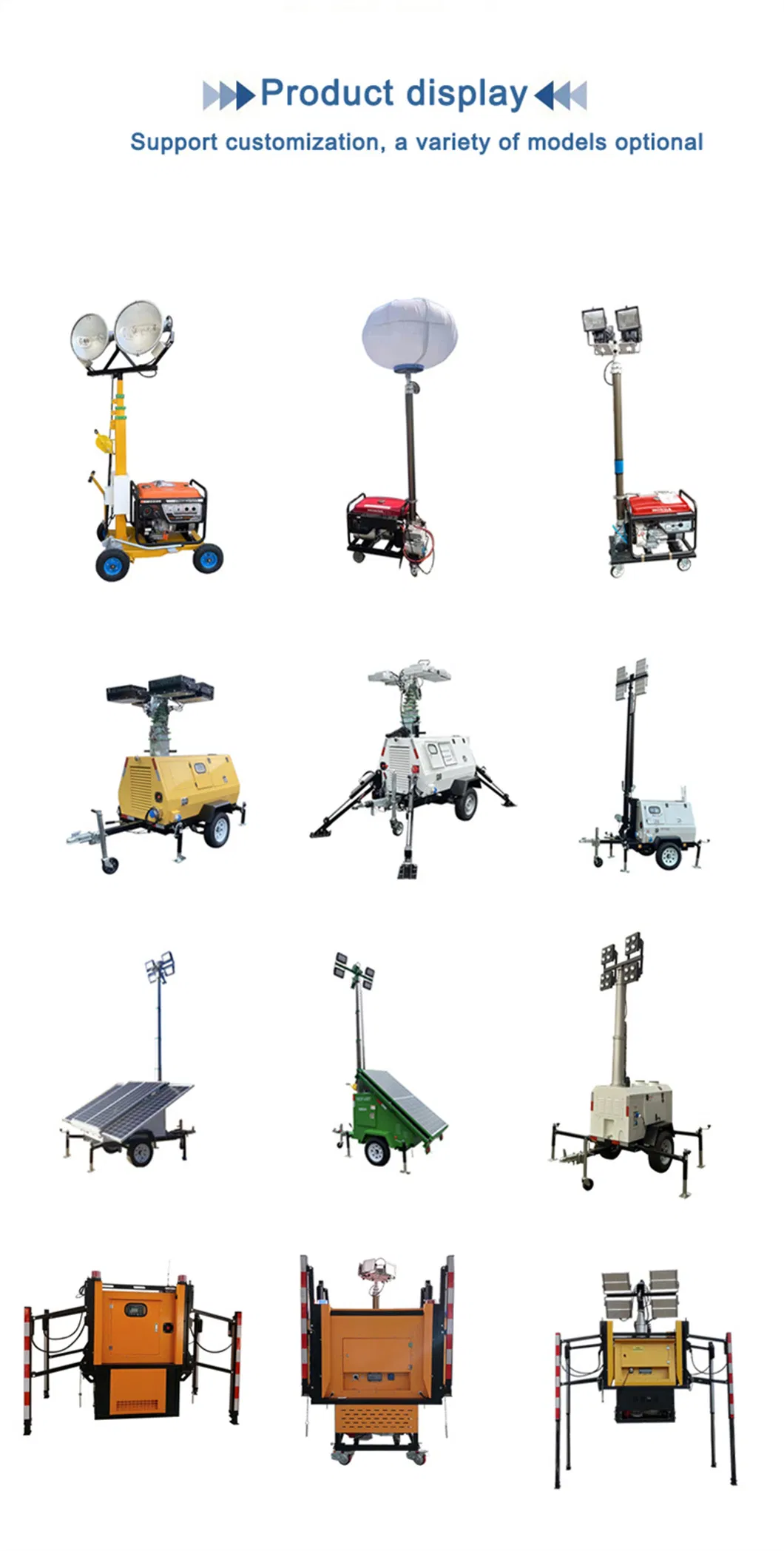

💡 Support customization: According to the customer's work needs, in the number of lamp holder, power, flooding or concentrating type, lifting height and generator set equipment to measure custom;

Frequently Asked Questions

1. Is the height of the lifting rod adjustable?

Yes, the hydraulic lifting rod allows for adjustable height, typically ranging from 5 to 10 meters depending on your specific requirements.

2. Does this light tower support customization?

Absolutely. We offer customization for the number of lamp holders, total power, light type (flooding/concentrating), lifting height, and generator set specifications to match your project needs.

3. What type of engine is used in this unit?

This unit is equipped with a water-cooled, three-cylinder diesel engine to ensure reliability and longevity in various working conditions.

4. Is the mobile light tower suitable for outdoor use?

Yes, the unit features an IP65 protection rating, making it highly resistant to dust and water, suitable for demanding outdoor environments.

5. What is the fuel consumption of the generator?

The generator has a fuel consumption rate of approximately 2.2L/H at 100% load, with a 100L tank capacity for extended operation.

6. How is the light tower transported?

The unit is designed for portability and comes securely packaged in a wooden box to ensure safety during transit.
