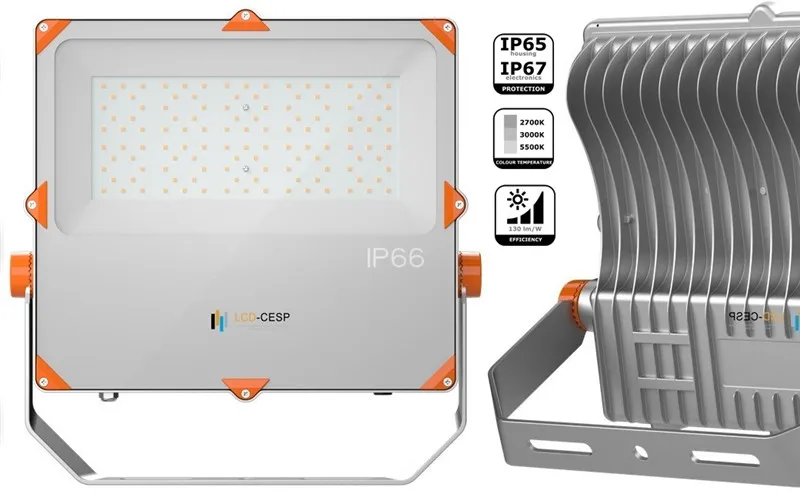

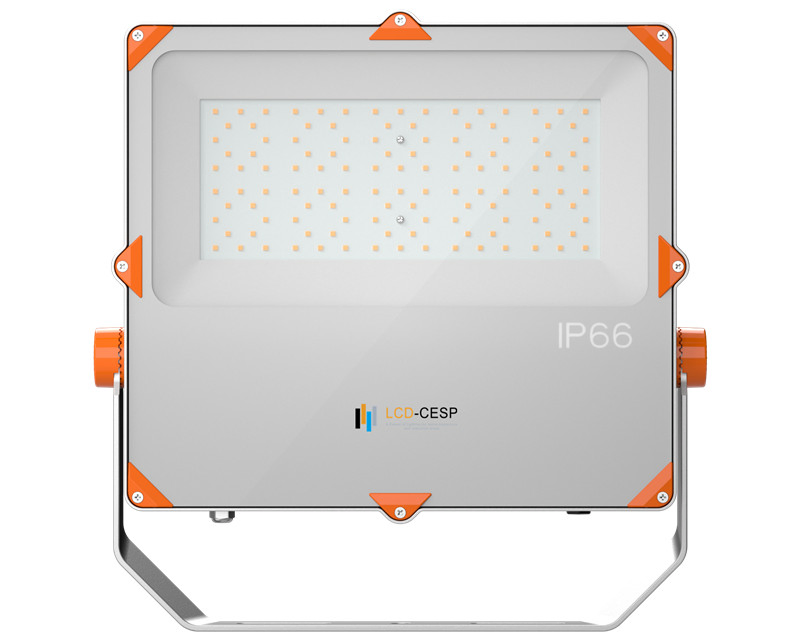

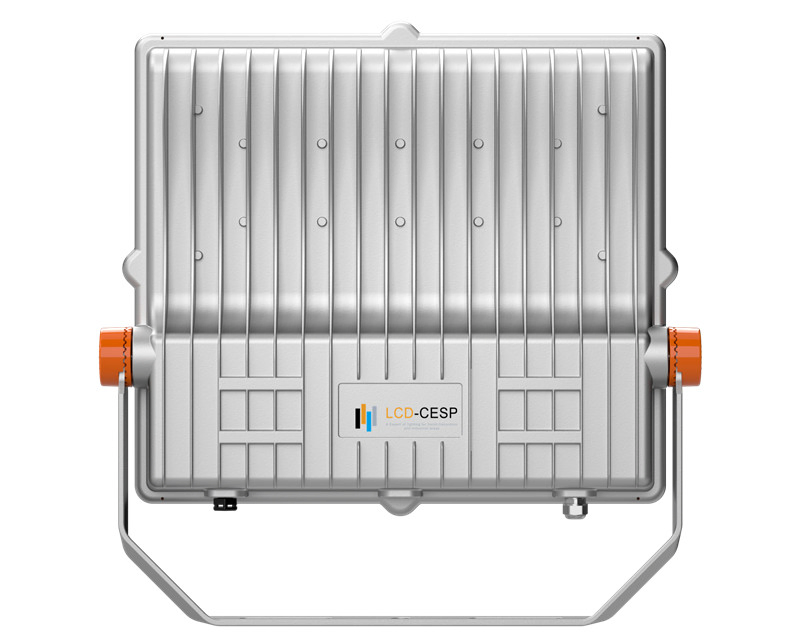

Dimmable LED fixture 200W, 90-277VAC 50/60Hz, Triac dimmable, color temperature adjustable from 2700K to 6000K. Designed with IP65 ingress protection and IK07 mechanical impact rating, delivering 1,400 to 28,000 lumens.

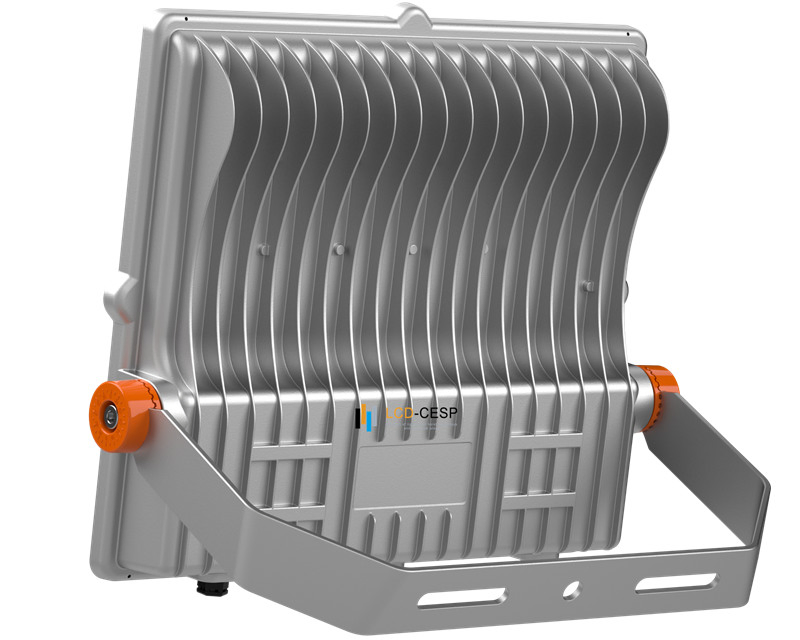

The energy-saving LED Floodlight is the perfect solution for a wide range of Area & site lighting applications. It integrates a dimmable driver, motion & Infrared sensor system, and a highly optimized thermal management heat sink housing. Constructed within a compact, robust, and durable die-cast Aluminum alloy body, this fixture meets global high-quality and safety standards. Its specially designed heat sink incorporates aesthetics and functionality to ensure excellent reliability and a long lifespan. Powered by modern LED technology, this luminaire delivers superior performance and an extended lifetime, bringing area & site lighting to a whole new level.
| Lamp family code | LCD-FS-xxxx-LNxxx |
| Light source color | Warm white, Neutral white, Cool white |
| Light source replaceable | Yes |
| Driver/power unit/transformer | Dimmable driver / Meanwell driver |
| Driver included | Yes |
| Optical cover/lens type | Reflector or Polycarbonate micro lens optic |
| Luminaire light beam spread | 110° or 60ºx60º, 90ºx90º, 30ºx30º, TYPE 3/4/5 |
| Connection | Flying leads/wires |
| Cable | Cable 1.5 m without plug |
| Protection class IEC | Safety class I |
| CE mark | Yes |
| Warranty period | 5 years warranty |
| Optic type outdoor | Symmetrical wide beam or Asymmetric beam |
| EU RoHS compliant | No |
| Light source engine type | LUXEON SMD 3030 |
| Input Voltage | 220-240 VAC or 110-277VAC |
| Input Frequency | 50 / 60 Hz |
| Power Factor (Min) | >0.97 |
| Controls and Dimming | DALI, 1-10V, Triac, Motion sensor or Infrared induction |
| Housing Material | Aluminum alloy die-cast |
| Reflector material | Pure polish aluminum reflector |
| Optic material | Polycarbonate |
| Optical cover/lens material | Tempered glass |
| Fixation material | Carbon steel with corrosion proof powder coating |

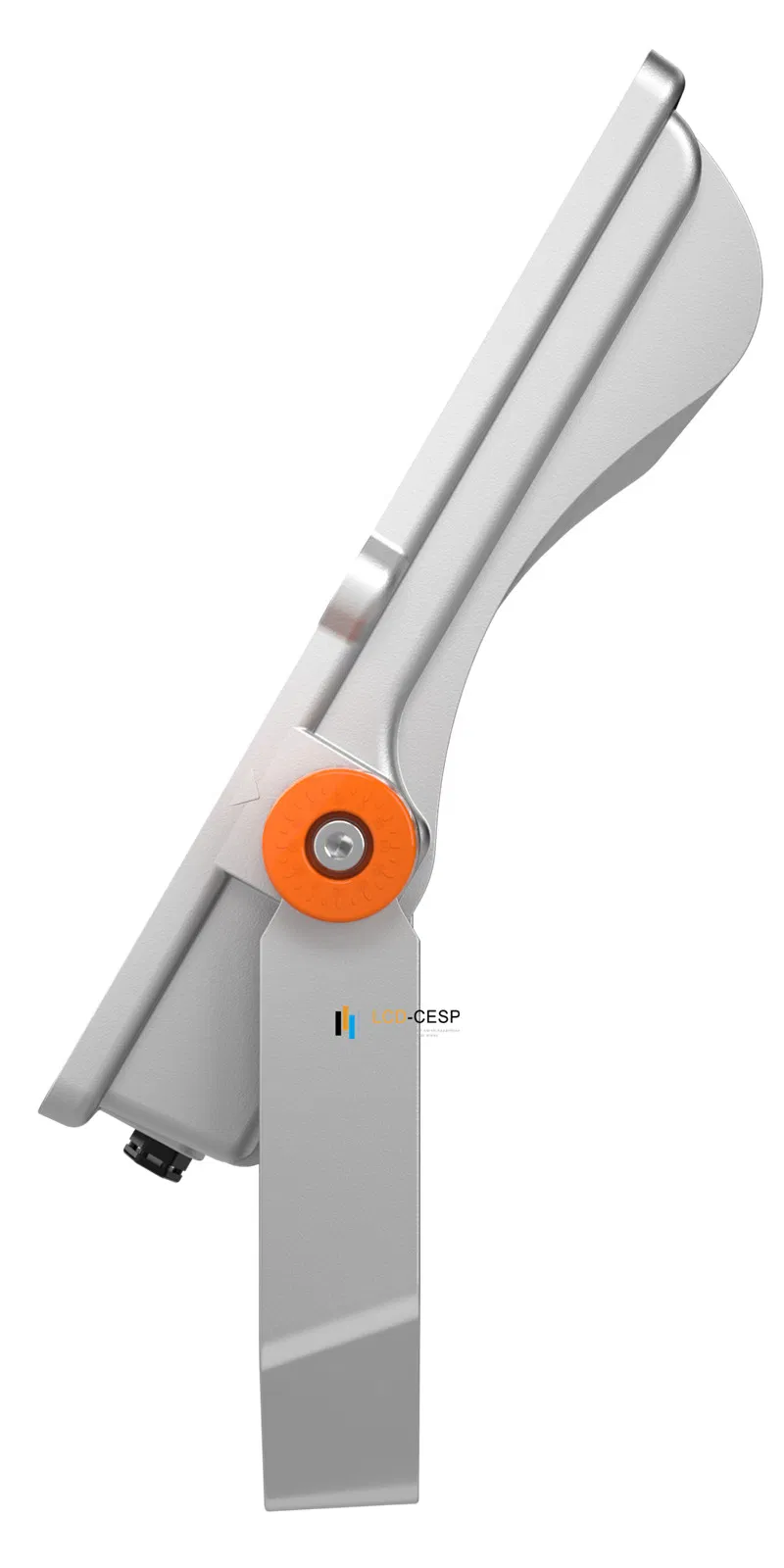

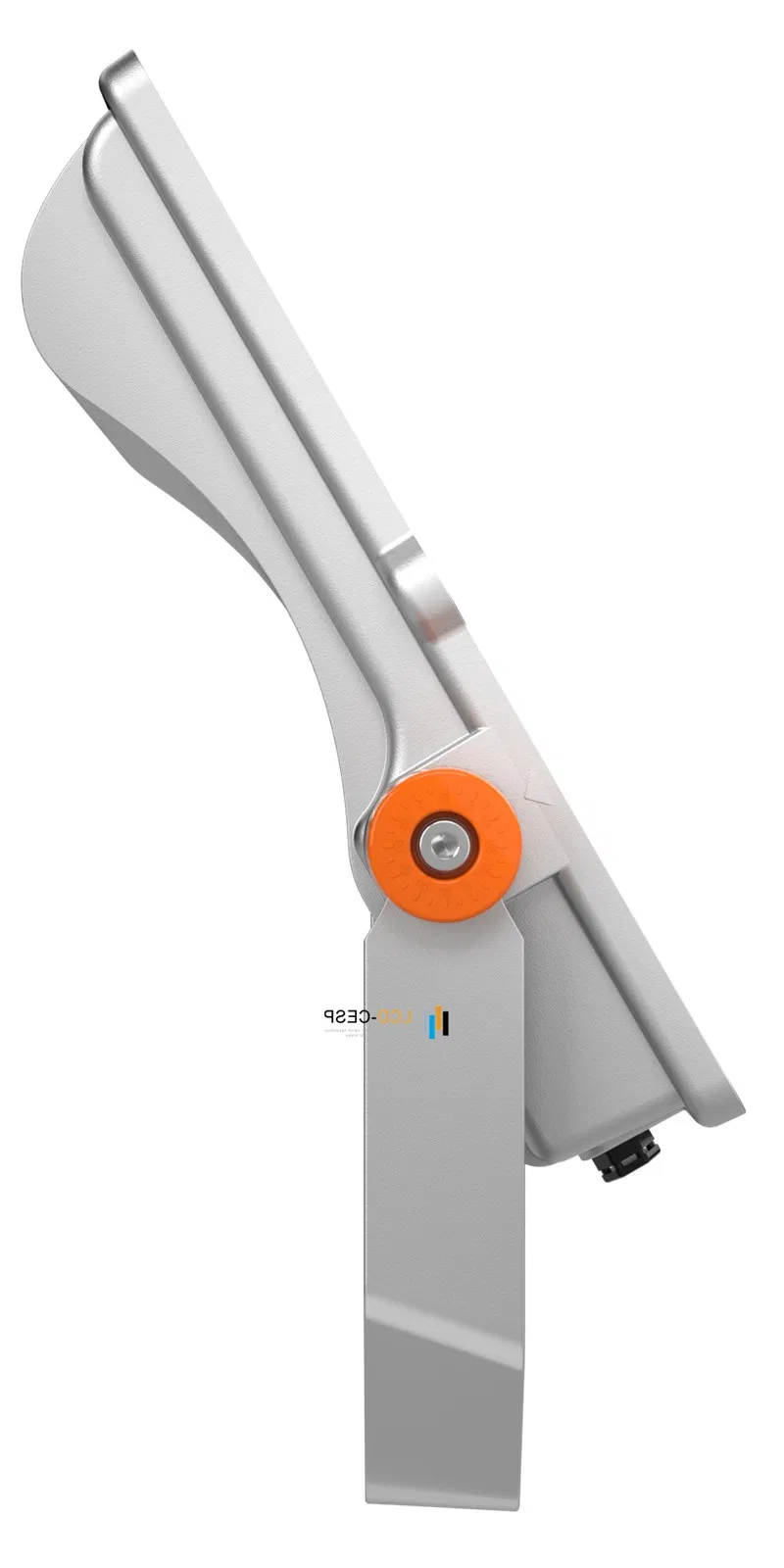

| Mounting device | Mounting bracket adjustable |
| Optical cover/lens shape | ----- |
| Optical cover/lens finish | Transparent or Frosted tempered glass |
| Overall dimensions | See dimensional drawing |
| Effective projected area | 0.076m² |
| Color | Aluminum and black |
| Ingress protection code | IP65 [Dust penetration-protected, jet-proof] |
| Mech. impact protection code | IK07 [>4 J vandal-protected] |
| Surge Protection | Luminaire surge protection level up to 3 kV |
| Initial luminous flux (system flux) | >28000 lm |
| Luminous flux tolerance | +/-10% |
| Initial LED luminaire efficacy | >140 lm/W |
| Init. Corr. Color Temperature | 3000K / 4000K / 6500K |
| Init. Color Rendering Index | 75 |
| Initial chromaticity | SDCM <= 5 |
| Initial input power | 200 W |
| Power consumption tolerance | +/-10% |
| Ambient temperature range | -30 to +50 °C |
| Maximum dim level | On request |
| Full product code | LCD-FS-203-LNXX-4K |
| Order product name | LCD-FS-Flood light 200W |
| Net Weight (Piece) | 5.5KG |

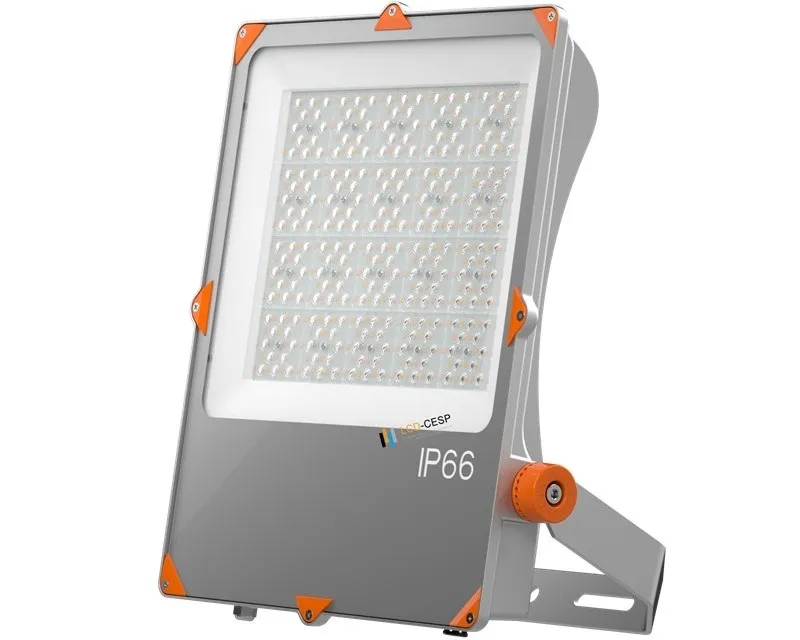

Copper-free outdoor Aluminum housing with optimized thermal management. Compatible with 0-10V, DALI, or Triac dimmable systems. Features IP66 and IK08 rating.
Engineered for highway, roadway, and area lighting utilizing high-efficiency LED chips (Cree / Bridgelux / OSRAM SMD3030 or SMD5050) for playgrounds and worksites. Extruded aluminum LED spotlight with 5-7 years warranty support.

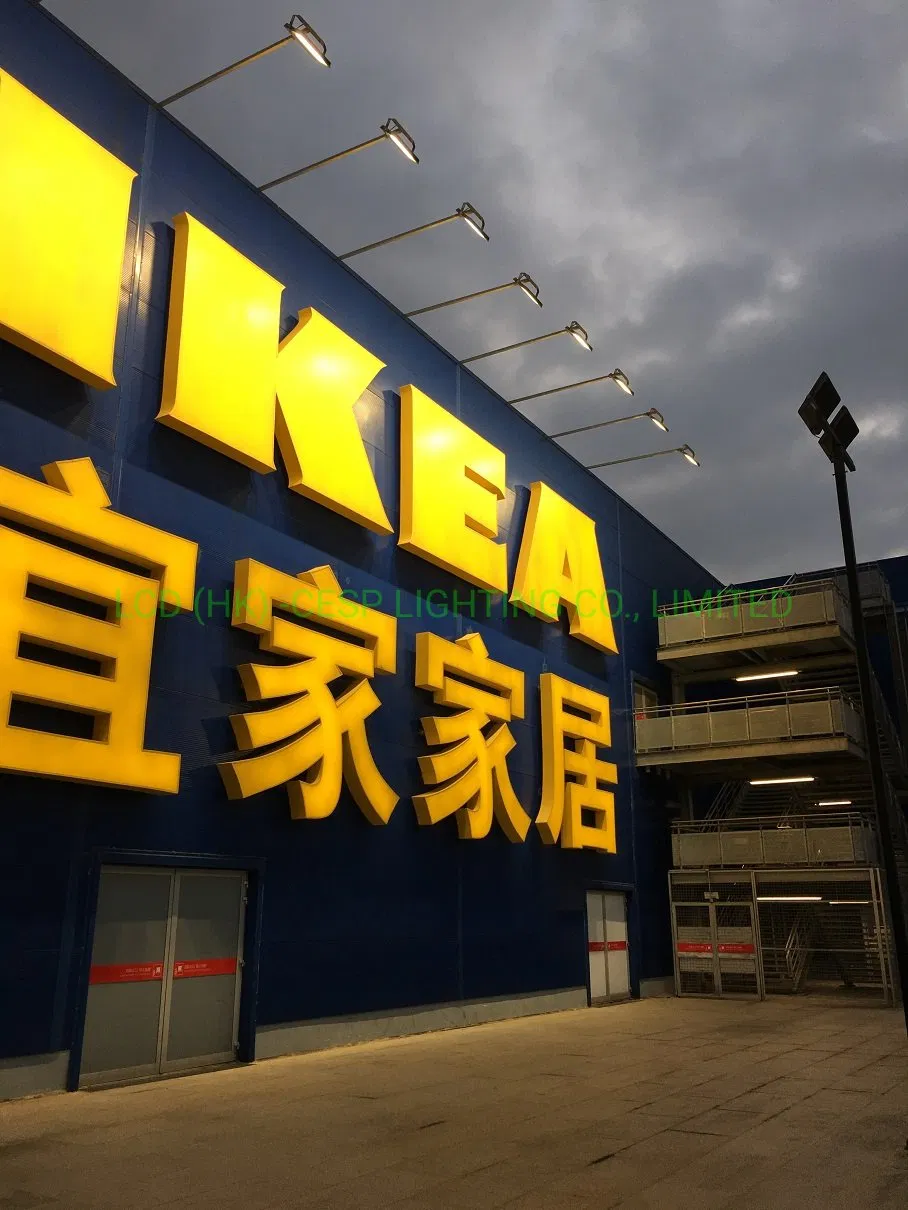

Designed for architectural, security, and landscape applications to highlight specific building and monument designs. Supports adjustable mounting bracket or arm options.
| Consumption Options | 10W, 20W, 30W, 50W, 70W, 100W, 120W, 150W, 200W |
| Assembling Height | 4-15 meters |
| Voltage Range | 100-277 V AC or 12V, 24V, 32V DC |
| Frequency | 50/60 Hz |
| Protection Rating | IP66 / IK08 |
| Optic Efficiency | 90% / 135-150lm/w |
| Upward Light Ratio (UHF) | <1% |
| Life Span | L70 -> 60,000 hours |

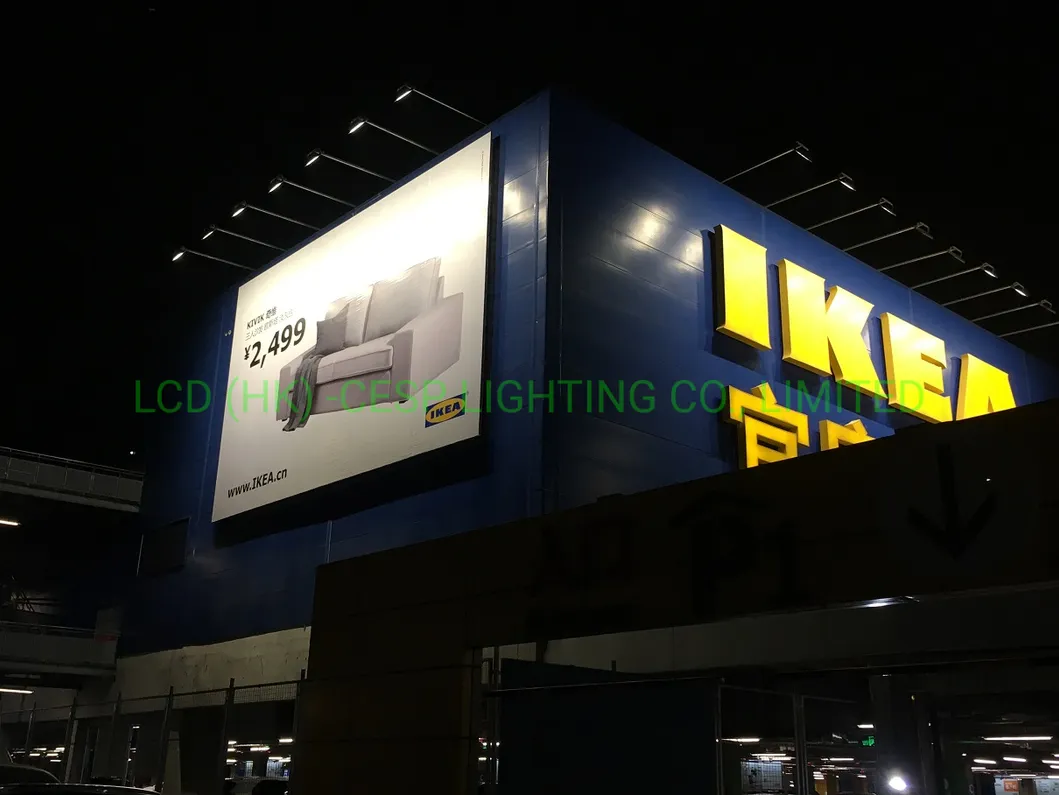

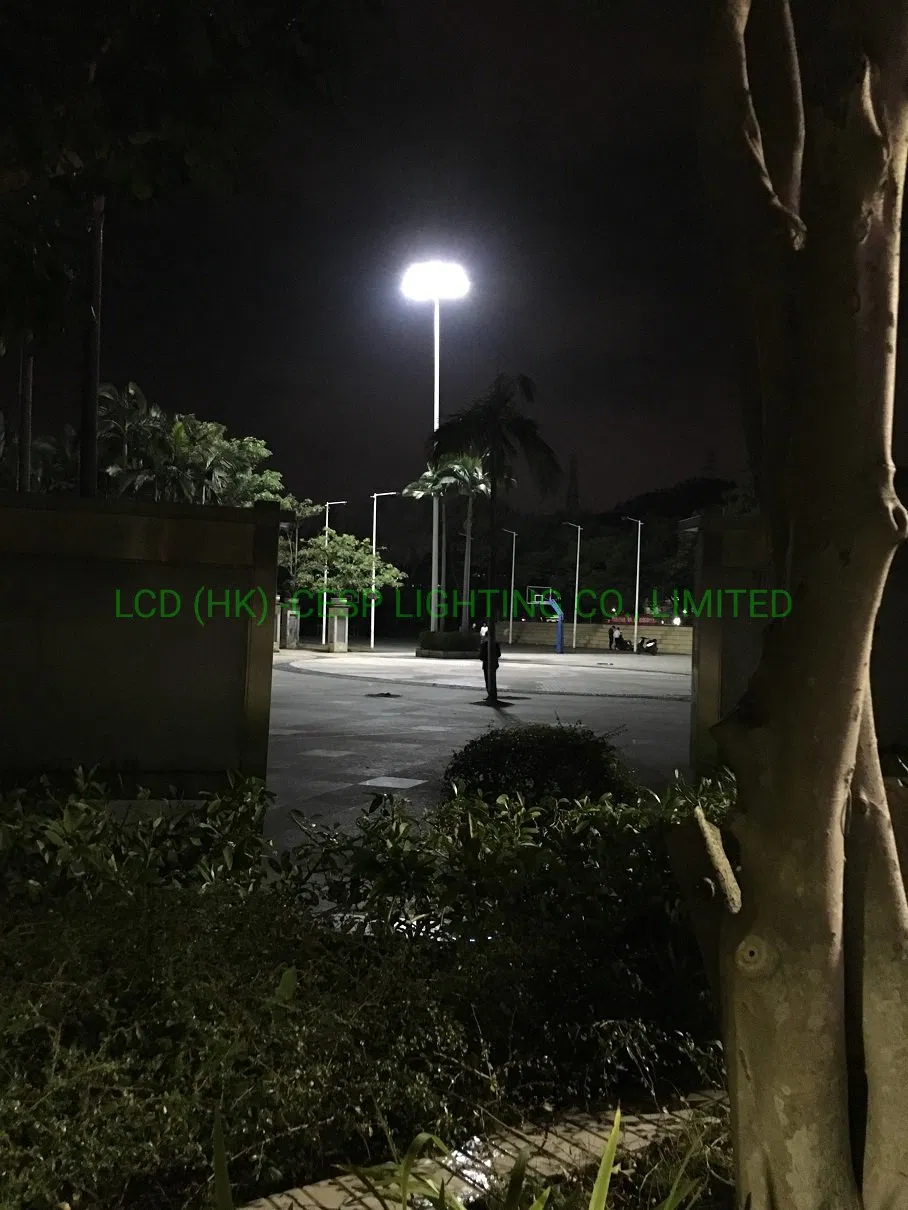

Ideal for low area site lighting, building surrounds, facade lighting, parking facilities, roadways, and billboards.
Pre-wired design offers quick connection, reducing installation time. Lightweight, compact physical profile minimizes load requirements on existing structural columns and poles.
Delivering up to 7,250 lumens using extruded aluminum structures with integrated internal cooling pins. Suitable for operating heights up to 15 meters.
| Material | Aluminium die-cast ADC12 housing + 4mm tempered glass face |
| Efficacy | Up to 150 lm/W |
| LED Chips | SMD3030 or SMD5050 |
| Color Consistency (SDCM) | <5 |
| Optic Beam Options | 7°, 15°, 30°, 60°, 90°, 120°, TYPE 2/3/4/5, Asymmetric 40° |
| Ingress Protection | IP66 |
| Mechanical Impact Rating | IK08 |
| Mounting Device | "U" bracket / Slipfitter |
| Model No. | Power | Lumens | CCT | Input Voltage | Weight | Dimensions (mm) |
|---|---|---|---|---|---|---|
| LCD-FLY-013 | 10W | 1300 lm | 3000K/4000K/6500K | 85-265VAC | 0.54 kg | 179x145x32 |
| LCD-FLY-023 | 20W | 2600 lm | 3000K/4000K/6500K | 85-265VAC | 0.65 kg | 189x148x32 |
| LCD-FLY-033 | 30W | 3900 lm | 3000K/4000K/6500K | 85-265VAC | 1.25 kg | 261x194x47 |
| LCD-FLY-053 | 50W | 6500 lm | 3000K/4000K/6500K | 85-265VAC | 1.50 kg | 350x265x69 |
| LCD-FLY-083 | 80W | 10400 lm | 3000K/4000K/6500K | 85-265VAC | 1.70 kg | 350x265x69 |
| LCD-FLY-103 | 100W | 13000 lm | 3000K/4000K/6500K | 85-265VAC | 2.85 kg | 397x308x68 |
| LCD-FLY-153 | 150W | 19500 lm | 3000K/4000K/6500K | 85-265VAC | 4.18 kg | 441x347x68 |
| LCD-FLY-203 | 200W | 26000 lm | 3000K/4000K/6500K | 85-265VAC | 4.50 kg | 500x385x68 |
Featuring high-transmission rate tempered glass (up to 93% transmission) and anti-impact rating of IK08. Incorporates built-in 10kV surge protection, ideal for demanding installations such as marine sites, industrial environments, mining zones, and wastewater facilities.
Warm White Marine LED Floodlights featuring 30-degree optic beam spreads, operating between 100-277VAC with an IP67 rating.
| LED Color Temp Options | 3000K (Warm White), 4000K (Neutral White), 6500K (Cool White) |
| Color Rendering Index (CRI) | >80 (Warm/Neutral), >75 (Cool) |
| Upward Light Output Ratio (ULOR) | 0% |
| Mounting Device | Adjustable stirrup & Bracket |
| Optimal Mounting Height | 5-40 meters |
| Ambient Temperature Range | -40°C to +50°C |
| Available Beam Distributions | Asymmetric (Forward, Narrow, Wide), Symmetrical (Wide, Narrow) |
| Surge Protection Options | 2kV / 4kV / 6kV |
| Item Model | Dimensions AxBxC (mm) | Weight (kg) |
|---|---|---|
| FA-085/105/153 IP67 | 389.2x296.7x57 | 3.4 |
| FA-205 IP67 | 436.6x345.7x57 | 4.8 |
| FA-255 IP67 | 436.6x345.7x57 | 7.2 |
| FA-305/353 IP67 | 582x385x60 | 7.5 |
| Model No. | Power | Lumens | Input Voltage | Weight | Dimensions (mm) |
|---|---|---|---|---|---|
| LCD-FA-083 | 80W | 11200 lm | 85-265VAC | 4.0 kg | 200x200x147 |
| LCD-FA-103 | 100W | 14000 lm | 85-265VAC | 4.0 kg | 200x200x147 |
| LCD-FA-153 | 153W | 21000 lm | 85-265VAC | 4.0 kg | 200x200x147 |
| LCD-FA-203 | 200W | 28000 lm | 85-265VAC | 7.5 kg | 300x300x165 |
| LCD-FA-253 | 253W | 35000 lm | 85-265VAC | 7.5 kg | 300x300x165 |
| LCD-FA-303 | 300W | 42000 lm | 85-265VAC | 7.5 kg | 300x300x165 |
| LCD-FA-323 | 320W | 44800 lm | 85-265VAC | 10.5 kg | 400x400x169 |
Main body components are built with low-copper die-cast Aluminum alloy (A360) and anodized extrusions (6063-T5) to maximize corrosion resistance. Equipped with a robust IP66-rated seal utilizing a single-piece silicone rubber gasket surrounding the electrical compartment.
Passive cooling structure utilizes vertical convection design patterns, keeping heat dissipation close to the LEDs and driver circuits to maximize longevity and performance efficiency without the use of active moving parts.
High-performance UV-stabilized polymer refractor lenses. Supports distributions from Spot (SP) configurations, 33-degree asymmetric profiles, and specialized airport bracket requirements. Impact test rated up to IK10 standards.
