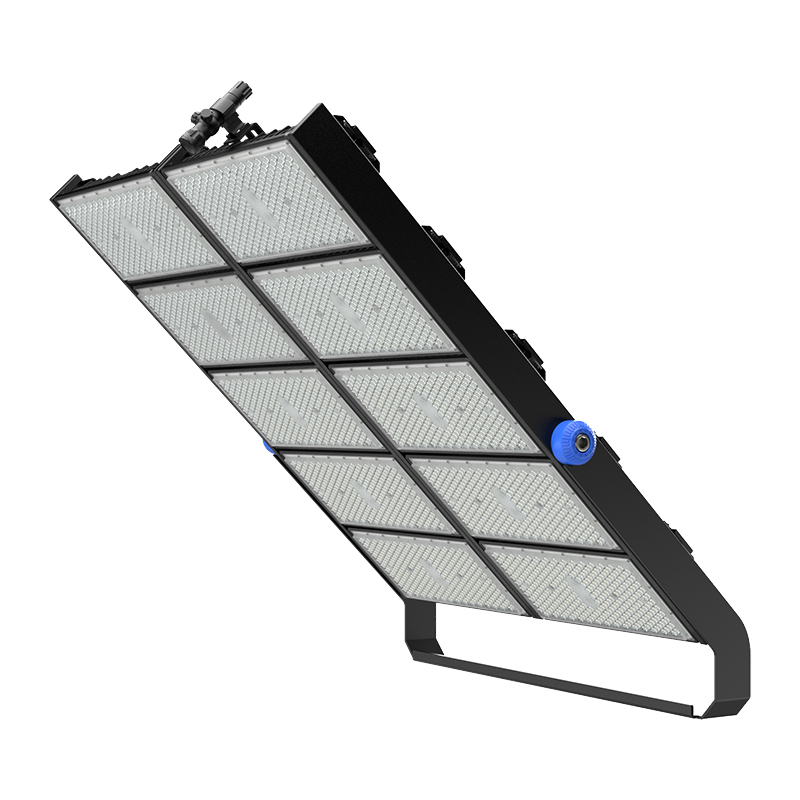

250W 500W 750W 1000W 1250W 1500W 200W 2500W Led Flood High Mast Lights for Footballled Stadium Light

Products Description

Strong bracket, more solid installation.

Optical PC lens, no-yellowing material.

Silicone waterproof sealing strip. UV-resistant material, reliable without failure.

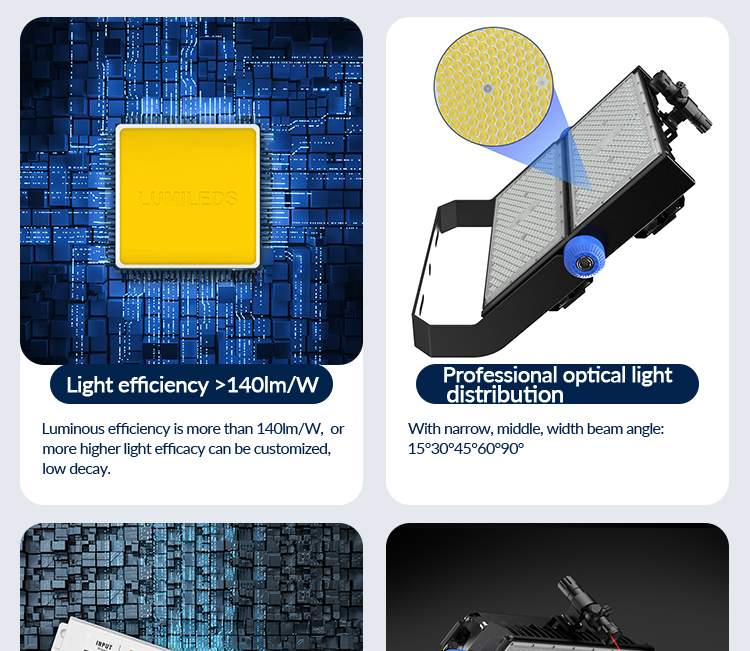

3030 SMD light source design, luminous efficiency 150lm/W.

High thermal conductivity aluminum substrate, fast heat dissipation, reduce light decay.

ADC12 die-casting aluminum heat sink, the efficiency is up to 96W / M.K.

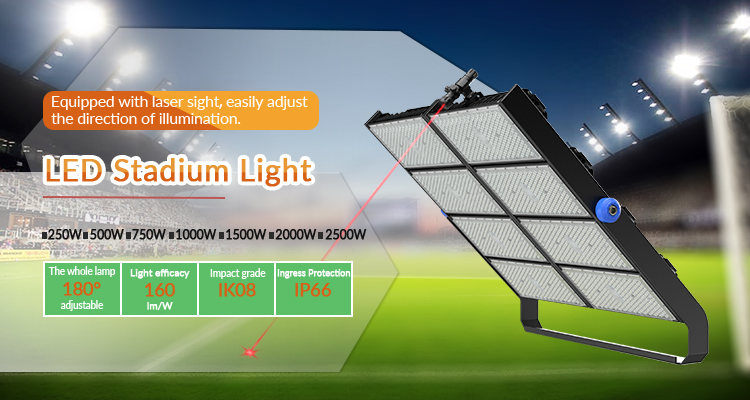

With laser light locator, easily adjust the direction of illumination to achieve maximum lux and uniformity.

The design of the heat dissipation respirator can avoid the problem of sealing failure caused by thermal expansion and contraction.

External waterproof power supply is installed on the special case, no contact with the lamp body, thermoelectric separation, longer life.

Product Parameters

Model	YXR-QC-250W-G
Power	250W
Input Voltage	AC100-277V / AC90-305V
Efficacy	150lm/W
Lumen	37500lm
Beam Angle	30° / 45° / 60°/ 90°
LED	San'an/Lumileds 3030
CCT	3000~6500K
CRI	≥80Ra
PF	>0.97
THD	15% < THD < 20%
Weight(kg)	5.7
Sizes(mm)	436284163
Work Temp	-35°~55℃
Humidity	15%~90% RH, no condensing
IP Grade	IP66
IK Grade	IK08
Life Span	≥50,000 Hrs (LM70 @ 35℃ )
Finish	Sprayed with outdoor special powder
Product Material	PC lens + Aluminum housing
Electronic Safety Grade	Class I
Power Wire	Rubber cable (3*1mm²) L=0.5m

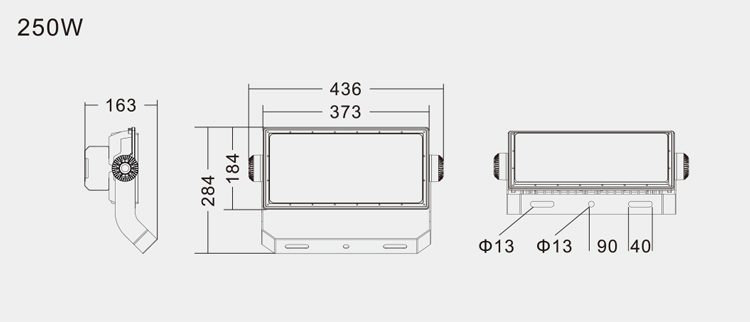

Product Dimensions

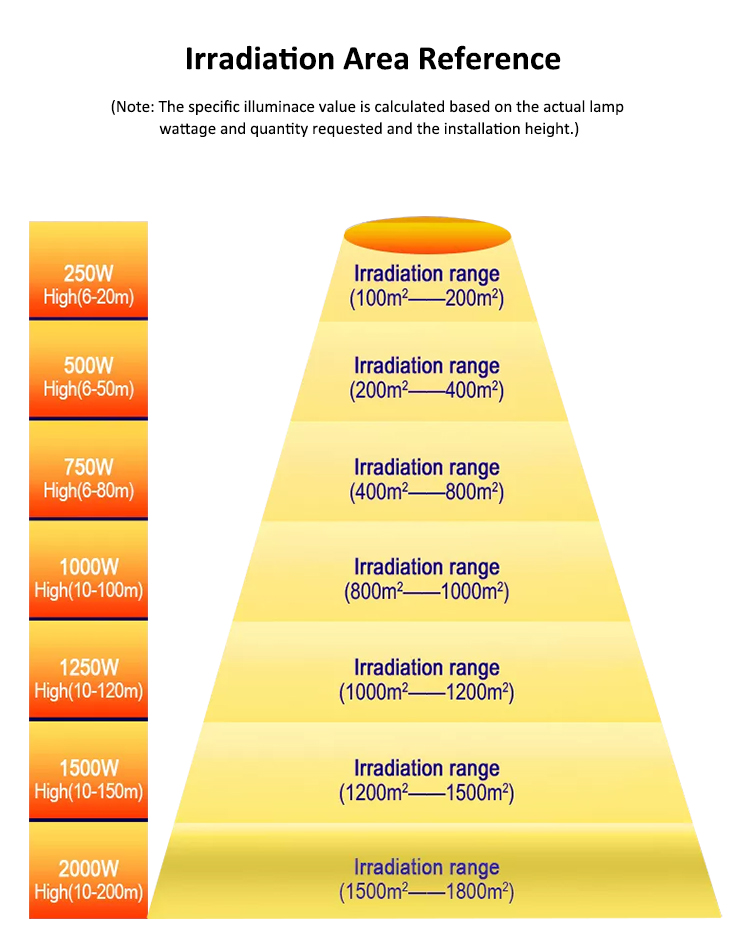

Details Images

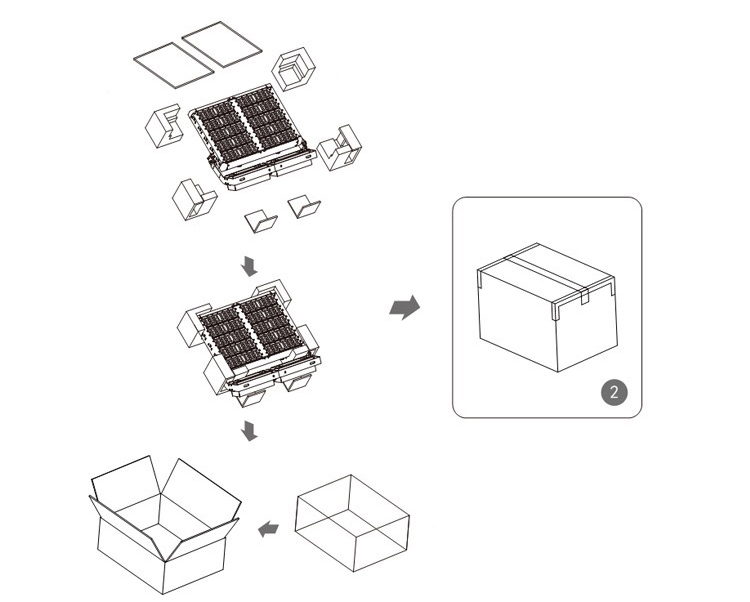

Package

Applications

Soccer field Tennis court Golf courses Badminton court Sportfootball Stadium Driving Range Hockey Rink Hockey Field Cricket Stadium Natatorium Horse Arena Racetrack Pickleball Court Skate Park Baseball Field Softball Field Rugby Field Sports field construction Industrial Bridge Crane Container Port Airport Billboard Mining Public Park

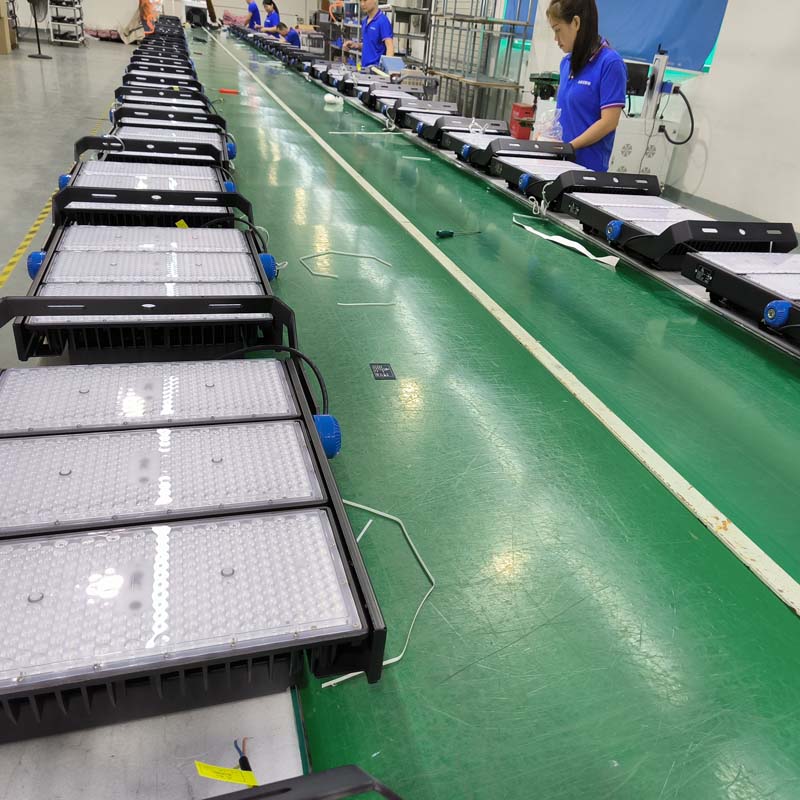

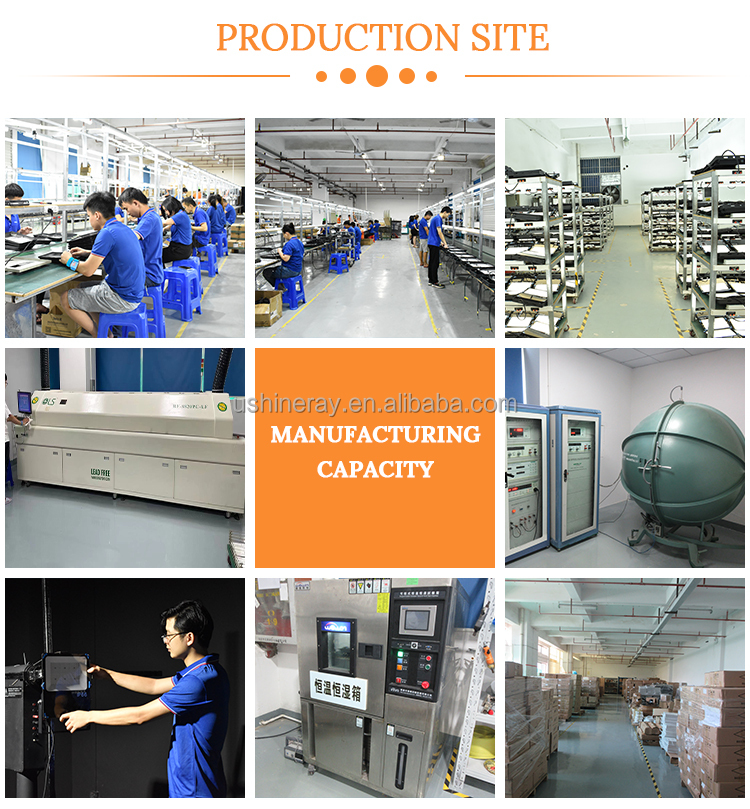

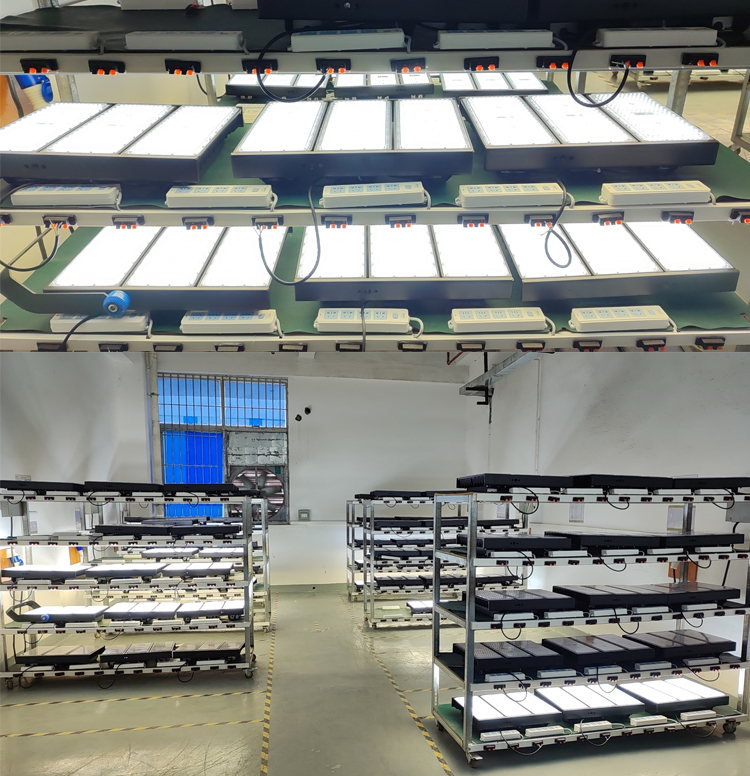

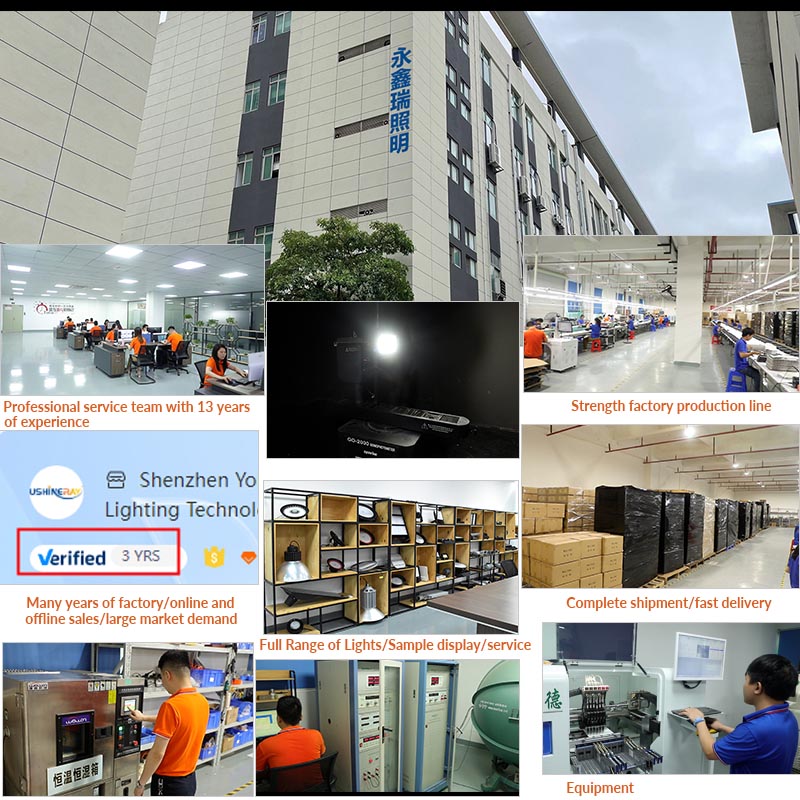

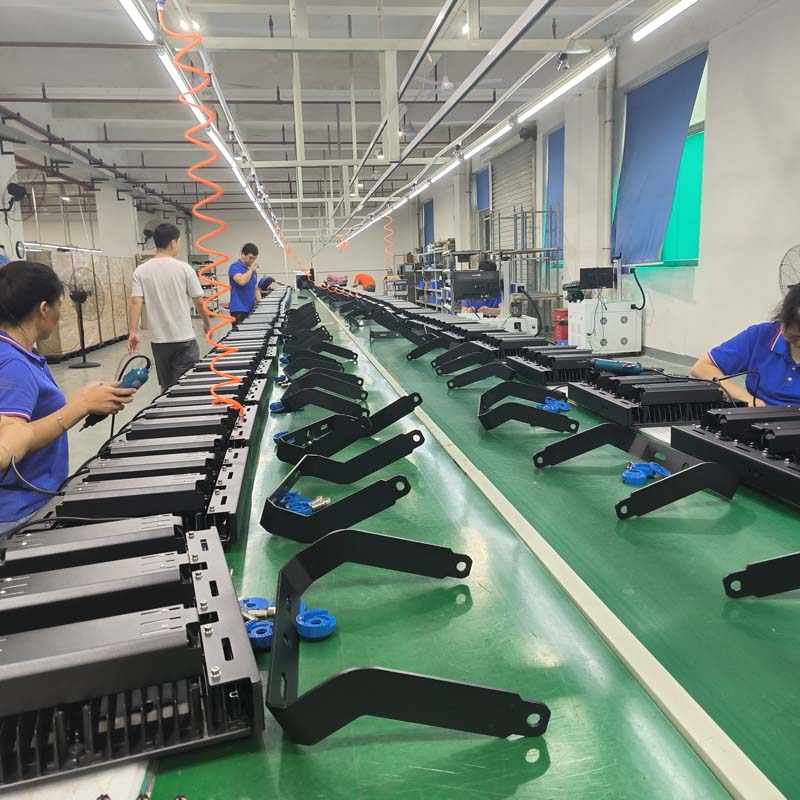

Manufacturing Capabilities

Established in 2010, we are a manufacturing and trading combo, specialized in Outdoor LED Lighting: LED Stadium Lights, LED Flood Lights, LED Street Lights and Tunnel Lights etc. Our main markets are in Europe, South America, Southeast Asia, Oceania, and also we exported to North America and some Middle East countries; all of our LED lights are with CE, RoHS, and some of them are with ETL, DLC, TUV etc.

We are committed to R&D and promoting of semiconductor lighting products and have accumulated a wealth of experience. We provide high-quality products, excellent pre-sales and after-sales service to customers. Mutual benefit and common development is our aim. We sincerely look forward to cooperate with more customers in the world.

Provided services:

OEM/ODM (Lighting product design)
Providing LED energy saving program
Free lighting consultation
Lighting and circuitry design
DIALux calculation and visualization
Auto CAD layout

Combined with your on-site project needs, we will wholeheartedly provide you with professional and detailed light distribution advice and light simulation solutions.

Frequently Asked Questions

QAre you a manufacturer?

Yes, we have our own factory with over 10 years of R&D and manufacturing experience based on ISO quality management since 2011.

QDo you have any MOQ limit for LED light orders?

No MOQ, 1pc for sample checking is available.

QCan I get a lower price for large quantity order?

Yes, please check with our sales staff for the details.

QHow about the lead time of the LED Stadium Lights?

Our standard lead time for samples is 3-5 days, and the normal bulk order lead time is 7-10 days, for the large bulk order lead time, please check with our sales team.

QCan you provide OEM and ODM services?

OEM and ODM services can be provided, we can provide the services of customized design box and carton as well as laser print logo on the lamp fixture, besides, our engineer can design the lighting products according to your idea.

QHow to deal with the defective products?

All of our products are produced in a strict quality control system, the defective rate is less than 0.2% according to our shipment records. We offer 3- 5 years warranty for this product, if there is any defective during the warranty, please provide a picture or video of the working situation of the defective lights, we will ship the new lights to you within a few days or send them together with your next order.
