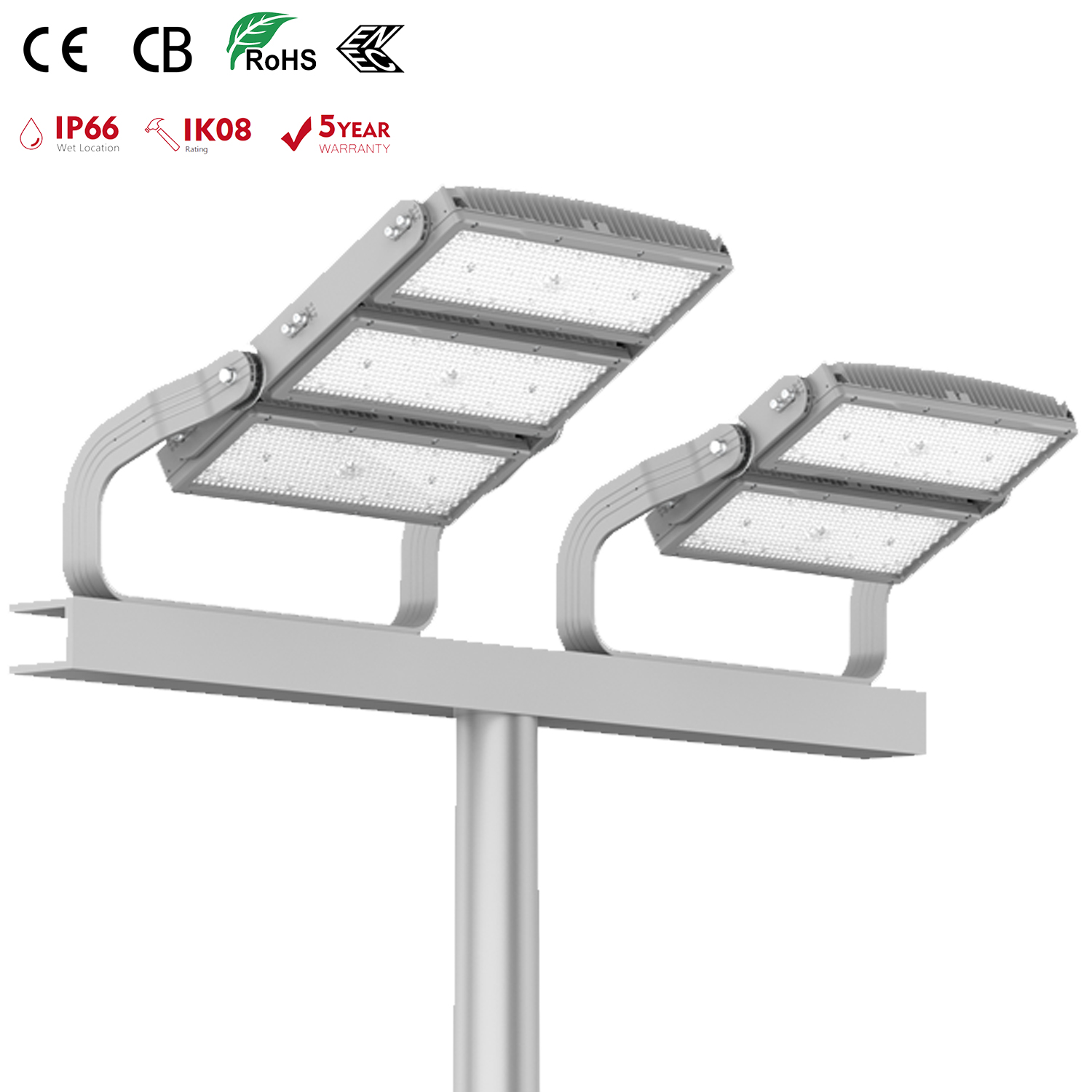

| Model NO. | HD-FL21 | HD-FL02-500W | HD-FL02-750W |
| Wattage | 500W / 600W | 1000W / 1200W | 1500W / 1800W |
| Light Efficiency (@Beam 10°) | 160Lm/W (500/1000/1500W) , 155Lm/W (600/1200/1800W) | ||
| Light Efficiency (@Beam 15°) | 165Lm/W (500/1000/1500W) , 160Lm/W (600/1200/1800W) | ||
| Light Efficiency (@Beam 20°) | 160Lm/W (500/1000/1500W) , 150Lm/W (600/1200/1800W) | ||
| Light Efficiency (@Beam 30°, 60°) | 170Lm/W (500/1000/1500W) , 165Lm/W (600/1200/1800W) | ||
| Light Efficiency (@Beam NB-P60°) | 150Lm/W (500/1000/1500W) , 145Lm/W (600/1200/1800W) | ||
| Lumen Flux (@30° 5700K) | 80,000Lm / 96,000Lm | 170,000Lm / 192,000Lm | 240,000Lm / 288,000Lm |
| CCT | 2700K/ 3000K/ 4000K/ 5000K/ 5700K | ||

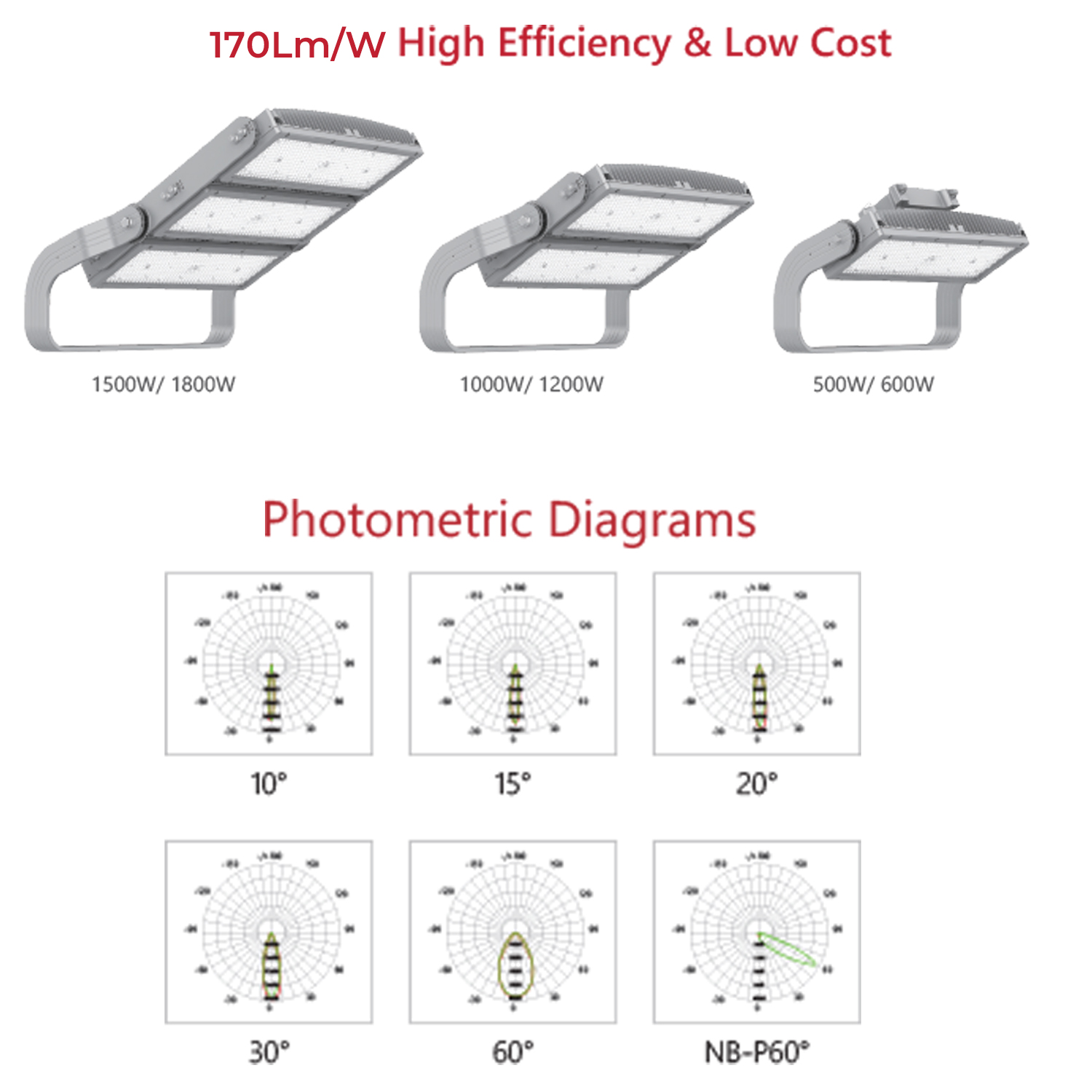

| Beam Angle | 10° / 15° / 20° / 30° / 60° / NB-P60° | ||
| CRI | ≥70 | ||
| SDCM | ≤5 | ||
| Input Voltage | AC 220-400V | ||
| Power Factor | ≥0.90 (@220V & Full Load) | ||
| Percent Flicker (%) | <3% | ||
| THD | ≤20% | ||
| Surge Protection | 10KV | ||
| Protection Against Electric | Class I | ||
| IP | IP66 | ||
| IK | IK08 | ||
| EPA | Front: 1.4 ft², Side: 0.59 ft² | Front: 2.08 ft², Side: 0.94 ft² | Front: 2.92 ft², Side: 1.2 ft² |
| Operating Temp Range | -30°C~+50°C @Outdoor /-22°F~+122°F @Outdoor | ||
| Intelligent Control | 0-10V / DMX / DALI | ||
| Lifetime | 100,000H (L70B50 @25°C) / 100,000H (L70B50 @77°F) | ||
| Net Weight (kg) | 8.3 kg±0.5 | 16.3 kg±0.5 | 22 kg±0.5 |

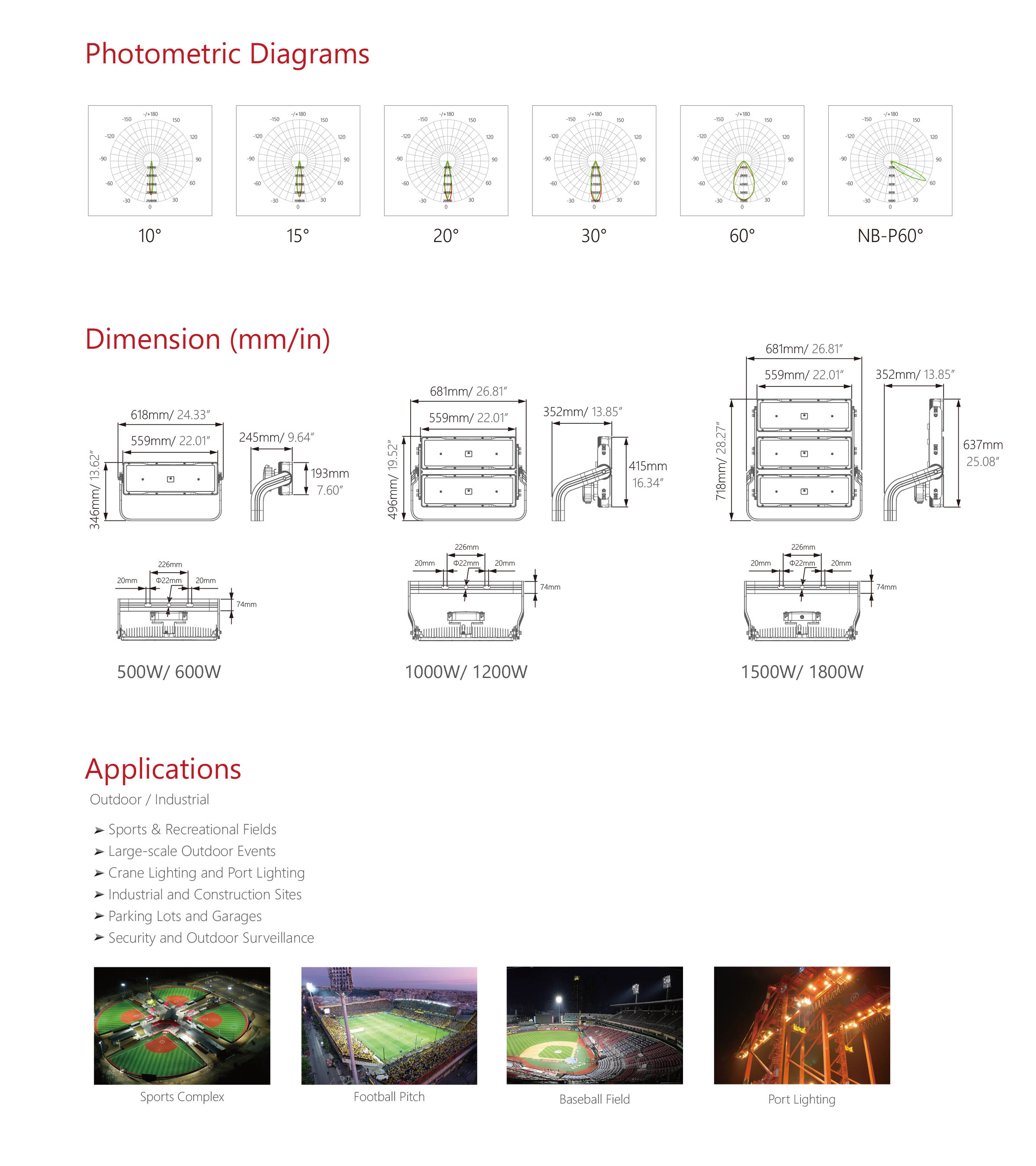

| Dimension (mm) | 618x 245x 346mm | 681x 352x 496mm | 681x 352x 718mm |
| Packing Dimension (mm) | 710x 475x 215mm | 760x 700x 220mm | 760x 710x 250mm |
| Warranty | 5 Years | ||
| Certificate | CE / CB / ENEC / ENEC+ / RoHS | ||
| Specification | LED: Bridgelux 3030, Bridgelux CSP2424 | Driver: Powerland, MOSO, Inventronics | ||
| Material | Structure: Aluminium Profile / High Thermal Conductivity AL Material Finish: Powder Coated Lens: Polycarbonate Color: RAL9006 |
||
