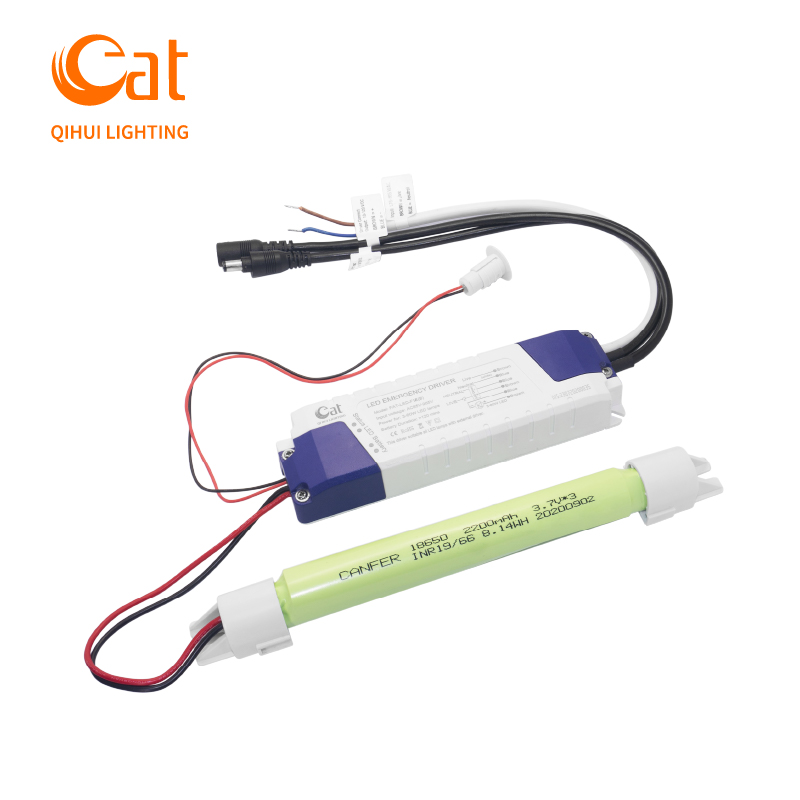

5-60W LED Emergency Kit Li-ion Battery LED Emergency Driver With Self - Test Function Emergency Drive
5-60W LED Emergency Kit Li-ion Battery LED Emergency Driver With Self - Test Function Emergency Drive
5-60W LED Emergency Kit Li-ion Battery LED Emergency Driver With Self - Test Function Emergency Drive
5-60W LED Emergency Kit Li-ion Battery LED Emergency Driver With Self - Test Function Emergency Drive
5-60W LED Emergency Kit Li-ion Battery LED Emergency Driver With Self - Test Function Emergency Drive
1 / 5
5-60W LED Emergency Kit Li-ion Battery LED Emergency Driver With Self - Test Function Emergency Drive
5-60W LED Emergency Kit Li-ion Battery LED Emergency Driver With Self - Test Function Emergency Drive
5-60W LED Emergency Kit Li-ion Battery LED Emergency Driver With Self - Test Function Emergency Drive
5-60W LED Emergency Kit Li-ion Battery LED Emergency Driver With Self - Test Function Emergency Drive
5-60W LED Emergency Kit Li-ion Battery LED Emergency Driver With Self - Test Function Emergency Drive

5-60W LED Emergency Kit Li-ion Battery LED Emergency Driver With Self - Test Function Emergency Drive

Send Inquiry

Product Description

Emergency LED Battery Driver Banner
Rechargeable CB listed 5-20W Panel Down Light Emergency LED Battery Driver for Backup Power
LED Emergency Driver Device
Product Specifications
Model FAT-LED-F1E(A)
Product Name LED Emergency Driver
Emergency power 5-20W
Battery 11.1V, 4000mAH, Li-ion
Input voltage 176-265V, 50/60HZ
Emergency time 90 -180min
Protection degress IP30
Warranty 3 YEAR
Dimension L158 x W42 x H25mm
Battery dimension L200 x W36 x H20mm
Battery cycle time >500 times
Charging time 24H
Certificate CE, RoHS, CB
Type of lamp All 5-20W LED lamps with external driver or built-in driver such as led panels, spot light and other lighting fixtures.
Rechargeable 5-20W Panel Down Light CB listed LED Emergency Battery Backup
Adopt special design, which can be applied to all kind of 5-20W lighting fixtures with external or built-in driver. It can make your LED light not only lighting function, but also provide emergency lighting function in case of emergency. It can be used in public places to ensure LED lights work normally when power failures suddenly because of fire and earthquake and etc.. This LED Emergency Module would not influence its environment and power around when it works.
Emergency Driver Certification
Emergency Backup Power System

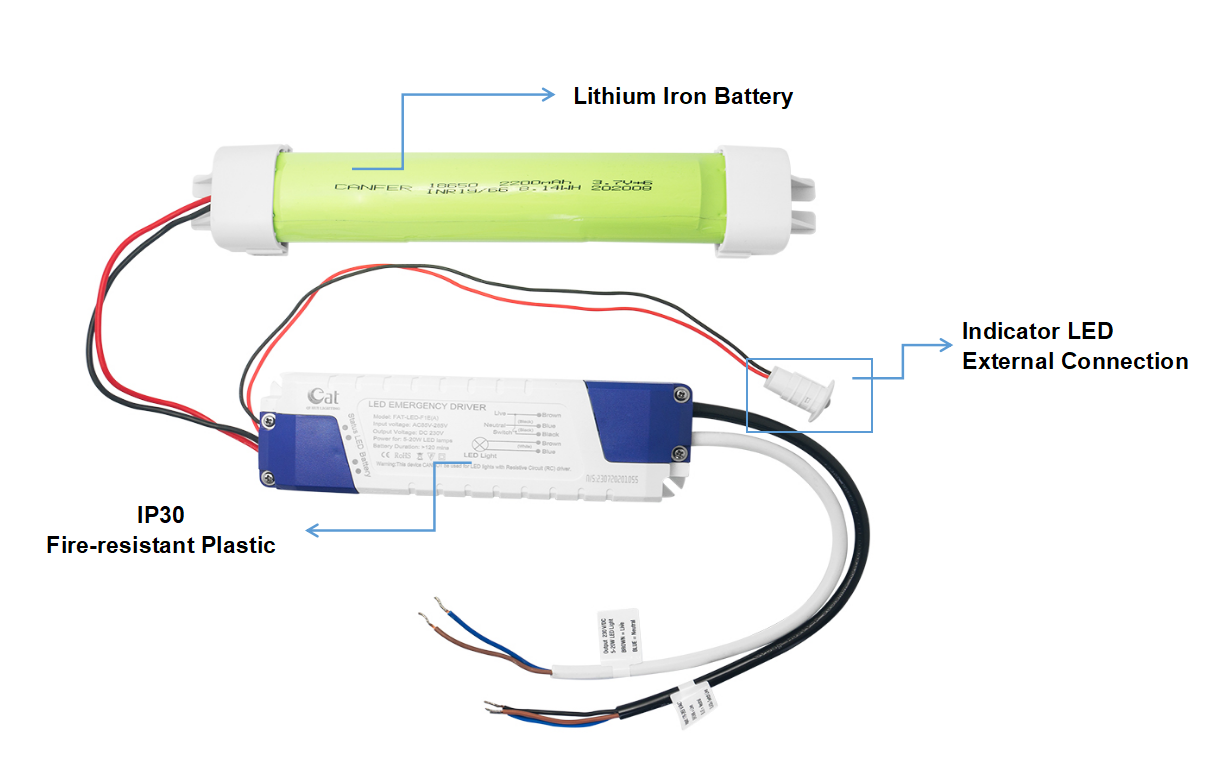

Emergency Power Specifications

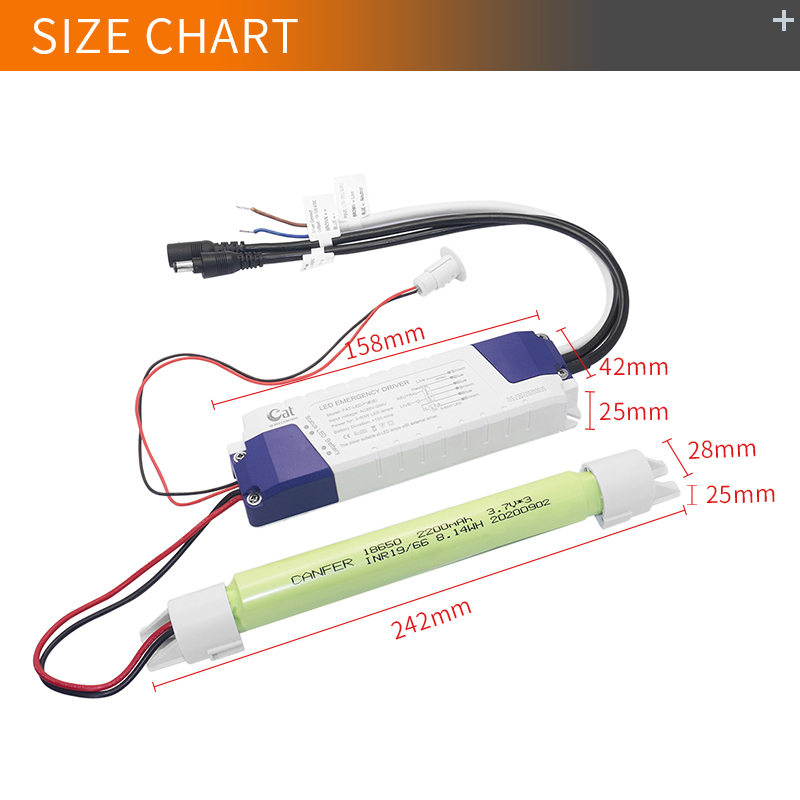

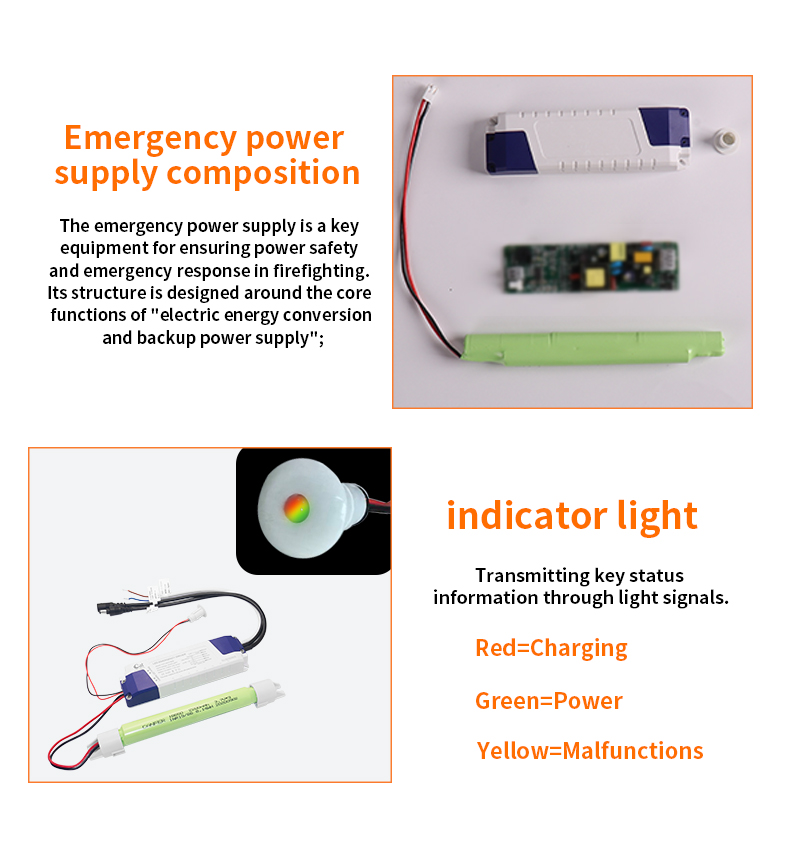

Emergency Kit Construction
Key Features & Components
  • 🔵 Battery: Adopt rechargeable and high capacity Li-ion Battery to realize the longer emergency time.
  • 🔵 Housing: Fire-resistant Plastic.
  • 🔵 PCB: Adopt SMT technology, using IC control design in charging / discharging and power supply part.
  • 🔵 Patent: The patented control circuit is used in Emergency Kits, which makes it faster in conversion and high efficiency of inversion.
Wiring Installation
Wiring Installation Diagram

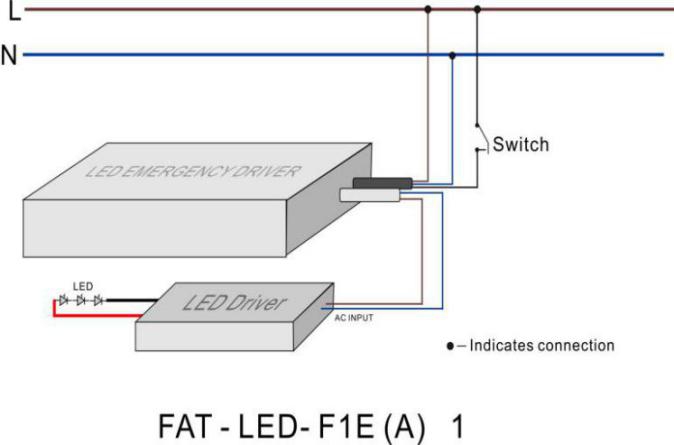

Wiring Mode 1
Mode 1
Suitable for LED light with external LED driver.

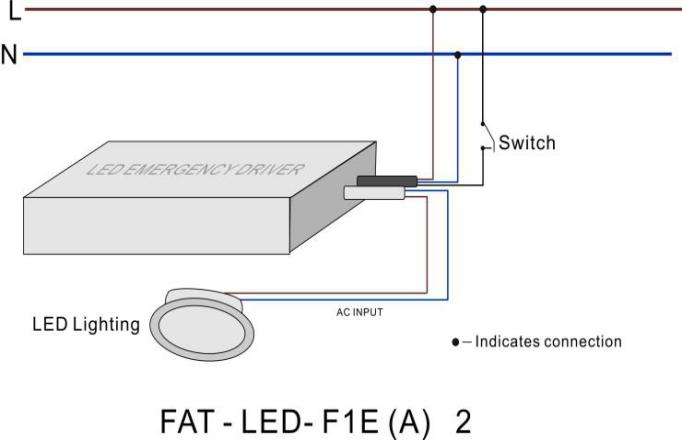

Wiring Mode 2
Mode 2
Suitable for LED light with internal LED driver.
Installation Overview
Driver Application Scenario
If You Have Other Questions, Please "Send An Inquiry".
Product Gallery
Emergency Backup Power Pack
Rechargeable LED Battery Driver
CB Listed Backup Driver
Emergency Battery Backup Pack
LED Battery Driver Features
LED Emergency Battery Details
Driver Application Specifications
Frequently Asked Questions (FAQ)
What type of lights is this LED emergency driver suitable for?
It is designed for all 5W to 20W LED lamps with either external or built-in drivers, including LED panels, spotlights, downlights, and other commercial lighting fixtures.
How long does the backup battery run in emergency mode?
The driver features a high-capacity 11.1V 4000mAh Li-ion battery, providing an emergency illumination runtime of 90 to 180 minutes depending on the load configuration.
What are the charging and cycle capabilities of the battery?
The built-in Li-ion battery requires a full charging time of 24 hours and is rated for a cycle life of more than 500 charge-discharge cycles.
Can this emergency driver be used for both internal and external LED drivers?
Yes. The system is designed to support two installation modes: Mode 1 is optimized for LED lights with an external driver, and Mode 2 is designed for LED lights with an internal driver.
What safety certifications and protections does this backup driver have?
This product holds CE, RoHS, and CB certifications. It uses a fire-resistant plastic housing (IP30) and an intelligent PCB layout with IC control to manage charging and discharging safely.
What is the warranty coverage for this emergency LED driver?
The LED emergency driver comes with a 3-year warranty covering reliability and performance standards under recommended operations.
