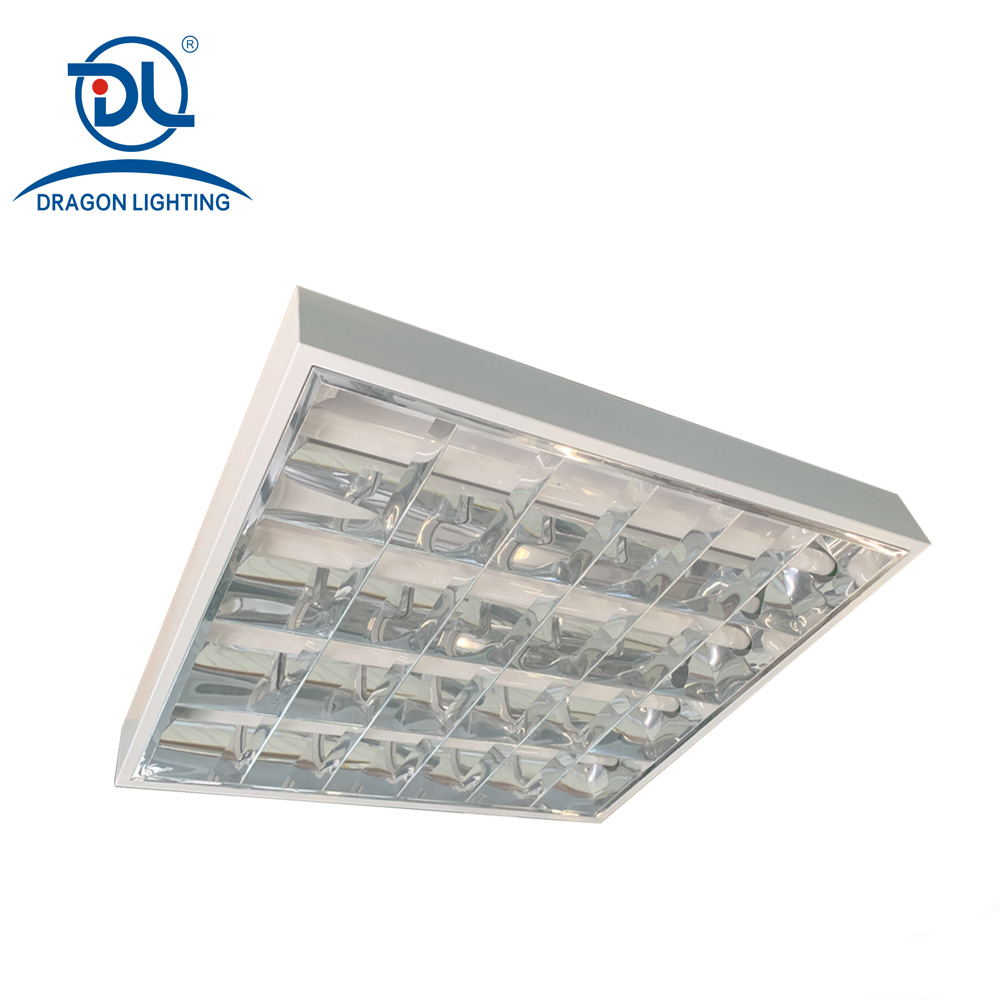

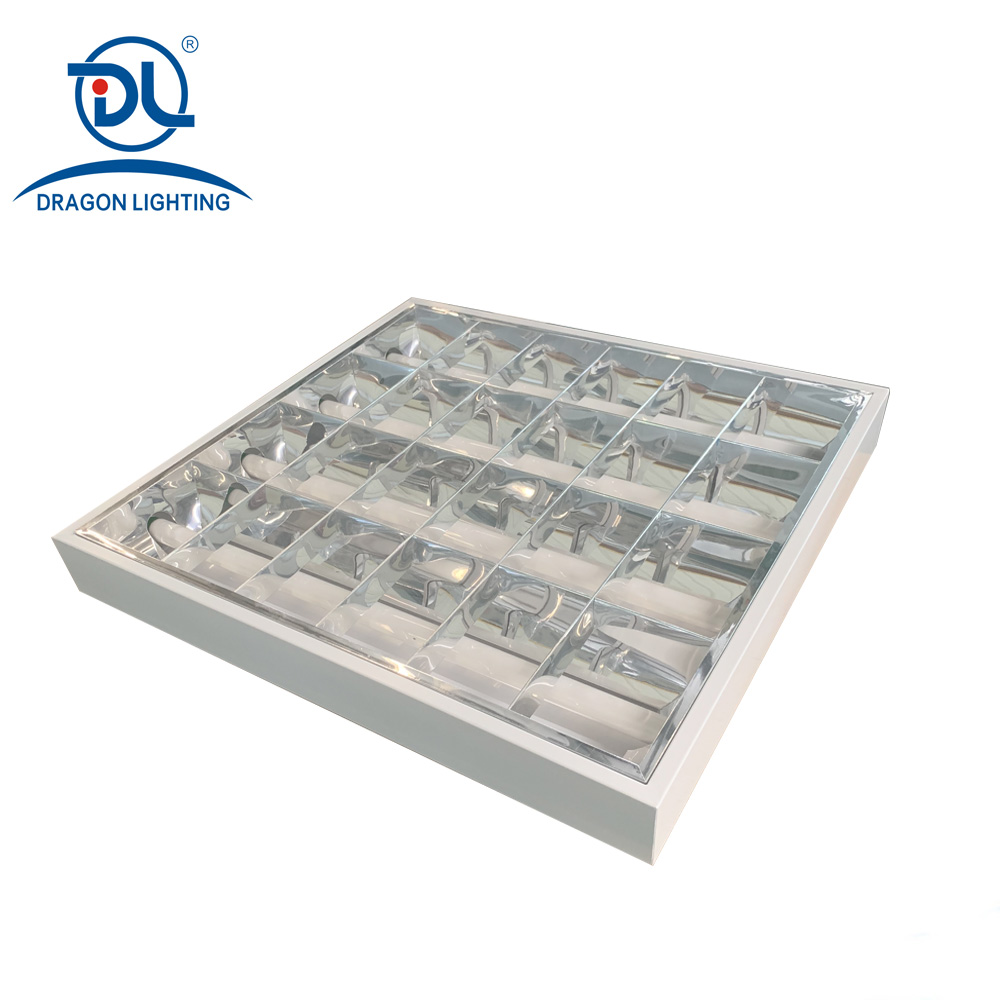

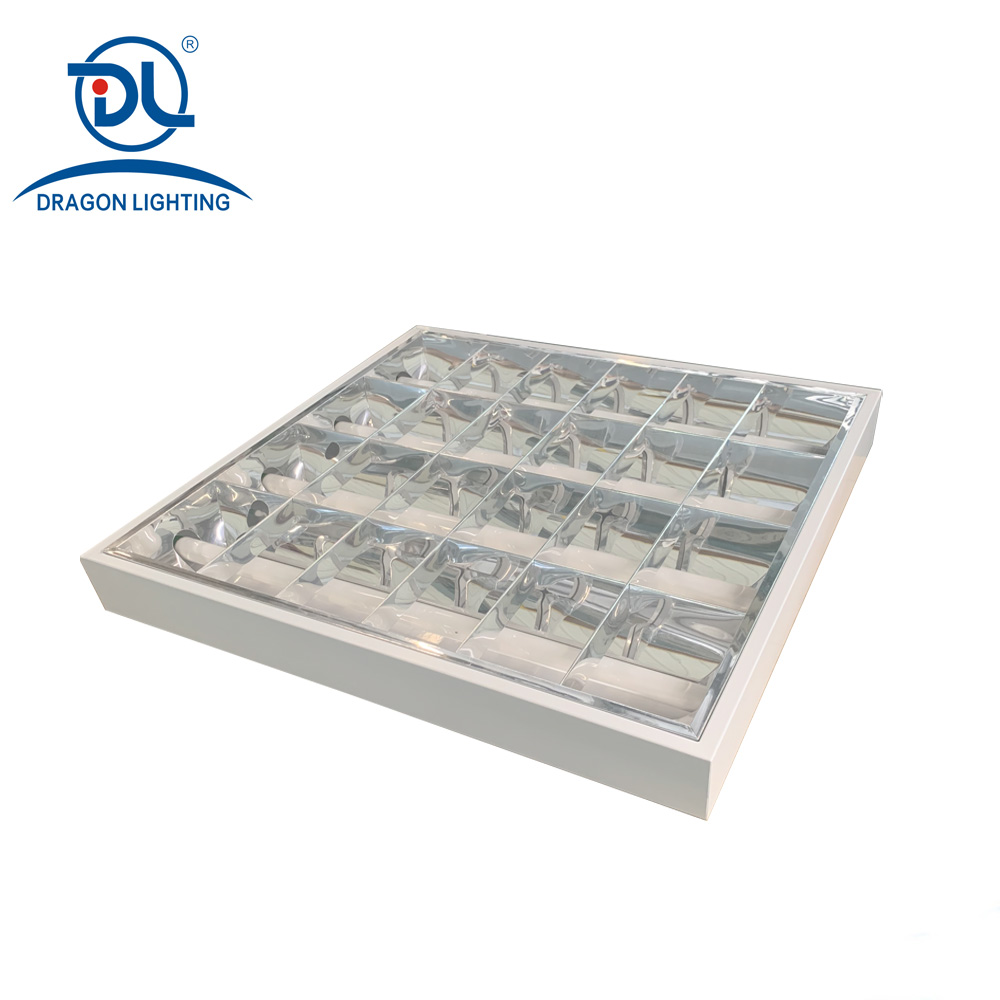

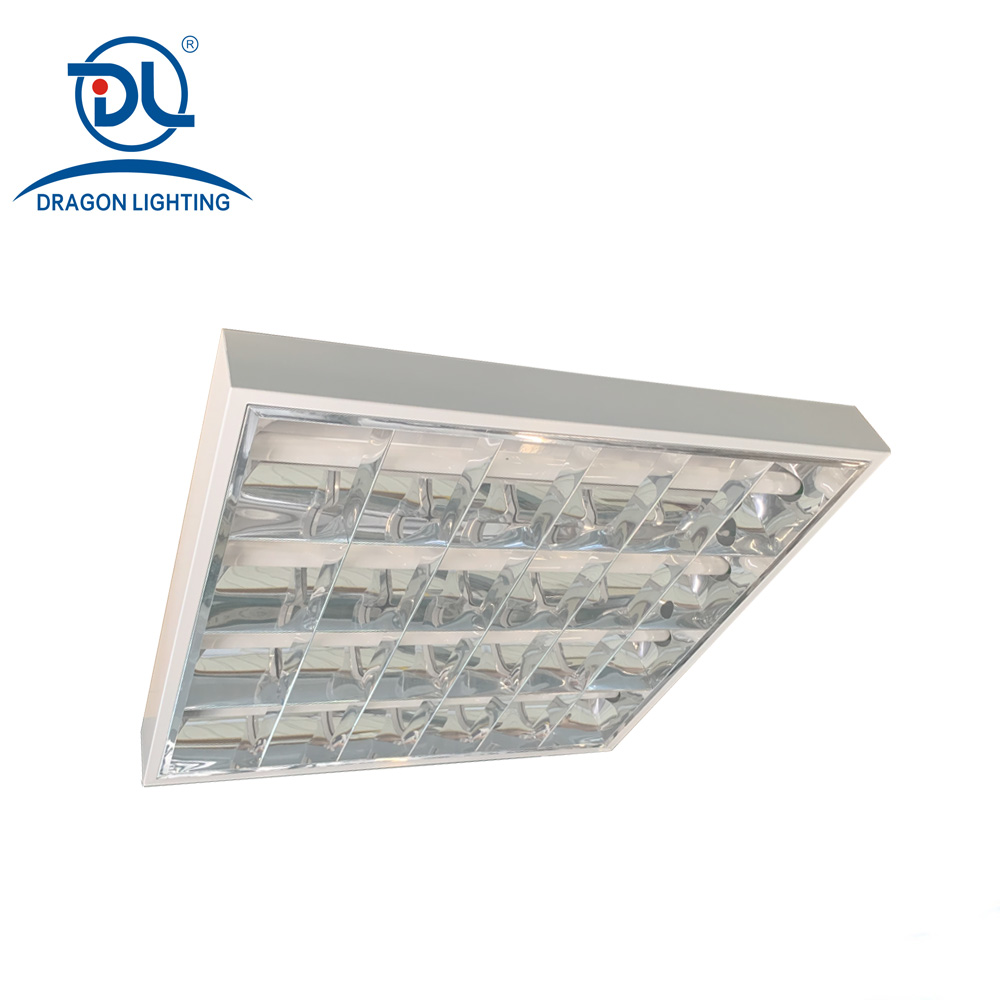

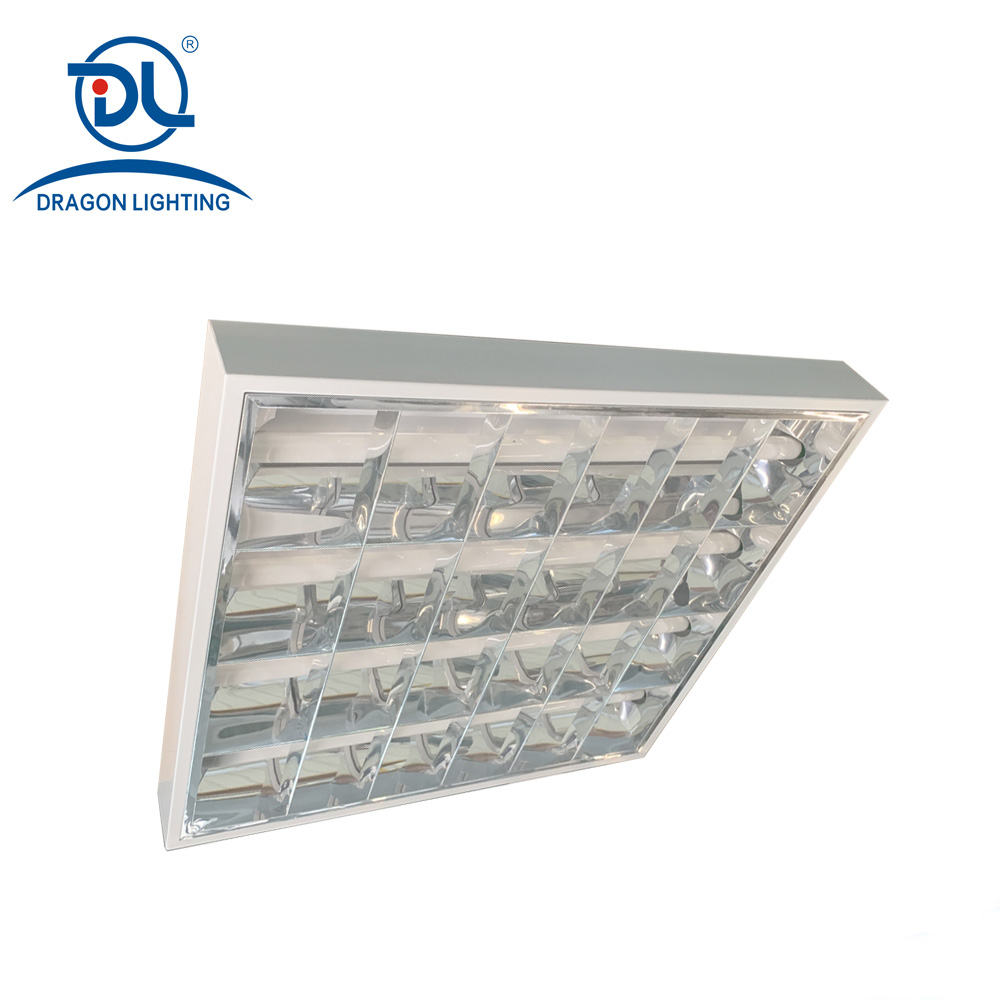

4X8W Recessed Louver Type Troffer Fixture Office T8 Led Grille Fluorescent Light Fixture

Product Description

4X8W Recessed Louver Type Troffer Fixture Office T8 Led Grille Fluorescent Light Fixture
Technical Data
Model
DLS5-408
Fixture Dimension
620X600X80mm
Output Power
32W
Luminous Flux
3200lm
Light Efficiency
10lm/W
LED Type
T8 8W LED Tube
CRI
>80
CCT
3000k-6500k
Rated Input
220-240V
Beam Angle
160°
Certification
CE / ROHS / SAA
Warranty / Lifetime
30000 hours
Separator Line
Product Description & Features
Housing Design

High quality steel housing, rust and oil removed, under anti-rust treated and rust proof for 8-10 years under normal application, white/black/grey powder coating. Louvre is made of high quality of Aluminium, it has 80-95% reflection, and the UGR is lower than 16.

Diffuser

The light designed by the LED stripe with Polycarbonate cover together, high efficiency and no glare, it will give novel visual effect and soft luminosity.

LED Source & Mounting

It uses energy-efficient T8 LED Tubes. Designed for convenient surface mounting installations.

Main Applications
  • Hotel / Hospital / Supermarket
  • Conference / Meeting room / Factory / Office
  • Bank / Institution Building
  • School / College / University
Separator Line
Key Advantages
Save Energy

Energy saving, saving 65% than the traditional lights at the same brightness.

Lower Glare

Unique double parabolic grille designed according to the principle of optics, it can effectively prevent and eliminate all kinds of glare, preventing long-term eye fatigue.

Easy to Install & Long Life

The light is designed for easy ceiling installation. Effective heat dissipation provides enough space to ensure a long lifespan of more than 50,000 hours.

Specifications
Model Power (W) LED Tube Luminous Flux (lm) Efficiency (lm/w) CRI CCT
DLS5-408 32 T8 3200 100 80 3000k-6500k
Packing Details
Model Dimension (L*W*H) (mm) Packing Size (mm) Qty/Ctn
DLS5-408 620X600X80 635X615X175 2
Product Details
Details Separator
Makes the light no leakage, and the efficiency of the light is fully utilized without loss.
No Leakage Design Detail
The light is connected with frame and housing by special design. It is easy for the client to open and maintain.
Easy Maintenance Connection Detail
About Us

Concentrating on product quality and customer service remains our core principle, with innovation and good faith as our constant objectives. By building a professional technical team drawing from extensive practical experience and close customer cooperation, we consistently enhance our competitive edge. Our commitment is providing customers with high-quality products and satisfactory service. Customer satisfaction is our unremitting pursuit.

Quality Control
Certifications
CE ROHS SAA Certifications
Frequently Asked Questions
Q1: Can I have a sample order for LED light?

A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

Q2: What about the lead time?

A: Samples need 3-7 days, while mass production requires 1-2 weeks depending on the order quantity.

Q3: Do you have any MOQ limit for LED light orders?

A: A minimum order quantity of 1pc for sample testing is available.

Q4: How do you ship the goods and how long does it take to arrive?

A: We typically ship via DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

Q5: How to place an order for LED light?

A: Firstly, let us know your requirements or application. Secondly, we quote according to your needs. Thirdly, the customer confirms the samples and places a deposit for the formal order. Fourthly, we arrange production.

Q6: Are you a factory?

A: Yes, we are a factory with more than 80 employees, and a factory area of over 8000 square meters.
