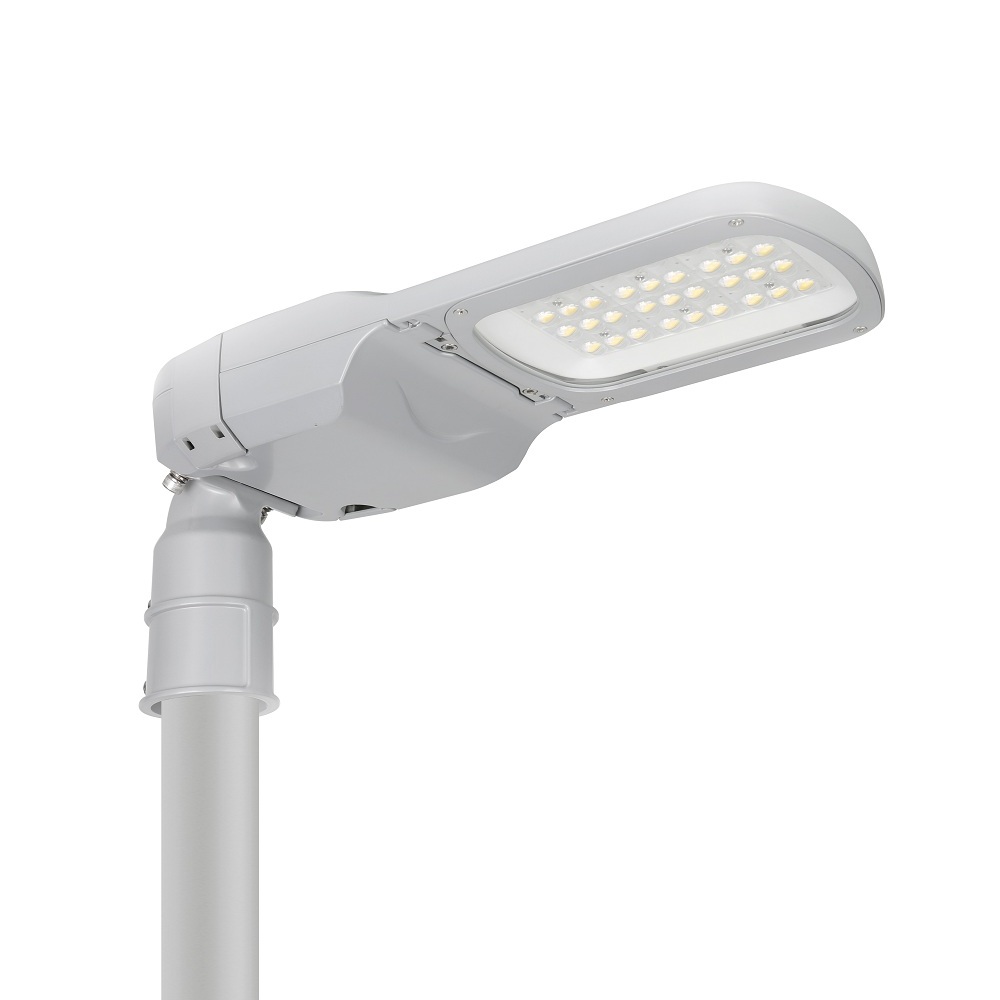

New Trends Smart Street Light Controller LORA Street Light LED 30W 50W with Intelligent Street Light Control

Product Description

`

New Trends Smart Street Light Controller LORA Street Light LED 30W-250W with Intelligent Street Light Control

New Trends Smart Street Light Controller LORA Street Light LED 30W 50W with Intelligent Street Light Control

Product Features of L36 LED Street Light

  • High pressure die-cast aluminum alloy housing from 30W to 250W.
  • Substantial friction resistant powder spraying process surface treatment.
  • Adopt multi-chips package 5050 LEDs. Stable performance, single unit’s damage won't affect others' normal work.
  • Smooth back, self-cleaning design tempered glass cover.
  • Optical lens design. Type I, II-M, III, III-S, III-M, III-L, IV-S, V optional. Uniform lighting distribution apply to different lighting projects.
  • Excellent operating temperature -40~50°C.

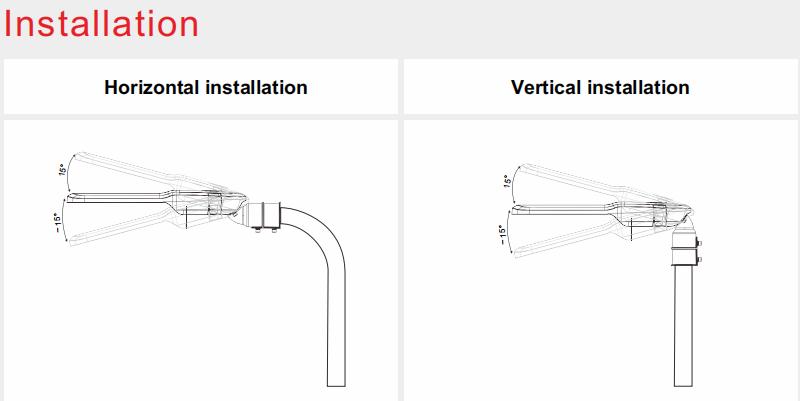

  • -15~15° adjustable bracket applicable different mounting arm.
  • With excellent housing design reach IP66/IK08 rating.
  • Automatic cut-off design. 10KV/20KV SPD.
  • Dimming and smart lighting system available upon request.
  • Long service life over 100,000 hours, 5 years warranty.

Specification of L36 LED Street Light

Name Nominal Value
Type LY-L36-30 LY-L36-50 LY-L36-80 LY-L36-100 LY-L36-120 LY-L36-150 LY-L36-180 LY-L36-200 LY-L36-250
Power 30W 50W 80W 100W 120W 150W 180W 200W 250W
Luminous Efficiency 150-170lm/w
CCT 3000K/4000K/5000K/6000K
Brand of driver MOSO/Sosen/Inventronics/Tridonic
Brand of Chips Lumileds 5050/Lumileds 3030
LED Qty. 24pcs 36pcs 48pcs 54pcs 72pcs 72PCS 120PCS 120PCS 120PCS
Beam Angle Type I, II-M, III, III-S, III-M, III-L, IV-S, V
IP Rate IP66
Voltage AC 90-305V
Inclination Angle -15~15°
Working Environment -40℃~50℃, 20%~90% RH
Storage Temperature -40℃~85℃ 10%~90% RH
Driver Efficacy 0.92
PF >0.98
Lifetime >50,000 Hours
Size of light pole φ40-60mm
SPD 10KV/20KV

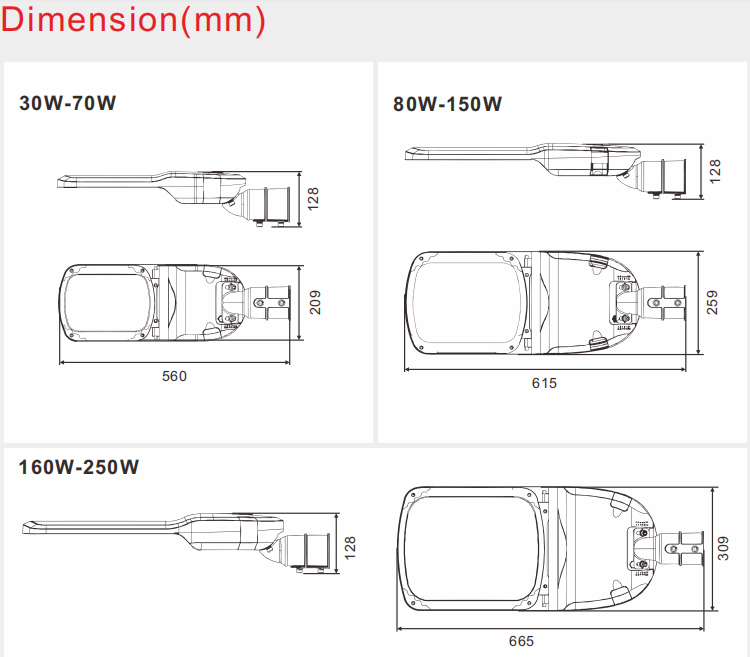

Size of Lamp 560x209x128mm 615x259x128mm 665x309x128mm
N.W. 3.3KG 5.2KG 5.3KG 5.6KG 5.7KG 7.1KG 7.1KG 7.1KG

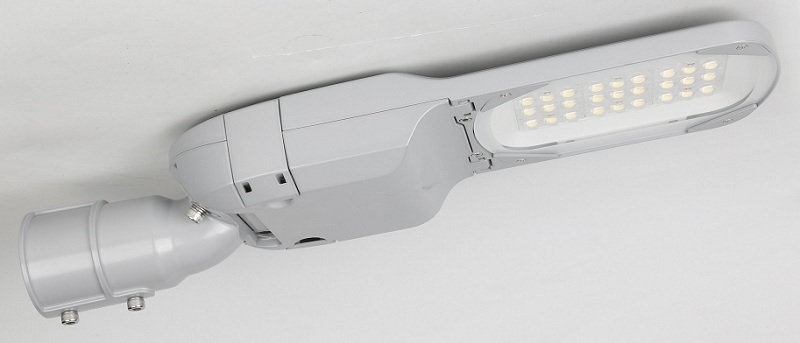

The detail pictures of LED street light 30w-250w series.

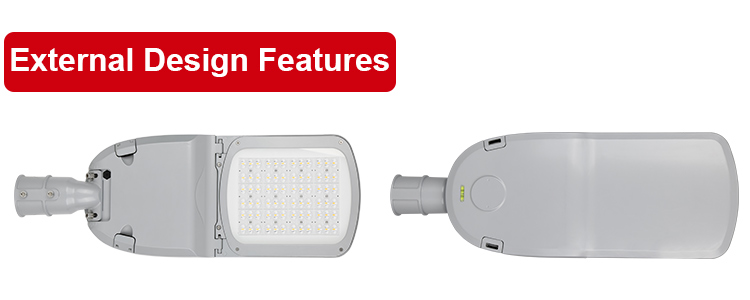

Smart street light details

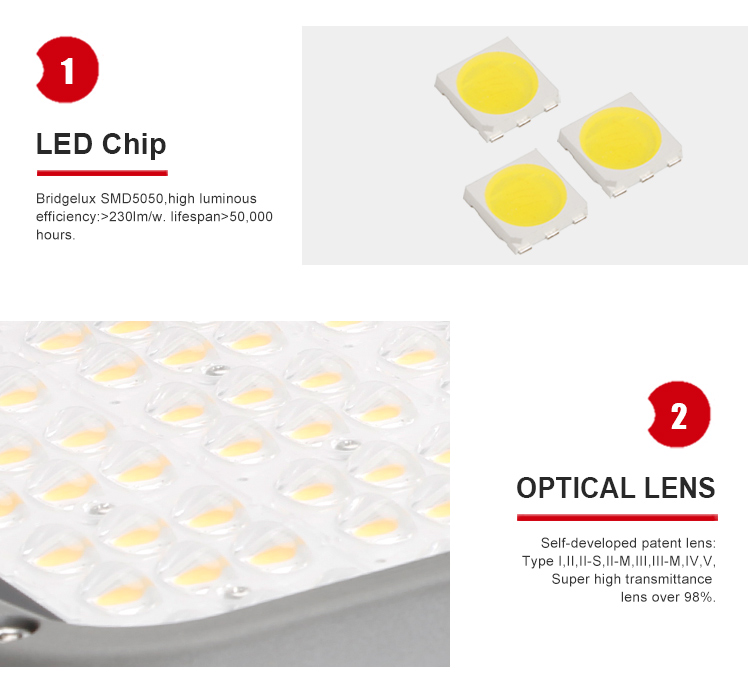

Intelligent LED street light design
High power LED street light structure

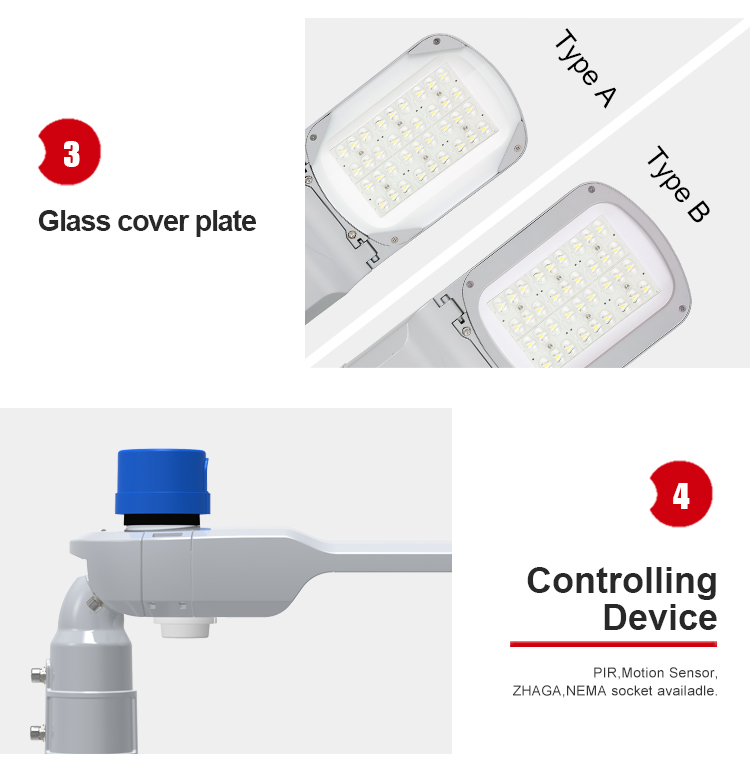

LORA street light components
Smart lighting controls details

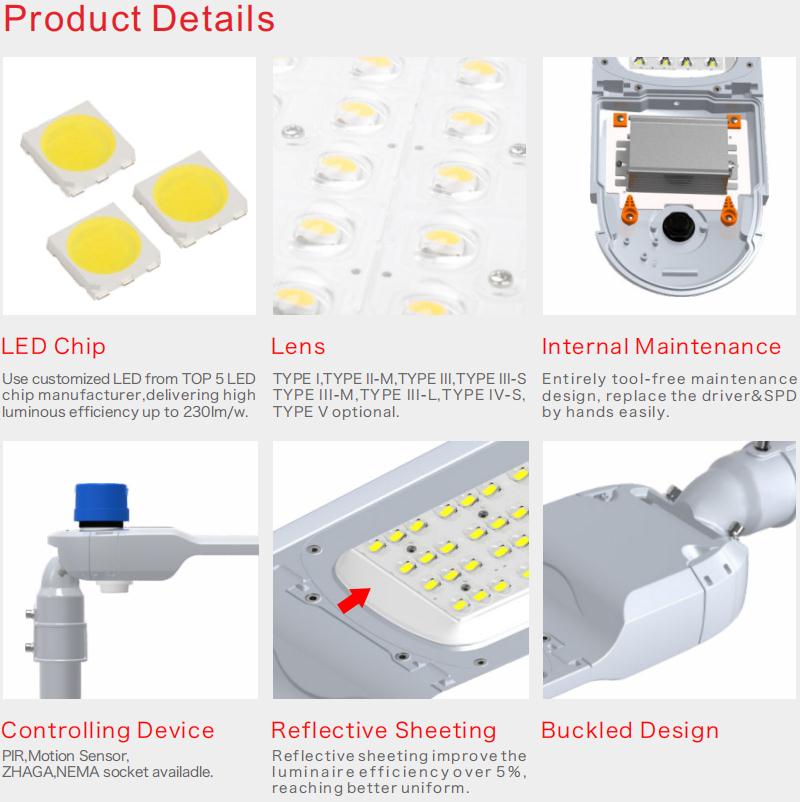

Adjustable street light bracket

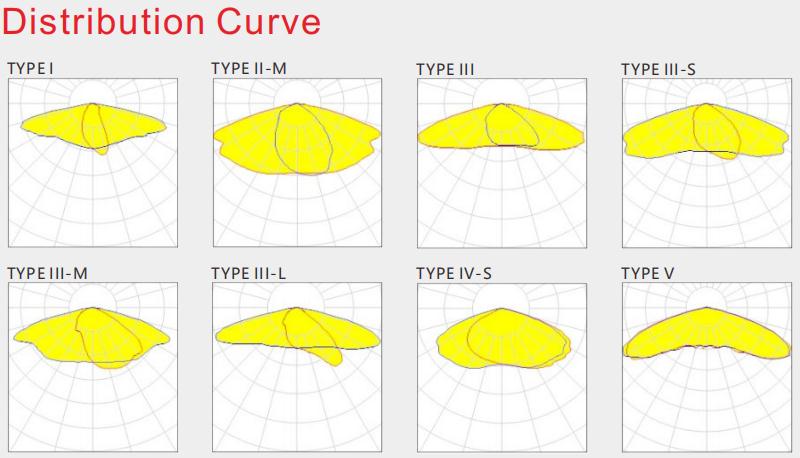

Optic lens distribution

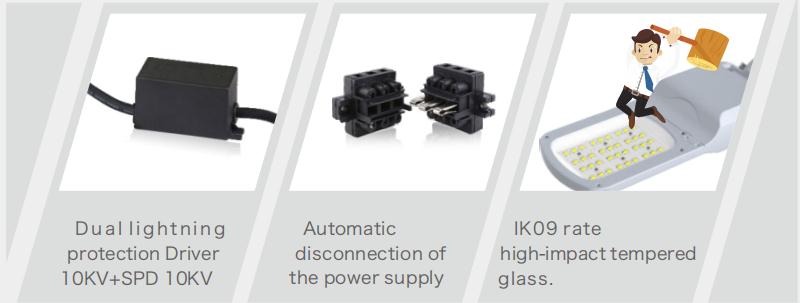

SPD device protection
LED driver performance

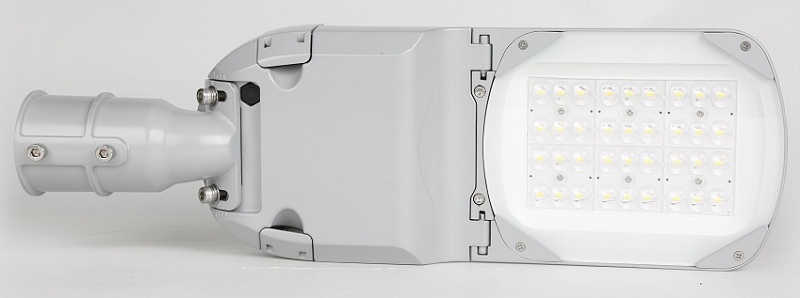

Tempered glass cover

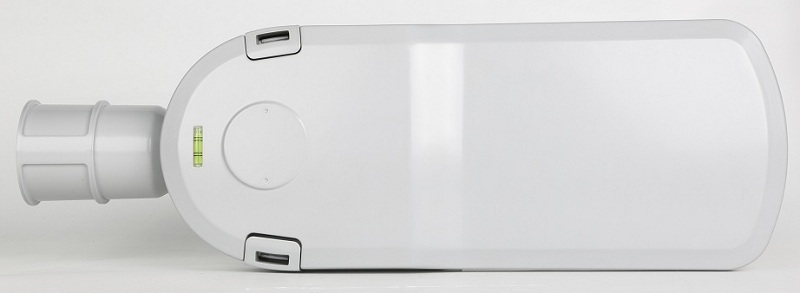

Self-cleaning smooth back design

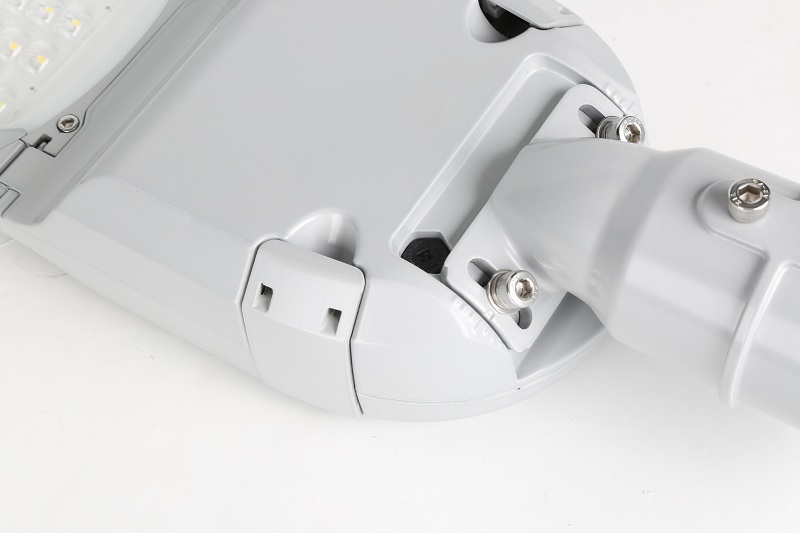

High pressure die-cast aluminum housing

Smart LORA control system ready

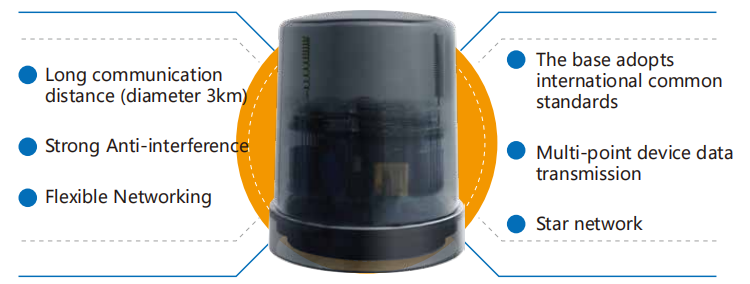

LORA control diagram

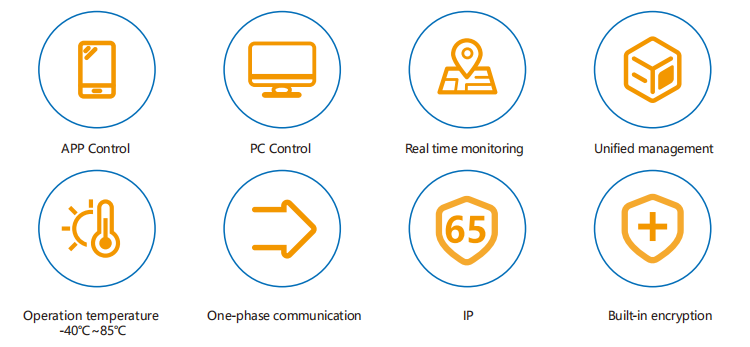

Smart street lighting controller configuration

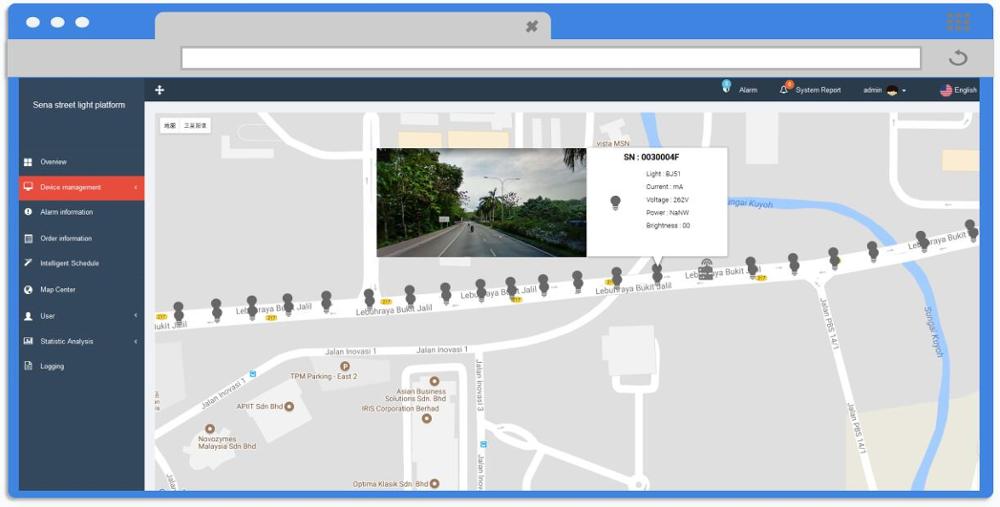

Intelligent street light interface
Smart street lighting controller architecture
Remote management system console
Controller installation guide
Smart lighting controller setup

Professional Manufacturing and Technical Strength

Founded in 2008, the enterprise is a professional comprehensive LED lighting organization engaged in high power LED encapsulation, optical design, and LED lighting R&D. It has been honored as a national high-tech enterprise, Top 100 LED Lighting Application Enterprise, and Top 100 Up-and-Comer Private Unlisted Company.

With more than 16,000 square meters modern production plant and ten thousand-grade static dust-free workshop, the manufacturer is one of the few companies that possess strong independent R&D and innovation capabilities. Our R&D team holds many national patents, which enables us to offer customers professional LED lighting solutions. We strictly execute the ISO9001:2008 quality management system, and most of our products have passed international standard certifications.

UL ETL DLC SAA CB CE RoHS ENEC LM-80 LM-79 CQC
Manufacturing workshop and qualifications
Trading Conditions
  • 1. Payment: 30% deposit by T/T or Western Union; 70% before delivery.
  • 2. Delivery time: 10-15 days for 50pcs; 15-25 days for 500pcs.
  • 3. Samples time: 5 days.
  • 4. Shipping terms: FOB.
  • 5. Discounts: Determined by order quantity.
  • 6. Cooperation: Distributors are highly welcome to cooperate with us.
Quality Control & Warranty
  • 1. Material Check: Verify raw materials & color temperature prior to production.
  • 2. Tracking: Monitor every production phase from inception.
  • 3. Cleaning & Inspection: Each LED light is thoroughly tested & cleaned before packaging.
  • 4. Third-party QC: Clients can assign standard QC inspectors or third parties prior to shipment.
  • 5. Warranty Coverage: 3 or 5 years warranty with free replacements/rework based on valid proof-documents.

Frequently Asked Questions

Q1 Can we make our own label on the sample lights?
Yes, we support both OEM and ODM services. We can produce custom labels according to your precise requirements and apply them directly to sample configurations.
Q2 Our project is on the seaside, what if your lights are corroded by seawater?
Our street lights are engineered with high corrosion-resistant aluminum alloy. Additionally, the surface undergoes advanced electrostatic powder spraying and electrophoresis treatments, protecting the fixture housing from salt water and coastal corrosion effectively.
Q3 I really would like to try a sample first, is that possible?
Absolutely. Our Minimum Order Quantity (MOQ) is only 1 piece. Evaluating our products via samples is the best way to build confidence and establish a long-term, mutually beneficial relationship.
Q4 We now have outdoor projects that need lighting design. Can you help us?
Yes, as a specialized manufacturer of high-power outdoor LED lights, our engineering and design teams can supply professional lighting solutions. If you prefer to run designs on your own, we can also provide standard IES files.
Q5 I have a street/highway project, what information is required to get a suggestion?
To design the optimal solution, please provide the following details:
  • A: The width of the street or highway.
  • B: The spacing arrangement and the height of the light poles.
  • C: The target illumination (lux) requirements.

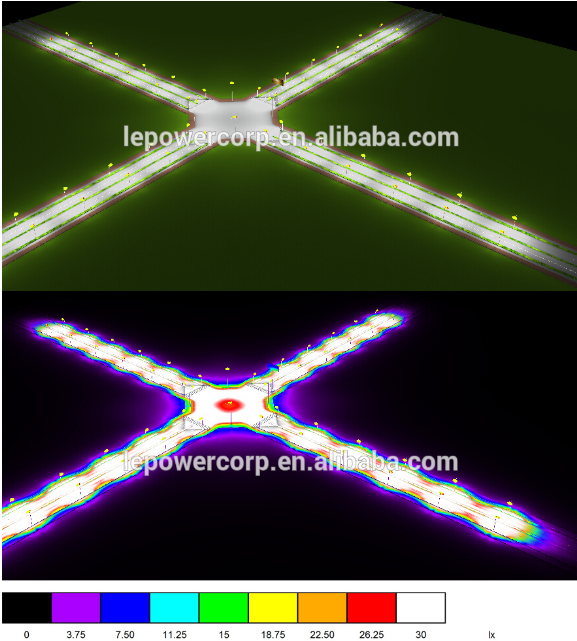

Highway lighting layout requirements
Street pole spacing details
Q6 What standards and certifications do these LED street lights comply with?
Our smart LORA LED street lights are compliant with high-tier global standards. They hold multiple certifications including ENEC, CE, RoHS, CB, ETL, and DLC to guarantee excellent safety, performance, and long-term durability.
