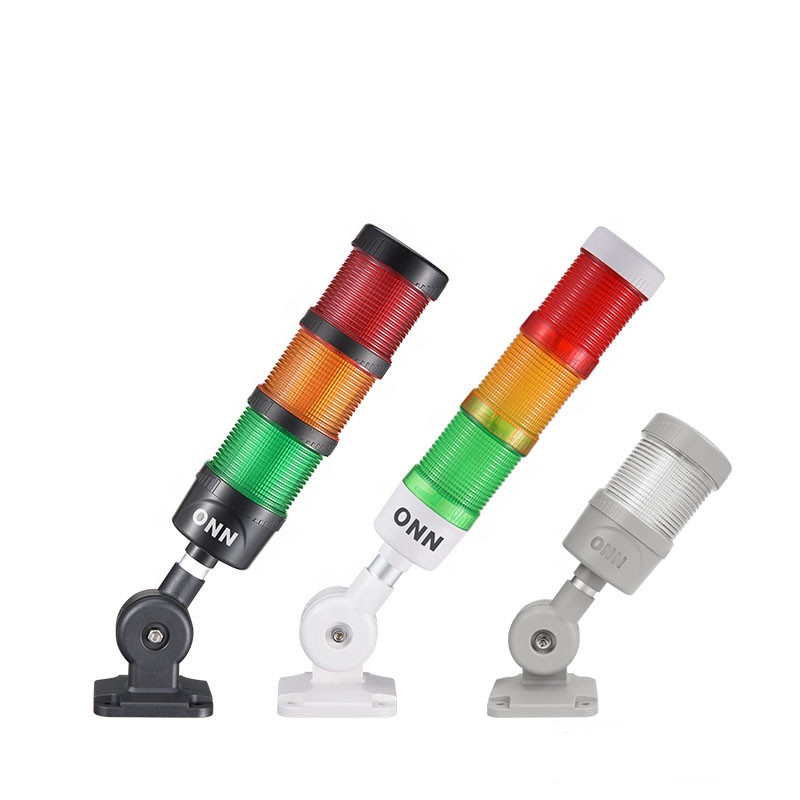

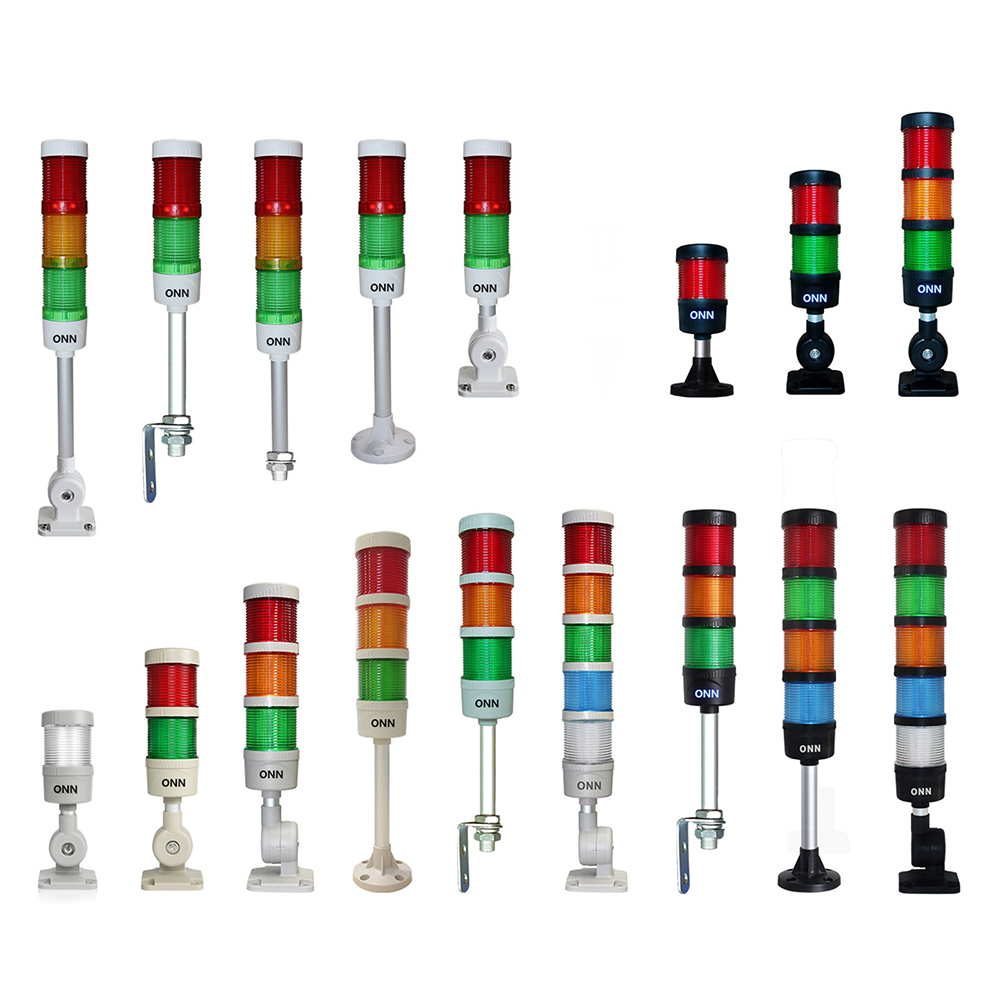

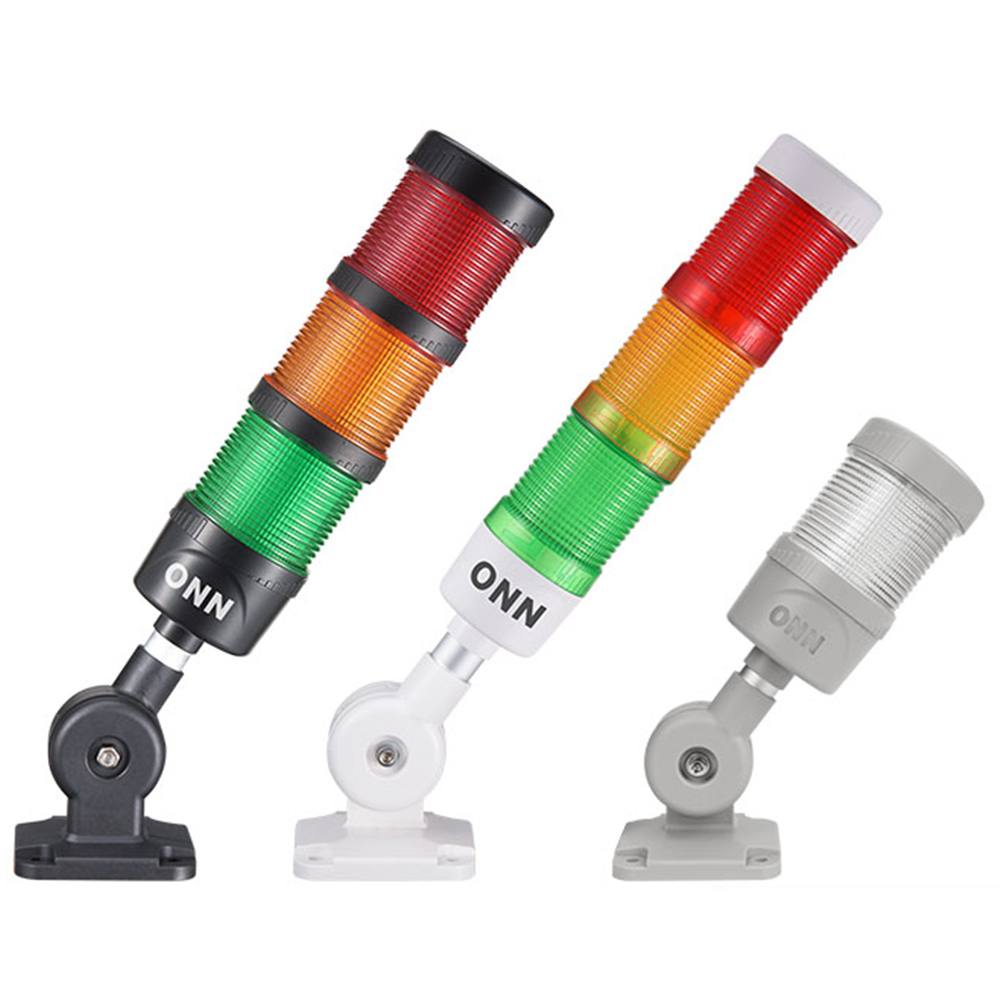

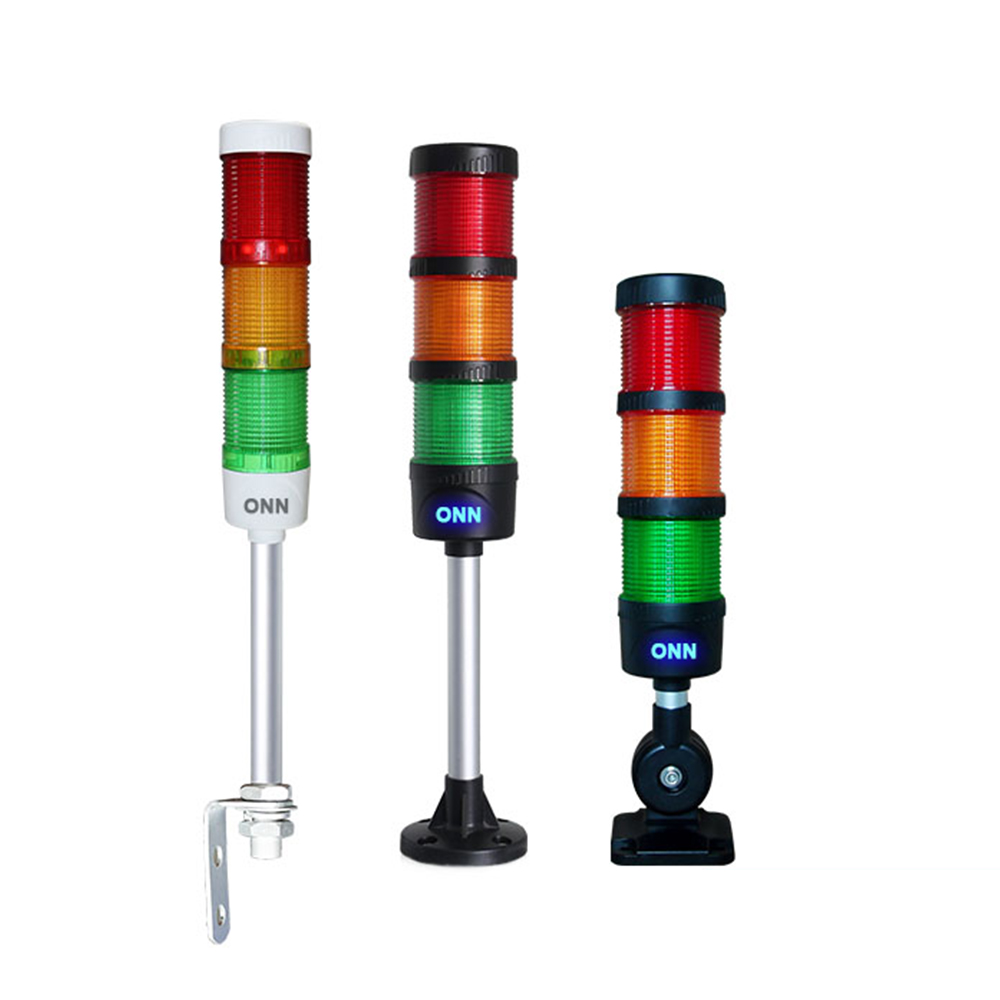

ONN-M4 Multi-layer Multi-color RYGBW Cnc Work Light Signal Lamp Signal Tower Light

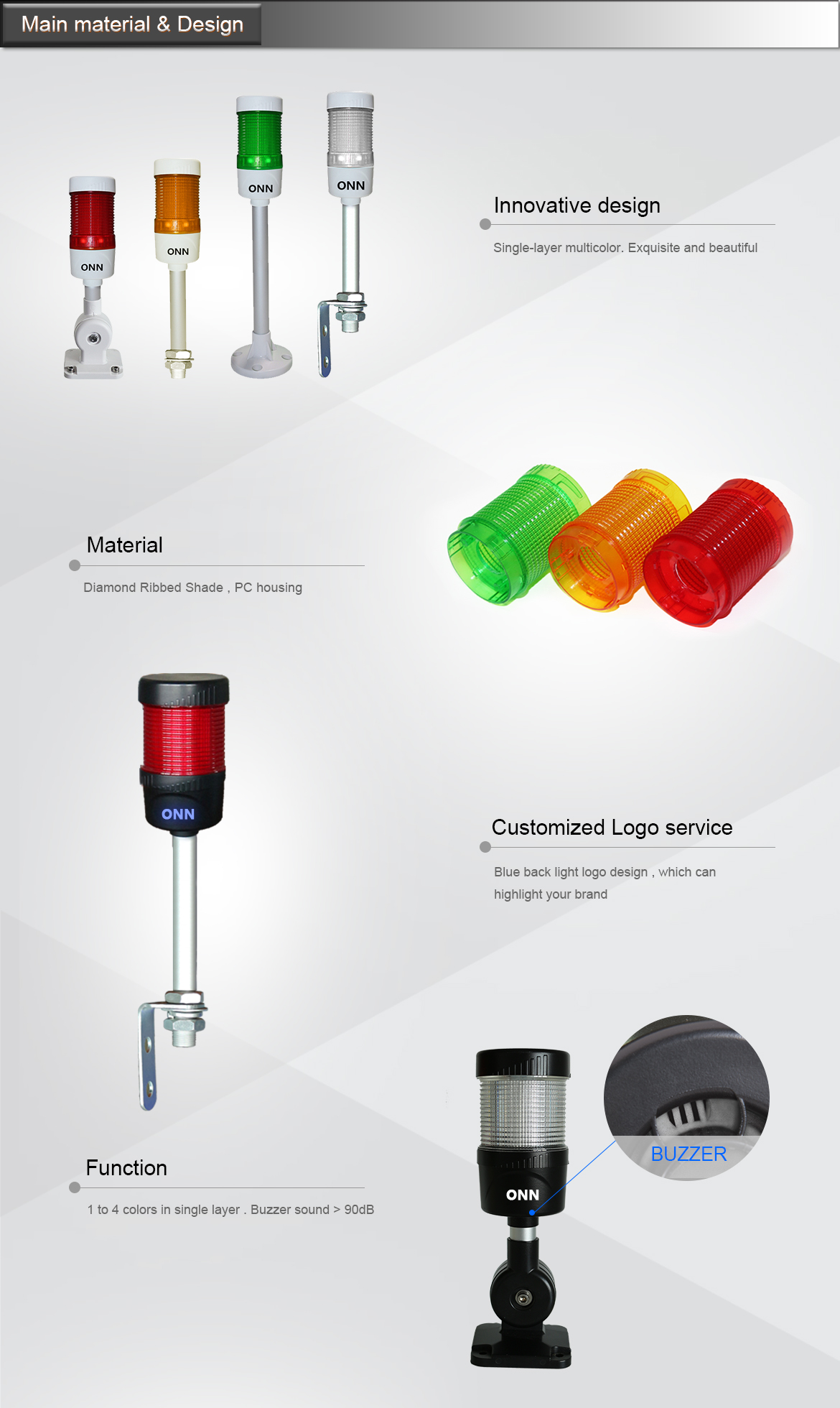

Product Description
Features
Traditional design, multi-layer and multi-color available.
Buzzer optional, volume louder than 85dB.
High brightness LED chip, long lifetime and low decay.
Three kinds of base are available, easy to install.
Pole length can be customized.
Specifications
Model Key: ONN-M4 [1] [2] [3] [4] [5] [6] [7]

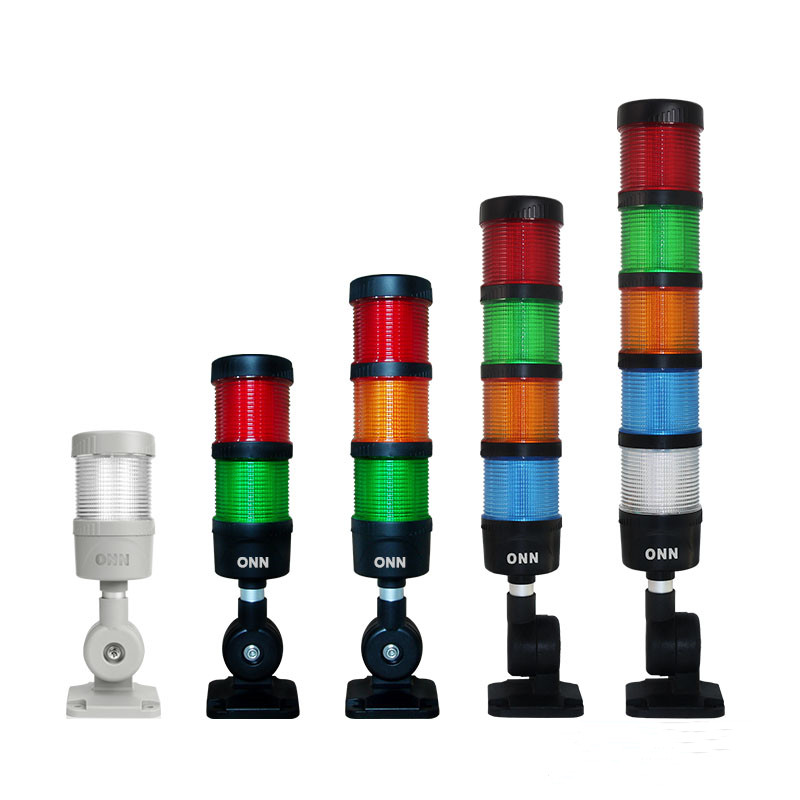

1. Layer
1: Single layer, 2: Two layers, 3: Three layers, 4: Four layers, 5: Five layers
2. Mounting Type
A: Foldable type, C: Pole and plate, E: L bracket
3. Voltage
A: DC12V, B: DC24V, C: AC100-240V (50/60Hz)
4. Function
B: Steady, F: Steady with buzzer, S: Red flash, C: Red flash with buzzer, D: All flash, E: All flash with buzzer
5. Connect Type
C: Contact type, T: PNP & NPN
6. Color
R: Red, Y: Yellow, G: Green, W: White, B: Blue
7. Diameter
60: φ60mm, 70: φ70mm

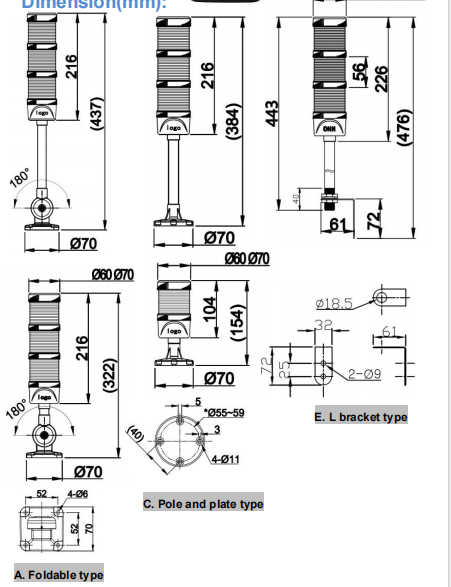

Producing Size Drawing

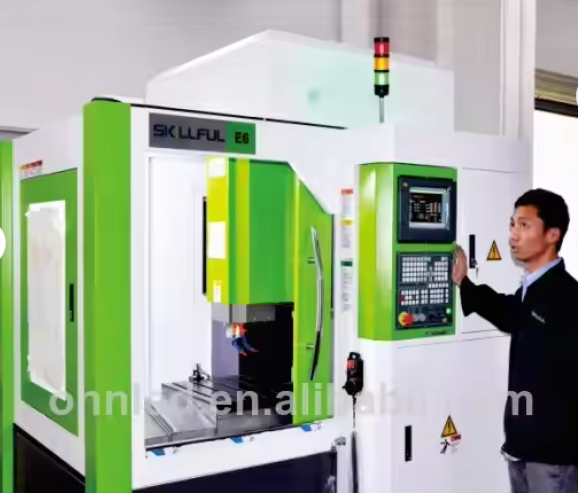

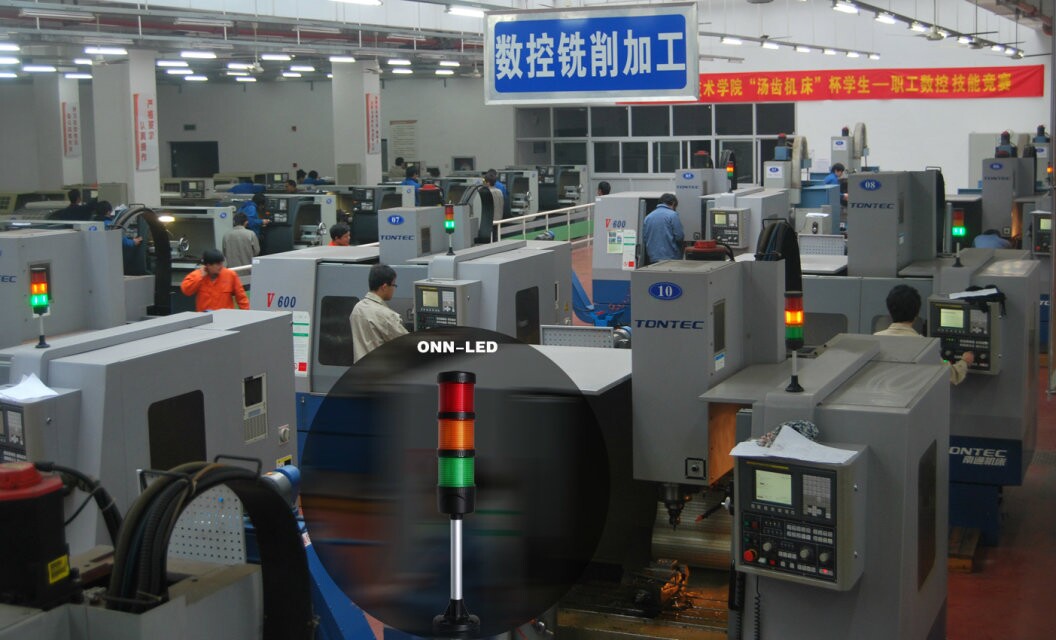

Application

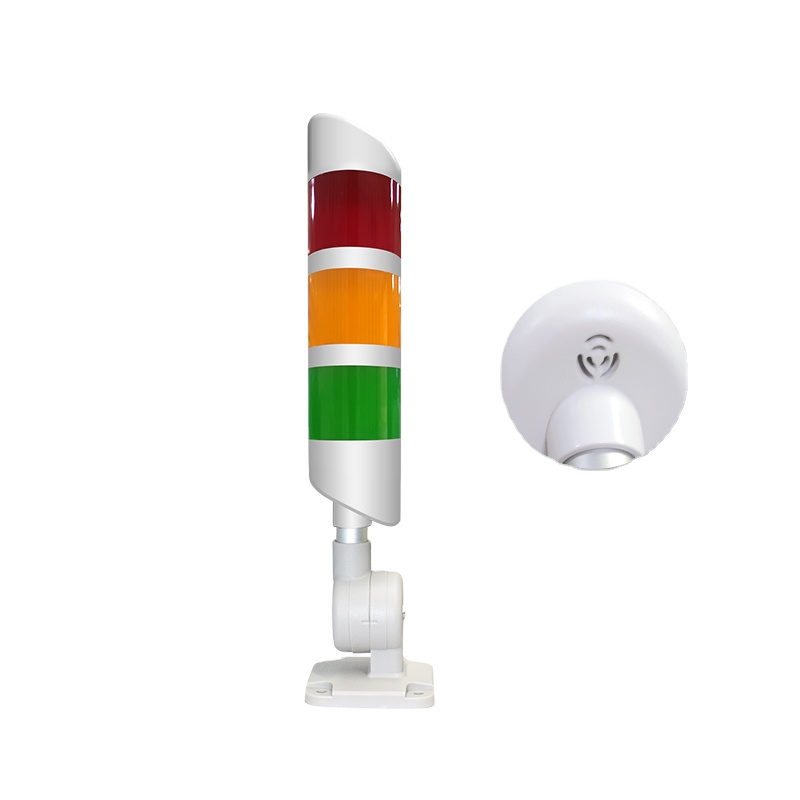

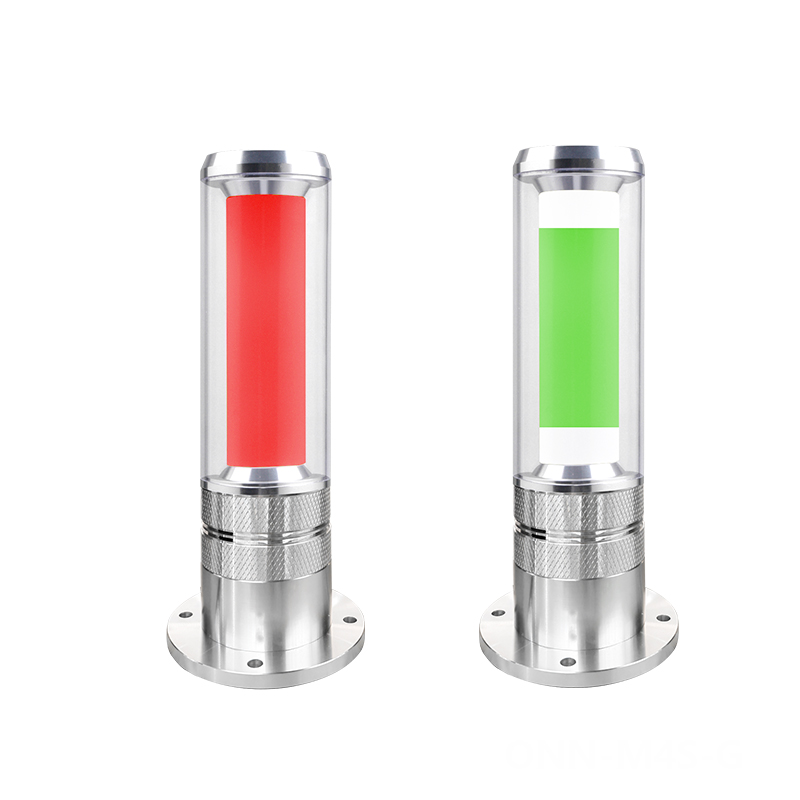

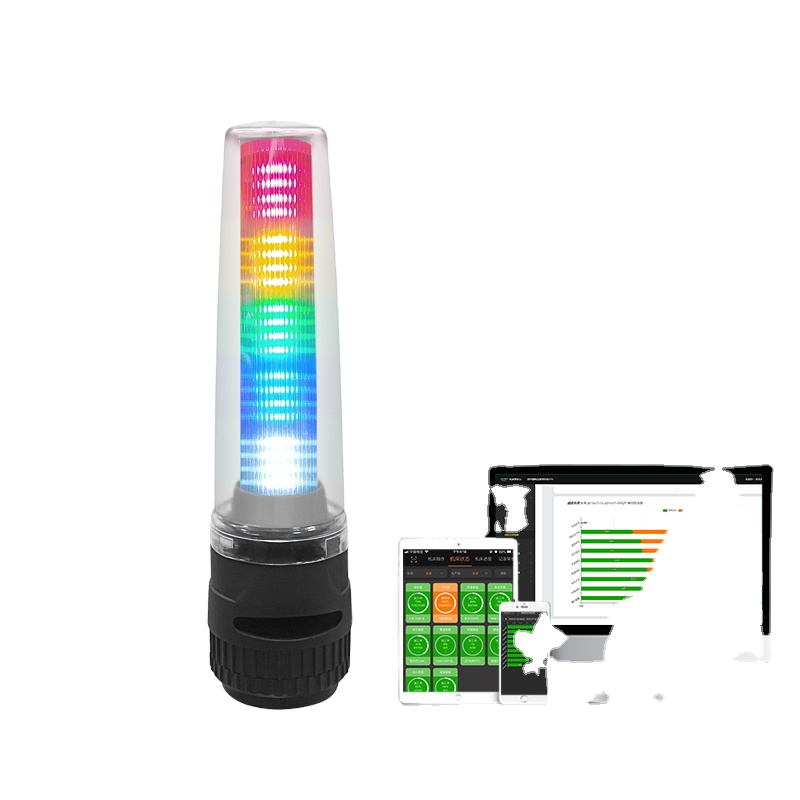

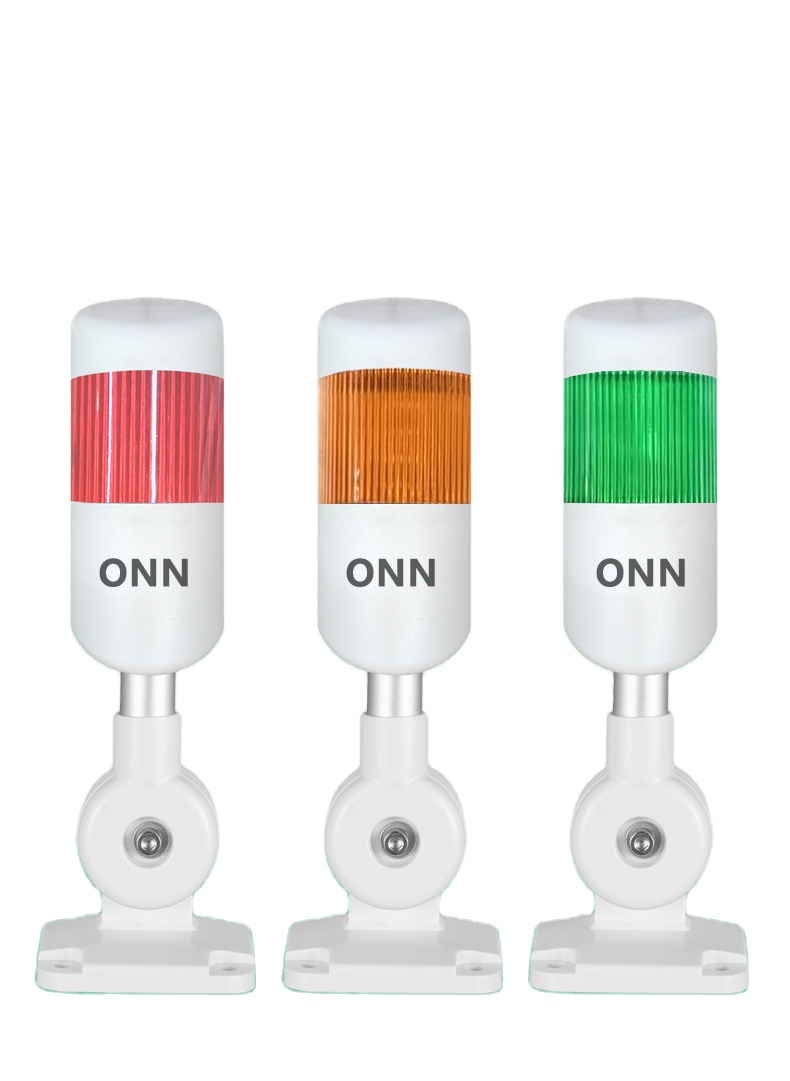

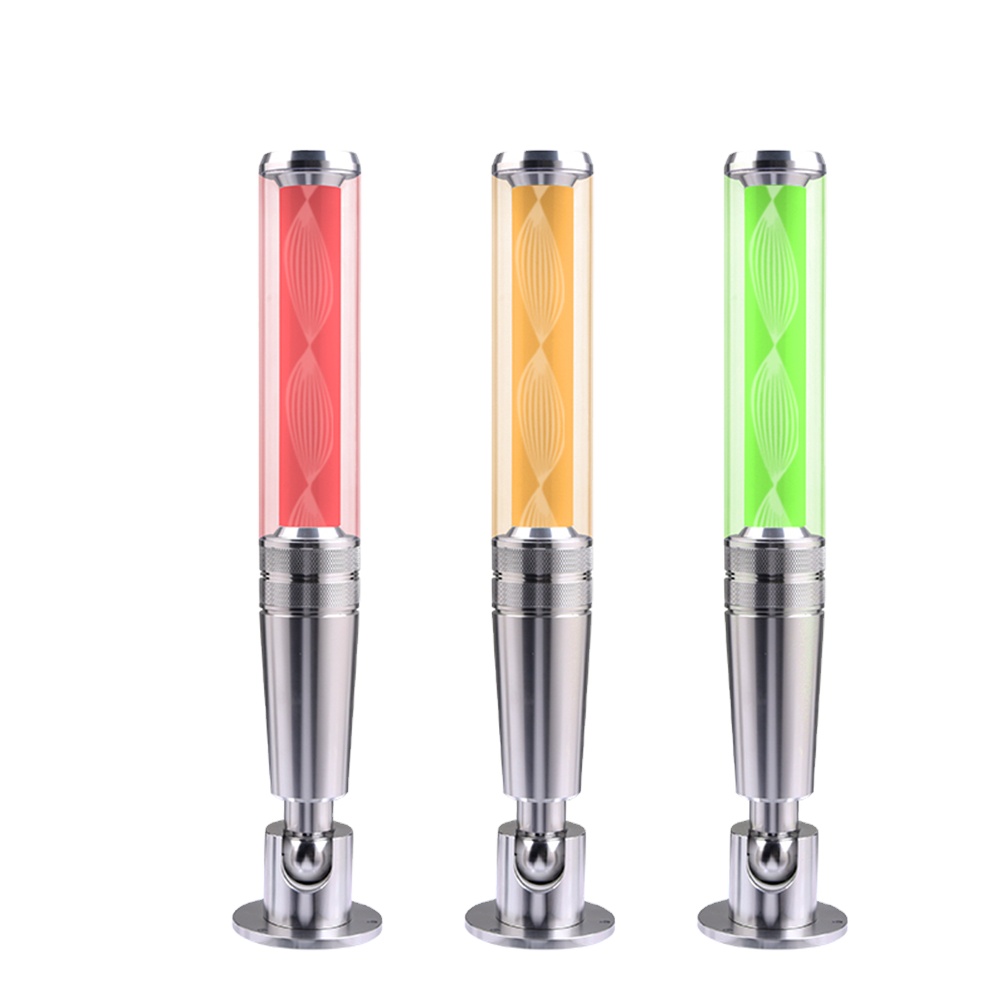

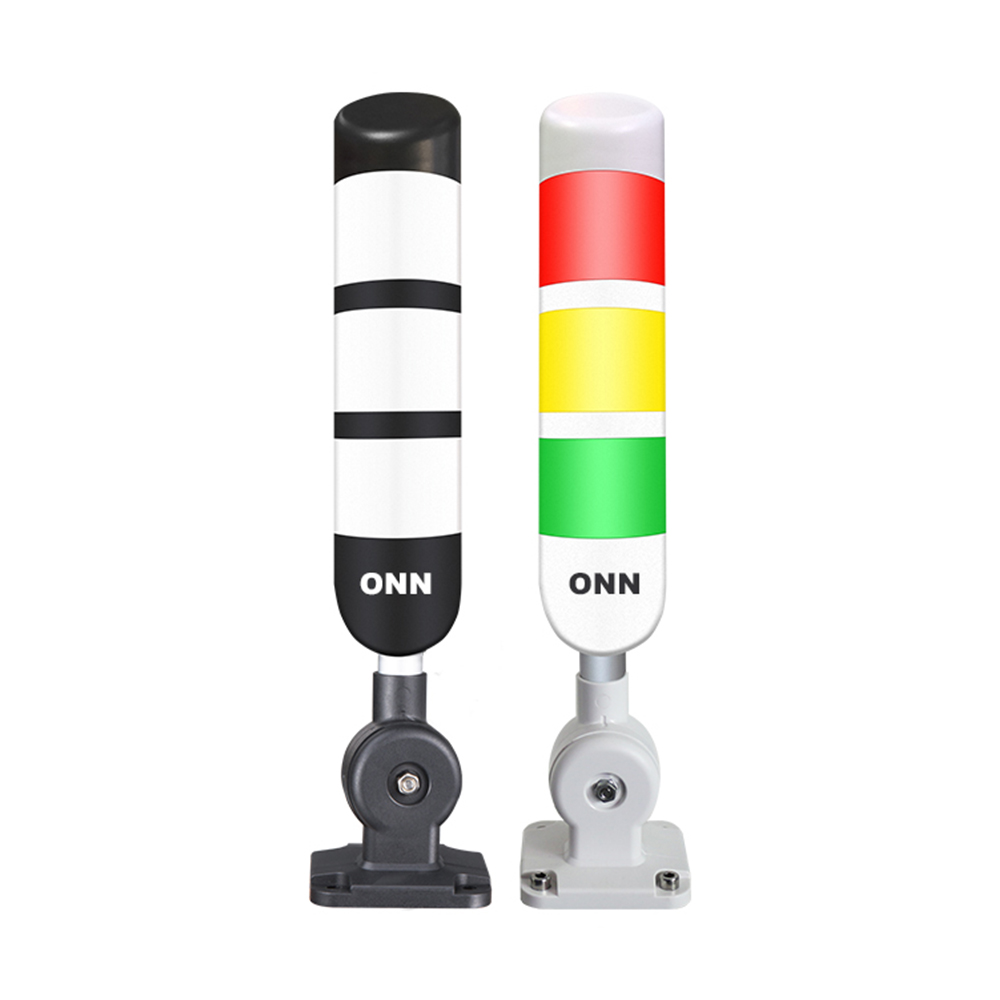

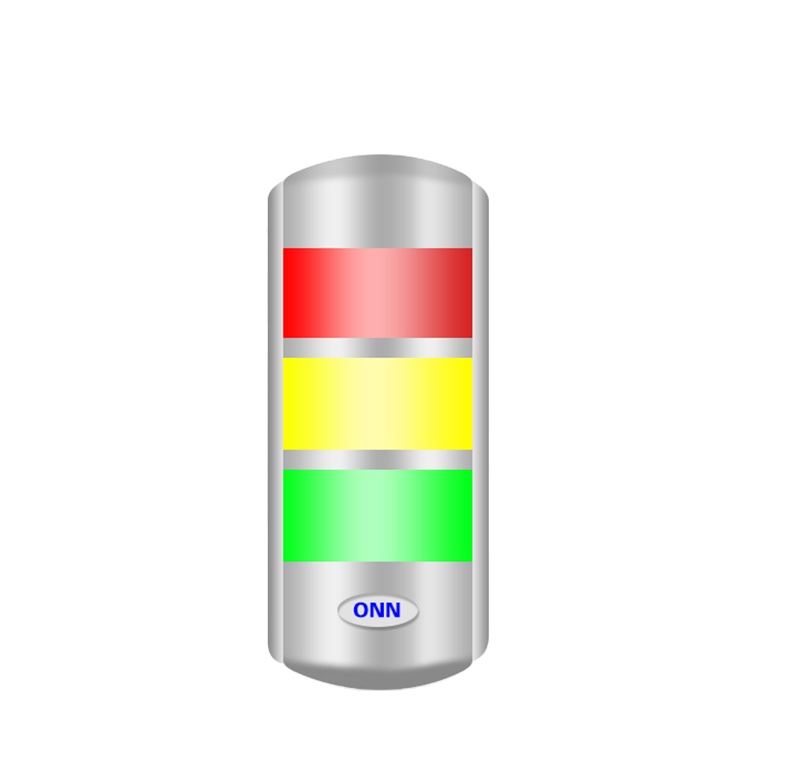

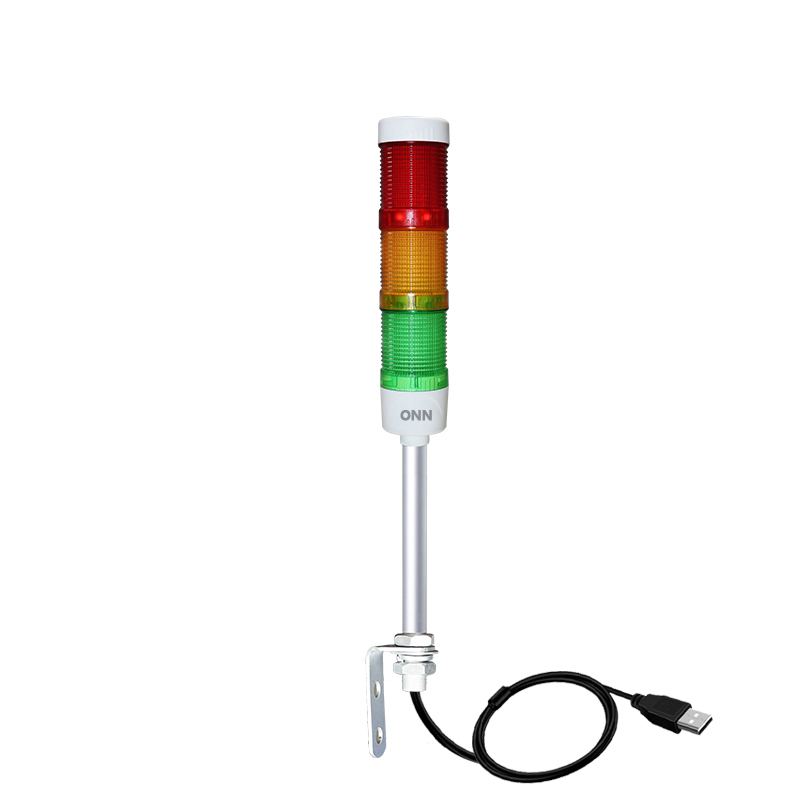

Related Products
Industrial Lighting Focus
Focusing on LED Industrial Lighting (especially "machine lights", "warning lights"), LED Cleanroom Lights (including LED panel lights), and LED Freezer Lights.
A: 1) State the model, quantity, and other specifications you require.
2) We will compile a Proforma Invoice (PI) for your verification.
3) Following PI confirmation, order processing begins upon receipt of your payment.
4) Once items are ready, we ship them out and supply you with the tracking information.
5) We monitor the shipment status until the parcel arrives at your address.
Q: Do you have a product catalog containing all designs?
A: Yes, we provide a complete product catalog showcasing all our options and models.
Q: What is the warranty period for this warning light?
A: This signal tower light is backed by a two-year warranty.
Q: What input voltages are available for the M4 CNC signal light?
A: The M4 series is available in DC12V, DC24V, and wide-range AC100-240V (50/60Hz) configurations.
Q: What are the base options for mounting and installation?
A: It comes with three base choices: Foldable base (Type A), Pole and plate base (Type C), and L-bracket mount (Type E).
Q: Are customizable pole lengths and buzzer functions supported?
A: Yes. The pole length can be adjusted to custom requirements. An optional buzzer configured to output sound levels over 85dB is also available.
