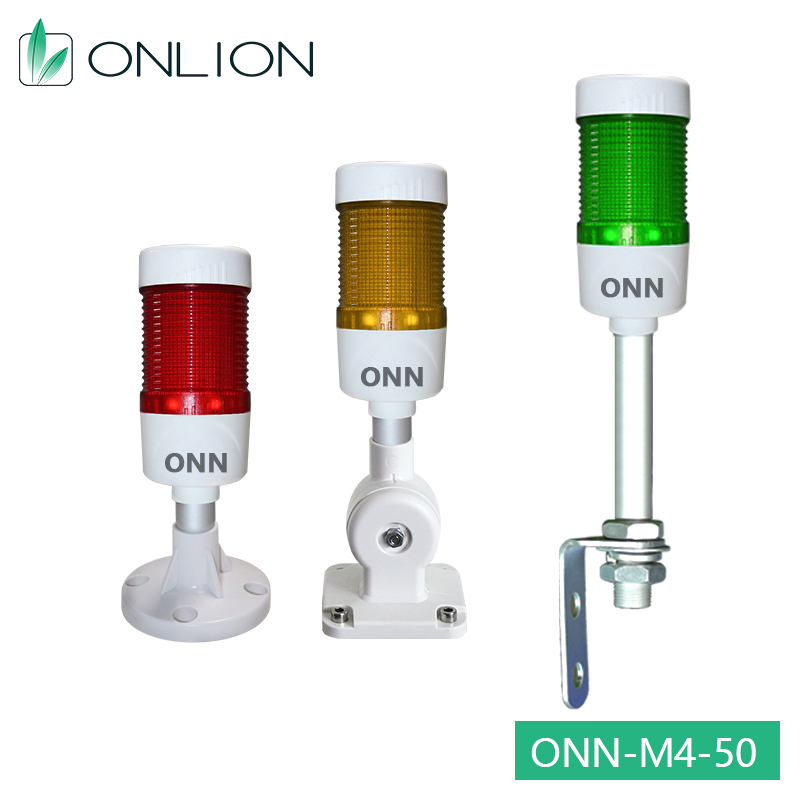

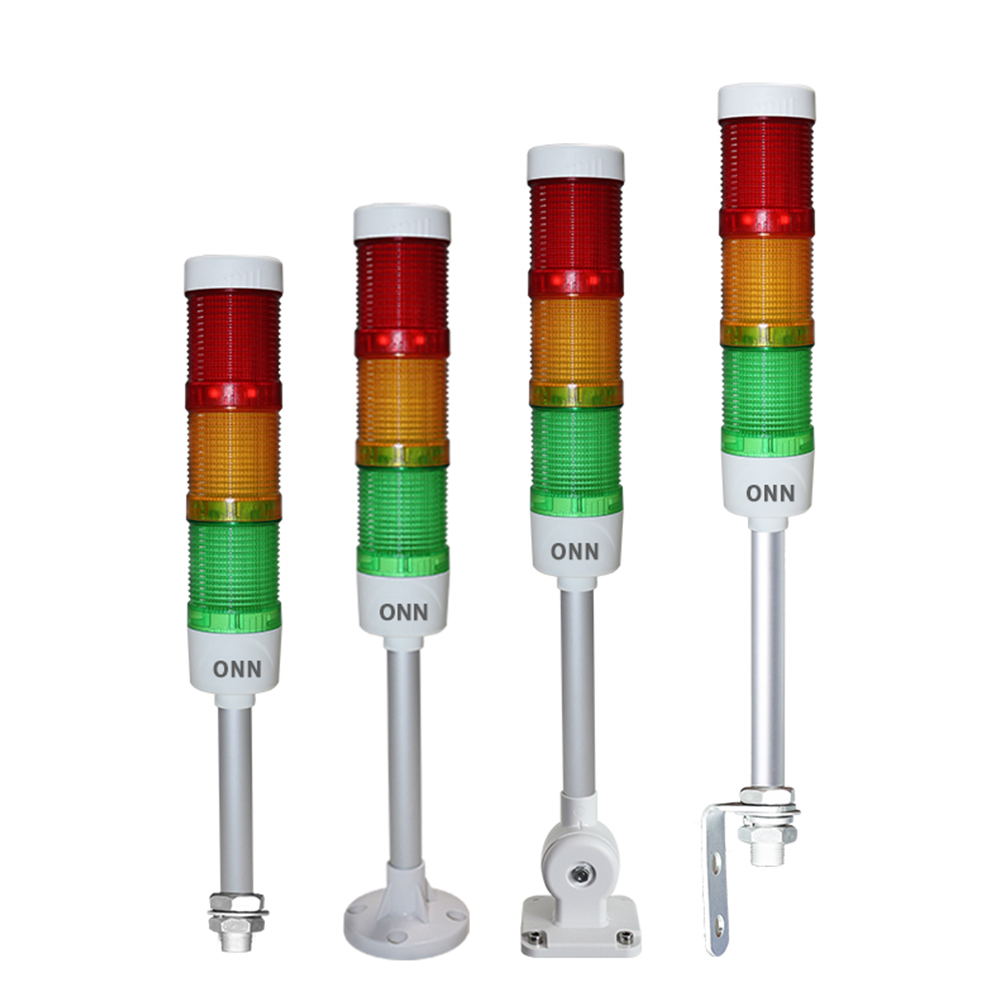

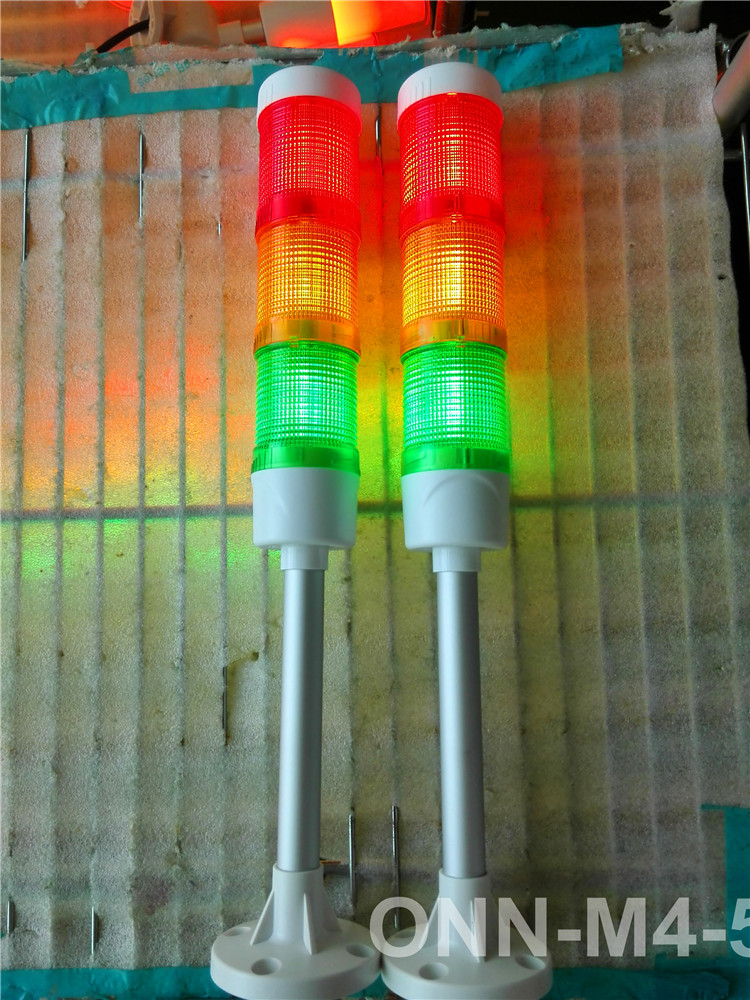

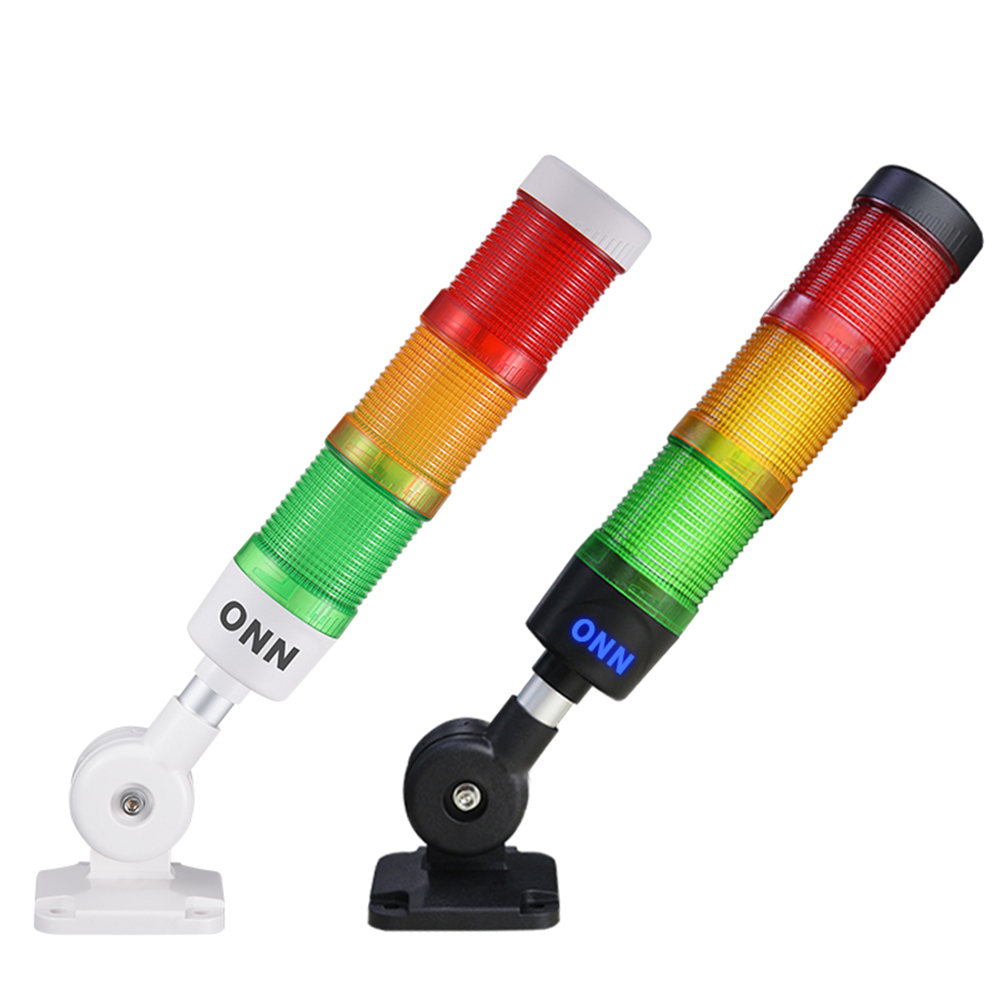

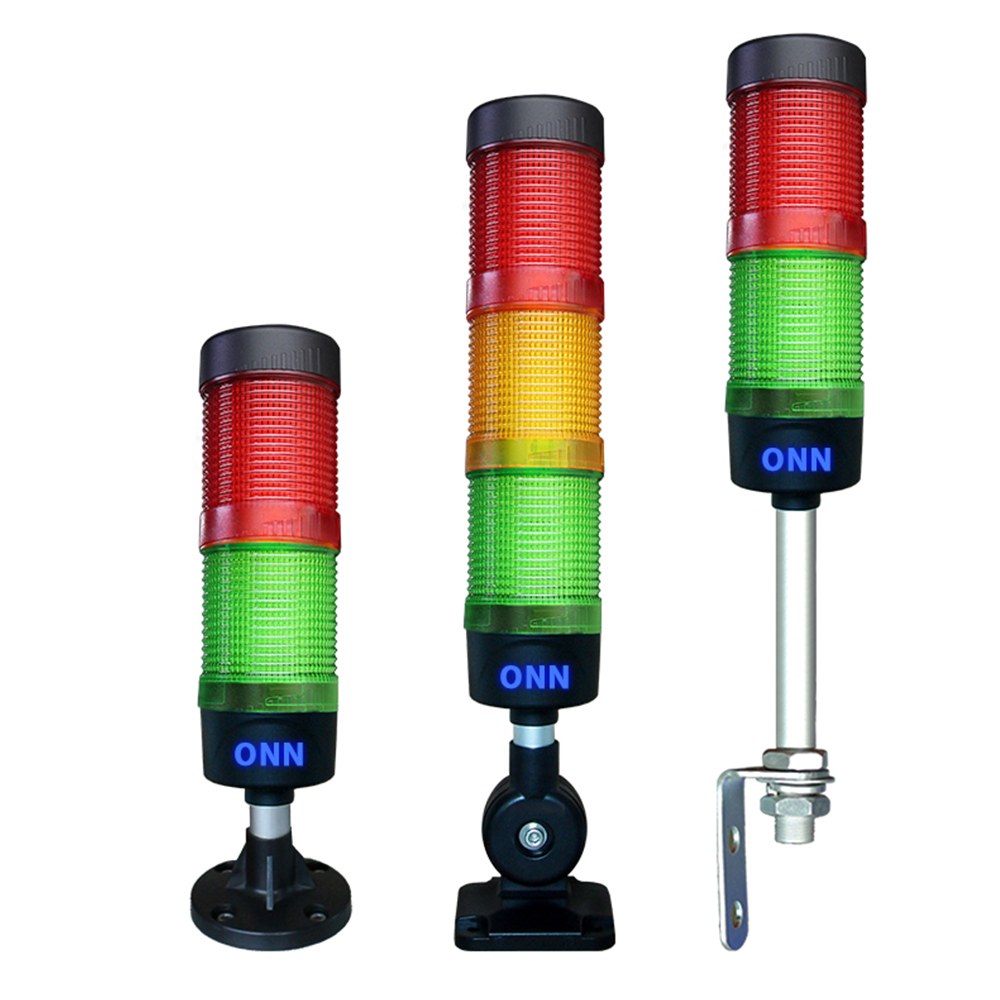

ONN-M4-50 CE Approved Tri-color Led Signal Tower Light RYGBW 24V/220V Stack Light Tower Light

Product Description

ONN-M4-50 CE Approved Tri-color Led Signal Tower Light RYGBW 24V/220V stack light tower light
Led Signal Tower Light

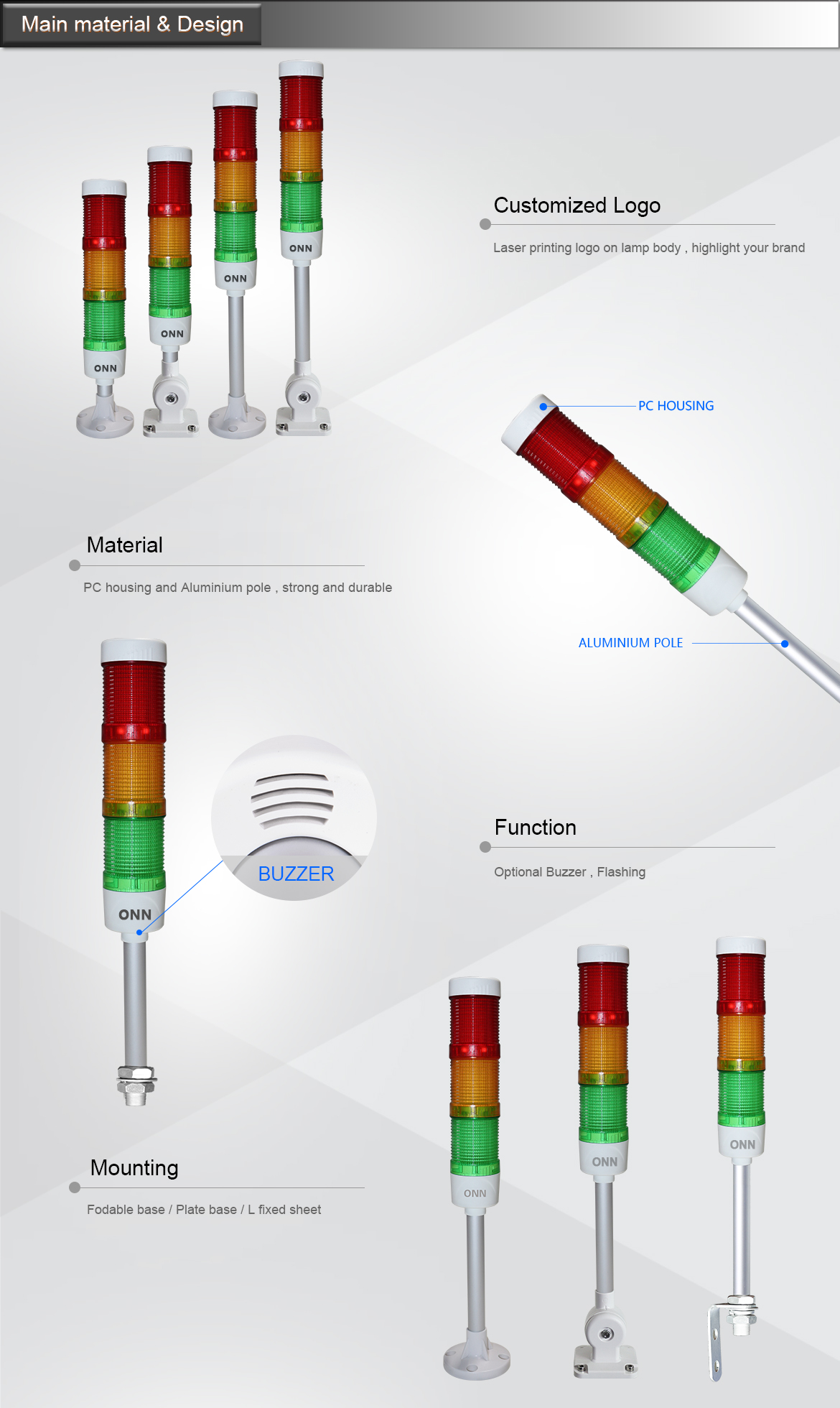

Product Description
Product Description
Features
  • Traditional design, 3 layers, 3 colors.
  • Buzzer optional, volume is louder than 85dB.
  • High brightness LED chip, long lifetime and low decay.
  • Three kinds of base are available, easy to install.
  • Pole length can be customized.
Specifications
Parameter Specification Details
Power 1.4W for each color
Input voltage DC12V, DC24V, AC100-240V (50/60Hz)
Current 60-70mA for each color
Working Temperature -20 ~ 45℃
IP rating IP53
Buzzer volume >85dB
Material PC lens and ABS body
Lifetime 50,000 hours
Installation Fixed by screw or bracket
Ordering Code
ONN - M4 3 A B B T RYG 50
1   2   3   4   5   6   7
Code Position Options Configuration
1. Layer 1: Single layer, 2: Two layers, 3: Three layers
2. Mounting type A: Foldable type, C: Pole and plate, E: L bracket
3. Voltage B: DC24V, C: AC100-240V (50/60Hz)
4. Function B: Steady, F: Steady with buzzer, S: Red flash,
C: Red flash with buzzer, D: All flash,
E: All flash with buzzer
5. Connect type C: Contact type, T: PNP & NPN
6. Color R: Red, Y: Yellow, G: Green
7. Diameter 50S: φ50mm

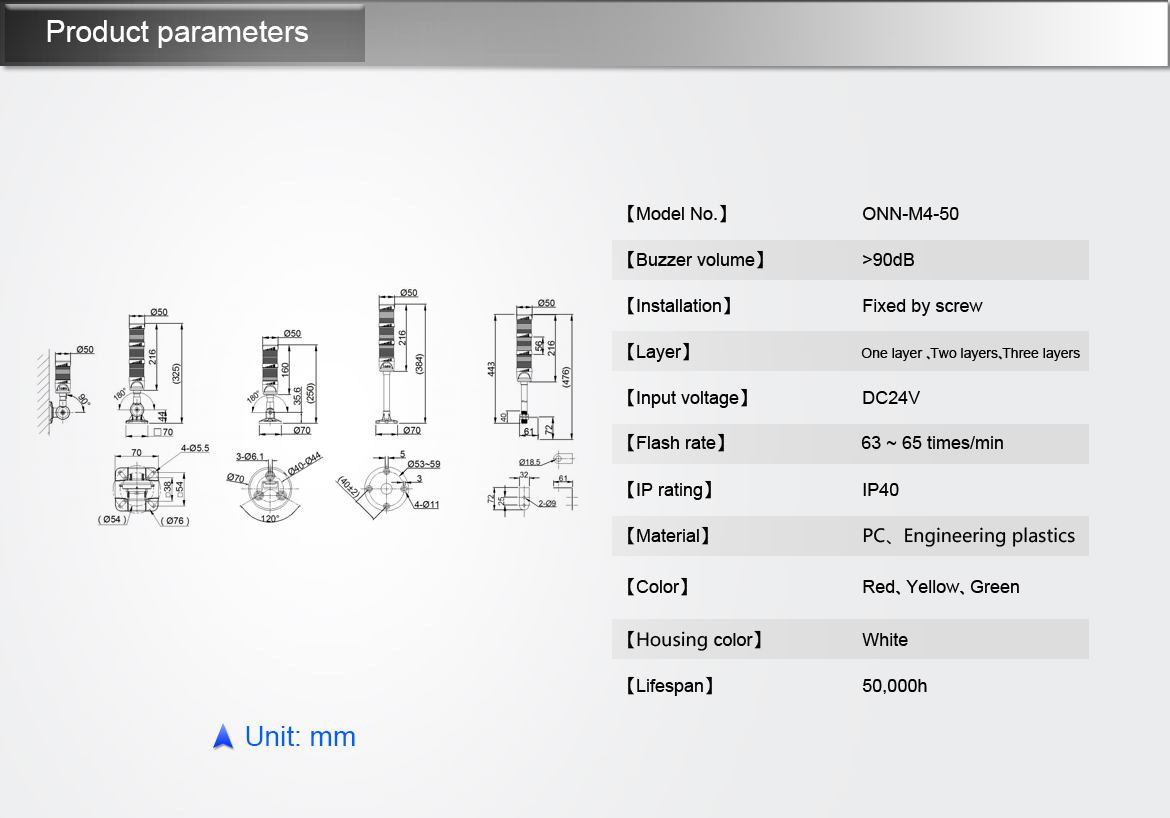

Product Size Drawing
Product Size Drawing
Logo Print Service
Logo Print Service

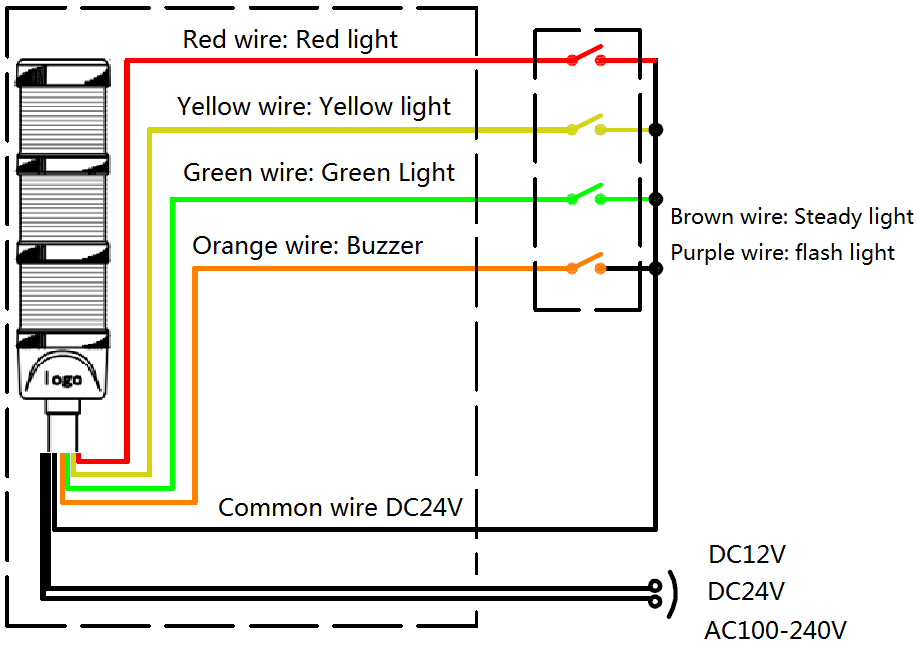

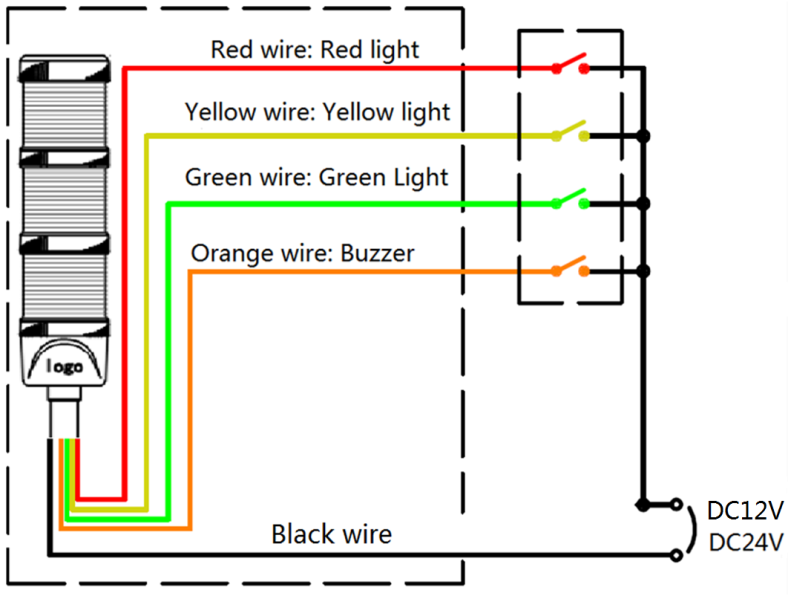

Wiring Instruction
Wiring Instruction 1 Wiring Instruction 2
Application
CNC machine, Automatic equipment , SMT equipment etc.
Related Products

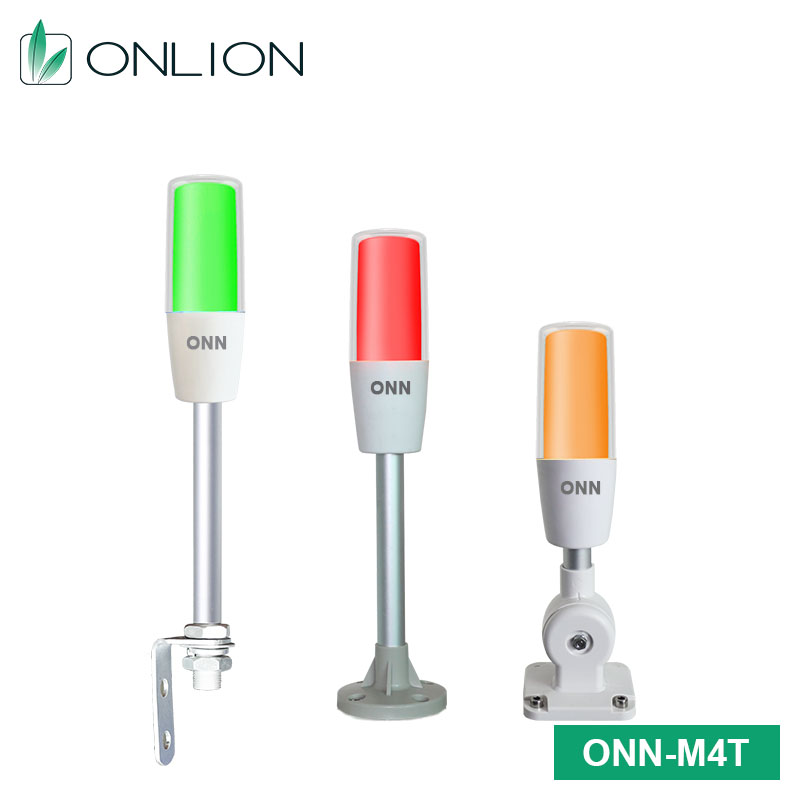

Related Product 1 Related Product 2 Related Product 3
Related Product 4 Related Product 5 Related Product 6

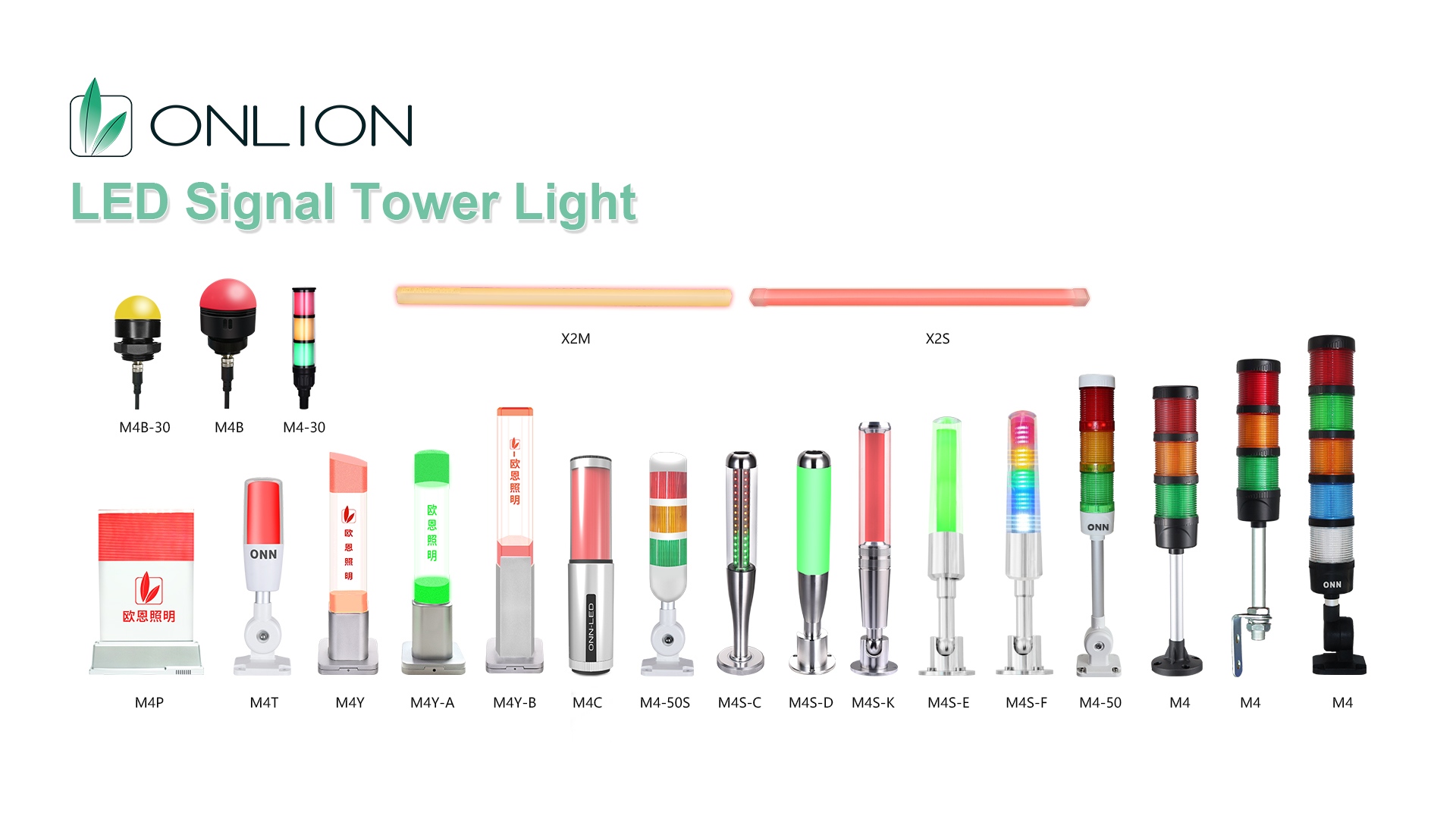

Product Series

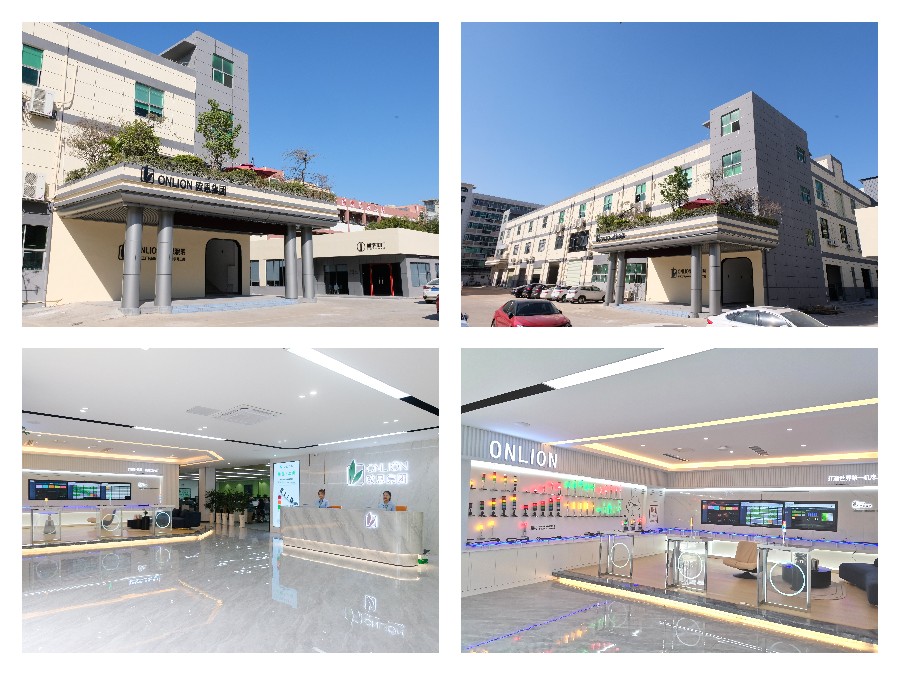

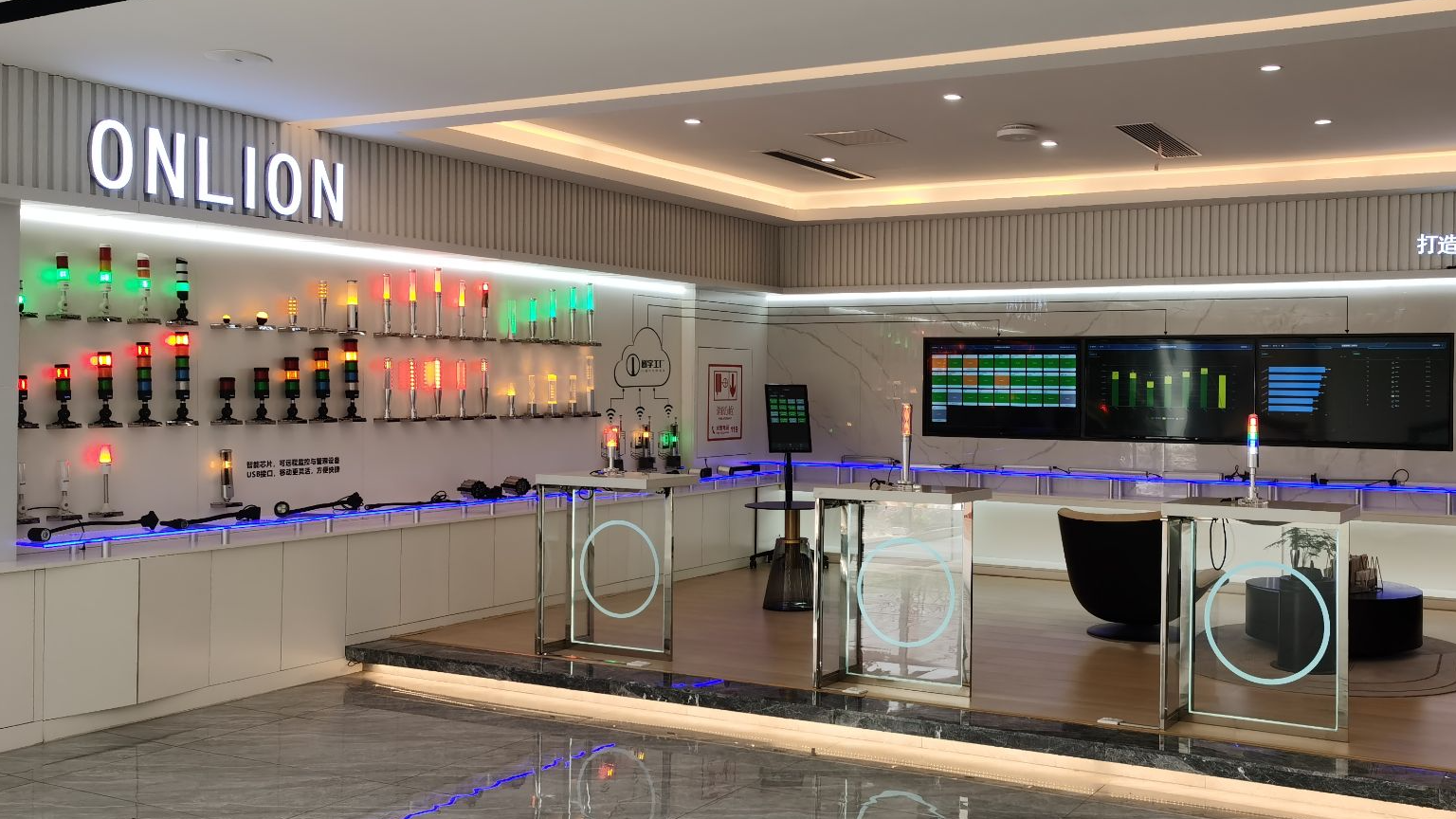

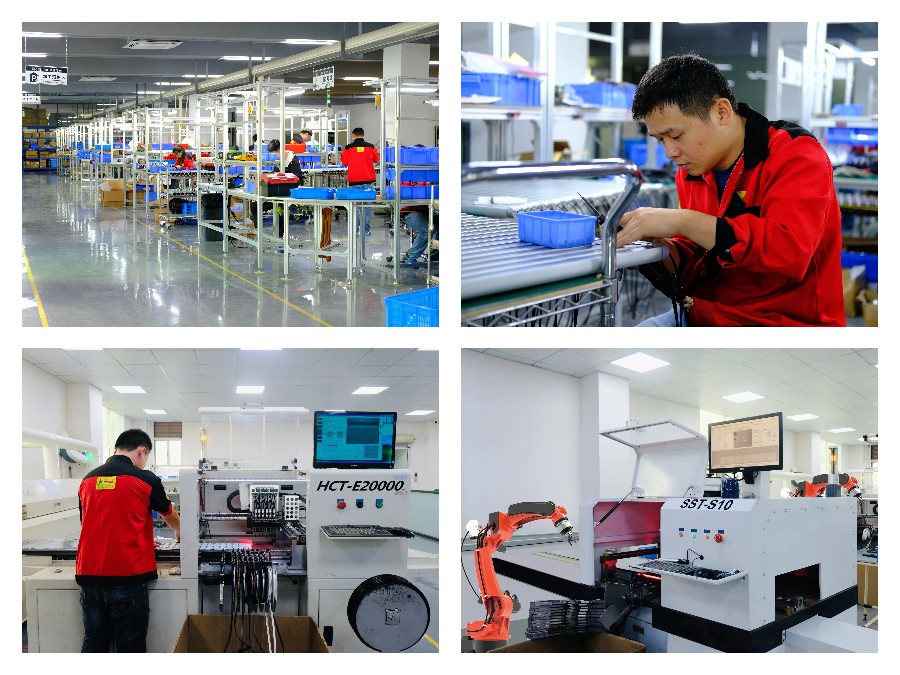

Facility VR Production Facility 1 Production Facility 2
Exhibition Fairs
Exhibition Fairs
Certifications (Patent, ISO9001, FCC, CE, TUV-CE, UL)
Certifications
Customers
Customers
Our service
  • Produce and supply high-quality led industrial lights, including led machine work lights, led signal tower lights, led freezer lights, led cleanroom lights and so on.
  • After-sale service. We make sure every light from us is strictly tested before delivery. If any quality failure, we have an 18-36 months warranty based on different types of lights.
  • OEM and ODM service. We focus on led industrial lights for 16 years. We are professional and experienced.
Service Process
Frequently Asked Questions
What voltage options are available for this LED signal tower light?
This tower light supports a flexible range of input voltages, including DC12V, DC24V, and AC100-240V (50/60Hz), making it compatible with various machinery and industrial settings.
Does the signal tower light feature an optional buzzer?
Yes, a buzzer is optional for this model, producing a clear alarm volume louder than 85dB to provide prompt and noticeable warnings.
What mounting type options are available for installation?
Three main mounting bases are available to ensure easy installation on different equipment: a Foldable type (A), a Pole and plate mounting (C), and an L-shaped bracket mounting (E).
What is the IP rating and lifespan of this stack light?
This signal tower light has an IP53 protective rating. It utilizes high-brightness LED chips designed to achieve an extended working lifetime of up to 50,000 hours with low light decay.
Can the pole length of the LED signal tower light be customized?
Yes, the pole length of the stack light is fully customizable to meet the unique structural requirements of your machinery.
What materials are used to construct the light lens and body?
The light features a highly durable Polycarbonate (PC) lens and an Acrylonitrile Butadiene Styrene (ABS) body, ensuring excellent strength and heat resistance in harsh industrial environments.
