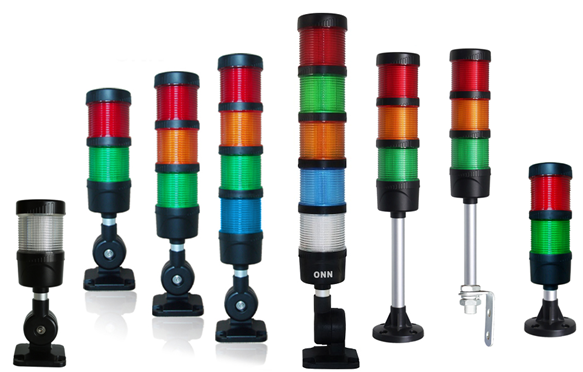

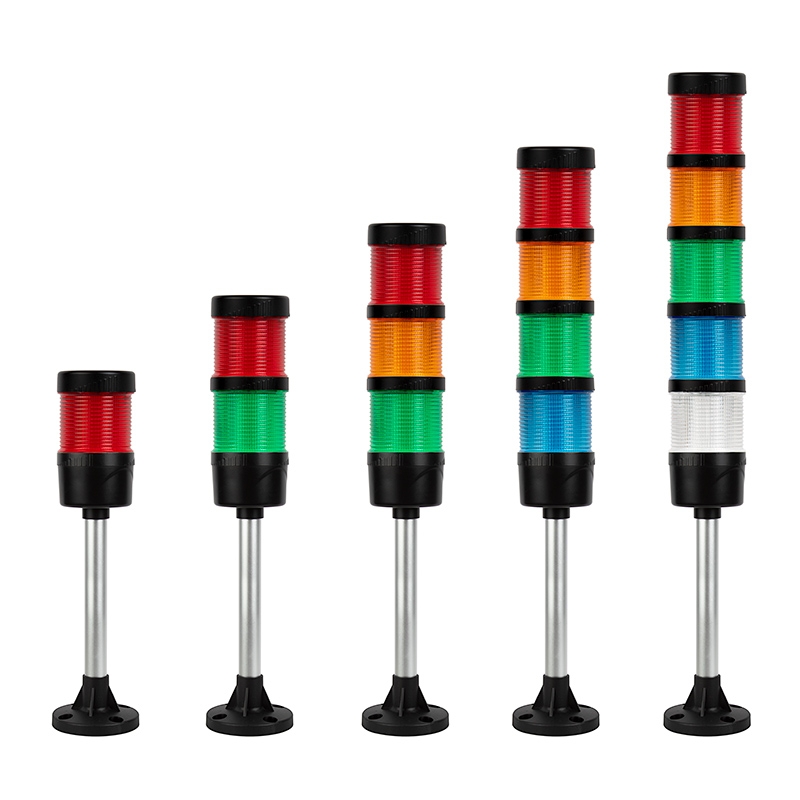

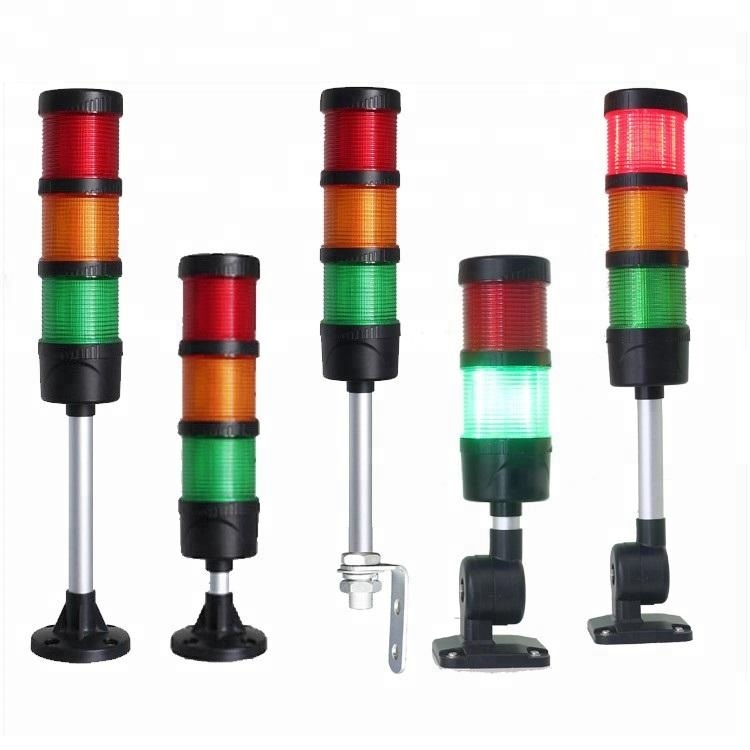

M4F DC24V 12V AC110V AC220V Modular Signal Tower Light 60mm 70mm LED Warning Light
Products Features
✓

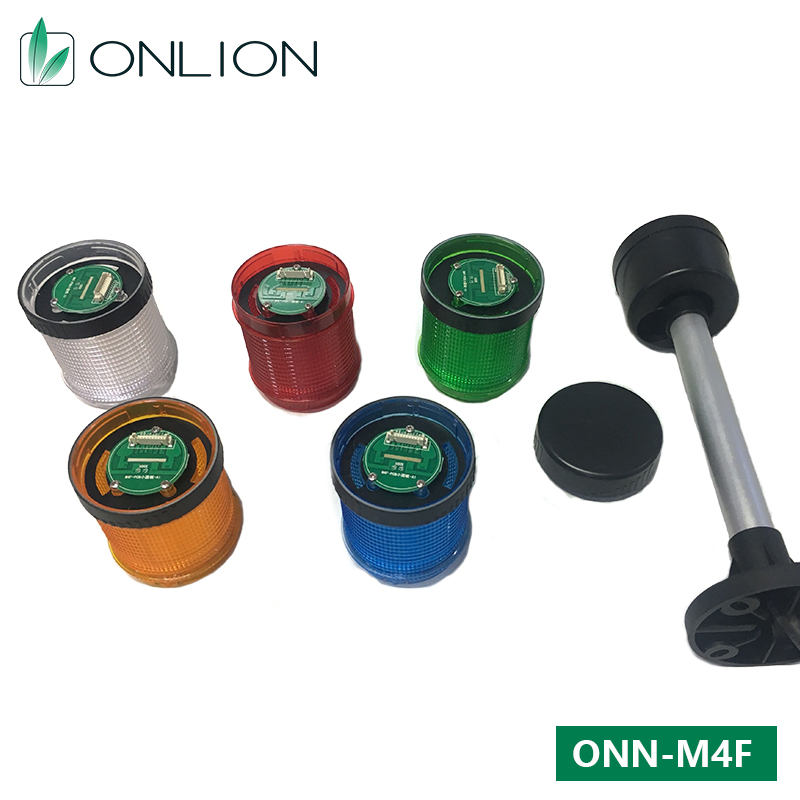

Modular design: Users can add or remove light modules freely as required.
✓
Adjustable modes: Lighting and buzzer modes can be customized via DIP switch (Flash light, steady light, buzzer off, full volume buzzer, low volume buzzer).
✓
Easy installation: Three types of installation bases are available to fit different setups.
✓
Universal compatibility: Voltage options include DC12V, DC24V, and AC100-240V, with fully universal modules.
★ This design is very convenient for wholesalers to reduce stock!
Ordering Code
| ONN - M4F 5 A C T RYGBW 60 |
| 1. Layer |
1: Single layer, 2: Two layers, 3: Three layers, 4: Four layers, 5: Five layers |
| 2. Mounting Type |
A: Foldable type, C: Pole and plate, E: L bracket |
| 3. Voltage |
B: DC24V, C: AC100-240V (50/60Hz) |
| 4. Connect Type |
C: Contact type, T: PNP & NPN |
| 5. Color |
R: Red, Y: Yellow, G: Green, B: Blue, W: White |
| 6. Diameter |
60: φ60mm |

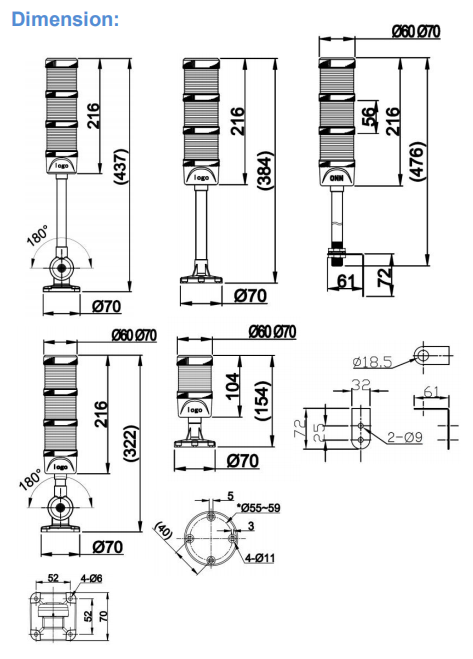

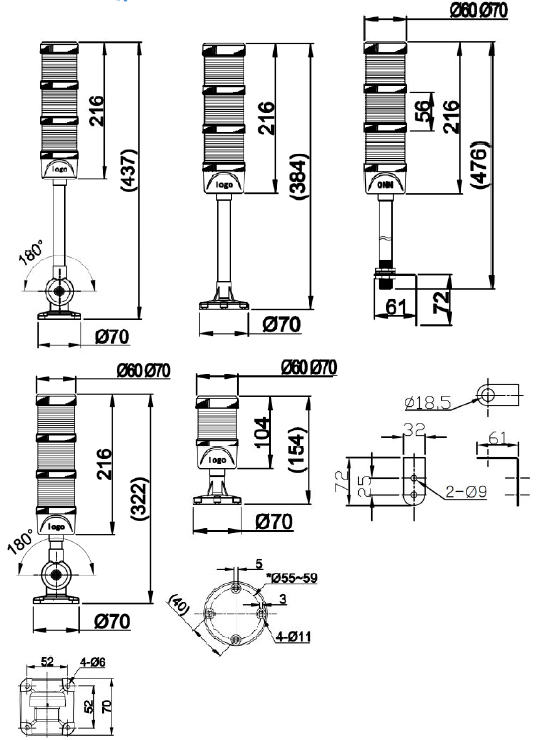

Dimension Details

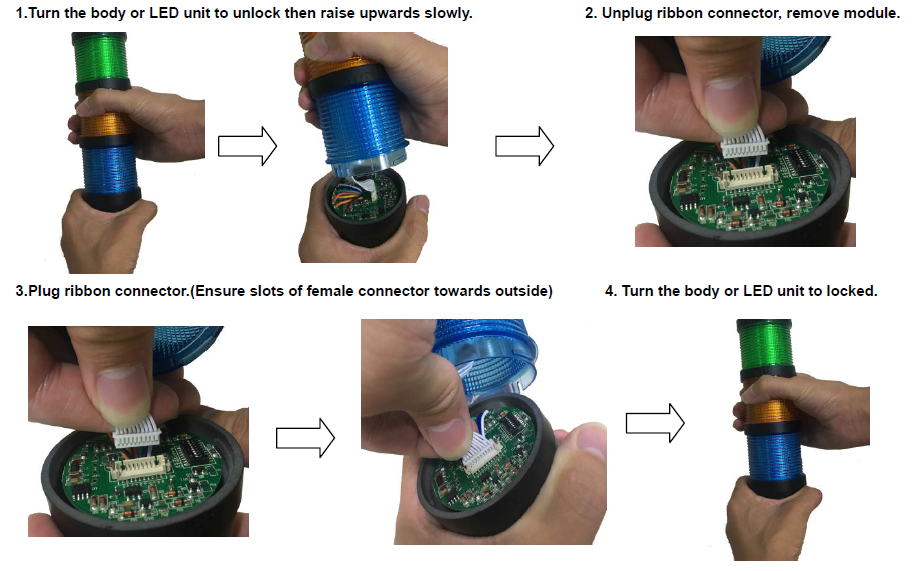

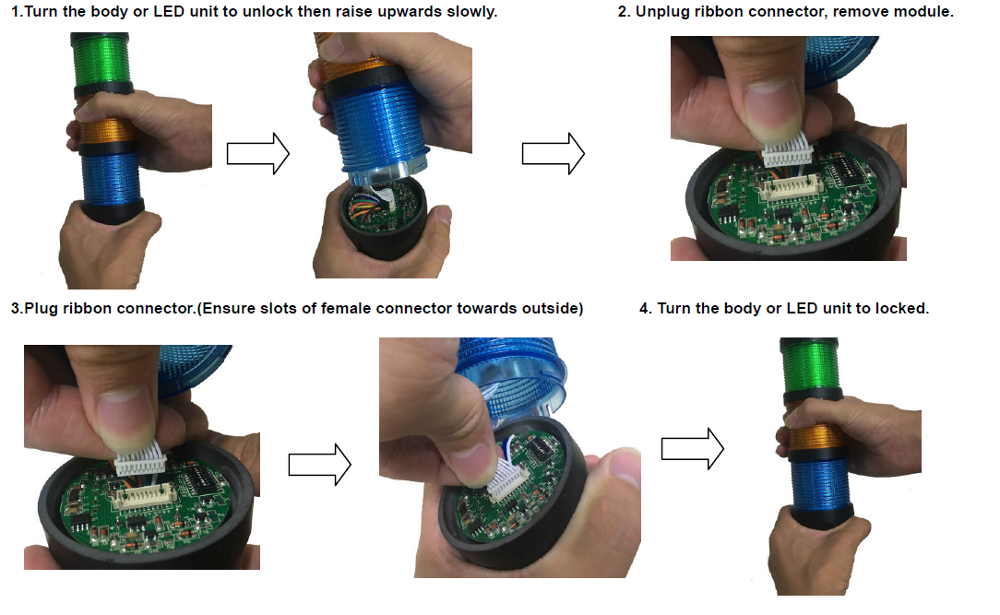

Module Replacement Guide

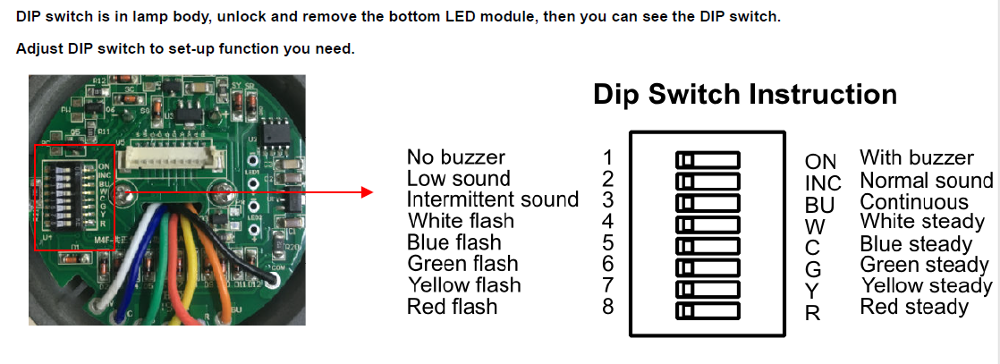

Function Set-up
Packing Information
| Packing Material Details |
Tri-color tri-layer (Foldable/Pole Plate) |
M4 Tri-layer multi-colors (Plate type) |
M4 Tri-color tri-layer (L-shape plate) |
M4 Four layer four colors (Pole plate) |
| Net weight/pc (Kg) |
0.325 |
0.3 |
0.45 |
0.315 |
| Gross weight/CTN (Kg) |
6.1 |
5.8 |
7.6 |
6 |
| Quantity/CTN (pcs) |
12 |
12 |
12 |
12 |
| Inner box (L*W*H) mm |
415*80*80mm |
415*80*80mm |
415*80*80mm |
510*90*75mm |
| Carton size (L*W*H) mm |
440*265*345mm |
440*265*345mm |
440*265*345mm |
580*280*233mm |
*Note: The length of the rod plate can be customized according to customer requirements, which may affect the total gross weight measurements.
Repair and Warranty Service
- Warranty Period: 18 months. If broken under normal usage conditions within the warranty period, please provide the invoice and purchase date on the light for free repair.
- Warranty Exclusions:
- Altered fixture dates.
- Damage caused by improper installation or use.
- Damaged or missing main light bodies and bundled accessories.
- Non-natural failures (e.g. incorrect input voltage or setup errors).
- Unauthorized dismantle, alterations, or repairs outside authorized service points.
- Damage caused by force majeure (fires, earthquakes, floods, lightning, pollution, abnormal voltage).
- Light damage caused by rodents, salt spray, or corrosion.
- Post-Warranty: Out-of-warranty repairs will be charged at standard rates (Repair fees + material fees + shipping).

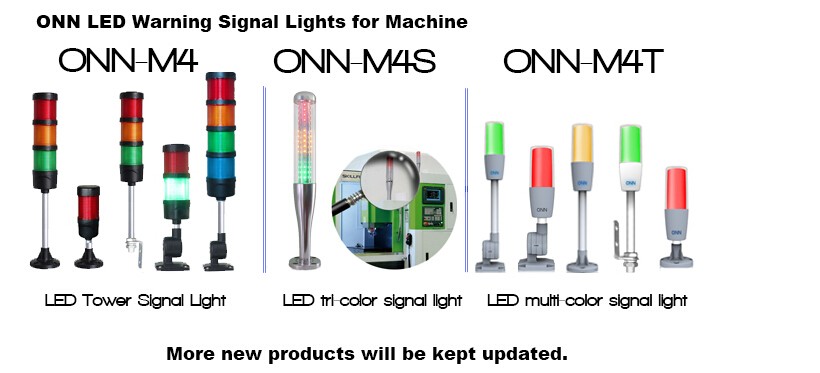

Related Products
Frequently Asked Questions (FAQ)
Can I adjust the warning light colors and layers after purchasing?
Yes. Because of its modular design, users can easily add, remove, or rearrange light modules freely without needing to buy a whole new signal tower.
What types of warning light modes can be set?
You can configure flash light, steady light, buzzer off, low volume buzzer, and full volume buzzer modes. These options are configured using the internal DIP switch.
What mounting options are supported by the M4F series?
It supports three convenient base options: foldable mounting type, pole and plate mounting type, and L-bracket mounting type to suit different machinery installations.
What voltage configurations are compatible with the modules?
The modules are universally compatible and support DC12V, DC24V, and AC100-240V depending on the base configuration ordered.
How long is the product warranty?
The product is covered by an 18-month warranty. Repairs are free of charge for naturally occurring defects when presented with proof of purchase and installation date.
