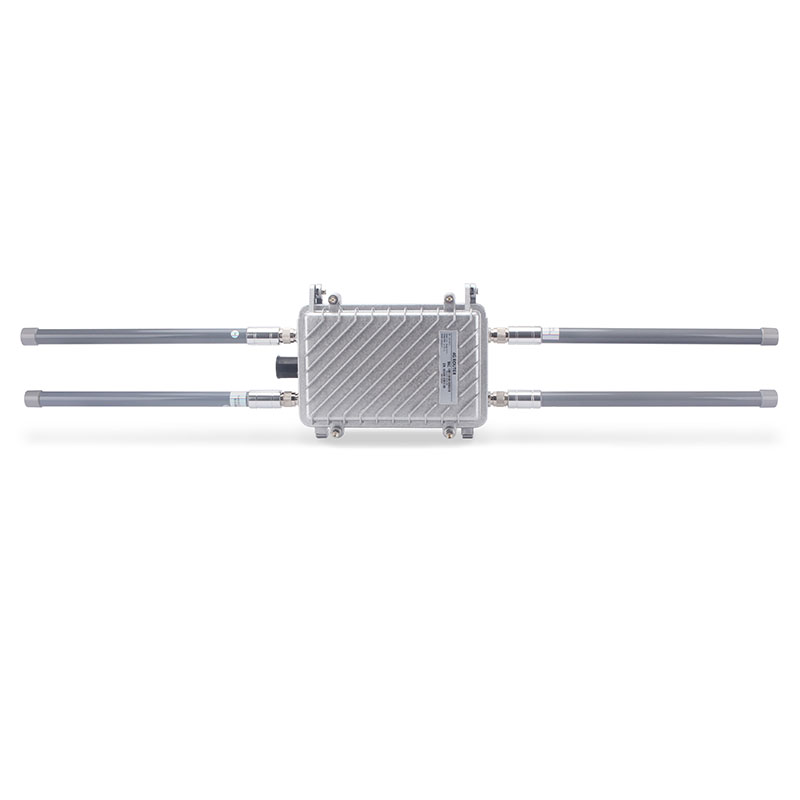

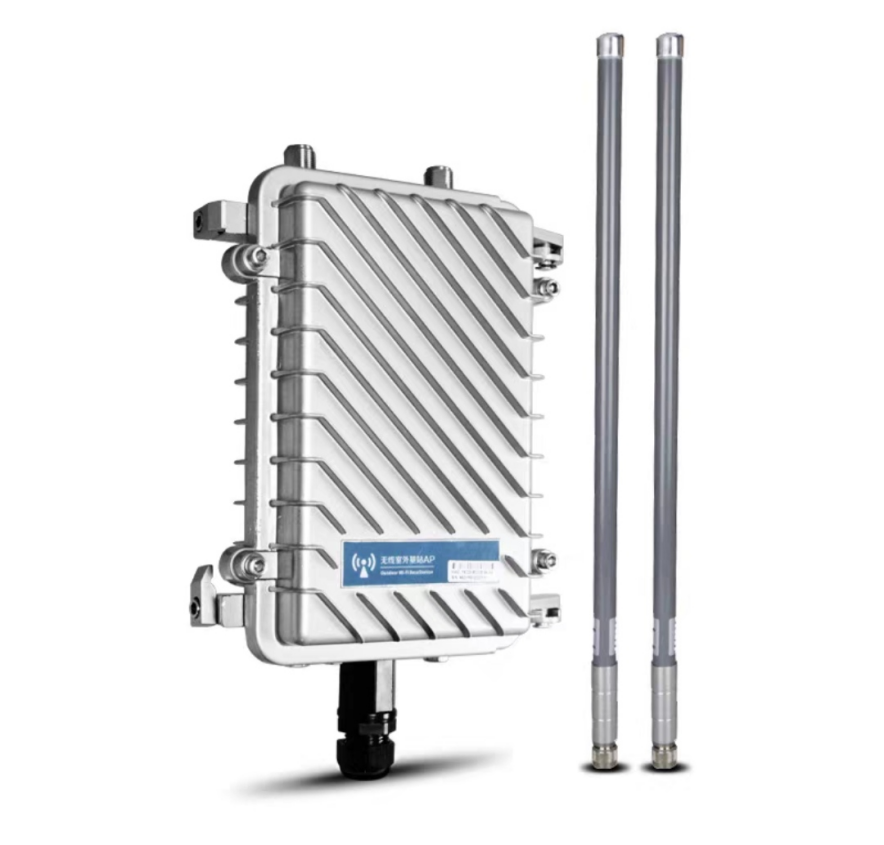

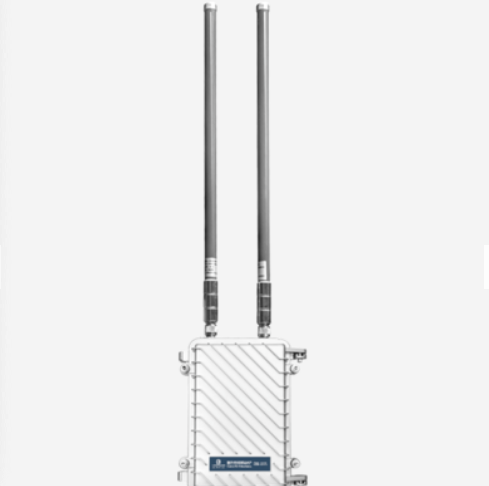

LORA/4G Gateway Centralizer Remote Controller Smart Lighting IOT for Outdoors Lighting

Product Description

LORA Gateway and Server Communication Format

Communication Protocol Structure: Start code + length + network number + serial number + operation code + content + check code.

  • Start code: Fixed to 0x5a/0xa5
  • Length: Total bytes (network number + serial number + opcode + content)
  • Network number: 4-byte code (FF,FF,FF,FF acts as a common number for connection)
  • Serial number: 0 -> Lamp 1; 1 -> Lamp 2
  • Operation codes:
    0x50: Extract network number / Terminal returns version number
    0x51: Read terminal status
    0x52: Switch/dimming operation (0: off, 1-100: dimming)
    0x53: Remote IP/COM modification
    0x54: Synchronize time/working mode
    0x55: Read time/working mode
    0x56: Classification/group operation
    0x57: Read charged quantity information
  • Check code: Sum of network code, serial number, opcode, and content (type byte)

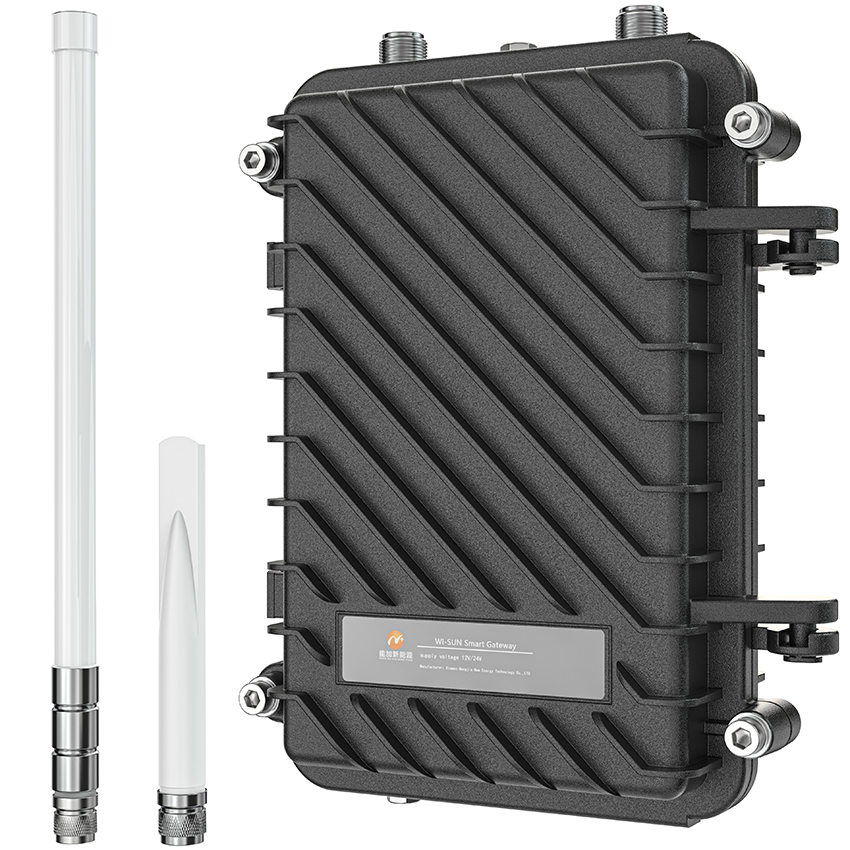

LORA Gateway

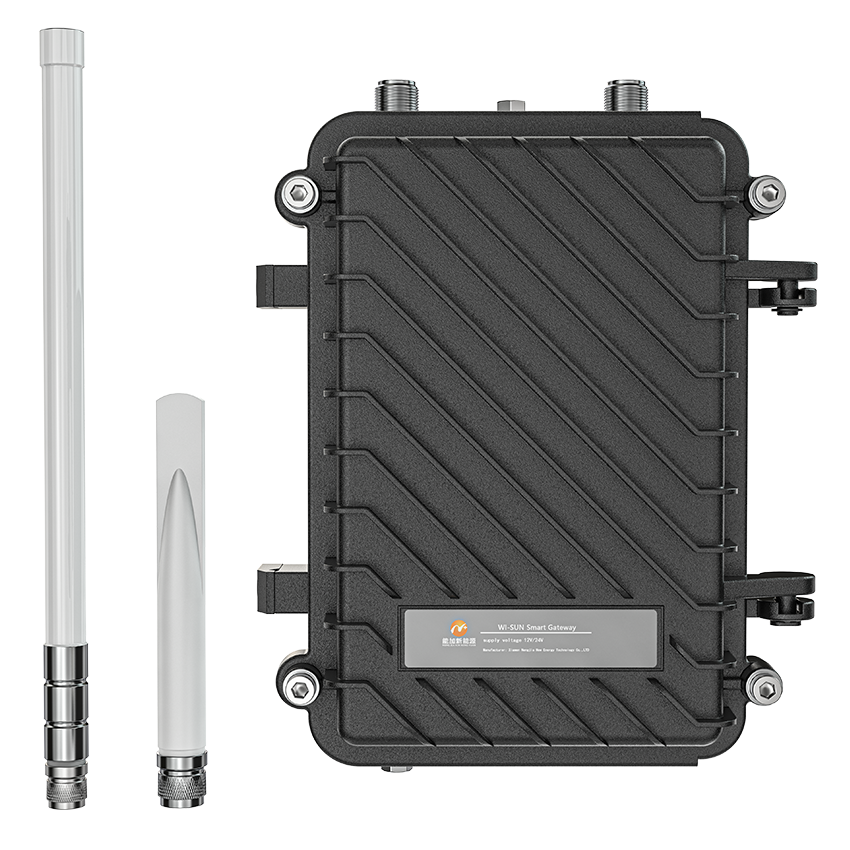

Communication Structure

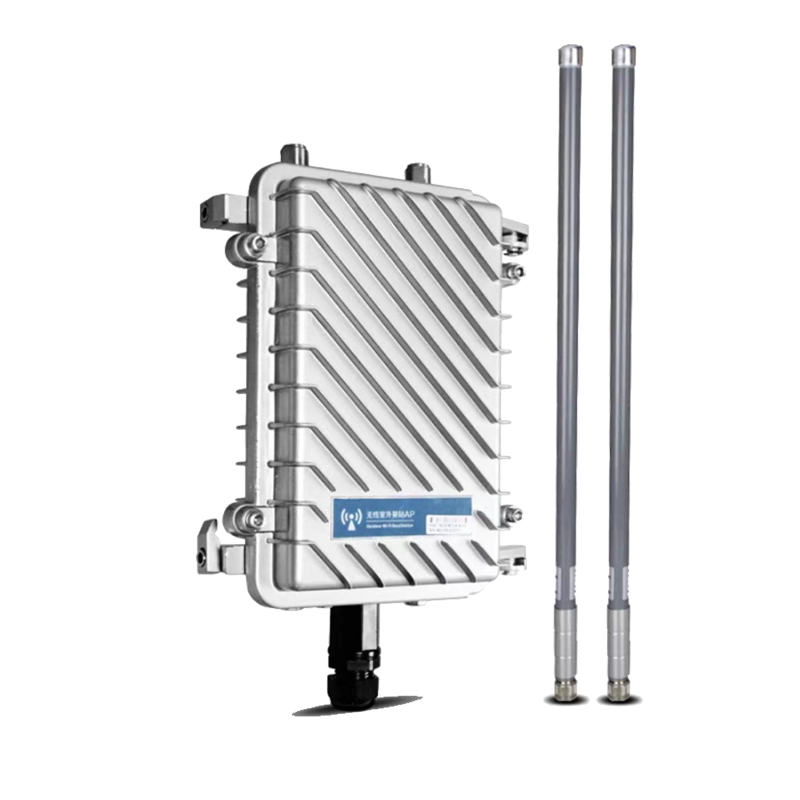

Protocol

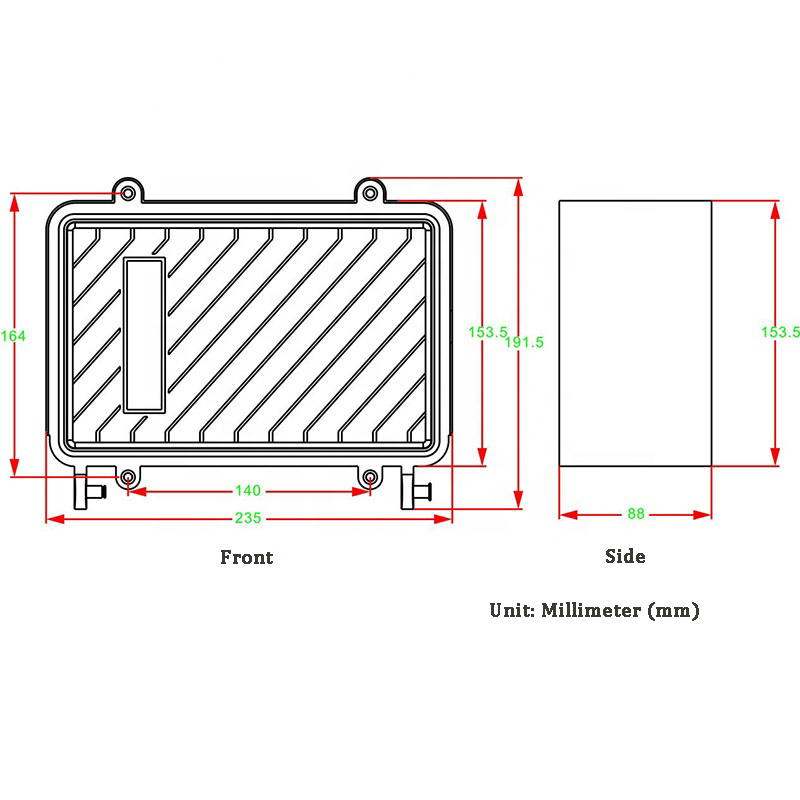

Device

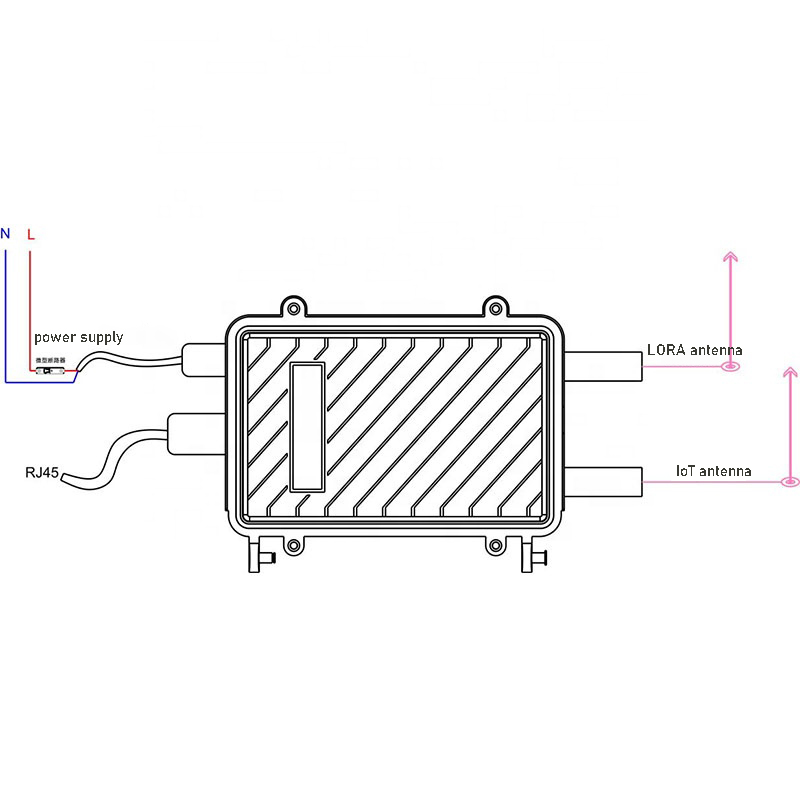

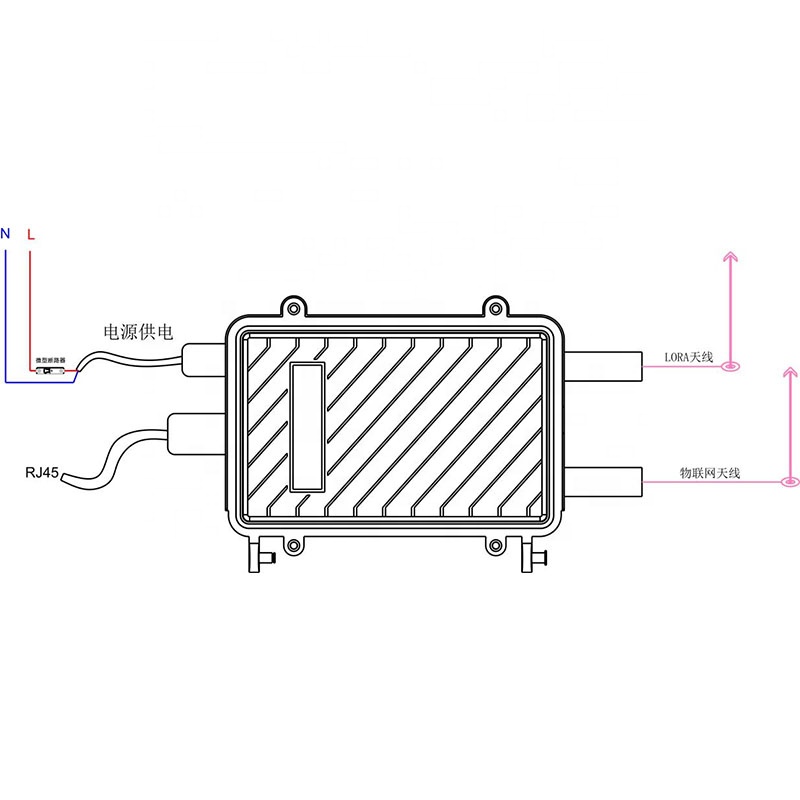

Operation

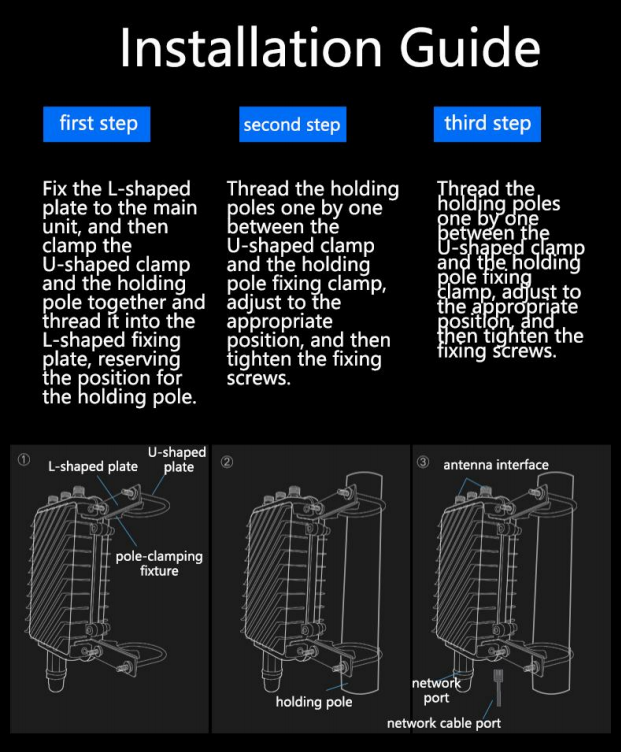

Scheme

Specification

Model NumberLORA controller
ApplicationPositioning and Navigation
Input VoltageAC85~265V
Operating power<3W
Network InterfaceRJ45
Protection levelIP65
Operating frequencySupport 433MHz/470MHz/510MHz
Transmitting power20dBm, power software adjustable
Reception sensitivity>-136dBm LoRa modulation, rate 20bps
Transmission distanceCity: 2KM / Sight Distance: 15KM
Access methodLAN, 2G/3G/4G, WiFi
Product weight500g

Software System

The system supports APP and PC to remotely dim and switch lights on the device, as well as providing comprehensive equipment remote monitoring.

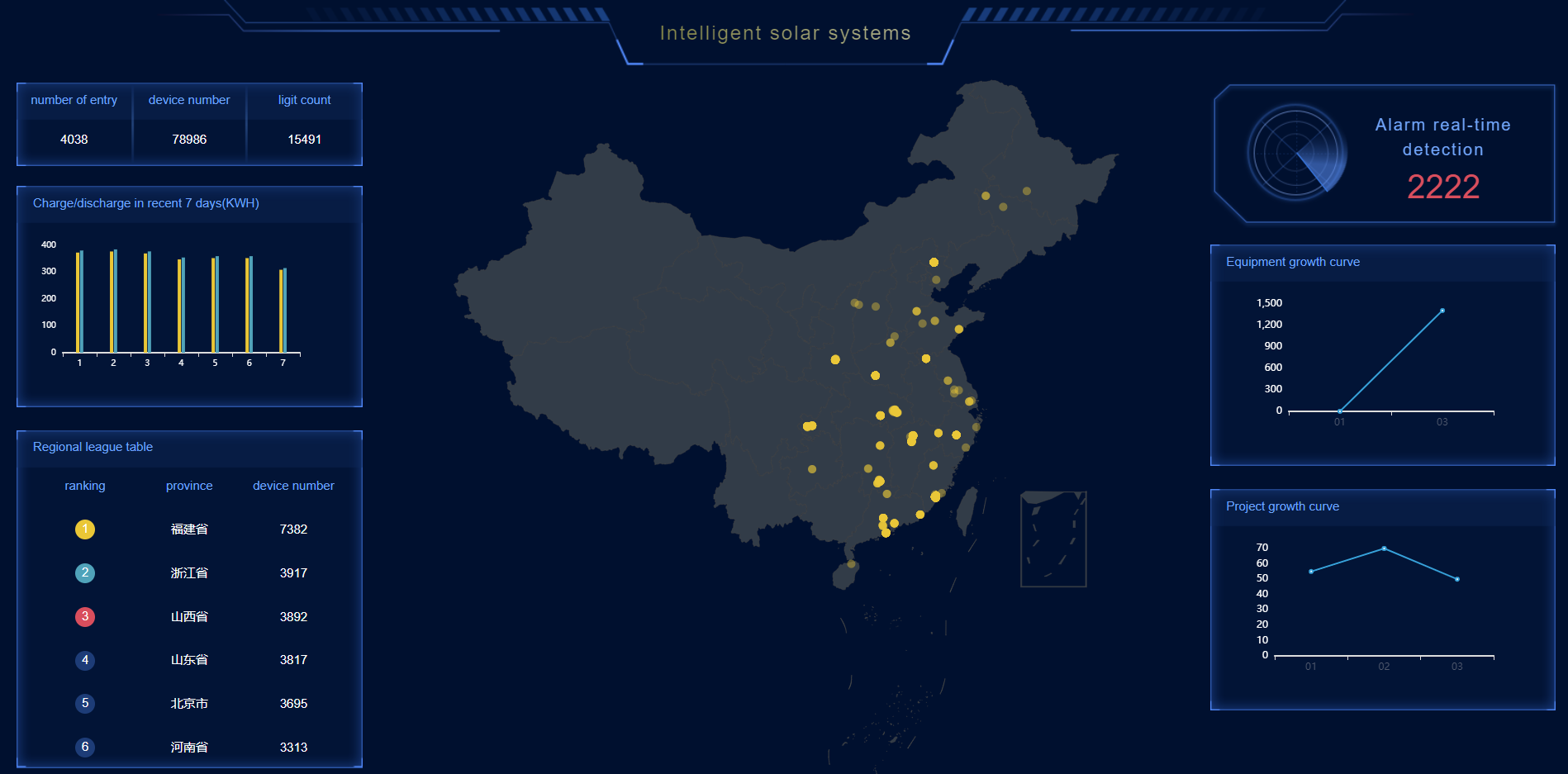

Software Interface

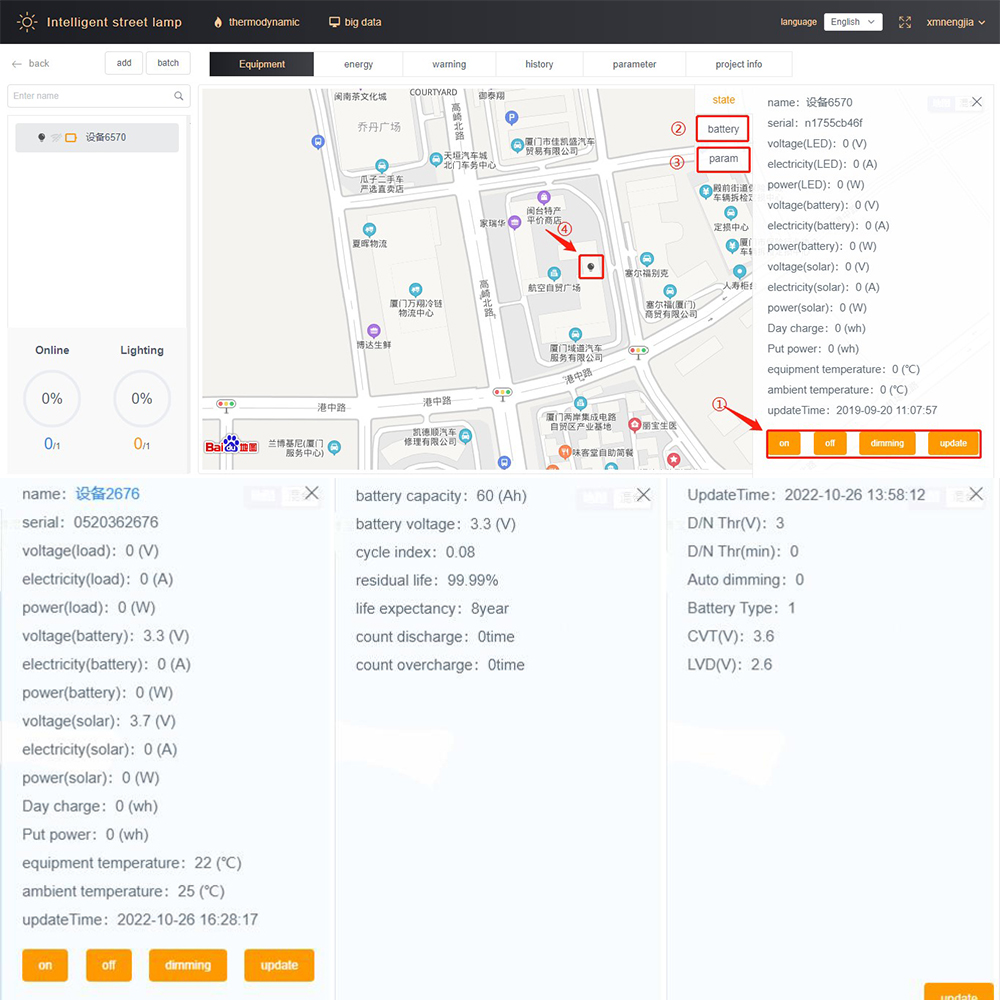

Monitoring System

Company Profile

The company is an R&D-driven team dedicated to making the Internet of Things simpler. We act as a professional Internet of Things end and cloud system solution provider. We specialize in providing IoT communication terminals (based on 4G/5G/NB-iot/WIFI/gateway) and industry solutions, including customized cloud platform development.

Our main business is divided into smart lighting, smart agriculture, and smart photovoltaic hardware and cloud platform solutions.

Company Team
Office

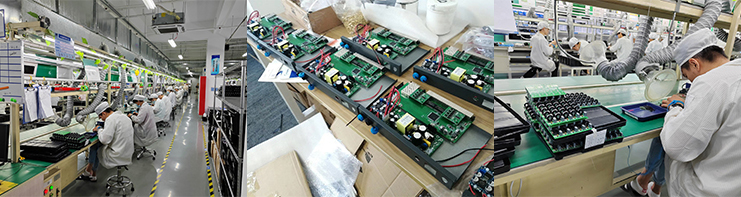

R&D

Certifications

We provide professional IOT terminal + cloud system solutions and reliable power supply/information access services. Currently, we hold 16 software copyrights, 5 project invention patents, and 4 practical new patents.

Certificates

FAQ

1. What are your primary business areas? We specialize in smart lighting, smart agriculture, and smart photovoltaic solutions, providing integrated IOT hardware terminals and cloud platform systems.
2. How do you ensure product quality? We perform strict quality control, including pre-production samples before mass production and final inspections before shipment.
3. What communication technologies do your controllers support? Our controllers support LoRa technology (433/470/510MHz) and provide access methods including LAN, 2G/3G/4G, and WiFi.
4. What is the transmission range of the LoRa controller? The transmission distance is approximately 2km in city environments and up to 15km in sight distance.
5. Can I customize the cloud platform or hardware? Yes, we provide industry solutions and support customized development of both IoT terminals and cloud platforms.
6. How are the products packaged for delivery? We use professional, environmentally friendly, and efficient packaging services to ensure the safety and integrity of your goods during transit.
