Notes
✓
If you want to order a full set of staircase lighting system, we provide one-stop procurement services, and support project engineering solutions, welcome to inquire.
✓

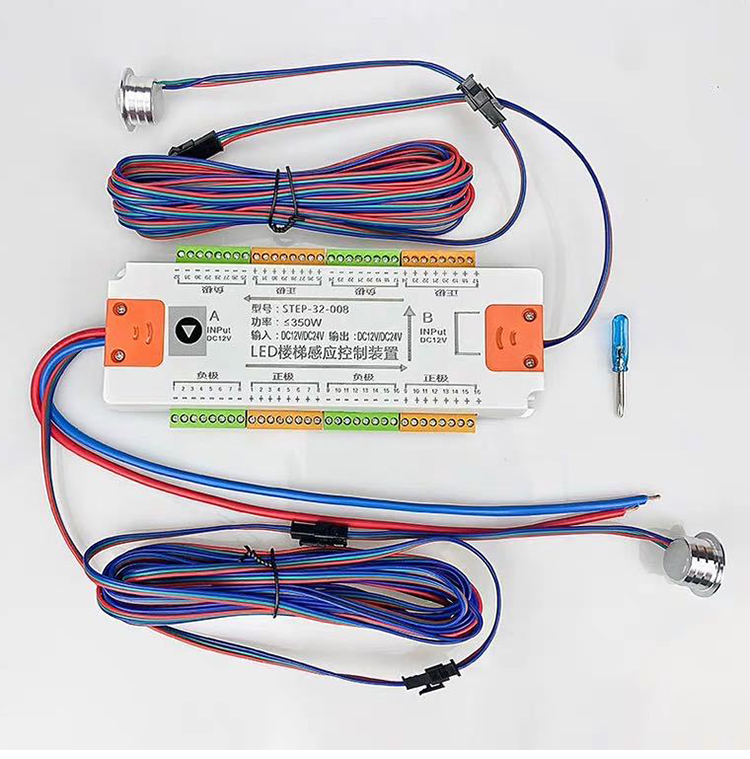

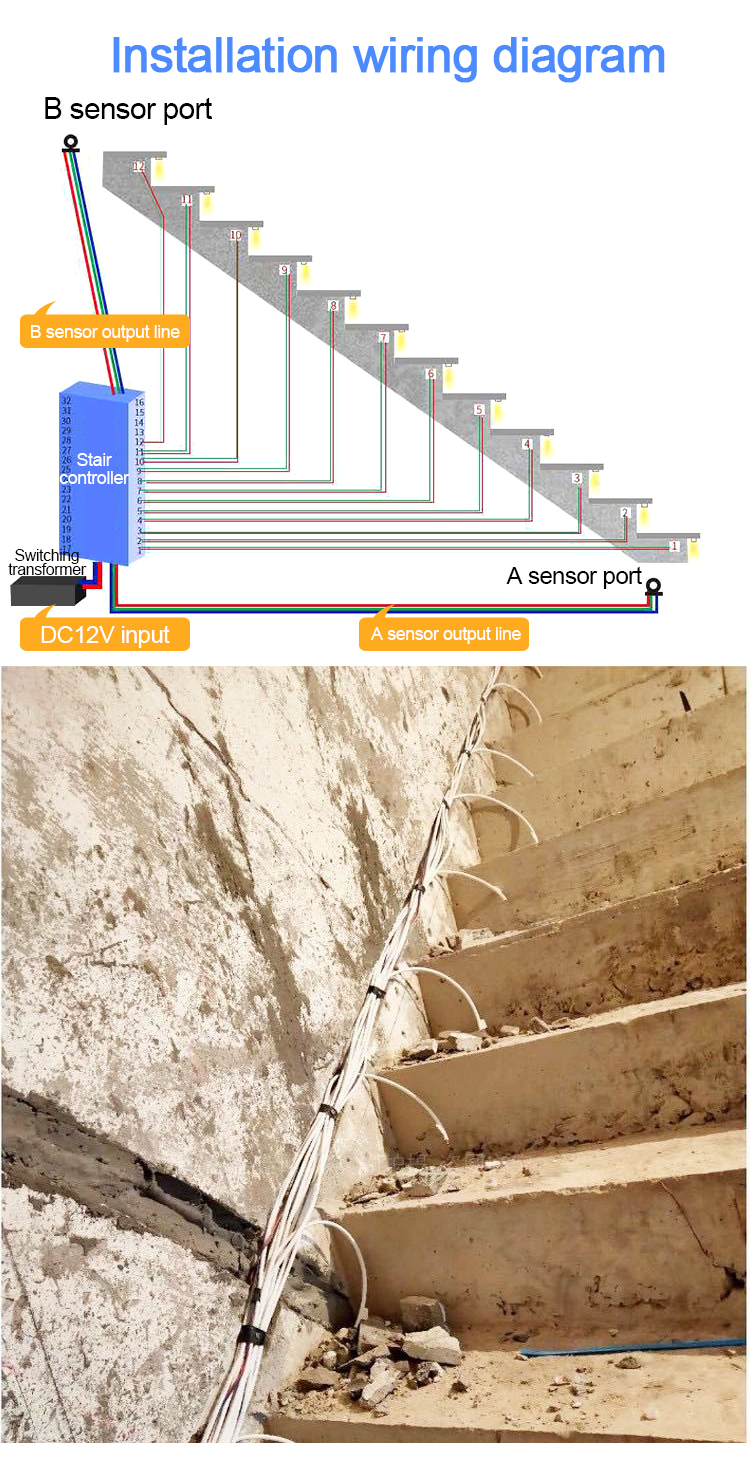

A/B sensors need to be installed at the entrance and exit of the stairs and face the human body.
✓
The product is not waterproof.
⚠ Important note:
The positive and negative terminals of the power supply input of the controller cannot be reversed, the red wire V+ is connected to the positive electrode of the switching power supply, and the blue (or black wire) V- is connected to the negative electrode of the switching power supply.

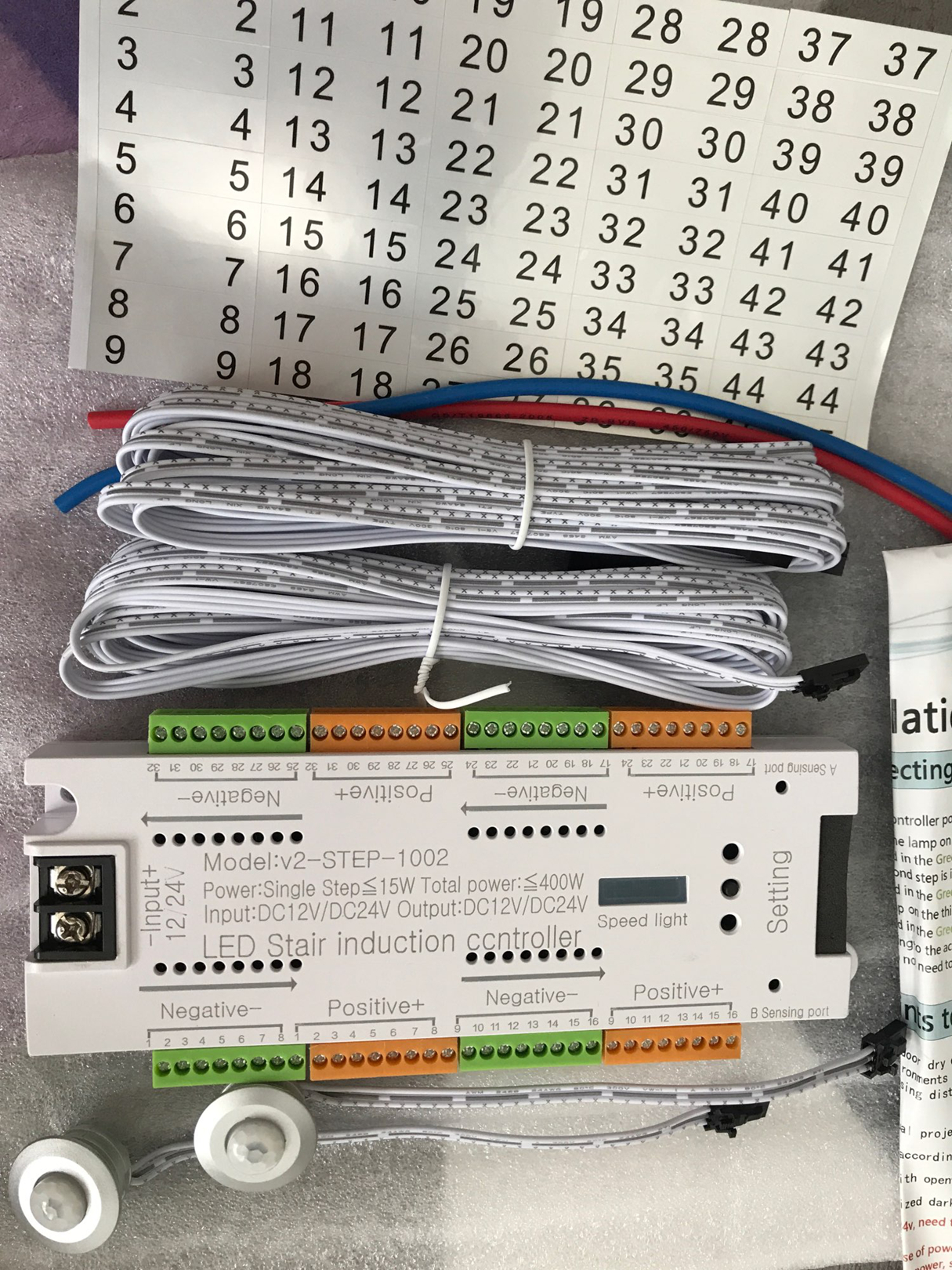

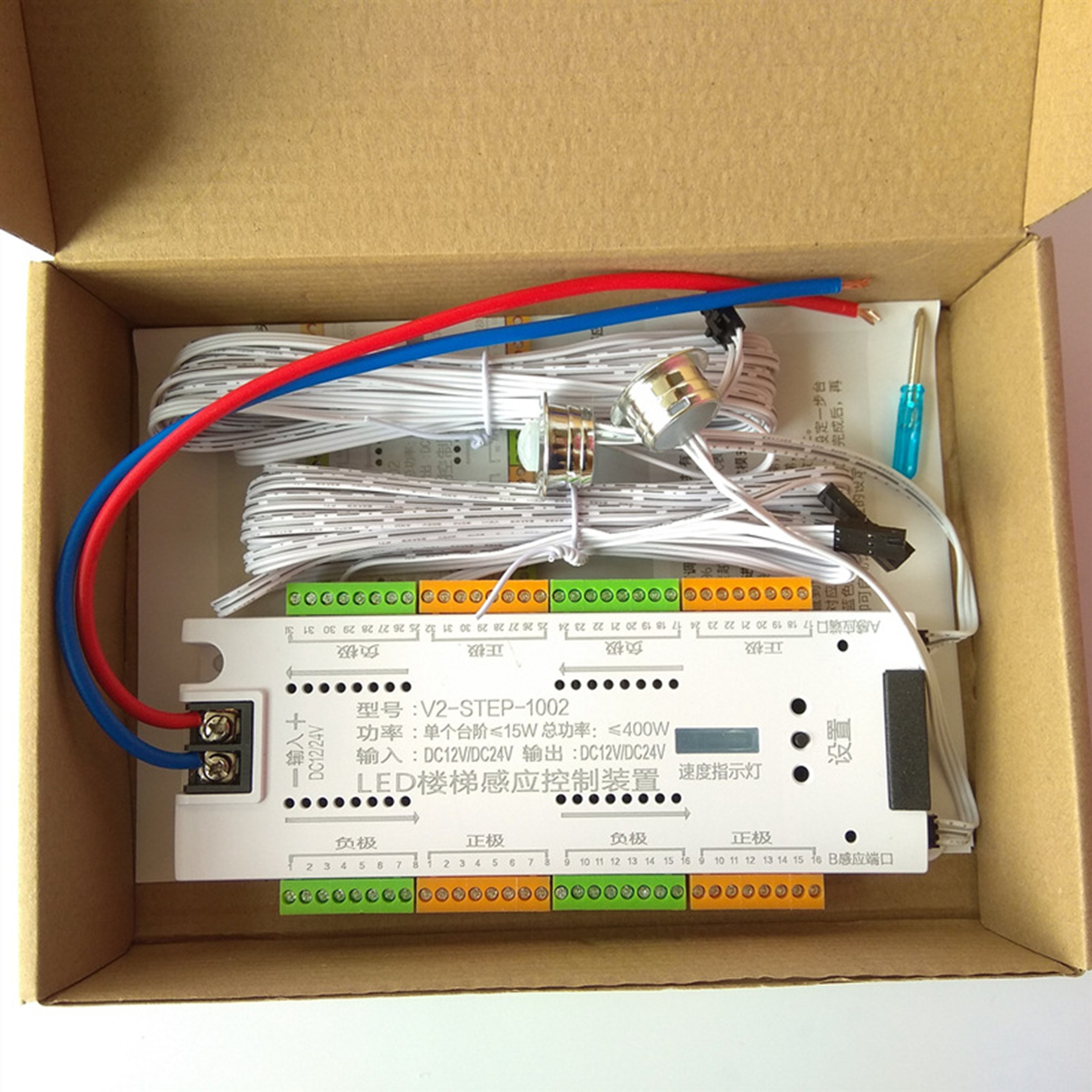

Product Description
| Name |
Step Led light controller |
| Speed |
5 speed levels |
| Power |
400W |
| Input |
DC12V-DC24V |
| Steps control |
32 steps at most |
| Size |
185*80*20mm |

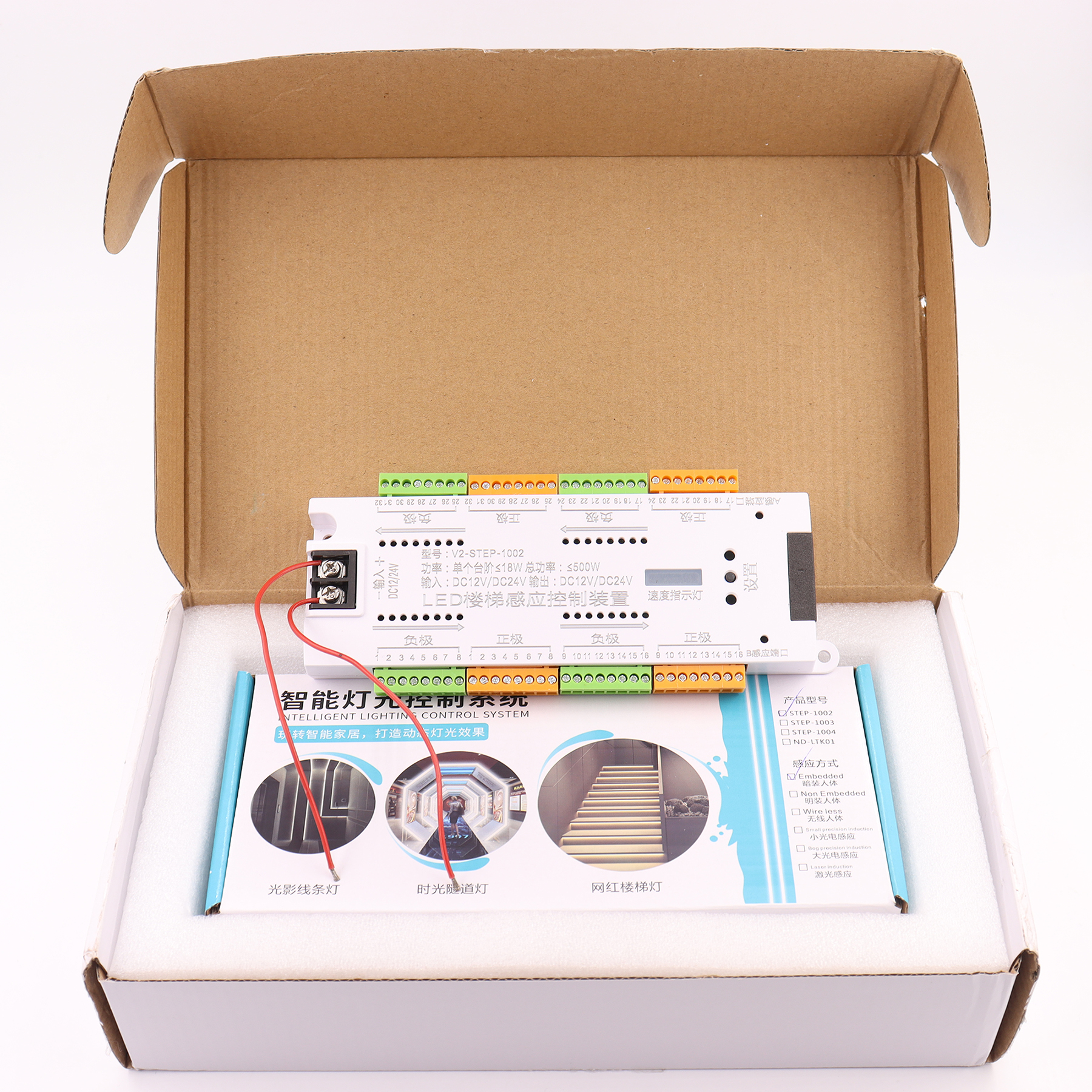

Packing & Delivery
Providing one-stop solutions for lighting projects
FAQ
Q: How many stair lights can this controller support?
This controller supports up to 32 steps, with each channel delivering a maximum of 3A current. It is suitable for residential and commercial stair lighting setups.
Q: What types of LED strips are compatible with this controller?
It supports single-color LED strips powered by 12V or 24V DC, including common types like 2835, 5050, and COB LED strips.
⚠️ Not compatible with RGB or addressable LED strips (such as WS2812, SK6812, etc.).
Q: How are the lights controlled? Do I need sensors?

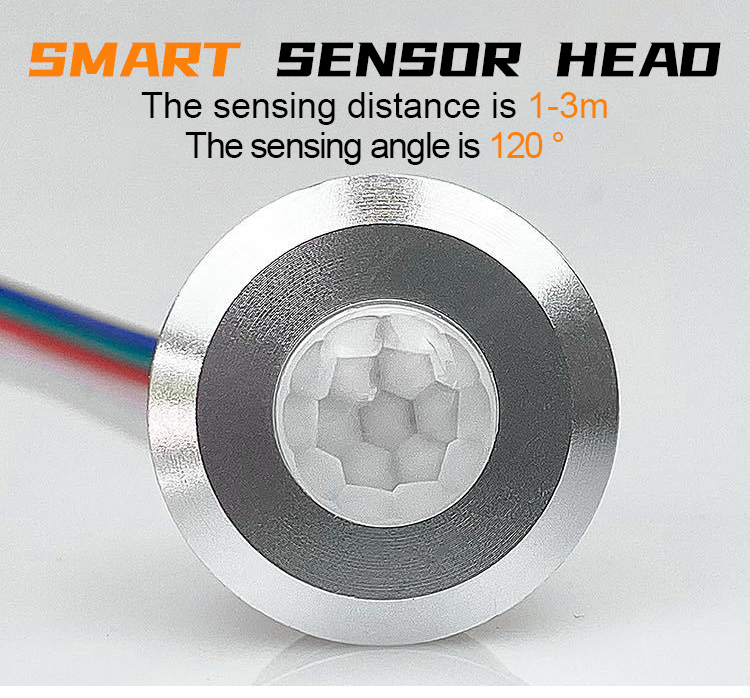

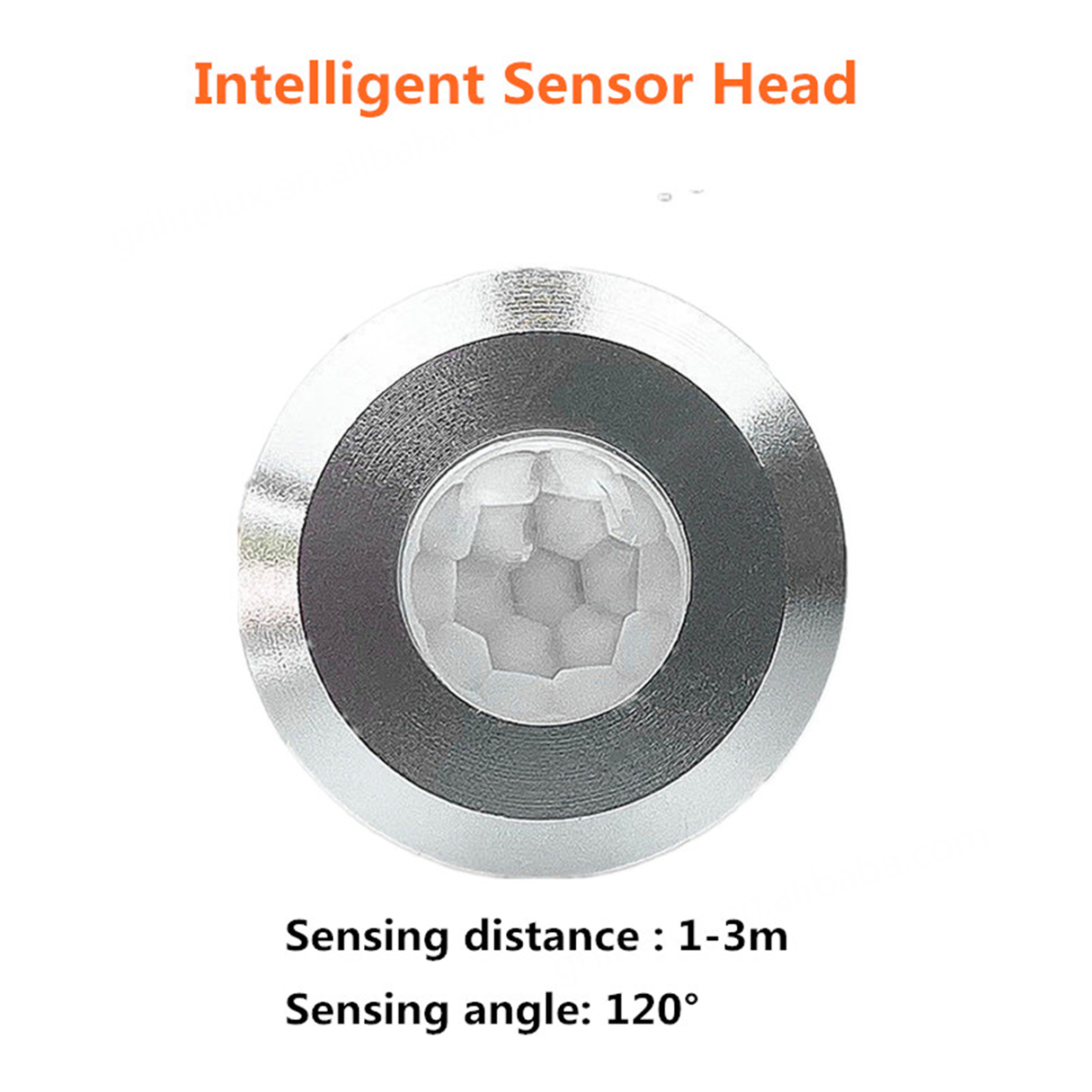

Yes, the controller works with infrared or PIR motion sensors (connected via A/B SENSOR PORT) to enable auto-on/off lighting when people go up or down the stairs. It can also support manual switch mode depending on your setup.

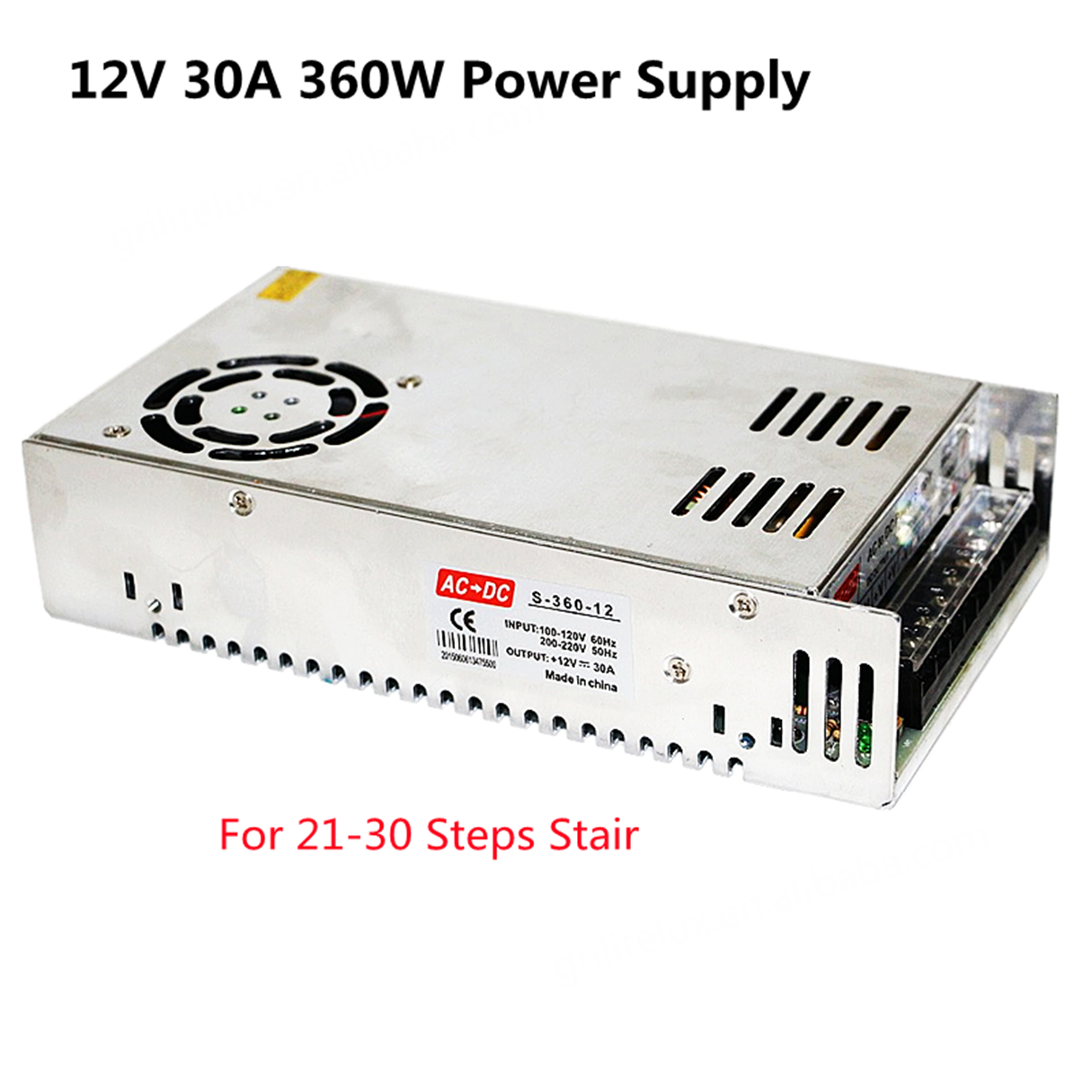

Q: What kind of power supply is required?
You need a 12V or 24V DC power supply, depending on your LED strip voltage. The maximum power the controller can handle is 500W. Make sure to use a power supply with enough wattage for your total LED load.

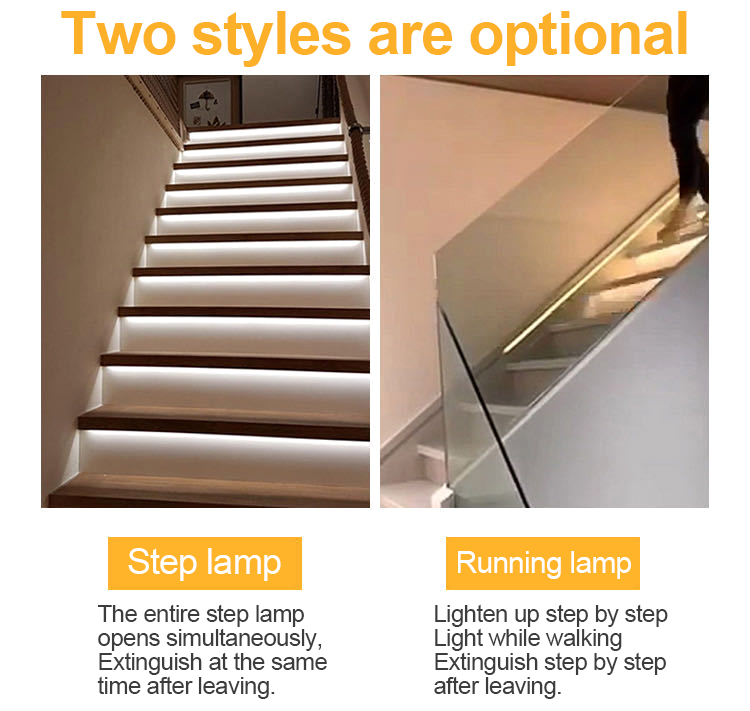

Q: What lighting effects does this controller support?
It supports multiple dynamic effects such as:
* Step-by-step lighting
* Flowing light effect
* One-way or two-way activation

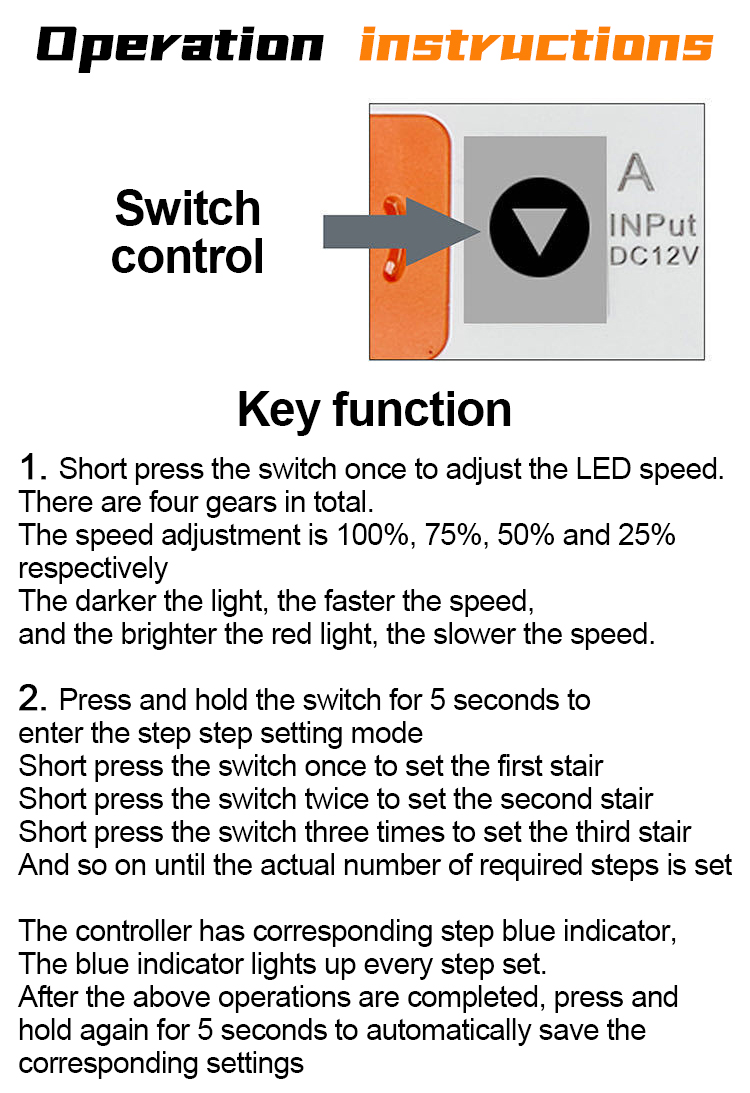

These can be adjusted via the Function button and DIP switch settings on the controller panel.

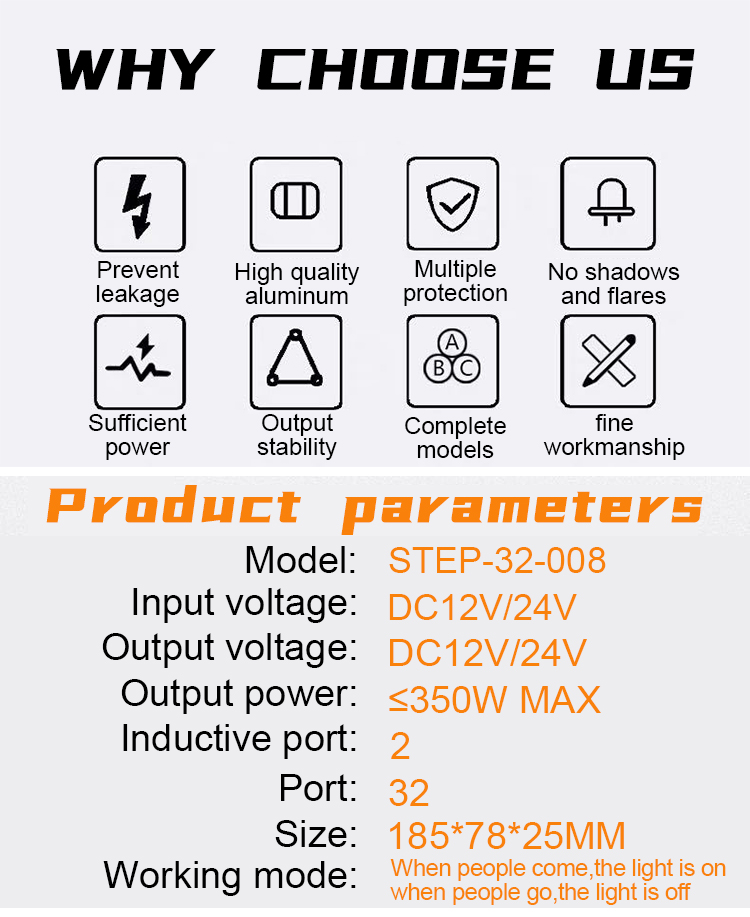

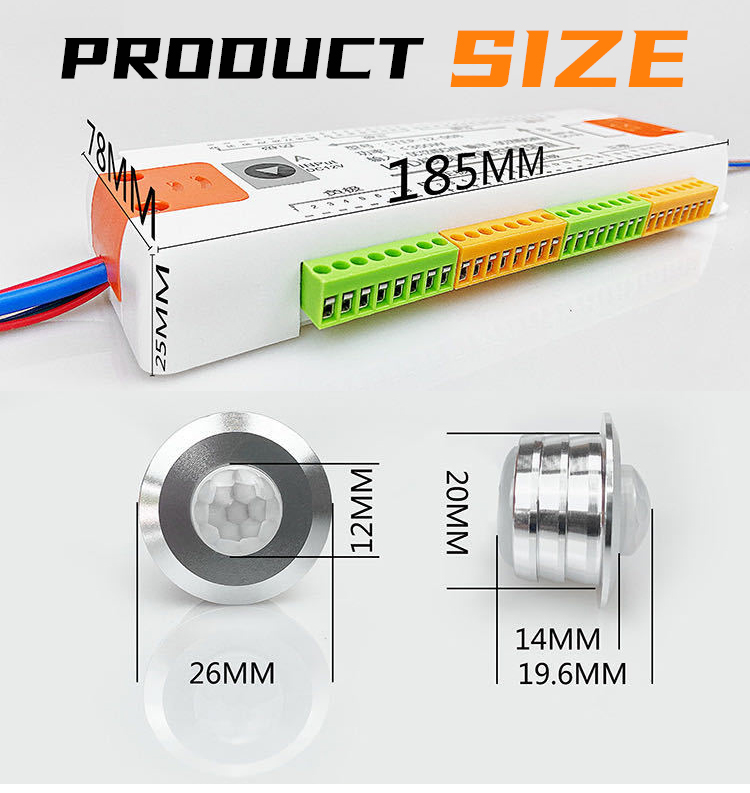

Q: What are the specifications regarding dimensions and capacity?
The controller has a size profile of 185*80*20mm, operates under an input voltage of DC12V-DC24V, and supports a rated power capacity of 400W (up to 500W maximum load limit).
